OUTDOOR ELECTRONIC ENCLOSURE
DESCRIPTION AND INSTALLATION
1. ABOUT THIS DOCUMENT
1.1 Purpose - This practice provides a description and installation instructions for the
®
MESA
SOLE (Modular Electronic Sealed Architecture) cabinet (Fig. 1).
1.2 Reason For Reissue - Whenever this practice is reissued, the reason for reissue will
be stated in this paragraph.
1.3 Information Not Provided in this Practice - Refer to other local practices or
building codes as applicable for the correct methods, tools and materials to be used
in performing procedures not specifically described in this document.
Note: The information contained in this practice is subject to change
without notice and may not be suitable for all applications.
Outside Plant Equipment
®
MESA
SOLE
®

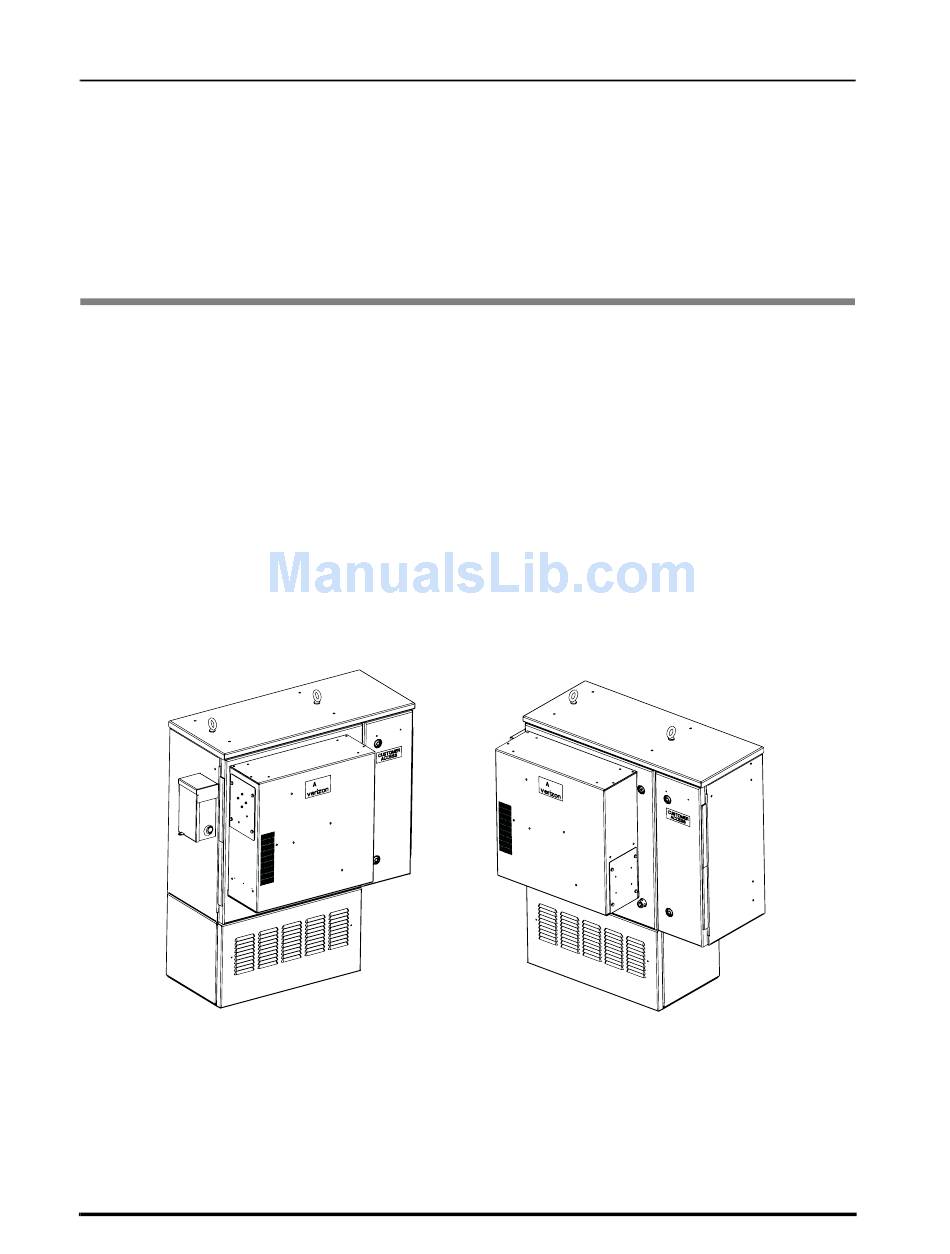

Fig. 1 : MESA
SOLE
Proprietary Information
631-205-105
Version 01, January 2009
Page 1 of 21
