Chapter 2 • The X-431 Scanner

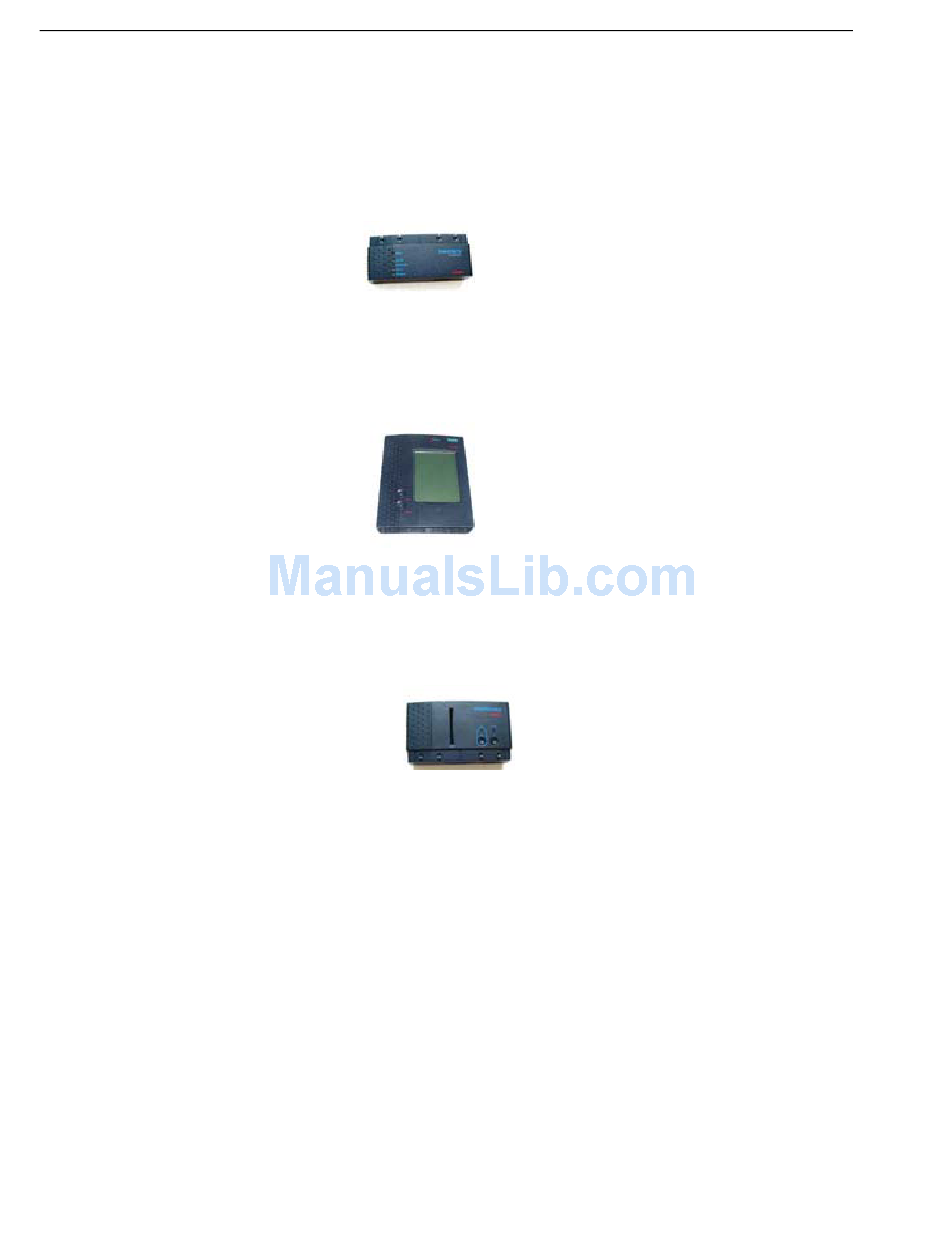

Main Console

The X-431 main console comes apart into three components. Should one of
your components break, you will only need to replace the broken component,
as opposed to replacing the entire console.

Smartbox

The X-431 Smartbox houses the processor. The information contained
within the CF Card is transmitted to the Smartbox, which is initialized with
the software, and can then be used to diagnose vehicles.

Main Unit

The Main Unit houses the LCD display, the on/off button, and the Hot key.
The Mini-Printer plugs into the top of the Main Unit and the Smartbox plugs
into the bottom.

Mini-Printer

The Mini-Printer uses 57mm, heat sensitive paper to provide you with
convenient print-outs of real-time data. To replace the printer paper,
see"Printer Operation - Replacing Paper" on page 2-6.
2 - 2
