Allied 995 TSL Operator And Parts Manual

Loader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

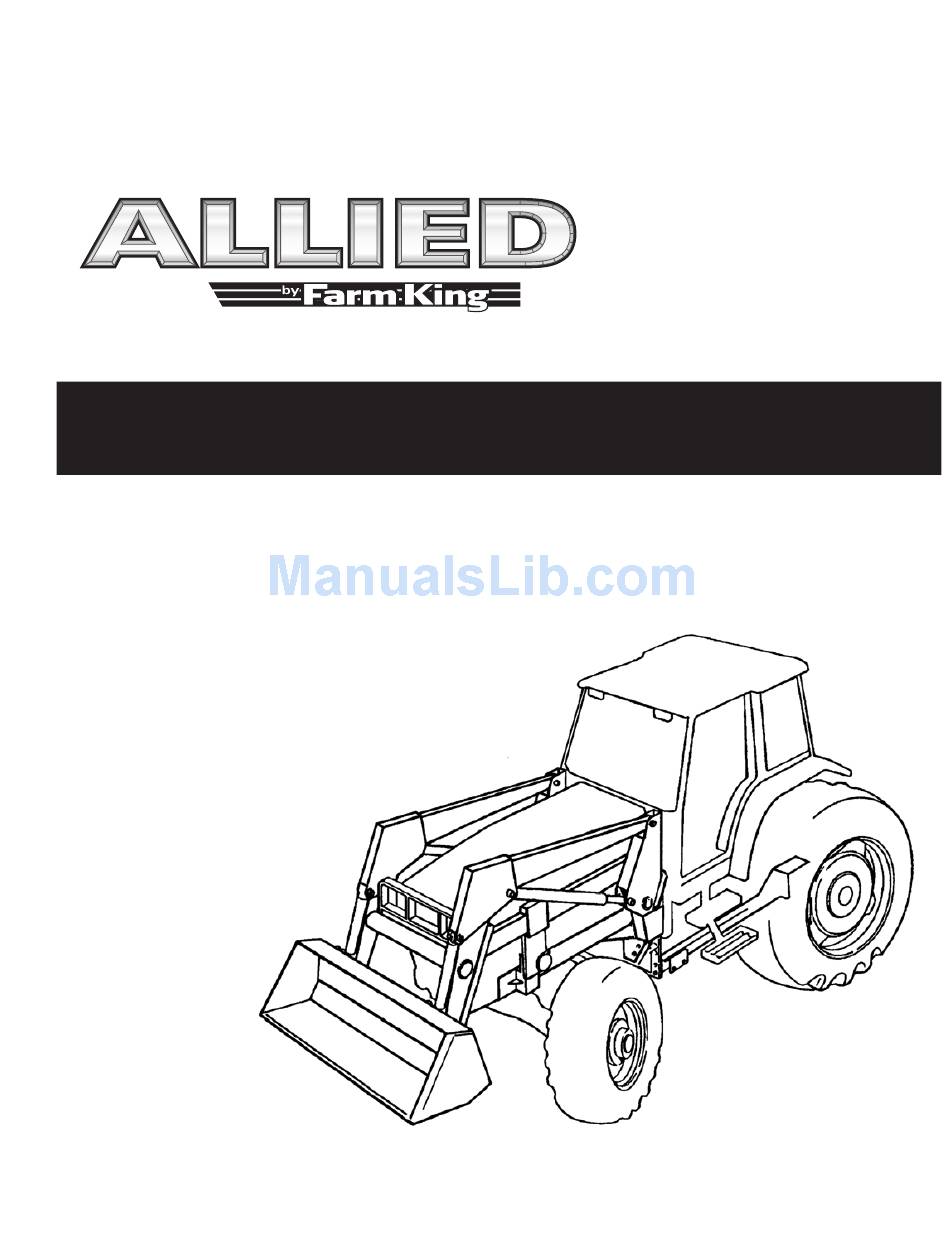

OperatOr and parts Manual
Loader
Models 995 TSL & S995 TSL
122011
P3792

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 995 TSL and is the answer not in the manual?

Questions and answers

Related Manuals for Allied 995 TSL

Summary of Contents for Allied 995 TSL

  • Page 1 OperatOr and parts Manual Loader Models 995 TSL & S995 TSL 122011 P3792...

  • Page 3: Table Of Contents

    Table of Contents - 995 TSL & S995 TSL Loader Table of Contents Introduction ..........................4 • Terminology ........................4 • Hydraulic (Hose Kit) ......................5 Specifications ..........................6 Safety ............................8 • Safety ..........................8 • General Safety ........................9 • Installation ........................9 • Safety Decals ........................10 • Important Precautions ....................

  • Page 4: Introduction

    With one of the largest mounting kit application lists in the industry, there is an Allied front-end loader available for nearly every tractor, large or small, new or old. Custom colors are available to match all tractor brands which adds resale value and visual appeal.

  • Page 5: Hydraulic (Hose Kit)

    Safety - 995 TSL & S995 TSL Loader Hydraulic (Hose Kit) Hose Kit “A” Loader powered by the tractor remotes. Consists of four hoses leading from loader tubing to tractor remote couplers Hose Kit “B” Loader operated by an external OC or CC valve that is powered from the tractor remotes.

  • Page 6: Specifications

    Specifications - 995 TSL & S995 TSL Loader Specifications...
  • Page 7 Specifications - 995 TSL & S995 TSL Loader Model number: 995 TSL regular Mounting height: 52.0 (nominal) Typical range: 48.0 to 56.0 Bucket Lift Description Cylinders Cylinders Bore 3.00 3.50 1.75 2.00 Stroke 24.75 32.50 Extended Length 86.50 85.00 Retracted Length 61.75...

  • Page 8: Safety

    Safety - 995 TSL & S995 TSL Loader Safety Safety Instructions Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions.

  • Page 9: General Safety

    Safety - 995 TSL & S995 TSL Loader General Safety Instructions • Have a first-aid kit available for use and know how to use it. • Have a fire extinguisher available, stored in a highly visible location, and know how to use it.

  • Page 10: Safety Decals

    Safety - 995 TSL & S995 TSL Loader Safety Decals...

  • Page 11: Important Precautions

    Safety - 995 TSL & S995 TSL Loader Important Precautions...

  • Page 12: Operation

    Operation - 995 TSL & S995 TSL Loader Operation Operation General Operating Notes: Refer to tractor Operator's Manual for Operating information on the tractor's hydraulic system. Hydraulic systems using auxiliary valves should have them located for easy reach from the tractor seat.

  • Page 13: Operating Suggestions For Loading

    Operation - 995 TSL & S995 TSL Loader Operating Suggestions for Loading When handling heavy loads, be sure to lower lift arms slowly. This is known as feathering the hydraulic lever. If load is lowered too fast and stopped suddenly, excessive shock loads are created which can damage loader or tractor.

  • Page 14: Operating Suggestions For Backfilling

    Operation - 995 TSL & S995 TSL Loader Operating Suggestions for Backfilling DO THIS Backgrade work surface with a loaded bucket. When backfilling approach pile with a flat Release all pressure on lift cylinders so full bucket. Leave dirt in bucket. Dumping on each weight of bucket is scraping ground.

  • Page 15: Attaching The Loader To Your Tractor

    Operation - 995 TSL & S995 TSL Loader Attaching the Loader to Your Tractor Postions the tractor as centrally as possible and drive, using lowest gear possible, into the loader frame until hoses can be connected. 2. Couple up the hydraulic hose lines to the loader or tractor valve ensuring proper function (see...
  • Page 16 Operation - 995 TSL & S995 TSL Loader Continue to drive the tractor forward until the subframe uprights are seated in the boot. 8. Secure the subframe uprights with the bolts and washers. Torque 500 ft-lb. When mounting for the first time, the front hook...

  • Page 17: Removing The Loader From Your Tractor

    Operation - 995 TSL & S995 TSL Loader Removing the Loader from Your Tractor When removing the loader, it must be fitted with a bucket or other WARNING suitable attachment to give the frame stability after removal. If this is not done, the frame will not remain standing.
  • Page 18 Operation - 995 TSL & S995 TSL Loader 4. Roll back the bucket slightly and simultaneously extend or retract the lift cylinders to free hooks from spools. Then slowly back up the tractor. 5. Once the subframe is clear of the boot and the hook is clear of the mounting boss, roll back the bucket all the way.

  • Page 19: General Instructions

    General Instructions - 995 TSL & S995 TSL Loader General Instructions As with any piece of equipment, the care with which your loader is operated and maintained will greatly affect it’s life and the safety of the people using it.

  • Page 20: Tsl General Note And Instructions

    Operation - 995 TSL & S995 TSL Loader TSL General Note and Instructions The true self leveling system (TSL) utilizes mechanical linkages to maintain bucket level while raising and lowering. The pivot plate weldment, leveling tubes and linkages have been developed to ensure that the bucket remains at the same position throughout its range of motion.

  • Page 21: Maintenance

    Maintenance - 995 TSL & S995 TSL Loader Maintenance Lubrication Lubricate tractor hydraulic unit as indicated in tractor operator's manual. Keep bushings on lift arm pivots and cylinders well lubricated. Use high-grade lithium grease every 8 hours of operation. NOTE: Frequent greasing will prevent contaminants from migrating between the pins and bushings...

  • Page 22: Bolt Torque

    Bolt Torque - 995 TSL & S995 TSL Loader Bolt Torque Checking Bolt Torque The tables shown below give correct torque values for various bolts and hex bolts. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide.

  • Page 24: Parts

    Parts - 995 TSL & S995 TSL Loader Main Frame Assembly...

  • Page 25: Hydraulic Plumbing Assembly And Parts List

    Parts - 995 TSL & S995 TSL Loader Item Part # Description 995 TSL S995 TSL 24701 995 TSL Mainframe 24722 S995 TSL Mainframe 24705 Quick Attach Left 24706 Quick Attach Right 113102 Cross Tube 108827 Pin Weldment 114304 Stand Tube...
  • Page 26 Parts - 995 TSL & S995 TSL Loader Item Part # Description 995 TSL S995 TSL 813228 1/2" Wing Nut (Pl) 81637 1/2" Lock Washer (Pl) 813356 Decal - Buhler Allied x 1.75 114132 Decal - TSL x 1.75 813358...
  • Page 28 Parts - 995 TSL & S995 TSL Loader Hydraulic Plumbing Assembly Manifold Kit X2547...
  • Page 29 Parts - 995 TSL & S995 TSL Loader Item Part # Description 24830 3.0 Dia x 32.50 Cylinder Assembly Lift 24707 3.0 Dia x 24.75 Cylinder Assembly Bucket 812069 Tee 3/4-16 Mjic x 3/4-16 Mjic 886704 Adaptor Str 3/4 Mjic x 3/4 Mjic 811414 Elbow 90°...

  • Page 30: Assembly

    Assembly - 995 TSL & S995 TSL Loader Assembly Hydraulic Cylinder Assembly Item Description Bucket Cylinders Lift Cylinders Diameter 3.00" 3.00" 3.50" Length of Stroke 24.75" 32.50" 32.50" Retracted Length 61.75" 52.50" 52.50" Extended Length 86.50" 85.00" 85.00" Cylinder Assembly No.

  • Page 31: Pre-Delivery Check List

    Safety - 995 TSL & S995 TSL Loader Pre-delivery Check List Before delivering this equipment please complete the following check list. __ 1. The loader has been installed using the appropriate mounting kit for the tractor and loader. __ 2. The hydraulic system installed is appropriate for the tractor and loader.

  • Page 32: Warranty

    Repair Parts Limited Warranty Buhler Industries Inc. warrants Allied by Farm King replacement parts purchased after the expiration of the Buhler Industries Inc. Limited Warranty, and used and serviced as provided for in the Operator’s Manual, to be free from defects in materials or workmanship for a period of thirty (30) days from the invoice date for the parts.
  • Page 33 Warranty Requirements To be covered by warranty, each Allied by Farm King new product must be registered with Buhler Industries Inc. within thirty (30) days of delivery to original retail purchaser. If the customer decides to purchase replacement components before the warranty disposition of such components is determined, Buhler Industries Inc.
  • Page 34 Warranty - 995 TSL & S995 TSL Loader (Note that some provinces or states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusion may not apply to you.) This warranty gives you specific legal rights and you may also have other rights, which vary from province to province or state to state.
  • Page 36 www.farm-king.com www.farm-king.com 1330 43rd Street NW Fargo, North Dakota USA 58102 Ph.: 701.282.7014 | Fax: 701.282.5865 E-mail: info@buhler.com www.farm-king.com Equipment shown is subject to change without notice. ©2010 Buhler Trading Inc. Printed in USA. TSX:BUI a division of Buhler Industries Inc.
