Thank you for purchasing this JVC product.
Before you begin operating this unit, please read the instructions carefully to be
sure you get the best possible performance.
If you have any questions, consult your JVC dealer.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, cover or cabinet.
2. Do not expose this appliance to rain or moisture.
IMPORTANT
1. Installation
Select a place which is level, dry
and neither too hot nor too cold
(between 0˚C and 35˚C /32˚F and
95˚F).
Keep away from direct sunlight.
Do not put it too close to a heater.
2. Power cord
Do not handle the power cord with
wet hands!
Do not bend the power cord
sharply.
3. Malfunctions, etc.
There are no serviceable parts
inside. If anything goes wrong,
unplug the power cord and consult
your dealer.
Do not insert any metallic object.
Do not allow water to get inside.
4
FEATURES
Frequency modulation system which
allows headphones to be used even
in areas where the transmitter cannot
be seen
Reception range (up to 100 m (328 ft):
using JVC measurement system)
Rechargeable system with built-in
Ni-Cd batteries provided
Large 40 mm dia. drivers for high-
quality sound
Automatic Power On/Off transmitter
Auto-level control circuit that auto-
matically adjusts signals to the
appropriate modulation level
Single volume control adjusts the
volume level of the left and right
channels simultaneously
Adaptable to any audio/visual equip-
ment

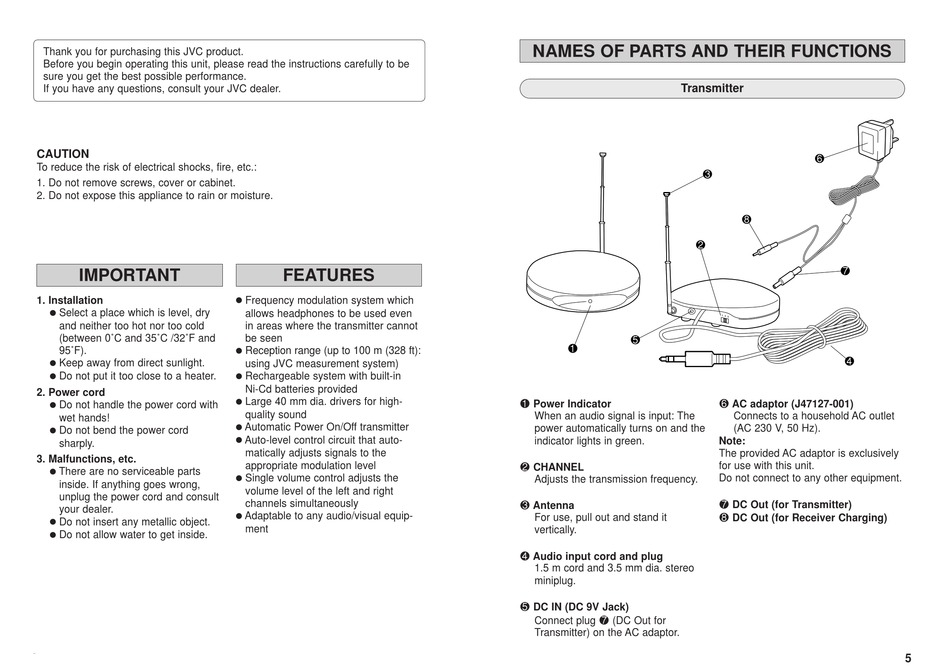

NAMES OF PARTS AND THEIR FUNCTIONS

Transmitter
2
5
1
1 Power Indicator
When an audio signal is input: The
power automatically turns on and the
indicator lights in green.
2 CHANNEL
Adjusts the transmission frequency.
3 Antenna
For use, pull out and stand it
vertically.
4 Audio input cord and plug
1.5 m cord and 3.5 mm dia. stereo
miniplug.
5 DC IN (DC 9V Jack)
Connect plug 7 (DC Out for
Transmitter) on the AC adaptor.
6
3
8
7
4
6 AC adaptor (J47127-001)
Connects to a household AC outlet
(AC 230 V, 50 Hz).
Note:
The provided AC adaptor is exclusively
for use with this unit.
Do not connect to any other equipment.
7 DC Out (for Transmitter)
8 DC Out (for Receiver Charging)
