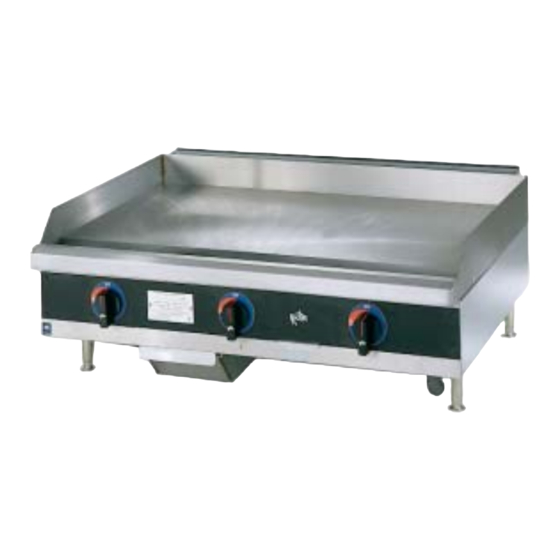

STAR-MAX PROPANE GAS GRIDDLE
8G-624MA-LP 8G-636MA-LP
8G-624TA-LP
8G-624TB-LP
Star
Manufacturing
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: (314) 781-2777
Fax: (314) 781-3636
MODELS
8G-636TA-LP
8G-636TB-LP
636MA-LP
1
Installation
and
Operating
Instructions
2M-Z3793 Rev. B 3/28/03
8G-648MA-LP
8G-648TA-LP
8G-648TB-LP
Advertisement
Table of Contents
Related Manuals for Star Manufacturing 8G-624MA-LP
Summary of Contents for Star Manufacturing 8G-624MA-LP
- Page 1 Star Manufacturing Installation International Inc. Operating 10 Sunnen Drive St. Louis, MO 63143 Instructions Phone: (314) 781-2777 Fax: (314) 781-3636 2M-Z3793 Rev. B 3/28/03 STAR-MAX PROPANE GAS GRIDDLE MODELS 8G-624MA-LP 8G-636MA-LP 8G-648MA-LP 8G-624TA-LP 8G-636TA-LP 8G-648TA-LP 8G-624TB-LP 8G-636TB-LP 8G-648TB-LP 636MA-LP...
-
Page 2: Specifications
SPECIFICATIONS 8G-624MA-LP Type: Manual Control 2 Controls, 40,000 BTU, 498 sq. in. (3213.4 sq cm) Grid Area, 3/4" (1.9 cm) Plate Thickness Approximate Weight: Installed 165 lbs. (74.8 kg); Shipping 175 lbs. (79.4 kg) Dimensions: 24"W x 27 3/4"D x 13 1/2"H (61 cm W x 70.5 cm D x 34.3 cm H) -
Page 3: Safety Symbol
Contact your local authorized service agent for service or required maintenance. Refer to the authorized service center listing provided with the unit. The Star Service Help Desk (1-800-807-9054) is available during normal business hours to answer any questions that may arise. Please have your model number and serial number for... -
Page 4: General Installation Data
They should be familiar with gas installations and your local The Star-Max™ model griddles are equipped for use gas requirements. In any case, your gas company with the types of gas specified on the nameplate. -
Page 5: Exhaust Canopy
EXHAUST CANOPY GAS PIPING It is essential that facilities be provided over the griddle Gas piping shall be of such size and so installed as to to carry off fumes and gases. However, the unit should provide a supply of gas sufficient to meet the full gas not be directly connected to a flue or stack. -
Page 6: Lighting Instructions
BURNER OPERATION (MODELS 624MA, LIGHTING INSTRUCTIONS 636MA, and 648MA ONLY) When griddle is first lit, it will smoke until the To ignite burners, turn burner valve knob to "HI" preservation oils and impurities are burned off. position. Each burner is controlled by an individual 1. - Page 7 COOKING (MODELS 624TA, 636TA, 648TA, CAUTION 624TB, 636TB and 648TB ONLY) Set the thermostat dial knob to the temperature 1. Never use pumice, griddle stones, or abrasives on desired. After a preheating period of 30 minutes, the the surface of chrome top unit. thermostat will automatically maintain the selected 2 Never strike griddle surface with sharp instrument temperature within 50°...
- Page 8 07-03-06...
-
Page 9: Parts List
PARTS LIST 3/28/03 Rev. B EFFECTIVE 07-03-06 RB 8G-624TA-LP and 8G-624TB-LP STAR-MAX GAS GRIDDLE 24" THERMOSTATIC CONTROL MODEL Number Part Number Number Description and Model Designation Unit 2R-Z1273 KNOB-CONTROL G3-Z1315 FRONT PANEL 2A-Z0314 G3-624164 GRIDDLE PLATE ASSEMBLY 624TA G3-GD0001 GRIDDLE PLATE ASSEMBLY... - Page 10 PARTS LIST 3/28/03 Rev. B EFFECTIVE 07-03-06 RB 8G-636TA-LP, 8G-648TA-LP, 8G-636TB-LP and 8G-648TB-LP STAR-MAX GAS GRIDDLE 36" and 48" THERMOSTATIC CONTROL MODEL Number Part Description and Model Designation Number Number Unit 2R-Z1273 KNOB-CONTROL 636/648 G3-Z1312 FRONT PANEL G3-Z1303 FRONT PANEL...
