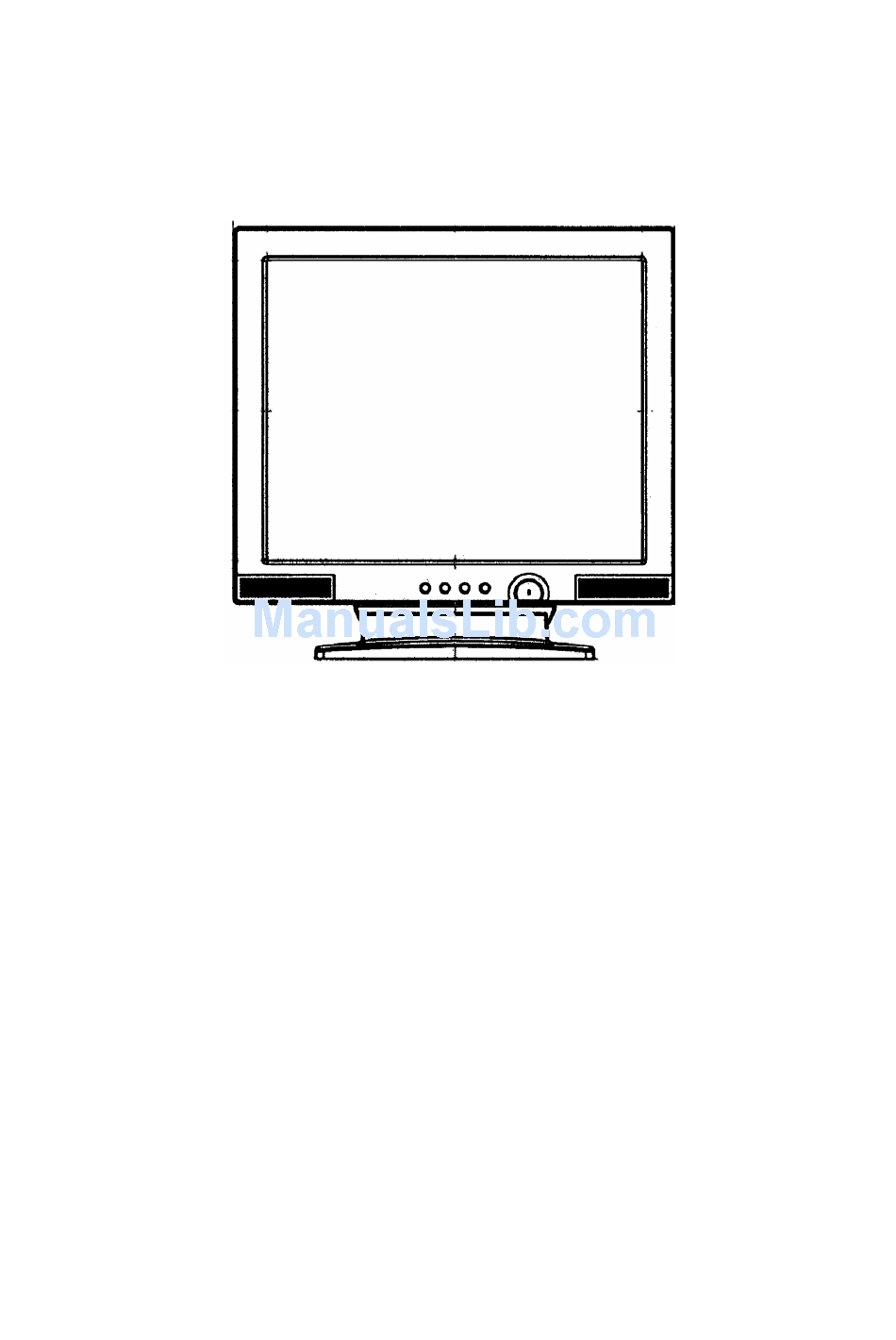

Page 1: Service Manual
Service Manual Model: Belinea 101705 Art. No. 111723 MAXDATA Systeme GmbH Elbestr. 12-16 45768 Marl / Germany... -
Page 2: Table Of Contents
Belinea 101705 (111723) Service Manual TABLE OF CONTENTS PAGE PRECAUTION AND NOTICES ------------------------------------------------------------------------------------- 1 1.1. SAFETY PRECAUTIONS ---------------------------------------------------------------------------------------- 1 1.2. PRODUCT SAFETY NOTICE ----------------------------------------------------------------------------------- 1 1.3. SERVICE NOTES-------------------------------------------------------------------------------------------------- 1 SERVICE TOOL & EQUIPMENT REQUIRED ---------------------------------------------------------- 2 SPECIFICATIONS ----------------------------------------------------------------------------------------------------- 2~3 PRODUCT SPECIFICATIONS 3.1. -
Page 3: Precaution And Notices
Belinea 101705 (111723) Service Manual 1. PRECAUTION AND NOTICES 1.1. SAFETY PRECAUTIONS This monitor is manufactured and tested on a ground principle that a user's safety comes first. However, improper use or installation may cause damage to the monitor as well as to the user. -
Page 4: Service Tool & Equipment Required
Belinea 101705 (111723) Service Manual 2. SERVICE TOOL & EQUIPMENT REQUIRED 1. SIGNAL GEN. 2. MULTIMETER 3. OSCILLOSCOPE 4. SCREW DRIVER 5. IRON 6. ABSORBER 7. SOLDER 8. DUMMY LOAD (5ohm/200W) 3. SPECIFICATIONS 3.1. PRODUCT SPECIFICATIONS LCD Panel 17.0" TFT... -
Page 5: Factory Supporting Modes
Belinea 101705 (111723) Service Manual 3.2. FACTORY SUPPORTING MODES Primary Preset: VESA 1280 x 1024 @ 60Hz Lookup timing table: 1.VGA 720× 400 (70Hz) mode 2.VGA 640× 480 (60Hz) mode 3.VESA 640× 480 (72Hz) mode 4.VESA 640× 480 (75Hz) mode 5.VESA 800×... -
Page 6: Exploded View And Parts List
Belinea 101705 (111723) Service Manual 4.1. Exploded View FIG.1 2C21 2C25 5B06 2C22 1F01 5B07 2C24 5B10 X4 5B08 FIG.2 V901 5B01 1F11 FIG.3 MAIN PCB ASS'Y 5B03 1F12 X2 1F25 1F02 1F21 1F03 5B09 2C26 5B04 X5 CON PCB ASS'Y... -
Page 7: Exploded View Parts List
Belinea 101705 (111723) Service Manual 4.2. EXPLODED VIEW PARTS LIST Ref. No. Source Part No. DESCRIPTION SPECIFICATION Q‘TY REMARK 1F01 2024264203 FRONT BEZEL BAYER PC+ABS FR2000 7035 1F02 2044263905 FUNCTION KEY PC+ABS BAYER FR2000 877U 1F03 2053752901 LED INDIC.-PWR JT166K/JT178K-PMMA 94HB... -
Page 8: Block Diagram
Belinea 101705 (111723) Service Manual 5. BLOCK DIAGRAM SWITCHING AC 100~240V POWER SUPPLY INPUT 3V3/5V I901 OZ9RR 3V3/5V I101,I102 INVERTER ONBACKLITE DC / DC PANEL POWER 3V3/5V ADJBACKLITE I105 PA [0,19] MST8116A SXGA PB [0,19] RSDS H-Sync LCD PANEL SCALAR... -
Page 9: Schematic Diagram
Belinea 101705 (111723) Service Manual 6. SCHEMATIC DIAGRAM 6.1. Power Q108 Q110 AP2305 2SA1020 3.3VPANEL VLCD VLCD_12V R104 R194 Q110, Q111, R194, R192, R186 NC (AU ) R196 R192 1K 1210 Q109 Q111 SOT-223 onPANEL_3.3V onPANEL_12V MMBT3904 MMBT3904 R105 R186... -
Page 10: Input
Belinea 101705 (111723) Service Manual 6.2. Input 3.3V R110 R111 0 R112 C115 47nF ST_DET1 6 R113 C116 D101 1206 0 75 1% R114 C117 47nF P102 GNDR L102 0 ohm RED+ RED- GREEN+ R115 C118 47nF GREEN- L103 0 ohm... -
Page 11: Scaler
Belinea 101705 (111723) Service Manual 6.3. Scaler L108 2A VCC3.3 VCC2.5 L107 C134 C136 C138 L108 C143 C145 .1uF .1uF .1uF .1uF .1uF VCC3.3 VCC2.5 200R 200R C132 C141 10uF/50V 10uF/50V VPLL VDVI VDPLL C133 C135 C137 C139 C142 C144 .1uF... -
Page 12: Panel Interface
Belinea 101705 (111723) Service Manual 6.4. Panel Interface PA[0..5] PB[0..5] PA[0..5] PB[0..5] RA1P RB1P RA1N RB1N P104 RA2P RB2P P105 RA2N RB2N RA3P RB3P RA3N RB3N RB3N RA3N FB0N RB3P PA[6..11] PB[6..11] RA3P FB0P PA[6..11] PB[6..11] RB2N RA2N FB1N RB2P... -
Page 13: Mcu
Belinea 101705 (111723) Service Manual 6.5. MCU option VCPU R187 NC (AU) VCPU D130 R204 C171 10UF (AU) 1N4148 Q112 R187 C170 VCPU MMBT3906 0 £[ R159,R160 2K2 (AU) .1uF 10K X4 10K X4 R170,R171 2K2 (AU) C171 C200 C172... -
Page 14: Audio
Belinea 101705 (111723) Service Manual 6.6. Audio P603 DC12_AUDIO R-in R620 C601 L-in 470U/16V P601 P_JACK pitch=2mm MUTE I601 MUTE TDA7496L AUDIO IN PCB R602 C610 220uF/16V R610 GND1 GND2 GND3 D601 1N4148 GND4 GND5 Q601 R601 100K MUTE GND6... -
Page 15: Inverter
Belinea 101705 (111723) Service Manual 6.7. Inverter F901 7A C912 L901 39pF/3KV P901 VCC12V EE-8.3 I902 78L05(3.3V) C902 C903 NC(5V) 0.1uF 470uF 16V C911 15pF/3KV C913 39pF/3KV T901 R903 C923 Q904 D913 R921 10 (5V) 0.015uF 2N7002K 1N4148 392 1% NC(3.3V) -
Page 16: A/D Power
Belinea 101705 (111723) Service Manual 6.8. A/D power R820 22 D804 2A07 C820 D803 2A07 220PF R833 470K R835 470K C806 0.01uF/250V L803 D802 2A07 C813 R834 R836 D806 D821 FCH20A15 5.2uH Brightness C805 1000pF 470K 470K BYV26C 100uF 400V... -
Page 17: Working Theorem
Belinea 101705 (111723) Service Manual 7. WORKING THEOREM A. Scaling controller The ADC is to convert RGB analog signal to digital signal that scaling chip can acknowledge. The HSYNC input receives a logic signal and provides the frequency reference for pixel clock generation. - Page 18 Belinea 101705 (111723) Service Manual EINV Output w/ Pull-down Resistor TCON “Even” Channel Inversion; 4~12mA driving strength programmable 77 OSP Output w/ Pull-down Resistor TCON “Odd” Channel Start Pulse; 4~12mA driving strength programmable 76 ESP Output w/ Pull-down Resistor TCON “Even” Channel Start Pulse; 4~12mA driving strength...
- Page 19 Belinea 101705 (111723) Service Manual Analog Bandwidth, Full Power 250 MHz Channel to Channel Matching 0.5% Full-Scale 3.3V Supply Voltages VVDD_33 -0.3 3.6 V 2.5V Supply Voltages VVDD_25 -0.3 2.75 V Input Voltage (5V tolerant inputs) VIN5Vtol -0.3 5.0 V Input Voltage (non 5V tolerant inputs) VIN -0.3 VVDD_33 V...
-
Page 20: Wiring Diagram
Belinea 101705 (111723) Service Manual 8. WIRING DIAGRAM LCD PANEL P980 P981 P802 P104 P105 P901 P802 P101 MAIN PCB POWER PCB P107 P102 P988 P601 P701 P902 P701 KEYPAD PCB P961 I/O CABLE W601 W602 SPK(L) SPK(R) -18- 4/22/2004... -
Page 21: Pcb Layout
Belinea 101705 (111723) Service Manual 9. PCB LAYOUT 9.1. MAIN PCB TOP VIEW -19- 4/22/2004... -
Page 22: Main Pcb Bottom View
Belinea 101705 (111723) Service Manual 9.2. MAIN PCB BOTTOM VIEW -20- 4/22/2004... -
Page 23: Con & Power Pcb Top View
Belinea 101705 (111723) Service Manual 9.3. CON & POWER PCB TOP VIEW -21- 4/22/2004... -
Page 24: Con & Power Pcb Bottom View
Belinea 101705 (111723) Service Manual 9.4. CON & POWER PCB BOTTOM VIEW -22- 4/22/2004... -
Page 25: Trouble Shooting Flow Chart
Belinea 101705 (111723) Service Manual 10. TROUBLE SHOOTING FLOW CHART 10.1. NO POWER Check POWER Check Check 3.3V O/P PANEL STAR P802 5,6 PIN P901,P902 C825 Check I901 Check L901,L903 12V O/P T901,T902 C823 Q904,Q905 Check 3.3V Check F801 Check... -
Page 26: No Display
Belinea 101705 (111723) Service Manual 10.2. NO DISPLAY Display Dark Amber Check Power Check IO cable is Check I/P signal is in Check LED Color region connect OK ? pwr saving state? Amber & Green Check X102 Crystal Check I106 is OK ? -
Page 27: No Sound
Belinea 101705 (111723) Service Manual 10.3. NO SOUND Speaker Sound Check R619 has Adjust OSD Volume Check volume PWM output ? control to Max and control voltage on Check Pin6 Voltage I601 Pin6 >0.02V Check P601 Check OSD MUTE connected or not... -
Page 28: Adjustment
Belinea 101705 (111723) Service Manual 11. ADJUSTMENT 11.1. ADJUSTMENT CONDITIONS AND PRECAUTIONS 1. Approximately 30 minutes should be allowed for warm up before proceeding. 2. Adjustments should be undertaken only on those necessary elements since most of them have been carefully preset at the factory. - Page 29 Belinea 101705 (111723) Service Manual F. Adjust Color Temperature: (1) EEPROM INIT (5 BLOCKS): Press “ ▼ ” key move cursor to EEPROM INIT, Press key then monitor will INIT ADC value. (2) Press “ ▲ ” key move cursor to “White Balance”, Press key do white balance adjustment.
-
Page 30: Electrical Parts List
Belinea 101705 (111723) Service Manual 12. ELECTRICAL PARTS LIST When you place a parts order, be sure to indicate the following data on the order: Location No. Parts No. Description LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK MAIN P.C.BOARD... - Page 31 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK C159 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u C164 2336347613 CAP,MINI ELE 105'C 47u/ 16V P=2.5 C165 2336310713 CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 C166 2346410496...
- Page 32 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK P105 2407630250 SOCKET,SMD 6240-50-OR5P 0.5*50P KYOCERA P105 2407630350 SOCKET,SMD 2206BL11250RLP 0.5*50P FRANCON P107 2404371007 CONNECTOR JST PH 8P TOP P=2.0 OR EQUAL Q103 2360100696 XISTOR,PNP R SMD...
- Page 33 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK R178 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J R179 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J R180 2253210196 RES,CHIP 1/10W RC 0603 1/10W...
- Page 34 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK C822 2330005801 CAP,MINI ELE EC 1500u/ 16V 10*20 P=5.0 C823 2330005801 CAP,MINI ELE EC 1500u/ 16V 10*20 P=5.0 C824 2330006312 CAP ELE(3000HR) EC 1500u/ 10V 10*20 P=5.0...
- Page 35 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK D811 2363510895 DIODE,ZENER HZ9C-1 8.9-9.3V 0.5W HITACHI D821 2363300300 DIODE,SCHOTTKY FCH20A15 20A/150V D821 2363301900 DIODE,SCHOTTKY SRF20150 ITO-220 MOSPEC D821 2363302000 DIODE,SCHOTTKY GMR20H150C TO-220FPAB GAMMA D822 2363301000 DIODE,SCHOTTKY...
- Page 36 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK P902 2404380403 CONNECTOR 88227-032X 4.0mm P902 2404380503 CONNECTOR CP044AP1HT1-P3 CVILUX Q601 2361316191 XISTOR,NPN R 2PC945P PHILIPS Q601 2361302591 XISTOR,NPN R 2SC945(P) TO-92 Q801 2361610000 FET,N-CH APO9N701-A TO-220CMF...
- Page 37 Belinea 101705 (111723) Service Manual LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK R918 2253410596 RES,CHIP 1/4 RC 3216 1/4W 1.00M R921 2251439206 RES,CHIP 1/4 RC 1206 1/4 W 392 ohm F R922 2253451296 RES,CHIP 1/4 RC 1206 1/4W 5.1Kohm J...
