Summary of Contents for SEW-Eurodrive DOP11C

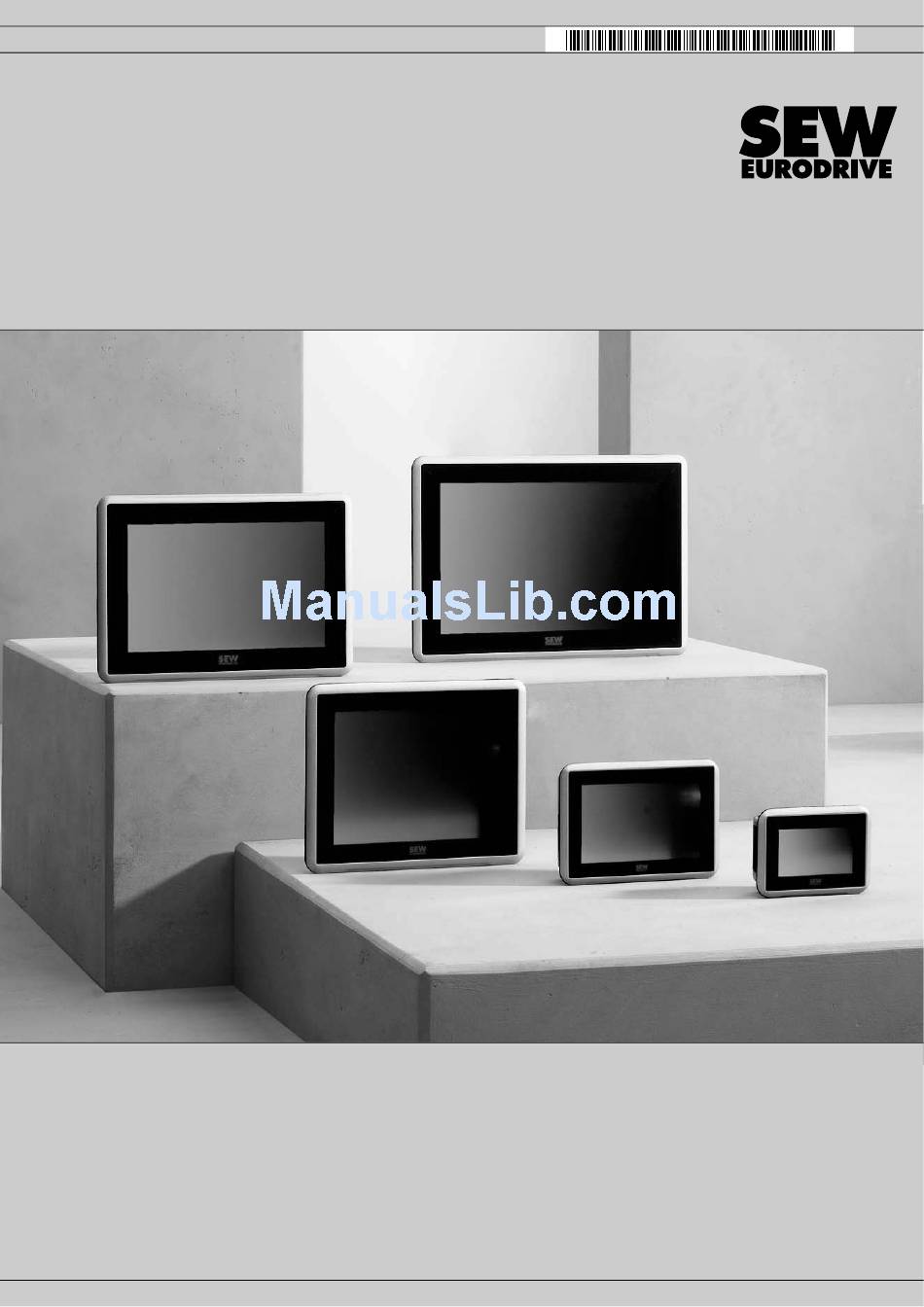

- Page 1 Drive Technology \ Drive Automation \ System Integration \ Services Compact Operating Instructions Operator Panels DOP11C Edition 08/2013 20149344 / EN...
- Page 2 SEW-EURODRIVE—Driving the world...
-
Page 3: Table Of Contents
Type designation and nameplates ............12 3.1.1 Sample type designation ............12 3.1.2 Example nameplate ..............12 Scope of delivery ..................13 DOP11C-40, -70 and -100 ................ 14 3.3.1 Display ..................14 3.3.2 Connections................15 DOP11C-120 and -150 ................16 3.4.1... - Page 4 Cable......................36 7.3.1 RS485 /RS422 communication cable (assembled Sub-D 9-pin) ................36 Dimension sheets ..................37 7.4.1 Dimension sheet DOP11C-40 ........... 37 7.4.2 Dimension sheet DOP11C-70 ........... 38 7.4.3 Dimension sheet DOP11C-100 ..........39 7.4.4 Dimension sheet DOP11C-120 ..........40 7.4.5...
-
Page 5: General Information
• The detailed system manual is provided in PDF format on the enclosed DVD. • All technical documentation from SEW-EURODRIVE is available for download in PDF format from the SEW-EURODRIVE website: www.sew-eurodrive.com. Design of the safety notes 1.2.1... -
Page 6: Design Of The Section-Related Safety Notes
SEW-EURODRIVE to ensure safe operation and to achieve the specified product characteristics and performance features. SEW-EURODRIVE assumes no liability for injury to persons or damage to equipment or property resulting from non-observance of the documentation. In such cases, any liabil- ity for defects is excluded. -
Page 7: Product Names And Trademarks
Product names and trademarks Always use the latest version of the documentation and software. The SEW-EURODRIVE homepage (www.sew-eurodrive.com) provides a wide selec- tion of documentation in various languages available for download. If required, you can also order printed and bound copies of the documentation from SEW-EURODRIVE. -
Page 8: Safety Notes
Do not use the operator panel in or near a mining facility or outdoors, or in areas where there is a risk of explosion or fire hazard. • SEW-EURODRIVE is not liable for modifications, changes, additions and/or alterations to the product. •... -
Page 9: Designated Use
Safety notes Designated use Designated use The operator panel of the DOP11C series are intended for the operation and diagnostics of industrial and commercial systems. The DOP11C series comprises only panels for fixed installation . A suitable response to communication errors between the DOP11C and the controller must be implemented in the controller. -
Page 10: Preventive Measures And Protection Devices
The display glass of the panel is covered with a laminated foil to protect it from scratches during delivery. Pull off the foil carefully after installation to prevent static electricity causing damage to the panel. Compact Operating Instructions – DOP11C... -
Page 11: Operating Notes
Lithium battery, electrolyte capacitors and display. Please observe currently applicable national regulations. Dispose of the following materials separately in accordance with the country-specific regulations in force, as: • Electronics scrap • Plastics • Sheet metal • Copper etc. Compact Operating Instructions – DOP11C... -
Page 12: Unit Structure
262,144 colors 150 = 15.4 inches, 1280 x 800 pixels 262,144 colors Version C Generation Type: DOP = Drive Operator Panel 3.1.2 Example nameplate The nameplate is attached to the rear of the unit: 8795483531 Compact Operating Instructions – DOP11C... -
Page 13: Scope Of Delivery
Scope of delivery Included in the scope of delivery: • DOP11C operator panel • Installation material • Phoenix COMBICON connector for DC 24 V, 5 mm, 3-pin • Compact operating instructions and installation guide (in English) Compact Operating Instructions – DOP11C... -
Page 14: Dop11C-40, -70 And -100
The following sections will give you an overview of the display and the connections. For further details, refer to chapter "Technical data and dimension sheets". 3.3.1 Display The following illustration shows the display on the front of the operator panel: 8993412747 Compact Operating Instructions – DOP11C... -
Page 15: Connections
The following illustration shows the connections on the back of the operator panel: 8993418123 Pos. Connection Description USB interface 1 x USB host 2.0, max. output current 200 mA SD memory card 1 x SD memory card (optional) Compact Operating Instructions – DOP11C... -
Page 16: Dop11C-120 And -150
The following sections will give you an overview of the display and the connections. For further details, refer to chapter "Technical data and dimension sheets". 3.4.1 Display The following illustration shows the display on the front of the operator panel: 8993569675 Compact Operating Instructions – DOP11C... -
Page 17: Connections
The following illustration shows the connections on the back of the operator panel: 9030637323 Pos. Connection Description USB interface 1 x USB host 2.0, max. output current 500 mA SD memory card 1 x SD memory card (can be ordered optionally) Compact Operating Instructions – DOP11C... -
Page 18: Installation
Shielding can also be achieved by routing the cables in grounded sheet metal ducts or metal pipes. In this case, the power cables and control cables should be routed separately. • The unit is grounded via the connector for 24 V voltage supply. Compact Operating Instructions – DOP11C... -
Page 19: Ul-Compliant Installation
= DC 30 V) and limited out- put current (I ≤ 8 A) as an external DC 24 V voltage source. UL certification does not apply to operation in voltage supply systems with a non- grounded star point (IT systems). Compact Operating Instructions – DOP11C... -
Page 20: Space Required For Installation
Unit type Max. thickness of mounting plate: DOP11C-40 11 mm DOP11C-70 DOP11C-100 8 mm DOP11C-120 DOP11C-150 Space required for installing the operator panel: 00 mm 50 mm 50 mm 100 mm 00 mm 8795688843 Compact Operating Instructions – DOP11C... -
Page 21: Installation Diagram
Unpack the delivery and check it. Inform your supplier immediately in the event of damage. NOTICE Place the operator panel on a stable base during installation. If the unit falls down, it could be damaged. Compact Operating Instructions – DOP11C... -
Page 22: Mounting The Operator Panel
Then tighten the screw clockwise (0.4 Nm) until the retaining clamp is pressed against the housing wall. Repeat the procedure for the remaining screws. 8953957771 [1] Screw (Torx, M4) [2] Screw driver (Torx, TX7) [3] Retaining clamp Compact Operating Instructions – DOP11C... -
Page 23: Connecting A Voltage Supply
INFORMATION Make sure the operator panel and the controller system have the same electrical grounding (reference voltage value). Otherwise, communication errors might occur. Voltage supply DOP11C: 9052978827 [1] +24 V [2] 0 V [3] Ground Compact Operating Instructions – DOP11C... -
Page 24: Connecting The Operator Panel
– Disconnect the supply voltage (24 V backup voltage must still be applied) ® – Disconnect the terminals "clockwise rotation" and "enable" on MOVITRAC Additional safety measures must be taken depending on the application to avoid injury to people and damage to machinery. Compact Operating Instructions – DOP11C... -
Page 25: Connecting The Operator Panel To The Frequency Inverter And Pc
3. Switch on the PC. If the HMI Builder.PRO project planning software is not already installed on the PC, install it now and then start the software. 4. Switch on the supply (24 V) for the operator panel and the connected frequency inverter. Compact Operating Instructions – DOP11C... -
Page 26: Connection Types
With the RS485 interface you can connect up to 31 MOVIDRIVE units to one operator panel. ® DOP11C can be directly connected to a frequency inverter of the type MOVIDRIVE the RS485 interface using a 9-pin Sub-D connector. Wiring diagram: RS485 connection:... - Page 27 The bus controller may suffer irreparable damage as a result of a short circuit in the EMC decoupling between the electronics and ground. Never connect the shield ends to DGND! Cable length The permitted total cable length is 200 m. Compact Operating Instructions – DOP11C...
- Page 28 (GND) with a separate cable, connecting the voltage supply (24 V) etc. Ethernet connec- Connecting DOP11C to a PC for programming and remote maintenance via Ethernet tion and TCP/IP.
-
Page 29: Startup
Important notes on startup For a successful startup, a correct electrical connection of the operator panel is required. WARNING The operator panels of the DOP11C series may not execute any safety functions with- out higher-level safety systems. Severe or fatal injuries. -
Page 30: Starting The Unit
The unit starts automatically and shows the start screen on the display when it is con- nected to a voltage supply. Basic settings (e. g. IP addresses) can be set in the service menu. • Touch the start screen to open the service menu. 8969090699 Compact Operating Instructions – DOP11C... -
Page 31: Operation
"Tap anywhere on screen, or touch calibrate will start in 10 seconds" 4. Stop touching the display and then touch it again. The service menu appears. 8969090699 For detailed information on setting options, refer to the system manual. Compact Operating Instructions – DOP11C... -
Page 32: Technical Data And Dimension Sheets
22 W 24 W at rated voltage Fuse Internal DC fuse, 2.0 AT, 5 x 20 mm 3.15 A TT (super slow blow) 5 x 20 mm Accumulator / Bat- Accumulator: MS920-SE Battery: CR 2032 tery Compact Operating Instructions – DOP11C... -
Page 33: Display
DOP11C-70 DOP11C-100 DOP11C-120 DOP11C-150 Operating tempera- −10 °C to +60 °C −10 °C to +50 °C ture Storage temperature -20 to +70 °C Rel. Humidity < 85 % (non-condensed) 5 % – 85 % (non-condensing) Compact Operating Instructions – DOP11C... -
Page 34: Certifications
Compatibly only with a standard SD format with a memory capacity of up to 2 GB. 128 MB (DDR2) 1 GB (DDR2) Application memory 80 MB 1.4 GB 1 x blue / red, programmable using software 1 x multicolor Real-time clock Yes (on chip) Compact Operating Instructions – DOP11C... -
Page 35: Pin Assignment
RJ45 socket Terminal Designation Signal direction operator panel ↔ → → ← ← 4, 5, 7, 8 7.2.3 USB socket Terminal Designation Signal direction operator panel ↔ XXX USB-A VBUS ↔ ↔ USB-B VBUS ↔ ↔ Compact Operating Instructions – DOP11C... -
Page 36: Cable
9-pin D-Sub Male this side with ferrules 4x Cable-labeling TXD/RXD+ 120 Ohm Data+ 0,25W TXD/RXD- Data- Shield connected to D-SUB cover max 15 9-pin D-Sub Male UNC 4-40 Label Cable: LIYCY-Pair 2x2x0,14 or equivalent 8966255627 Compact Operating Instructions – DOP11C... -
Page 37: Dimension Sheets
Technical data and dimension sheets Dimension sheets Dimension sheets 7.4.1 Dimension sheet DOP11C-40 8795697547 Compact Operating Instructions – DOP11C... -
Page 38: Dimension Sheet Dop11C-70
Technical data and dimension sheets Dimension sheets 7.4.2 Dimension sheet DOP11C-70 8797601547 Compact Operating Instructions – DOP11C... -
Page 39: Dimension Sheet Dop11C-100
Technical data and dimension sheets Dimension sheets 7.4.3 Dimension sheet DOP11C-100 8799560715 Compact Operating Instructions – DOP11C... -
Page 40: Dimension Sheet Dop11C-120
Technical data and dimension sheets Dimension sheets 7.4.4 Dimension sheet DOP11C-120 8799614731 Compact Operating Instructions – DOP11C... -
Page 41: Dimension Sheet Dop11C-150
Technical data and dimension sheets Dimension sheets 7.4.5 Dimension sheet DOP11C-150 8799694987 Compact Operating Instructions – DOP11C... -
Page 42: Declaration Of Conformity
DVVHVVPHQW ZDV YHULILHG IRU D W\SLFDO V\VWHP FRQVWHOODWLRQ EXW QRW IRU WKH LQGLYLGXDO SURGXFW Bruchsal Johann Soder Place Date Managing Director Technology a) b) a) Authorized representative for issuing this declaration on behalf of the manufacturer b) Authorized representative for compiling the technical documents 8795491339 Compact Operating Instructions – DOP11C... -
Page 43: Appendix
Gasoline, 98 octane, leaded 9.1.2 Solvent resistance of the display The display can be exposed to the following substances for given time period the without any visible changes: Solvent Time period Acetone 10 min Isopropanol 10 min Toluene Compact Operating Instructions – DOP11C... -
Page 44: Solvent Resistance Of The Coating
1 hour maximum without any noticeable changes. Autotex F157 / F207, Autoflex EBA180L is neither resistant to high pressure steam of over 100 °C nor to the following chemicals: Concentrated inorganic acids Benzyl alcohol Concentrated etching solution Methylene chloride Compact Operating Instructions – DOP11C... - Page 48 SEW-EURODRIVE—Driving the world SEW-EURODRIVE Driving the world SEW-EURODRIVE GmbH & Co KG P.O. Box 3023 76642 BRUCHSAL GERMANY Phone +49 7251 75-0 Fax +49 7251 75-1970 sew@sew-eurodrive.com www.sew-eurodrive.com...
