Summary of Contents for Macrom M-DVD9900

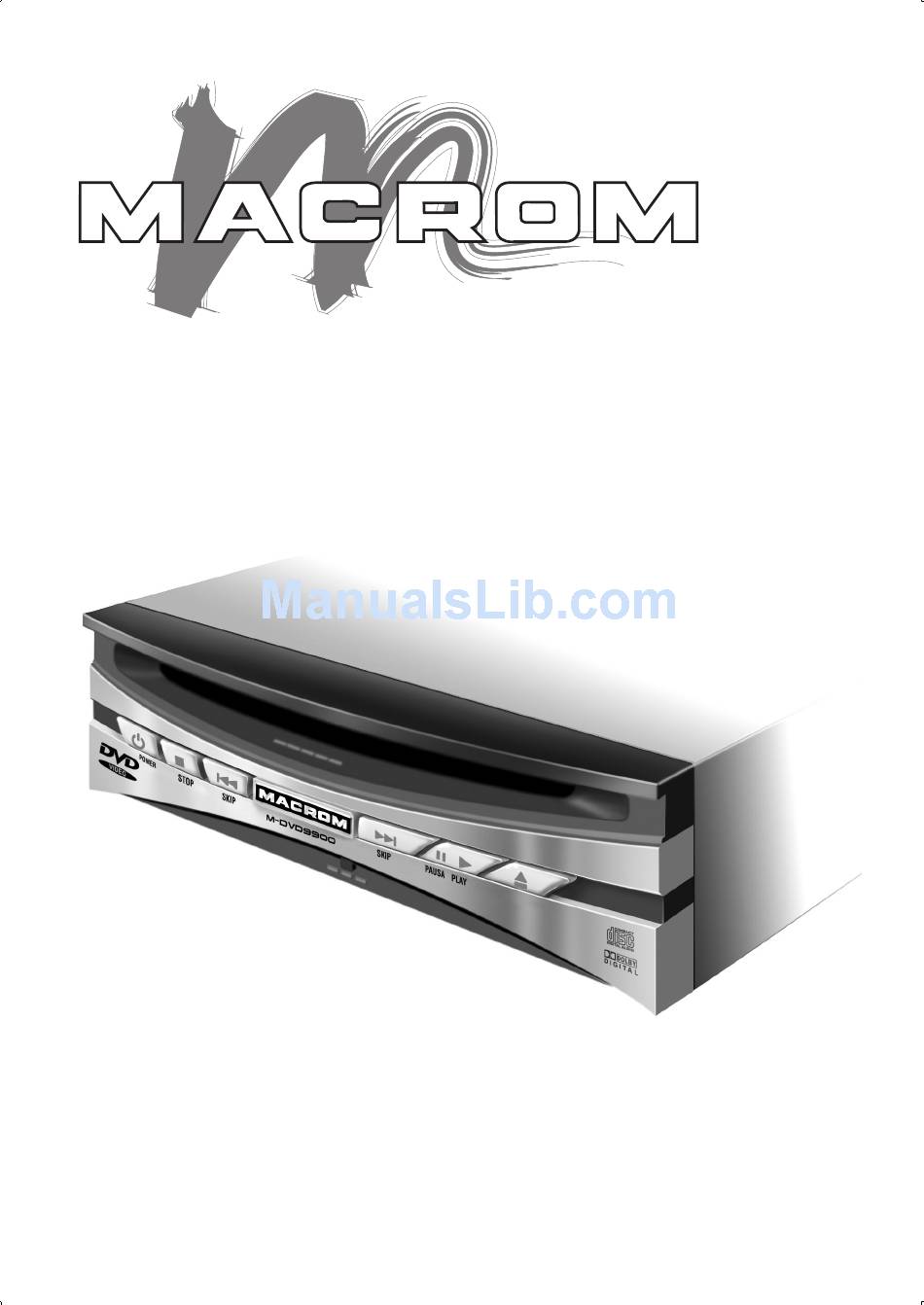

- Page 1 M-DVD9900 1din mobile DVD Player ’ WNER ANUAL...
- Page 2 FEATURES POWER +20% Operating voltage : 12V -10% Low p ower consumption design. COMPATIBILITY This DVD player can play the following discs: DVD, CD, VCD, DVCD, MP3, CD-R,CD-RW. SYSTEM FUNCTIONS VIDEO OUTPUT SYSTEM System MULTI , NTSC or PAL switchable. 1 L/R Audio Output 1 L/R Audio Input 1 AUX Video Input...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety precautions Precautions Identification of controls When using remote control Connections Loading and unloading a disc Turning the power on and off Switching between DVD and AUX Video Input Adjusting the volume Playing a disc Playing/pausing Tuning the sound on and off Stopping playback Fast-forwarding/ fast-reversing Finding the beginning of chapters or tracks... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS +20% This digital versatile disc (DVD) video player uses 12V -10% For future reference, record the model and serial number (located on the case of the DVD player) in the space provided. CAUTION: THIS DVD VIDEO PLAYER IS A CLASS I LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. -
Page 5: Precautions
Precautions This symbol means important instructions. Warning Failure to heed them can result in serious injury or death. Do not disassemble or alter this unit. Doing so may result in an accident, fire or electric shock. Keep small objects such as battery out of the reach of children. If swallowed, consult a physician immediately. -
Page 6: Precautions
Precautions Temperature Be sure the temperature inside the vehicle is between +55° C(+131° F) and -5°C(+23°F) before turning your unit on. Moisture condensation You may notice the CD playback sound wavering due to condensation. If this happens remove the disc from the player and wait an hour for the moisture to evaporate. -
Page 7: Identification Of Controls
Identification of controls See the page in for the details. Front panel Disc slot/ open, close indicator PLAYER/AUX/MONITOR EJECT STOP SKIP + indicators button/indicator button/indicator button/indicator SKIP - POWER PLAY/PAUSE button/indicator button/ indicator button/indicator The button POWER Power on/off by pressing this button EJECT To eject a disc Play/Pause... -
Page 8: Identification Of Controls
Identification of controls Remote Control EJECT AV SEL To locate next chapter or track To change the playback speed REPEAT To locate previous chapter or track In menu mode, the button(s) of these four are used to select your desired item. EJECT button to eject the disc POWER on/off button AV SEL button... -
Page 9: When Using Remote Control
When using remote control Preparing the remote control Insert battery (3V, CR2025) into the remote control. Make sure the + side of the battery faces up before closing the cover. 1) Open the cover, pull the cover as illustrated 2)Insert cell (3V),Close the cover Operating with the remote control This section shows you how to use the remote control. - Page 10 Connections Rear of product REMOTE Remote control sensor jack. Connect IR sensor plug directly to this jack for remote operation. Nacarat Yellow Left (White) Right (Red) Yellow Connect either AUDIO OUT AUDIO OUT AUDIO IN VIDEO OUT Sub woofer Front speaker RCA input for video games Rear speaker Center speaker...
-
Page 11: Connections
Connections NOTE Connect Audio out( audio related, see page 19) SPDIF/RAW RAW DATA VIA SPDIF Coaxial cable SPDIF/PCM PCM DATA VIA SPDIF Audio cable ANALOG ANALOG OUTPUT NOTE 1 Refer to the owner's manual for the connected monitor as well. "... -
Page 12: Loading And Unloading A Disc
Loading and unloading a disc Loading and unloading a disc Turn on the power before loading and unloading discs. Insert the disc with the side Unloading disc containing words diagrams Press EJECT button, the disc is automatically facing upwards. ejected. Once the disc is partially inserted, it is drawn in automatically. -
Page 13: Turning The Power On And Off
Turning the power on and off Switching between External and Internal Video Adjusting the volume Turning the power on and off AV SEL AV SEL Press POWER button The power turns on. To turn the power off, Press POWER button again. Play Position Memory Function Even if you turn power off or switch the ignition Key to OFF during playback or change the video... -
Page 14: Playing A Disc Playing/Pausing Tuning The Sound On And Off
Playing a disc Playing/pausing Tuning the sound on and off Playing a disc Caution With some DVDs, certain operations are disabled. Such operations are not possible on such DVDs. The DVD functions described in this manual are not supported by all instructions for details on the features supported. -
Page 15: Stopping Playback Fast-Forwarding/ Fast-Reversing Finding The Beginning Of Chapters Or Tracks
Stopping playback Fast-forwarding/ fast-reversing Finding the beginning of chapters or tracks Fast-forwarding/ fast-reversing During playback press (fast-reverse) or (fast-forward) Each time you press the button, the playback speed changes to X1, X2, X3 , X4 the normal speed or normal speed. Press to return to normal playback. -
Page 16: Playing From The Desired Location
Playing from the desired location Input the chapter, the title or the time from which you want to start playback using the joystick and the number keys(0~9). TITLE 02/02 CHAPTER 012/057 TOTAL TITLE NUMBER CURRENT TITLE TOTAL CHAPTER NUMBER CURRENT CHAPTER (When title 2 is input ) TITLE 02/02 CHAPTER 012/057 Playing from... -
Page 17: Chapter/Track/Title Repeat Playback
Chapter/track/title repeat playback Switching the audio language Switching the audio language On DVDs including multiple audio modes or multiple audio languages, the audio language can be switched during playback. REPEAT REPEAT During playback, press AUDIO. The sound switches between the different audio modes recorded on the disc each time the button is pressed. -
Page 18: Switching The Angle
Switching the angle Switching the subtitles Switching the subtitles With DVDs on which multiple subtitle languages are recorded, the subtitle language can be switched during playback. During playback, press SUB. The subtitle language switches between the languages recorded and you also can select whether to display the subtitles on the disc each time the button is pressed. -
Page 19: Displaying The Disc Status
Displaying the disc status Displaying the disc status Use the procedure described below to display the status(track number, etc.)of the currently playing Video CD or Audio CD on the screen. During playback, press DISPLAY . The playback status switches each time the button is pressed. -
Page 20: Adjusting The Sound Setting
Adjusting the sound setting Adjusting the sound setting The sound settings can be changed to suit your personal preferences and usage. To select the audio functions as you like: Press the VOL +,- button Press SEL button on the remote repeatedly adjust the setting until the item you want to adjust appears on the screen as you like... -
Page 21: Changing The Default Settings(Setup)
Changing the default settings(setup) Changing EJECT EJECT the default settings(setup) Press SETUP during stop. The setting menu appears. Press joystick button to move the cursor to the item, then press ENTER to select the item you want. SETUP MENU MAIN PAGE GENERAL SETUP SPEAKER... - Page 22 Changing the default settings(setup) EJECT EJECT SETUP MENU MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP SPEAKER SETUP LT/RT STEREO DOWNMIX DOWNMIX LOUD SPEAKERS SETUP LT/RT SET LT/RT DOWNMIX STEREO SET STEREO DOWNMIX AUDIO SETUP ANALOG SPDIF/RAW AUDIO OUT SPDIF/PCM LINE OUT...
- Page 23 Changing the default settings(setup) EJECT EJECT SETUP MENU MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP OP MODE LINE OUT OPERATIONAL MODE SETUP LINE OUT MODE RF REMOD TV WITH NO AV INPUT DUAL MONO DUAL MONO(1+1) SETUP STEREO SET STEREO MODE L-MONO...
- Page 24 Changing the default settings(setup) EJECT EJECT SETUP MENU MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP CHINA FRANCE PREFERENCES HONG KONG JAPAN TAIWAN MULTI NTSC TV TYPE LOCALE PARENTAL 3 PG PASSWORD CHANGE 4 PG 13 RESET DEFAULTS 6 PG-R 7 NC-17...
- Page 25 Changing the default settings(setup) EJECT EJECT SETUP MENU MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP SET TO G, LEVEL 2, PG, PARENTAL SET PARENTAL CONTROL PG13, LEVEL 5, PG-R, 3 PG NC-17,ADULT, 4 PG 13 OR NO-PARENTAL 6 PG-R 7 NC-17 8 ADULT...
-
Page 26: Mp3 Instruction
MP3 instruction EJECT EJECT MP3 instruction Insert the MP3 disc then playback starts, the MENU of elapsed track appears. SMART NAV 1 J&Z ROOT PLAY MODE REP-ONE PRESS To play the preceding or the next track In play mode, it starts to fast-forward or fast-revers Number button To select the track with the number button Note: For some discs it is not possible to select... -
Page 27: Others
Others In case of difficulty If operation freezes, the screen goes black or the unit should otherwise not function properly, try turning the power off then back on. Alternatively, try the following methods in the order listed until the unit returns to normal playback mode. 1) Turn the car’s ignition OFF and back ON again. -
Page 28: Note Specifications
Note Specifications Note Remove this CD stopper before use. Remove this CD stopper before use. Apply the paper Apply the paper cover (supplied) on cover (supplied) on the screw hole to the screw hole to keep out dust. keep out dust. Two black sticking papers There are 2 mounting screws on the case of the DVD player( as above figure... -
Page 29: Accessories And Hardware
Accessories and Hardware Mounting Bracket Rear Strap (Half Sleeve) X 1 (Brace) X 1 Side bracket X 2 Hex bolt M5 x 14 Flat head screw M5 x 4 Mounting Screw M5 Removable Trim Ring Mounting Grommet equipped on the unit Lithium Button Cell (3V) x 1 Remote control x 1 IR sensor x1... - Page 30 MACROM UXEMBOURG ENDRISO RANCH ., CH 6850 M OREE ENDRISIO WITZERLAND...
