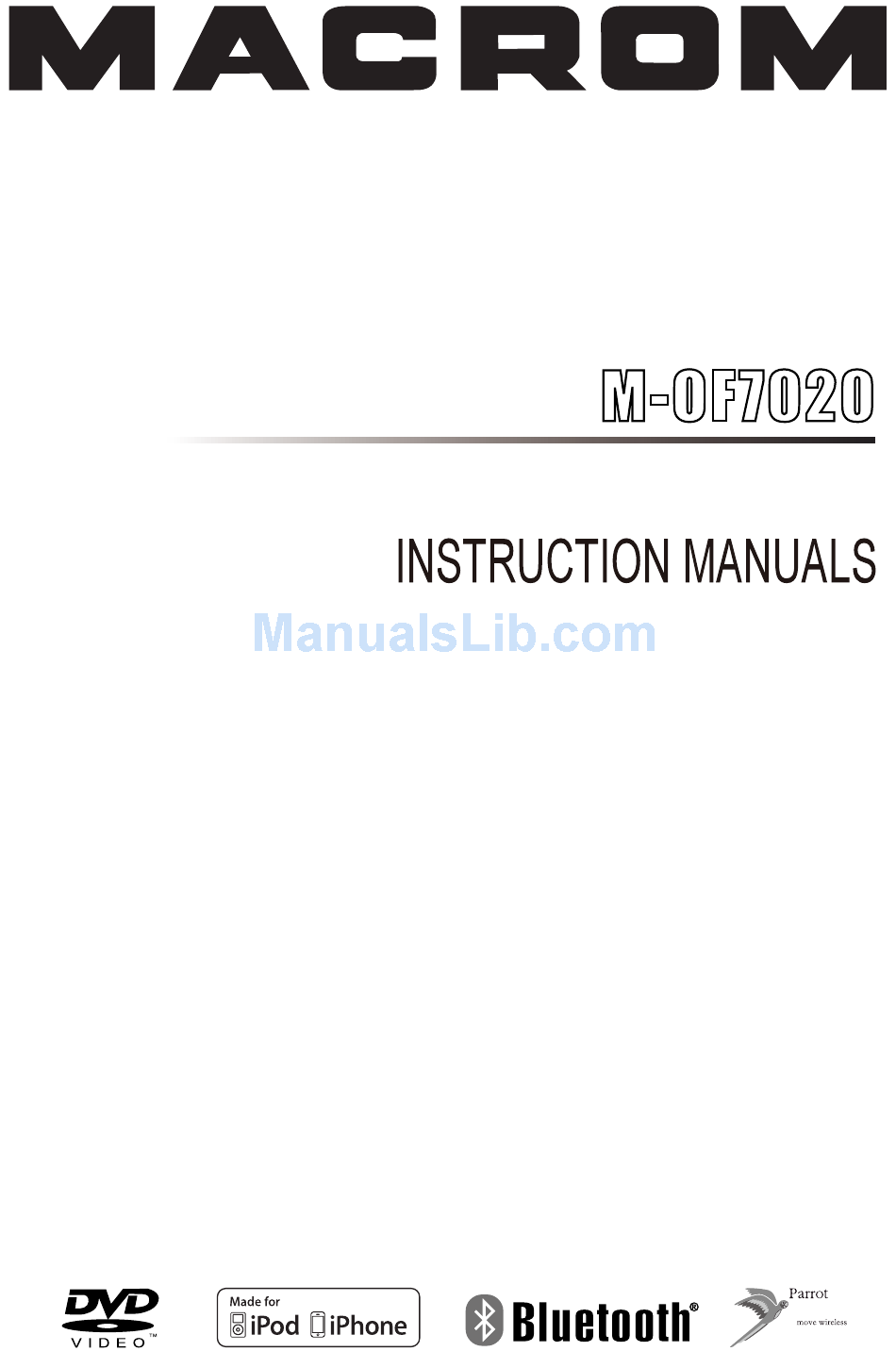

- Page 1 NAVIGATION MULTIMEDIA RECEIVER...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. P l e a s e d o n ' t c h a n g e t h e f u s e o n Please read through these operating the power cord without professional instructions so you will know how to guidance, using improper fuse may operate your model properly. -
Page 3: Precautions
The BLUETOOTH ® world mark and logos are registered tredamarks owned by the Bluetooth SIG, Inc. and any use of such marks by ALDINET S.p.A. is under license. The MACROM brand is a registere trademark of ALDINET S.p.A. and any use of such marks by ALDINET S.p.A. is under license. -
Page 4: Table Of Contents
Contents Safety Precautions ........1 Select iPod as playing source....16 Play ............16 Precautions ..........2 Adjust sound ..........17 Contents ............3 Adjust volume ........17 Mute ............17 Before using ..........4 Select preset equalizer ......17 Front Panel ..........4 Adjust fader/balance ......17 Remote Control........5 Notes of remote control using ....6 SETUP............18 Uninstall Battery........6 Display System ........18... -
Page 5: Before Using
Before using Front Panel Press any key except [ ] and [ ] to turn on the unit. Notice: The graphic in this manual is for reference only, and may be different from that in real unit. Reference to real unit is suggested. 1. -
Page 6: Remote Control
Before using Remote Control 1. Media source menu. 2. Eject the disc 3. Select DVD dialogue language Show music catalog 4. Display information 5. Zoom 6. Select radio band 7. Setup menu 8. Goto search 9. A-B Repeat 10. Repeat playback 11. -
Page 7: Notes Of Remote Control Using
Before using Notes of remote control using 1) Aim the remote control at the remote sensor on the unit. 2) Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3) DO NOT store the remote control under direct sunlight or in high temperature environment, or it may not function properly. -
Page 8: Basic Operations
Basic operations Power On/Off Turn on: Press any key except [ ] on the front panel or [POWER] key on the remote control. Turn off: When on, long press [ VOL / ] knob on the panel or press [POWER] key on the remote control. -
Page 9: Radio Mode
Radio mode Select radio as playing source Press [ Radio ] button on the panel to enter main radio menu. Select one radio band Press the [ BAND ] button on the bottom of the user interface or on the remote control unit to select one radio band among FM1, FM2, FM3 and AM1. -
Page 10: Local Seeking
Radio mode Local Seeking Touch [Options] on the screen, touch the buttons right to [ Local ] to turn on/off Radio Local function. When Local On, only stations with sufficient signal strength will be detected. RDS Text RDS service availability varies with areas. Please understand if RDS service is not available in your area, the following service is not available. -
Page 11: Play
PLAY Load Disc You can play video, audio or images stored on the following discs: • DVD Video, DVD-R, DVD-RW • VCD • Audio CD, CD-R, CD-RW Note: Ensure that the disc contains playable content. Eject the Disc Press the [ ] key on the front panel or remote control to eject the disc. -
Page 12: Play/Pause
PLAY Play/Pause 1. Once a disc, USB or SD/MMC card is inserted, play starts automatically. For DVD movie, if a menu appears, press [ ] to start play. 2. To pause, touch [ To resume play, touch [ Previous/Next (DVD) Touch [ ] / [ ] key on the screen to skip to previous/next track/... -
Page 13: Repeat A-B
PLAY For CD/MP3/WMA files: 1. Touch [ ] to select: ]: Play the current chapter repeatedly. ]: Play all the tracks in current folder repeatedly. ]: Play all the tracks repeatedly. ]: Cancel repeat play You can also press REPEAT on the remote control to select repeated play mode. Repeat A-B You can repeat a specific of video file (repeat A-B). -
Page 14: Rotate Pictures
PLAY Rotate Pictures 1. When you view pictures, touch bottom half of the screen to display control buttons menu on the screen. 2. Touch [ Rotate ] repeatedly to rotate the picture. Zoom You can zoom in pictures for a close view. 1. -
Page 15: Bluetooth Mode
1. Turn on the Bluetooth function on the device. 2. Search for Bluetooth device with the device. 3. Select “M-OF7020” in the pairing list. 4. Enter pairing code display on the screen if necessary. If pairing succeeds, phone name is displayed. -
Page 16: Receive Call
Bluetooth mode Receive call 1. If there is incoming call, [Incoming call...] flashed on the screen. 2. Press [ ](green) on the screen to accept call. 2. When conversation ends, touch [ ](red) to terminate the call. ∙ You can select to accept calls automatically by set [Auto answer] to [On] status. Switch Phone Call to the Mobile If you do not want your passenger to hear your incoming call, you can switch the call to the mobile. -
Page 17: Select Ipod As Playing Source
iPod Select iPod as playing source Turn on the unit’s power, and connect an iPod to the unit via a iPod cable, the unit will load the iPod automatically. Play For audio files 1. When the music root menu appears on the screen, touch an option (such as PlayLists, Artists...), then touch [ ] or [... -
Page 18: Adjust Sound
Adjust sound Fader/balance Press [ Menu ] button on the front panel, then touch [Fader - Balance] on the screen. You can also adjust the front and rear speaker balance, the left and right speaker balance,and subwoofer settings. 1. Touch [ Left ], [ Right ] to adjust Balance value. Touch [ Back ], [ Front ] to adjust Fader value. -
Page 19: Setup
SETUP Settings 1. Press [MENU] button on the front panel. 2. Touch [Settings]. The settings menu is displayed. Video settings 1. Touch [Video]. 2. Touch on the option desired. If necessary, select an item from the drop-down menu: Video settings Options Description Full... -
Page 20: Adjust Sound Settings
SETUP Sound settings 1. Touch [Sound]. 2. Touch on the option desired. If necessary, select an item from the drop-down menu: Sound settings Options Description Turn on the subwoofer. Subwoofer Turn off the subwoofer Subwoofer Filter Select the frequency of Subwoofer Filter. The dynamic Bass Boost functions is on. -
Page 21: Adjust Volume Settings
SETUP Volume settings You can set different volume for different modes. 1. Touch [Volume]. 2. Touch on a source. ∙ [DVD] ∙ [Aux] ∙ [USB] ∙ [DVB-T] ∙ [SD Card] ∙ [Navigation] ∙ [Radio] ∙ [iPod]] ∙ [Bluetooth] ∙ 3. Touch [ ] or [ ] to assign value: -6 to +6. -
Page 22: Other Modes
Other modes Listen to other devices You can connect an external audio/video device to the unit. 1. Connect the car audio to the device with the supplied AV cable. 2. Press [SRC] button on the front panel to display the media source menu. 3. -
Page 23: Device Connections
Device connections Important notes for installation Perform the electrical connections required:: 1. Connect the original Fakra connector to supplied Fakra-ISO cable. 2. Connect the CanBus interface to “CAN BOX” cable. 3. Connect the antenna to the “RADIO ANT” input. If the vehicle is equipped with double antenna, use the supplied antenna adapter. 4. - Page 24 Detachable panel Remove detachable panel The RADIO/DISC/SRC button block can be detached. To detach the front panel, turn off the unit and perform the following steps: 1. Press button on the front panel until the button block pops out. 2. Prize the right side of the block to take it off. Re-attach detachable panel 1.
- Page 25 Specifications Geneal Reference Supply Voltage ..............12V(DC) Operating Voltage Range ............10.5 - 15.8V(DC) Max Operating Current .................15A Grounding System ............ Car Battery Negative Pole Dimensions(WXHXD) ............178X100X173mm Weight(main unit) ..................2.5kg Signal Noise Ratio ................≥55dB Residual Noise Sensitivity(S/N=30dB) ..........18dBμV Frequency Response(±3dB) ............20Hz~12.5KHz Station Seeking Level ..............
-
Page 26: Specifications
Specifications Supported formats: ·USB or memory file format:FAT16,FAT32 ·Mp3 bit rate(date rate):32-320 Kbps and variable bit rate ·WMA v9 or earlier ·Directory nesting up to a maximum of 8 levels ·Number of albums/folders:maximum 99 ·Number of tracks/titles:maximum 999 ·ID3 tag v2.0 or later ·File name in Unicode UTF8(maximum length:128 bytes) Unsupported formates: ·Empty albums:an empty album is an album that does not contain MP3/WMA... -
Page 27: Region Code
Troubleshooting Warning Never remove the casing of this apparatus. To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, please contact your dealer. No power ∙... -
Page 28: Troubleshooting
Troubleshooting Fuse is broken ∙ The Fuse type is incorrect. Replace it with a 15A fuse. ∙ Speaker wire or power wire is grounded. Check the connections. Display show ERR-12 ∙ USB date error. Check the USB device. About Bluetooth device Music playback is unavailable on the system even after successful Bluetooth connection. -
Page 29: Appendix
Appendix Connections Fuse 15A... - Page 30 The BLUETOOTH ® worldmark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ALDINET S.p.A. is under license. The MACROM brand is a registered trade mark of ALDINET S.p.A. Declaration of Conformity...
