NOTE:
Please read and fully understand the instructions in this
manual before operating the pneumatic power tool. Carefully read
through this OPERATOR'S MANUAL to ensure efficient, safe operation. It is
recommended that the MANUAL be kept readily available as an important refer-
ence when using this tool.

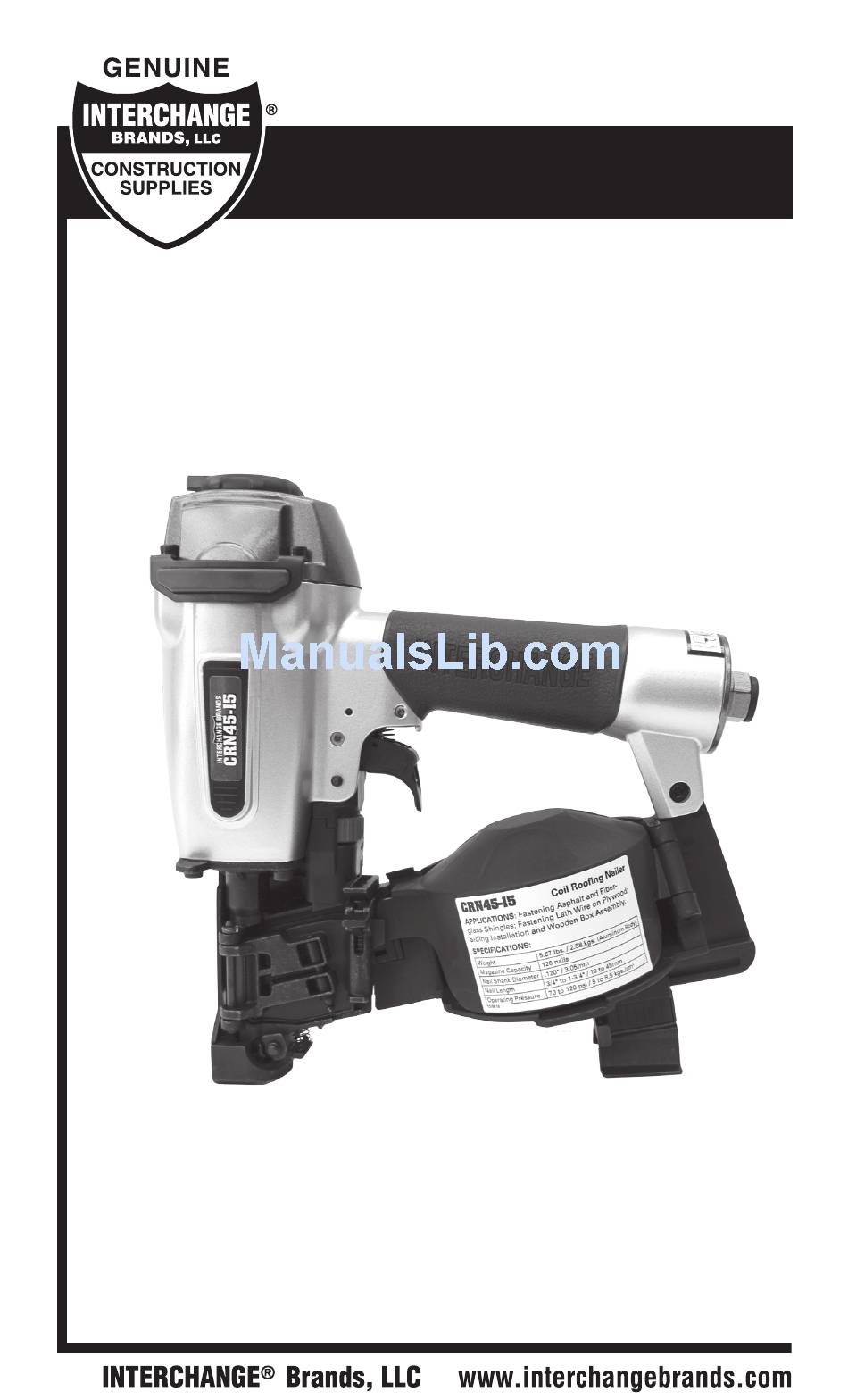

Operator's Manual
o
15
Coil Roofing Nailer
Drives Wire Collated Nails
INTERCHANGE
CR Nails
Model No. CRN45-15
Item No. 65510
¾" to 1¾" / 19 to 45mm
Ask for
Genuine
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRN45-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interchange CRN45-15

Summary of Contents for Interchange CRN45-15

  • Page 1 Operator’s Manual Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Wire Collated Nails ¾" to 1¾" / 19 to 45mm Ask for Genuine INTERCHANGE ® CR Nails NOTE: Please read and fully understand the instructions in this manual before operating the pneumatic power tool. Carefully read through this OPERATOR’S MANUAL to ensure efficient, safe operation.

  • Page 2: Table Of Contents

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Index Information . . . . . . . . . . . . . . . . . . . . . . . . . . . Page Important Information .

  • Page 3: Important Information

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Important Information WARNING: The warnings, cautions and instructions discussed in this instruction manual can not cover all possible conditions and situations that may occur .

  • Page 4: Tool Information

    Nail Specifications WARNING: Be sure to use only the genuine nails recommended for the CRN45-15 . The use of any other nails can result in tool malfunction, leading to serious injuries . Only the nail sizes shown in the table below can be driven with this nailer .

  • Page 5: Parts Identification

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Parts Identification ➑ ➐ ➏ ➊ ➋ Casting ➋ Cylinder Cap ➌ Safety ➍ Guide Body ➊ ➎ Magazine ➏...

  • Page 6: Safety Information

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Safety Information Important Safety Instructions for Operating Nailers READ ALL INSTRUCTIONS OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.
  • Page 7 Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) 10 . STAY ALERT. Watch what you are doing . Use common sense and do not operate the nailer when you are tired . The nailer should never be used if you are under the influence of alcohol, drugs or medication that makes you drowsy .
  • Page 8 Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) 22 . KEEP ALL SCREWS AND COVERS MOUNTED TIGHTLY IN PLACE. Keep all screws and covers tightly mounted . Check their condition periodically .

  • Page 9: Employer's Responsibilities

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) 32 . DISCONNECT THE AIR SUPPLY AND EMPTY THE MAGAZINE WHEN THE NAILER IS NOT IN USE. NEVER LEAVE A NAILER UNATTENDED WITH THE HOSE ATTACHED.

  • Page 10: Operating The Nailer

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Operating the Nailer NOTE: The information contained in this Manual is designed to assist you in the safe operation of the nailer . Some illustrations in this Manual may show details or attach- ments that are different from those on your nailer .

  • Page 11: Lubrication

    „ Filter-regulator-lubricator units should always be used . Keep the lubricator filled with INTERCHANGE pneumatic tool lubricant . „ If a lubricator is not available, supply 3 to 5 drops of INTERCHANGE pneumatic tool lubricant into the air plug on the tool twice a day .

  • Page 12: Operating Instructions

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Operating The Nailer DANGER: Operators and others in work area must wear safety glasses with side shields that conform to ANSI Z87 .1 specifications .

  • Page 13: Nail Loading

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Nail Loading OPEN THE MAGAZINE Hold door and door latch and pull down door latch . Swing door open .

  • Page 14: Testing The Nailer

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Testing The Nailer Before using the nailer, test it by using the check list below . If abnormal tests occur, stop using the nailer and contact an authorized service center immediately .

  • Page 15: Troubleshooting

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Driving Depth Adjustment Dial (on some models) WARNING: Always disconnect air supply before changing the adjustment dial . ■ With air pressure set, drive nails into a piece of scrap material to determine if an adjustment is necessary .

  • Page 16: Maintenance And Inspection

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Maintenance and Inspection Read the section titled SAFETY. SERVICE AND REPAIRS All quality tools will eventually require servicing or replacement of parts due to wear from normal use . It is recommended that these operations should be performed by a professional technician .

  • Page 17: Parts Drawing/Schematics

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) Parts Drawing/Schematics, Parts List & Parts Kits PARTS DRAWING/SCHEMATICS FOR CRN45-15 Interchange Brands Operator’s Manual...

  • Page 18: Parts List

    Coil Roofing Nailer Model No. CRN45-15 Item No. 65510 Drives Coil Roofing Nails (¾" to 1¾" / 19 to 45mm) PARTS LIST FOR CRN45-15 ORDER NO. DESCRIPTION NO. ORDER NO. DESCRIPTION 610120 BOLT M5X25 630110 SNAP RING 321790 SIDE PROTECTOR...

  • Page 19: Parts Kits

    Piston/Driver Assembly/Bumper for CRN45-15 98420 CRN45K3 Kit #3 Head Cap Assembly for CRN45-15 98430 CRN45K4 Kit #4 Trigger Valve Assembly with Trigger for CRN45-15 98440 CRN45K5 Kit #5 Magazine Assembly for CRN45-15 98450 CRN45K6 Kit #6 Guide Body Assembly for CRN45-15...

  • Page 20: Warranty

    This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. CRN45-15 Coil Nailer Interchange Brands CRN45-15 Made In China Operator’s Manual (10/8/14)
