Operator's Manual
15 Gauge Angled
Finish Nailer

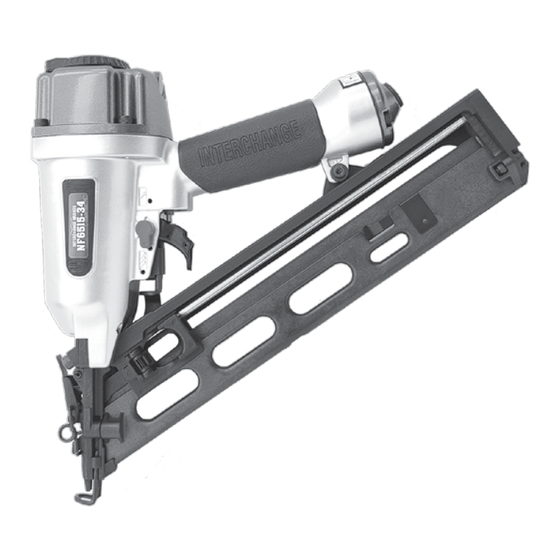

Model No. NF6515-34
Item No. 65420
o
Drives 34
Finish Nails
1-1/4" to 2-1/2" / 32 to 65mm
Ask for
Genuine
INTERCHANGE
®
DA Finish Nails
NOte:
Please read and fully understand the instructions in this
manual before operating the pneumatic power tool. Carefully read
through this OPERATOR'S MANUAL to ensure efficient, safe operation. It is
recommended that the MANUAL be kept readily available as an important refer-
ence when using this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF6515-34 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interchange NF6515-34

Summary of Contents for Interchange NF6515-34

  • Page 1 Operator’s Manual 15 Gauge Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34 Finish Nails 1-1/4" to 2-1/2" / 32 to 65mm Ask for Genuine INTERCHANGE ® DA Finish Nails NOte: Please read and fully understand the instructions in this manual before operating the pneumatic power tool.

  • Page 2: Table Of Contents

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Index Information . . . . . . . . . . . . . . . . . . . . . . . . . . . Page Important Information .

  • Page 3: Important Information

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Important Information WARNING: The warnings, cautions and instructions discussed in this instruction manual can not cover all possible conditions and situations that may occur .

  • Page 4: Tool Information

    Nail Specifications WARNING: Be sure to use only the genuine nails recommended for the NF6515-34 . The use of any other nails can result in tool malfunction leading to serious injuries . Only the nail sizes shown in the table below can be driven with this nailer .

  • Page 5: Parts Identification

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Parts Identification Exhaust Accessories STANDARD ACCESSORIES Eye Protection ① Interchange Brands Operator’s Manual...

  • Page 6: Safety Information

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Safety Information Important Safety Instructions for Operating Nailers READ ALL INSTRUCTIONS OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.
  • Page 7 15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) STAY ALERT. Watch what you are doing . Use common sense and do not operate the nailer when you are tired . The nailer should never be used if you are under the influence of alcohol, drugs or medication that makes you drowsy .
  • Page 8 15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) KEEP ALL SCREWS AND COVERS MOUNTED TIGHTLY IN PLACE. Keep all screws and covers tightly mounted . Check their condition periodically .

  • Page 9: Employer's Responsibilities

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) DISCONNECT THE AIR SUPPLY AND EMPTY THE MAGAZINE WHEN THE NAILER IS NOT IN USE. NEVER LEAVE A NAILER UNATTENDED WITH THE HOSE ATTACHED.

  • Page 10: Operating The Nailer

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Operating the Nailer NOtE: The information contained in this Manual is designed to assist you in the safe operation of the nailer .

  • Page 11: Lubrication

    „ Filter-regulator-lubricator units should always be used . Keep the lubricator filled with INTERCHANGE pneumatic tool lubricant . „ If a lubricator is not available, supply 3 to 5 drops of INTERCHANGE pneumatic tool lubricant into the air plug on the tool twice a day .

  • Page 12: Testing The Nailer

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Testing The Nailer Before using the nailer, test it by using the check list below . Conduct the test in the following order .
  • Page 13 15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Separate the safety/push lever from the wood . Next, point the nailer downward, pull the trigger and then wait in that position for 5 seconds or longer .

  • Page 14: Operating Instructions

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Operating The Nailer DANGER: Operators and others in work area must wear safety glasses with side shields . Eye protection equipment must conform to the requirements of American National Standards Institute, ANSI Z87 .1 .

  • Page 15: Troubleshooting

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Driving Depth Adjustment Dial (on some models) WARNING: Always disconnect air supply before changing the adjustment dial .

  • Page 16: Maintenance And Inspection

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Maintenance and Inspection Read the section titled SAFETY. NOtE: The information contained in this Manual is designed to assist you in the safe maintenance of the nailer .

  • Page 17: Parts Drawing/Schematics, Parts List, Parts Kits

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) Parts Drawing/Schematics, Parts List & Parts Kits PARTS DRAWING/SCHEMATICS FOR NF6515-34 Interchange Brands Operator’s Manual...

  • Page 18: Parts List

    15 Ga. Angled Finish Nailer Model No. NF6515-34 Item No. 65420 Drives 34˚ Finish Nails (1-1/4" to 2-1/2" / 32 to 65mm) PARTS LIST FOR NF6515-34 ORDER NO. DESCRIPTION ORDER NO. DESCRIPTION BOLT M6X12 (Loctite 610170 630120 STEEL BALL 243)

  • Page 19: Parts Kits

    Piston/Driver Assembly for NF6515-34 98590 NF6515K3 Kit #3 Head Cap Assembly for NF6515-34 98600 NF6515K4 Kit #4 Trigger Valve Assembly with Trigger for NF6515-34 98605 NF6515K5 Kit #5 Magazine Assembly for NF6515-34 98610 NF6515K6 Kit #6 Guide Body Assembly for NF6515-34...

  • Page 20: Warranty

    This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. NF6515-34 15 ga. Finish Nailer Interchange Brands NF6515-34 Made In China Operator’s Manual (8/6/15)
