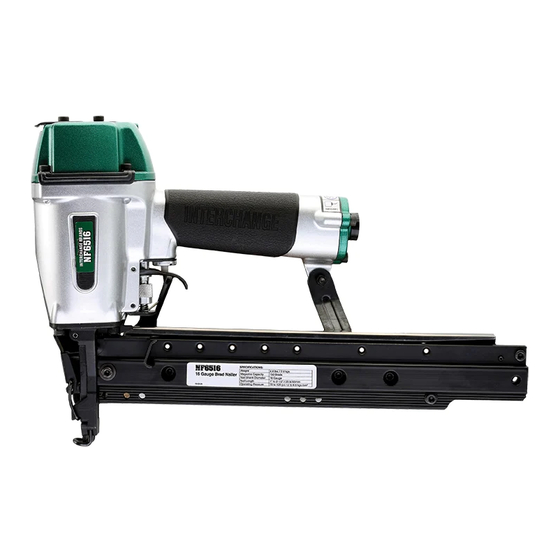

Interchange NF6516 Operator's Manual

16 gauge finish nailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operator's Manual
16 Gauge
Finish Nailer
Model No. NF6516
Item No. 65315
Drives Finish Nails
1" to 2-1/2" / 25mm to 65mm
Ask for
Genuine
INTERCHANGE
®
PB16 Finish Nails
NOTE:
Please read and fully understand the instructions in this
manual before operating the pneumatic power tool. Carefully read
through this OPERATOR'S MANUAL to ensure efficient, safe operation. It is
recommended that the MANUAL be kept readily available as an important
reference when using this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF6516 and is the answer not in the manual?

Questions and answers

Related Manuals for Interchange NF6516

Summary of Contents for Interchange NF6516

  • Page 1 Operator’s Manual 16 Gauge Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails 1" to 2-1/2" / 25mm to 65mm Ask for Genuine INTERCHANGE ® PB16 Finish Nails NOTE: Please read and fully understand the instructions in this manual before operating the pneumatic power tool.

  • Page 2: Table Of Contents

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Index Information . . . . . . . . . . . . . . . . . . . . . . . . . . . Page Important Information .

  • Page 3: Important Information

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Important Information WARNING: The warnings, cautions and instructions discussed in this instruction manual can not cover all possible conditions and situations that may occur .

  • Page 4: Tool Information

    Nail Specifications WARNING: Be sure to use only the genuine nails recommended for the NF6516 . The use of any other nails can result in tool malfunction leading to serious injuries . Only the nail sizes shown in the table below can be driven with this nailer .

  • Page 5: Parts Identification

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Parts Identification Accessories STANDARD ACCESSORIES Eye Protection ① Interchange Brands Operator’s Manual...

  • Page 6: Safety Information

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Safety Information Important Safety Instructions for Operating Nailers READ ALL INSTRUCTIONS OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.
  • Page 7 16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) 10 . STAY ALERT. Watch what you are doing . Use common sense and do not operate the nailer when you are tired . The nailer should never be used if you are under the influence of alcohol, drugs or medication that makes you drowsy .
  • Page 8 16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) 22 . KEEP ALL SCREWS AND COVERS MOUNTED TIGHTLY IN PLACE. Keep all screws and covers tightly mounted . Check their condition periodically .

  • Page 9: Employer's Responsibilities

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) 32 . DISCONNECT THE AIR SUPPLY AND EMPTY THE MAGAZINE WHEN THE NAILER IS NOT IN USE. NEVER LEAVE A NAILER UNATTENDED WITH THE HOSE ATTACHED.

  • Page 10: Operating The Nailer

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Operating the Nailer NOTE: The information contained in this Manual is designed to assist you in the safe operation of the nailer . Some illustrations in this Manual may show details or attach- ments that are different from those on your nailer .

  • Page 11: Lubrication

    „ Filter-regulator-lubricator units should always be used . Keep the lubricator filled with INTERCHANGE pneumatic tool lubricant . „ If a lubricator is not available, supply 3 to 5 drops of INTERCHANGE pneumatic tool lubricant into the air plug on the tool twice a day .

  • Page 12: Testing The Nailer

    Adjust the air pressure to 70 psi . Connect the air hose . Do not load any nails in the nailer . The NF6516 has a dual action trigger . To set the trigger to single fire, set it in the downward position ﹙away from the trigger﹚, otherwise it...
  • Page 13 Remove the finger from the trigger . NAILER OPERATION WILL END ﹙the driver blade will return to the top﹚ . The NF6516 has a dual action trigger . To set the trigger to bump fire, set it in the upward position ﹙toward the trigger﹚, otherwise it will not operate...

  • Page 14: Operating Instructions

    Explanation of the two nailing operations (on some models) The NF6516 has a dual action trigger . To set the trigger to single fire, set it in the downward position ﹙away from the trigger﹚ or, to set the trigger to bump fire, set it in the upward position ﹙toward the trigger﹚...

  • Page 15: Troubleshooting

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Troubleshooting Problem Cause Solution Trigger valve leaks air O-ring is cut or cracked Replace o-ring Nose leaks air O-ring or gasket is cut or cracked...
  • Page 16 16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Maintenance and Inspection Read the section titled SAFETY. NOTE: The information contained in this Manual is designed to assist you in the safe maintenance of the nailer .

  • Page 17: Parts Drawing/Schematics, Parts List, Parts Kits

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) Parts Drawing/Schematics, Parts List & Parts Kits PARTS DRAWING/SCHEMATICS FOR NF6516 15-03-30 Interchange Brands Operator’s Manual...

  • Page 18: Parts List

    16 Ga. Finish Nailer Model No. NF6516 Item No. 65315 Drives Finish Nails (1" to 2-1/2" / 25mm to 65mm) PARTS LIST FOR NF6516 ORDER NO. DESCRIPTION ORDER NO. DESCRIPTION 610120 BOLT M5X25 311080 VALVE BUSHING 323960 EXHAUST COVER 510330 O-RING 11.2X1.5...

  • Page 19: Parts Kits

    Kit #2 Piston/Driver Assembly for NF6516 98772 Kit #3 Head Cap Assembly for NF6516 98773 Kit #4 Trigger Valve Assembly with Trigger for NF6516 98774 Kit #5 Magazine Assembly for NF6516 98775 Kit #6 Guide Body Assembly for NF6516 98776...

  • Page 20: Warranty

    This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. NF6516 16 Ga. Finish Nailer Interchange Brands NF6516 Made In China Operator’s Manual (06/01/15)
