- Page 1 SPECIAL FUNCTIONS DESCRIPTION USER MANUAL COMPLEMENT b series File: EO-F-005-01-08 b-41_3 LCD GB v.4...
-
Page 2: Table Of Contents
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ Contents: 1. Basic information......................3 2. Keys and indicators......................4 3. Date and time setting (dAtE) ..................5 4. Formulation function (SU ) ....................6 ≡ 5. Average calculation (SrE)....................7 6. Percentage weighing (F..-Pro) ..................8 7. Animal weighing (LOC) ....................9 8. -
Page 3: Basic Information
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 1. Basic information Beside basic measuring functions all balances are equipped with the set of special user functions. Standard balance features the following functions: basic set of special functions, including: - pieces counting - autozero - serial port working mode setting - serial port parameters setting - constant tare - calibration options... -
Page 4: Keys And Indicators

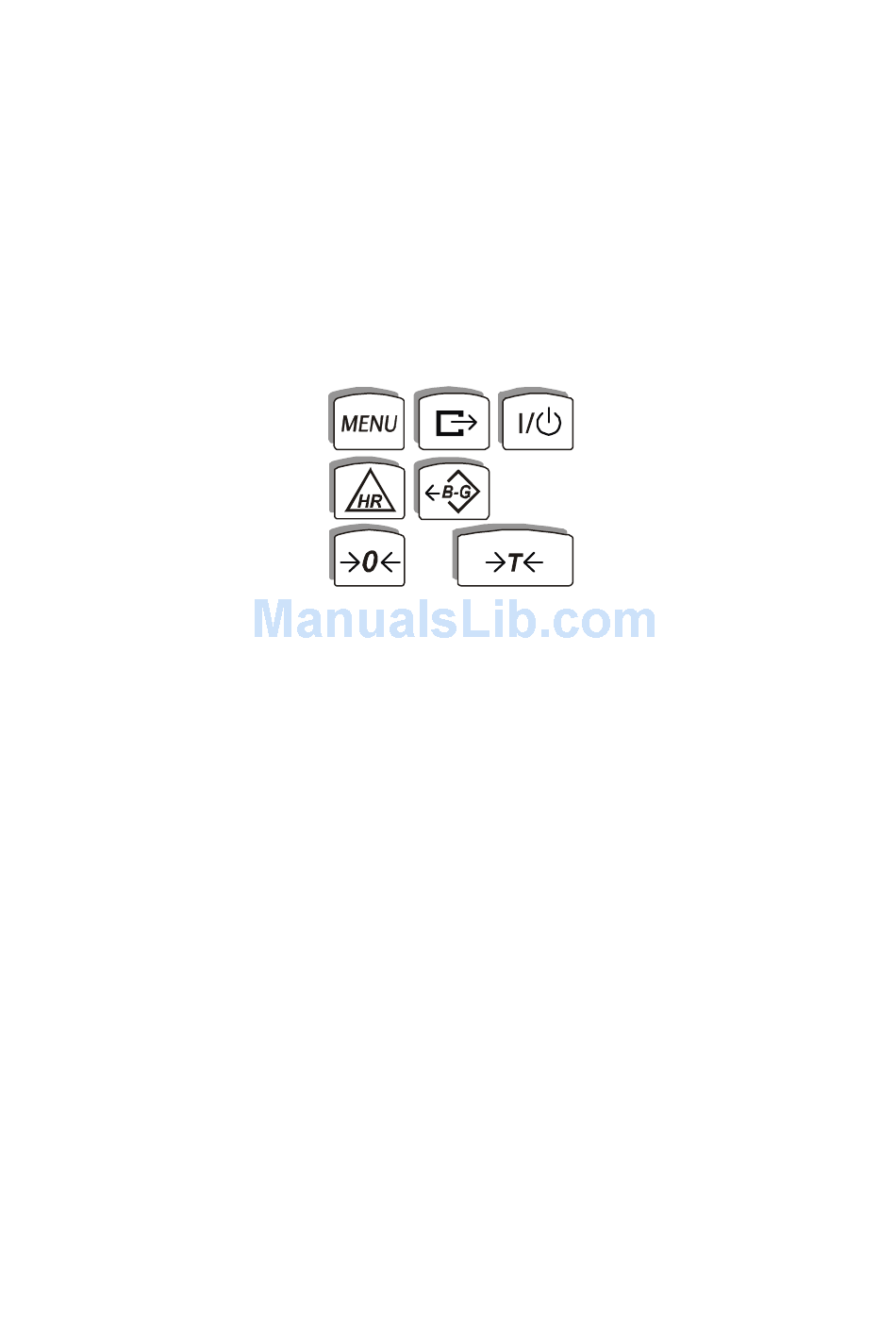

SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 2. Keys and indicators MODE - switch-on / switch-off (standby), - increased indication resolution, - gross weight indication switch, MENU - special functions menu, - zero, →0← - print-out, switch-on / switch-off (standby), indicator - zero indicator →0←... -
Page 5: Date And Time Setting (Date)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 3. Date and time setting (dAtE) This function enables to set current MENU date and time of internal balance clock and enable/disable date and time on weighing result printouts. F ..-dAt Options: - F-..-0 – deactivate date printout, - F..-1 –... -
Page 6: Formulation Function (Su )
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 4. Formulation function (SU ≡ ≡ ≡ ≡ This function allows separate MENU weighing of several ingredients in one container with a possibility to control aggregated F ..-S U weighed components. Function options: - F..-0 – leave the function to read aggregated weight, F ..- 0 - F..-1 –... -
Page 7: Average Calculation (Sre)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 5. Average calculation (SrE) This function enables to calculate average value of series of measurements. During measurements successive values are registered automatically after result stabilisation. Press MENU key and choose F..-SrE MENU function with → ← key. -
Page 8: Percentage Weighing (F
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 6. Percentage weighing (F..-Pro) This function enables to display weighing result as a percentage of a reference sample. 100% A measurement is performed in two phases: - first phase – weighing a reference 170 g MENU sample, - second phase –... -
Page 9: Animal Weighing (Loc)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 7. Animal weighing (LOC) This function allows precise animals weighing. Press MENU key. When LOC function MENU is displayed press key. → ← Function options: - F..-0 – leave the function, F ..-LOC - F..-1 – automatic weighing after loading the balance, - F..-2 –... -
Page 10: Maximum Value (Up)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 8. Maximum value (UP) This function enables to display the maximum value from the series of weighing. Make sure the balance displays zero MENU indication before starting measurements. Enter the function menu with MENU F ..-UP key and choose F..-UP function. -
Page 11: Anti-Disturbance Filter (Fil)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 9. Anti-disturbance filter (FIL) This function activates digital filter of MENU chosen intensity, which reduces the influence of mechanical vibrations (air blasts, base vibrations) on measurement F ..-FIL result. Using the filter is necessary for accurate people or animal weighing. Press MENU key and choose F..-FIL F ..- 0 with... -
Page 12: Checkweighing (Thr)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 10. Checkweighing (thr) This function compares weighing result with two reference values: lower MENU and upper threshold. The balance signalises comparison result with MIN, OK and MAX indicators and sound F .. - thr signal generated when threshold values are exceeded. - Page 13 SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ Notes: When necessary, use SEt-3 option to set the zero threshold value (indications below this value are regarded as unloaded balance – see PROGI interface description). If comparison result is: - smaller than lower threshold – the balance displays MIN, - between threshold values - the balance displays OK with the sound signal when exceeding the threshold, - greater than upper threshold - the balance displays MAX with the sound signal...
- Page 14 SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ Output state charts (increasing load): External optical indicator: Dosing (optional): thr I thr I zero treshold thr II thr I thr II thr II zero treshold...
-
Page 15: Total Weight Function (Total)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 11. Total weight function (totAL) The function enables to calculate total weight of series of measurements greater than the balance capacity. To enter the function, press MENU key and choose F..-tot option with key. → ← MENU The following options are displayed: - F..-P - report printout without clearing... - Page 16 SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ To leave the function with clearing the adding register, enter F..-tot function menu and choose F..-1 option. When connected to a printer, the balance prints the communicate informing about clearing the register. The sample check for each measurement: Date: Time ...
-
Page 17: Density Determination (Hydro)
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 12. Density determination (hYdro) This function calculates material density basing on its weight in air MENU and in liquid of known density using the formula below: F .. -hYd ρ ρ − where, m – weigh in air F .. - Page 18 SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ To print a density determination report after all necessary measurements, connect a printer to the balance. Date: ... Time..MEASUREMENT No. = WEIGHT in air =..g WEIGHT in liquid HANGER WEIGHT LOAD DENSITY g/cm LIQUID DENSITY g/cm Operation sequence (weighing in air and in liquid) for below-balance weighing:...
-
Page 19: Function Menu Customisation (F
SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________ 13. Function Menu customisation (F..-ACt) This function enables to select special 0.00 functions that will be displayed after pressing MENU key. Easy access to the most useful functions will shorten F .. -ACt operation time and make work more comfortable. - Page 20 SPECIAL FUNCTIONS DESCRIPTION ____________________________________________________________________________________________________________________...
