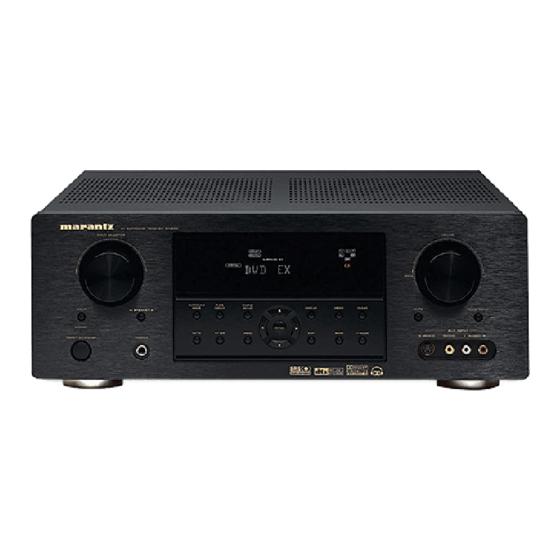

Service SR5500 / L1G/N1G /N1B/U1B /N1S Manual AV Surround Receiver AV SURROUND RECEIVER SR5500 INPUT SELECTOR VOLUME SURROUND DISP MULTI AUTO TUNED V – OFF NIGHT PEAK ANALOG DIGITAL DIGITAL SLEEP AUTO SURR DIRECT DISC 6.1 MT X 6.1 DOWN SURROUND PURE SIMPLE...
Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
Page 3: Technical Specifications
1. TECHNICAL SPECIFICATIONS FM TUNER SECTION VIDEO Frequency Range ........87.5 - 108.0 MHz Television Format ..........NTSC/PAL Usable Sensitivity ....... IHF 1.8 µV/16.4 dBf Input Level/Impedance ......1 Vp-p/75 ohms Signal to Noise Ratio ..... Mono/Stereo 75/70 dB Output Level/Impedance ......1 Vp-p/75 ohms Distortion ........
Page 4 The relation between the selected surround mode and the input signal The surround mode is selected with the surround mode selector on SR5500 or the remote control unit. However, the sound you hear is subject to the relationship between the selected surround mode and input signal. That relationship is as follows; SR5500 Output Channel Front information display...
Page 5: Technical Description
2. TECHNICAL DESCRIPTION DTS-ES Extended Surround is a new multichannel digital DTS was introduced in 1994 to provide 5.1 channels of signal format developed by Digital Theater Systems Inc. discrete digital audio into home theater systems. While offering high compatibility with the conventional DTS DTS brings you premium quality discrete multichannel digital Digital Surround format, DTS-ES Extended Surround greatly sound to both movies and music.
Page 6 The Dolby Headphone technology provides a surround sound Dolby Digital identifies the use of Dolby Digital audio coding listening experience over headphones. for such consumer formats as DVD and DTV. As with film When listening to multichannel content such as DVD movies sound, Dolby Digital can provide up to five full-range over headphones, the listening experience is fundamentally channels for left, center, and right screen channels,...
Page 7: Power Amplifier Adjustment
3. POWER AMPLIFIER ADJUSTMENT Idling Current Alignment 1. Each of the measurement points are provided with the two test points. Set a digital Voltage meter to DC voltage input, connect the meter to the test points at both contact points. 2.
Page 8: Service Mode
4. SERVICE MODE Microprocessor (IC28), DSP(IC20 )Version and FLD Segment Check Mode. While the power is on, MULTI, EXIT and 7.1CH INPUT buttons simultaneously more than 3 seconds. The FL display shows “SERVICE MODE” for 2 seconds then shows the model name. Press MULTI button, The software version of the microprocessor (IC28) is displayed in the format below.
Page 9 Note: Step4, 5 is to check if CPU software is capable of DSP Personal notes: code. “Software Type No” is to show what “DSP Code Group” CPU is capable of. And vice versa. Step 8 is to manage the 16 codes for DSP. •...
Page 10: System Error
5. SYSTEM ERROR When the microcomputer detects a trouble, the following information is displayed on the FLD. • After the error contents indication, Surround Mode is initialized and returned Factory mode. • The contents of the ERROR indication are the followings. Trouble in DSP If communication with DSP is troubled more than 2 seconds.
Page 11: Update Firmware
6. UPDATE FIRMWARE Software for CPU and DSP can be updated. Have update application software. (“UpgradeDSP.exe” and “H8Download.exe”) There are two mode of download, regarding to the target of software as bellow. Mode 1: Update DSP’s software to 4M Flash-ROM. This mode is to update the software for DSP.
Page 12 Launch “UpgradeDSP.exe” on PC. Note: yy_mm_dd is release date of software. Click Port setting, and select the COM Port No. Set the Baud Rate to 38400 then click Start communication button.
Page 13 If the connection is made successfully, a dialog box saying “Success to connect” appears and “CONNECTED” is displayed on FLD. 10. Click Send the DSP codes button on the dialog box. Progress status of updating will be shown on PC and LOADING is displayed on FLD.
Page 14 Connect PC and the unit with the RS-232C cable. Insert a thin rot to the hole and push the switch (SW10) inside to turn on the switch. Hole of rear panel Turn on the power of the unit. Note: When the unit is into boot mode, stand-by LED is not lights up. Launch “H8Download.exe”...
Page 15 Click other files... button in the dialog box to specify the file (SR5500_yymmdd.mot) to be uploading. yymmdd in filename is release date of software. Click Connect button. If the connection with the H8 µ-P is successfully made, a dialogue box saying “Success to the H8 micro processor connection”...
Page 16 11. Click CLOSE button to close the application. 12. Disconnect Mains power cord. 13. Turn off the internal switch that has been turned on at step 3. 14. Turn on the unit. Firmware Version Check To check the versions of the firmware, see “Microprocessor (CPU), DSP Version and FLD Segment Check Mode” in “SERVICE MODE”...
Page 17: Wiring Diagram
7. WIRING DIAGRAM A, K, L, N only U only...
Page 18: Block Diagram
8. BLOCK DIAGRAM TUNER MODULE FL DISPLAY...
Page 19: Schematic Diagram
9. SCHEMATIC DIAGRAM Input...
Page 20 DSP Block...
Page 21 CPU Block...
Page 22 Front...
Page 23 Video...
Page 24 Component...
Page 25 Video Converter...
Page 27 Power & SPK...
Page 28: Parts Location
10. PARTS LOCATION IC81 FRONT PCB IC83 ENCODER PCB H/P PCB PUSH S/W PCB...
Page 29 Q221 Q224 Q222 Q241 Q239 Q235 Q238 Q234 Q226 Q225 Q223 Q219 Q218 Q216 Q237 Q233 IC38 Q217 Q215 Q240 Q207 Q214 IC21 IC33 IC40 Q206 Q213 IC25 IC22 IC32 Q205 Q221 IC41 IC23 IC24 IC37 Q204 Q211 Q203 Q210 IC36 IC28 IC30...
Page 30 QC12 IC16 IC24 QC11 IC11 IC25 IC22 IC12 IC15 Q102 IC26 IC19 IC23 Q103 Q101 IC14 IC27 IC33 IC21 IC13 IC17 Q105 IC28 IC16 Q106 IC34 Q107 Q108 IC31 IC32 IC30 DSP PCB A QC10...
Page 31 IC35 Q106 Q110 IC20 IC14 IC13 Q104 Q108 IC11 DSP PCB B IC16 Q100 IC12 Q101 CONVERTER PCB A Q111 Q107 Q105 Q102 Q109 Q103 CONVERTER PCB B...
Page 32 IC81 Q704 Q703 Q701 IC82 IC77 Q710 IC71 Q708 IC73 IC74 IC75 Q705–Q707 Q711 Q712 IC78 IC09 Q702 IC76 Q713 IC79 IC80 VIDEO PCB Q901 Q902 COMPONENT PCB IC94 IC91 7.1CH PREOUT PCB...
Page 33 Q719 Q721 Q620 Q622 Q619 Q621 Q520 Q522 Q519 Q521 Q420 Q422 Q419 Q421 Q723 Q624 Q623 Q524 Q523 Q424 Q423 Q614 Q612 Q607 Q609 Q617 Q508 Q510 Q518 Q707 Q709 Q717 Q507 Q509 Q517 Q408 Q410 Q418 Q407 Q409 Q417 Q715 Q713 Q711 Q616...
Page 34 Q805 IC84 IC85 Q804 ST-BY PCB Q603 Q609 IC61 Q610 Q601 IC62 Q604 Q602 IC63 IC64 Q608 Q607 Q606 Q611 Q614 POWER PCB Q615 Q612 Q613...
Page 35: Ic Data
11. IC DATA IC21: TC9162,3,4...
Page 37 IC22: TC9273 IC24-TC9499...
Page 38 IC12: TC90A49F...
Page 39 IC14: TA1270BF...
Page 40 IC35: CS5361 S C L K V C O M R E F G N D L R C K S D O U T M C LK FILT+ R S T REFGND S e rial O utpu t Interfa ce F ILT + Volta ge R e fe ren ce D IF...
Page 41 IC16: CS4382...
Page 42 IC16: CS4382...
Page 43 IC19: CS49403 SAI 0 Serial External Memory SAI 1 Audio Interface SAI 3 Interface SAI 2 Compressed DSP C Audio Digital DAO 0 Interface Frame Audio Programmable 32-Bit DSP Shifter Interface DAO 1 Digital Multistandard Audio Audio Decoder Interface GPIO and I/O Input Controller DSP AB...
Page 44 MCLK Audio Master Clock VDD2 2.5V Supply Voltage VSS2 2.5V Ground 102 I/O AUDATA4, Digital Audio Output 4, General Purpose I/O GPIO28 103 I/O HDATA4, DSP C Bidirectional Data Bus, General Purpose I/O GPIO4 O SCLK0 Audio Output Bit Clock 105 I/O HDATA3, DSP C Bidirectional Data Bus, General Purpose I/O GPIO3...
Page 45 IC78: LC74781 Pin Functions Pin No. Symbol Function Description Ground Ground connection (digital system ground) Xtal Used to connect the crystal oscillator and capacitor used to generate the internal Crystal oscillator connection synchronization signal, or to input an external clock (2fsc or 4fsc). Xtal Switches between external clock input mode and crystal oscillator mode.
Page 46 IC78: LC74781...
Page 47 IC81: NJU3430 N o . S Y M B O L F U N C T I O N R S T R ESET P o w e r S o u r c e = + 3 . 0 t o 5 . 5 V Instruction M K R AM Icon...
Page 48: Exploded View And Parts List
12. EXPLODED VIEW AND PARTS LIST A, N Only N Only N,A Only K, L, U Only ST-BY PCB K, L, U Only U,K Only POWER PCB U Only U Only ST-BY PCB COMPONENT PCB AMP PCB PUSH S/W PCB 7.1CH U Only PREOUT...
Page 49 PCB ASSY VIDEO CONVERTER PCB ASS'Y /U1 COP11709C /N1B PCB ASSY VIDEO CONVERTER PCB ASS'Y /N1 COP11709B /N1G PCB ASSY VIDEO CONVERTER PCB ASS'Y /N1 COP11709B NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 50 CWC1C4A17B160B JW36 90M-YU001520R FPC PITCH 1.0 CWC1B4A11A080A JW38 90M-YU001530R FPC PITCH 1.0 CWC1B4A13A450A JW42 90M-YU001500R FPC PITCH 1.0 CWC1B4A07A050A JW50 90M-YU001510R FPC PITCH 1.0 CWC1B4A11A050B NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 51 TOP COVER (BLACK) CKC1A139K117 /N1G 00M27AW257110 LID TOP COVER (GOLD) CKC1A139K118 /N1S 00M27AW257210 LID TOP COVER (SILVER) CKC1A139G14 /U1B 00M27AW257010 LID TOP COVER (BLACK) CKC1A139K117 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 52: Electrical Parts List
13. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : PARTS INFORMATION RESISTORS The suppliers and their type numbers of fusible resistors 1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows; 2) 00MGD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W 1.
Page 53 00MOA10706320 ELECT CAP. 100UF 63V HCEA1JH101E C713 00MOA10706320 ELECT CAP. 100UF 63V HCEA1JH101E C719 00MOA10705020 ELECT CAP. 100UF 50V HCEA1HH101T C721 00MOA10701620 ELECT CAP. 100UF 16V HCEA1CH101T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 54 90M-HD302240R ZENER DIODE HVDMTZJ3.6BT D612 90M-HD302240R 90M-HD302240R ZENER DIODE HVDMTZJ3.6BT D613 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT D614 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT D615 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 55 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 J251 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 J252 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 J253 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 56 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 J320 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 J321 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 J322 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 57 HVTKTA1268GRT Q611 90M-HT800060R 90M-HT800060R TRANSISTOR KTC3200GR HVTKTC3200GRT Q612 90M-HT800060R 90M-HT800060R TRANSISTOR KTC3200GR HVTKTC3200GRT Q613 90M-HT800060R 90M-HT800060R TRANSISTOR KTC3200GR HVTKTC3200GRT Q614 90M-HT800060R 90M-HT800060R TRANSISTOR KTC3200GR HVTKTC3200GRT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 58 120 OHM 1W J KRG1SANJ121RT R444 RESISTOR 120 OHM 1W J KRG1SANJ121RT R445 RESISTOR 47 OHM 1W J KRG1SANJ470RT R446 RESISTOR 47 OHM 1W J KRG1SANJ470RT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 59 47 OHM 1W J KRG1SANJ470RT R546 RESISTOR 47 OHM 1W J KRG1SANJ470RT R549 RESISTOR 15 OHM 1/5W J CRD20TJ150T R550 RESISTOR 15 OHM 1/5W J CRD20TJ150T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 60 15 OHM 1/5W J CRD20TJ150T R650 RESISTOR 15 OHM 1/5W J CRD20TJ150T R651 RESISTOR 10 OHM 1/5W J CRD20TJ100T R652 RESISTOR 10 OHM 1/5W J CRD20TJ100T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 61 1K OHM 1/5W J CRD20TJ102T R815 RESISTOR 3.3K OHM 1/5W J CRD20TJ332T R816 RESISTOR 6.8K OHM 1/5W J CRD20TJ682T R817 RESISTOR 22K OHM 1/5W J CRD20TJ223T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 62 C3A206 COMPO. J915 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 COMPO. J916 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 COMPO. J917 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 63 0.1UF ZF1608 SIZE HCUS1E104ZF C131 00MOA22605020 ELECT CAP. 22UF 25V HCEA1EH220T C132 00MDD95330300 CERAMIC CAP. 33PF 50V HCUS1H330JA C133 00MDD95330300 CERAMIC CAP. 33PF 50V HCUS1H330JA NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 64 47UF 16V HCEA1CH470T C201 00MDK96104300 CERAMIC CAP. 0.1UF ZF1608 SIZE HCUS1E104ZF C202 00MOA10701620 ELECT CAP. 100UF 16V HCEA1CH101T C205 00MDK96332300 CERAMIC CAP. 3300PF 50V HCUS1H332KC NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 65 HCUS1E104ZF C285 00MDK96104300 CERAMIC CAP. 0.1UF ZF1608 SIZE HCUS1E104ZF C286 00MDK96104300 CERAMIC CAP. 0.1UF ZF1608 SIZE HCUS1E104ZF C287 00MDK96104300 CERAMIC CAP. 0.1UF ZF1608 SIZE HCUS1E104ZF NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 66 1SS133T-77 HVD1SS133MT DC11 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT DC12 /N1B 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT DC12 /N1G 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT DC12 /N1S 00MHD20015210 DIODE 1SS133T-77 HVD1SS133MT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 67 HVTKRA102S R101 00MNN05100610 RESISTOR 1608 SIZE HRJ10DJ100T R103 00MNN05100610 RESISTOR 1608 SIZE HRJ10DJ100T R105 00MNN05101610 RESISTOR 1608 SIZE HRJ10DJ101T R106 00MNN05101610 RESISTOR 1608 SIZE HRJ10DJ101T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 68 HRJ10DJ101T R174 00MNN05330610 RESISTOR 1608 SIZE HRJ10DJ330T R175 00MNN05330610 RESISTOR 1608 SIZE HRJ10DJ330T R176 00MNN05330610 RESISTOR 1608 SIZE HRJ10DJ330T R177 00MNN05330610 RESISTOR 1608 SIZE HRJ10DJ330T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 69 1608 SIZE HRJ10DJ101T R254 00MNN05104610 RESISTOR 100K OHM HRJ10DJ104T R255 00MNN05332610 RESISTOR 00200-0105 CRJ10DJ332T R256 00MNN05332610 RESISTOR 00200-0105 CRJ10DJ332T R257 00MNN05682610 RESISTOR 1608 SIZE CRJ10DJ682T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 70 00MNN05223610 RESISTOR 1608 SIZE HRJ10DJ223T RC14 00MNN05473610 RESISTOR 1608SIZE HRJ10DJ473T RC15 00MNN05473610 RESISTOR 1608SIZE HRJ10DJ473T RC16 00MNN05473610 RESISTOR 1608SIZE HRJ10DJ473T RC17 00MNN05473610 RESISTOR 1608SIZE HRJ10DJ473T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 71 CCKT1H471KB 7.1PRE C173 CERAMIC CAP. 470PF 50V KB CCKT1H471KB 7.1PRE C174 CERAMIC CAP. 470PF 50V KB CCKT1H471KB 7.1PRE C175 CERAMIC CAP. 470PF 50V KB CCKT1H471KB NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 72 HCBS1H104ZFT FRONT C837 CERAMIC CAP. 1000PF 50V B HCBS1H102KBT FRONT C838 CERAMIC CAP. 1000PF 50V B HCBS1H102KBT FRONT C840 CERAMIC CAP. 0.1UF 50V Z HCBS1H104ZFT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 73 CRD20TJ473T FRONT R836 RESISTOR 47K OHM 1/5W J CRD20TJ473T FRONT R837 RESISTOR 47K OHM 1/5W J CRD20TJ473T FRONT R838 RESISTOR 100 OHM 1/5W J CRD20TJ101T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 74 90M-SP001210R SWITCH 00802-0005 CST1A012ZT FRONT SW79 90M-SP001210R 90M-SP001210R SWITCH 00802-0005 CST1A012ZT FRONT SW80 90M-SP001210R 90M-SP001210R SWITCH 00802-0005 CST1A012ZT FRONT SW81 90M-SP001210R 90M-SP001210R SWITCH 00802-0005 CST1A012ZT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 75 KVD1N4003SRT STANDBY D812 90M-HD201750R DIODE 1N4003 KVD1N4003SRT STANDBY D813 90M-HD201750R DIODE 1N4003 KVD1N4003SRT STANDBY F801 FUSE HOLDER KJCFC5S STANDBY F802 /L1G 90M-FS001070R 90M-FS001070R FUSE KBA2D2500TLET NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 76 CCKT1H471KB INPUT C223 00MOA10605020 ELECT CAP. 10UF 50V HCEA1HH100T INPUT C224 00MOA10605020 ELECT CAP. 10UF 50V HCEA1HH100T INPUT C225 00MOA10605020 ELECT CAP. 10UF 50V HCEA1HH100T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 77 47UF 25V HCEA1EH470T INPUT C302 00MOA47602520 ELECT CAP. 47UF 25V HCEA1EH470T INPUT C303 CERAMIC CAP. 50V 0.1UF CCKT1H104ZF INPUT C304 CERAMIC CAP. 50V 0.1UF CCKT1H104ZF NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 78 HCEA1CH101T INPUT C372 00MOA10701620 ELECT CAP. 100UF 16V HCEA1CH101T INPUT C373 00MOA10701620 ELECT CAP. 100UF 16V HCEA1CH101T INPUT C374 CERAMIC CAP. 470PF 50V KB CCKT1H471KB NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 79 PLATE , EARTH CNE75 INPUT IC21 00MHC10470050 00MHC10470050 IC TC9164AN HVITC9164AN INPUT IC22 00MHC10468050 00MHC10468050 IC TC9273N HVITC9273N INPUT IC23 00MHC10469050 00MHC10469050 IC TC9162AN HVITC9162AN NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 80 C3A206 INPUT J051 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J053 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J054 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 81 C3A206 INPUT J126 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J127 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J129 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 82 C3A206 INPUT J203 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J204 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J205 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 83 C3A206 INPUT J289 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J290 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 INPUT J295 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 84 00MHT805501B0 TRANSISTOR KTC2874B HVTKTC2874BT INPUT Q209 00MHT805501B0 00MHT805501B0 TRANSISTOR KTC2874B HVTKTC2874BT INPUT Q210 00MHT805501B0 00MHT805501B0 TRANSISTOR KTC2874B HVTKTC2874BT INPUT Q211 00MHT805501B0 00MHT805501B0 TRANSISTOR KTC2874B HVTKTC2874BT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 85 CRD20TJ823T INPUT R243 RESISTOR 47K OHM 1/5W J CRD20TJ473T INPUT R244 RESISTOR 47K OHM 1/5W J CRD20TJ473T INPUT R245 RESISTOR 100 OHM 1/5W J CRD20TJ101T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 86 CRD20TJ473T INPUT R325 RESISTOR 47K OHM 1/5W J CRD20TJ473T INPUT R326 RESISTOR 47K OHM 1/5W J CRD20TJ473T INPUT R327 RESISTOR 47K OHM 1/5W J CRD20TJ473T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 87 CRD20TJ473T INPUT R426 RESISTOR 47K OHM 1/5W J CRD20TJ473T INPUT R427 RESISTOR 220 OHM 1/5W J CRD20TJ221T INPUT R428 RESISTOR 4.7K OHM 1/5W J CRD20TJ472T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 88 00MOA10710020 ELECT CAP. 100UF 100V HCEA2AH101E POWER C661 CERAMIC CAP. 50V 0.1UF CCKT1H104ZF POWER C662 CERAMIC CAP. 50V 0.1UF CCKT1H104ZF POWER C663 CERAMIC CAP. 50V 0.1UF CCKT1H104ZF NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 89 CCCT1H220JC POWER C775 00MOA10505020 ELECT CAP. 1UF 50V HCEA1HH1R0T POWER C776 CERAMIC CAP. 0.01UF 50V ZF CCKT1H103ZF POWER C777 CERAMIC CAP. 30PF 50V JC CCCT1H300JC NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 90 90M-HD302190R 90M-HD302190R ZENER DIODE HVDMTZJ30BT POWER D617 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER D618 90M-HD201750R DIODE 1N4003 KVD1N4003SRT POWER D619 90M-HD201750R DIODE 1N4003 KVD1N4003SRT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 91 C3A206 POWER J644 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER J645 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER J646 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 92 C3A206 POWER J721 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER J722 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER J723 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 93 C3A206 POWER J794 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER J795 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER J796 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 94 00MBA10001000 00MBA10001000 TRANSISTOR KRA102M HVTKRA102MT POWER Q703 00MHT30001000 00MHT30001000 TRANSISTOR HVTKTC3199YT POWER Q704 00MHT30001000 00MHT30001000 TRANSISTOR HVTKTC3199YT POWER Q705 /N1B 00MBA20004000 00MBA20004000 TRANSISTOR KRC111M HVTKRC111MT NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 95 KRQ1AJR15H POWER R701 RESISTOR 75 OHM 1/5W J CRD20TJ750T POWER R702 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER R703 RESISTOR 75 OHM 1/5W J CRD20TJ750T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 96 CRD20TJ102T POWER R775 CONNECTIVE CORD SN95/PB5 , 0.6 C3A206 POWER R776 RESISTOR 1M OHM 1/5W J CRD20TJ105T POWER R777 RESISTOR 1M OHM 1/5W J CRD20TJ105T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 97 22PF 50V HCUS1H220JA VIDEO C139 00MDK96103300 CERAMIC CAP. 0.01UF 50V HCUS1H103KC VIDEO C140 00MDD91090300 CERAMIC CAP. CCUS1H9R0JA VIDEO C141 00MDD95220300 CERAMIC CAP. 22PF 50V HCUS1H220JA NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 98 90M-HT600050R TRANSISTOR TRPNPB-R2 HVTKTA2014GR VIDEO R100 00MNN05182610 RESISTOR 1.8K OHM HRJ10DJ182T VIDEO R101 00MNN05102610 RESISTOR 1608 SIZE HRJ10DJ102T VIDEO R102 00MNN05000610 RESISTOR 0 OHM HRJ10DJ0R0T NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 99 4.433MHZ HOX04433E120TF VIDEO X100 /N1S 90M-JX001160R 90M-JX001160R CRYSTAL 4.433MHZ HOX04433E120TF VIDEO X101 90M-JX001150R 90M-JX001150R CRYSTAL 3.579MHZ HOX03579E120TF VIDEO X102 90M-FQ000580R 90M-FQ000580R SERAMIC VIB. SR7400 BVFCSBLA503KECZ NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 100 Personal notes:...
