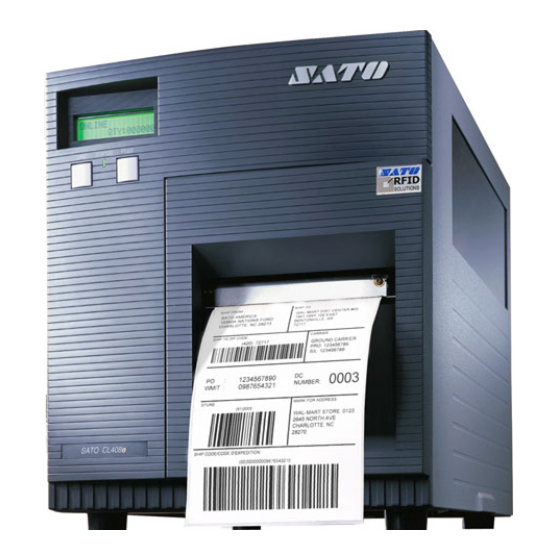

CL408e,
CL608e,
The New Sato 'Enhanced' Series

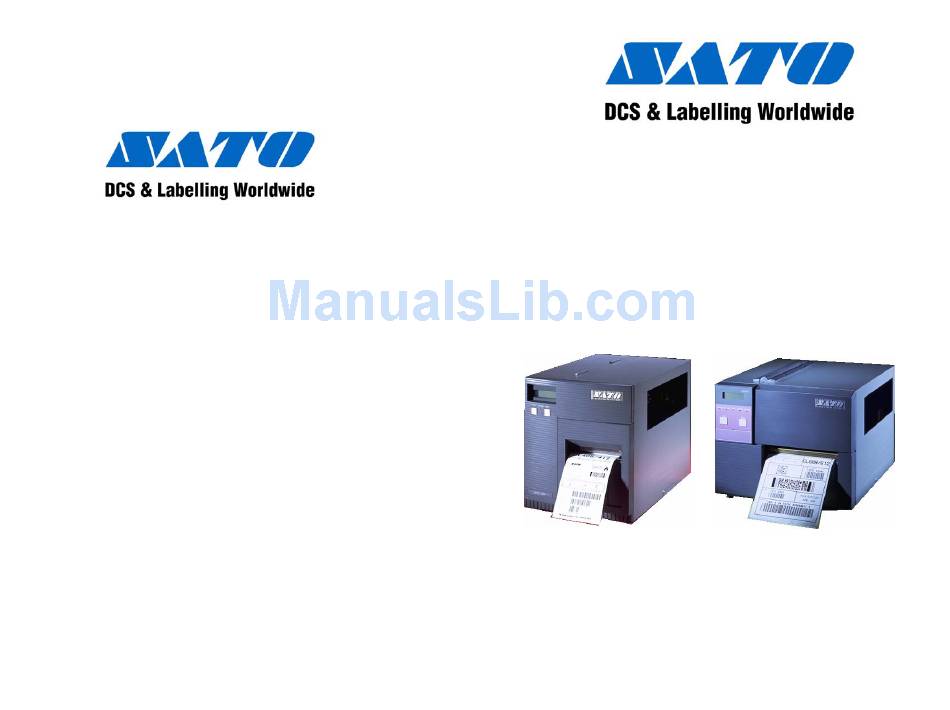

Quick Guide

CL412e
CL612e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL408e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SATO CL408e

Summary of Contents for SATO CL408e

  • Page 1: Quick Guide

    CL412e CL608e, CL612e (HQ) SATO International Pte. Ltd. (Japan) SATO Corporation (Singapore) SATO Asia Pacific Pte. Ltd. The New Sato ‘Enhanced’ Series (Malaysia) SATO Auto-ID Malaysia Sdn. Bhd. (Thailand) SATO Auto-ID (Thailand) Co., Ltd (China) SATO Shanghai Co., Ltd (USA) SATO America, Inc.
  • Page 2 All rights reserved. No part of this document may be reproduced or issued to third parties in any form whatsoever without the express permission of SATO Asia Pacific Pte. Ltd. The materials in this document are provided for general information and are subject to change without notice.

  • Page 3: Table Of Contents

    This Quick Guide was prepared to get you up and running quickly. It will enable you to get your new SATO CL ‘e’ Series installed and printing with a minimum of effort. However, it is recommended that you familiarise yourself with the contents of the Printer’s Operator &...

  • Page 4: What You Get

    CL ‘e’ Series Quick Guide CL ‘e’ Series Quick Guide Pg 2 Pg 15 What You Get Media & Supplies The CL ‘e’ Series Thermal Transfer printer comes packed in a protective carton. The Printer comes from the factory set up to operate with high-quality TechnoTherm Included in the carton are the following items : thermal transfer media and ribbons.

  • Page 5: Controls & Indicators

    Text Fonts 10 Scaleable Vector Fonts LCD Display : Illuminated when power is applied Graphics Sato Hex/Binary, .BMP or .PCX Adjustments (controls behind front panel) Bar Codes 19 including Four (4) 2-D Bar Codes Rotation Text & Bar Codes can be rotated 90 , 180 &...

  • Page 6: Keys

    CL ‘e’ Series Quick Guide CL ‘e’ Series Quick Guide Pg 4 Pg 13 Keys LCD displays “FRAMING ERROR” Line : Toggles printer between On Line and Off Line mode. During • Communication format between the printer and host must be synchronised when printing it will pause the printer during a print job using the serial interface.

  • Page 7: Initial Setup

    Thermal Print Head and Platen Cleaner from the 1. Locate a suitable spot for the printer. It should be within 6’ of the host if using SATO cleaning kit. IEEE1284 Parallel interface or within 3.5’ if using an RS232 interface. For other types of Plug-In interface cards, see the Operator &...

  • Page 8: Printing A Test Label

    CL ‘e’ Series Quick Guide CL ‘e’ Series Quick Guide Pg 6 Pg 11 Label Roll Ribbon Rewind Ribbon Supply Label Roll Printer does not print when data is sent Spindle Spindle Retainer Ribbon Path • Check the interface cable to make sure it is connected to the correct port on the •...

  • Page 9: Configuring The Printer

    It is always best to use a Label Design program that supports turn power Off. Turing power back On will place the printer in the normal On- all of the features of the SATO printer being used, thereby increasing the efficiency of Line mode where it is waiting for print data.

  • Page 10: Computer Connections

    These can be purchased locally or Clear-To-Send from your SATO supplier. If you need additional information on interface types, Data Set Ready connector types or cabling pin-outs, please refer to Operator & Technical Reference...

This manual is also suitable for:

Cl412eCl608eCl612e

Table of Contents
