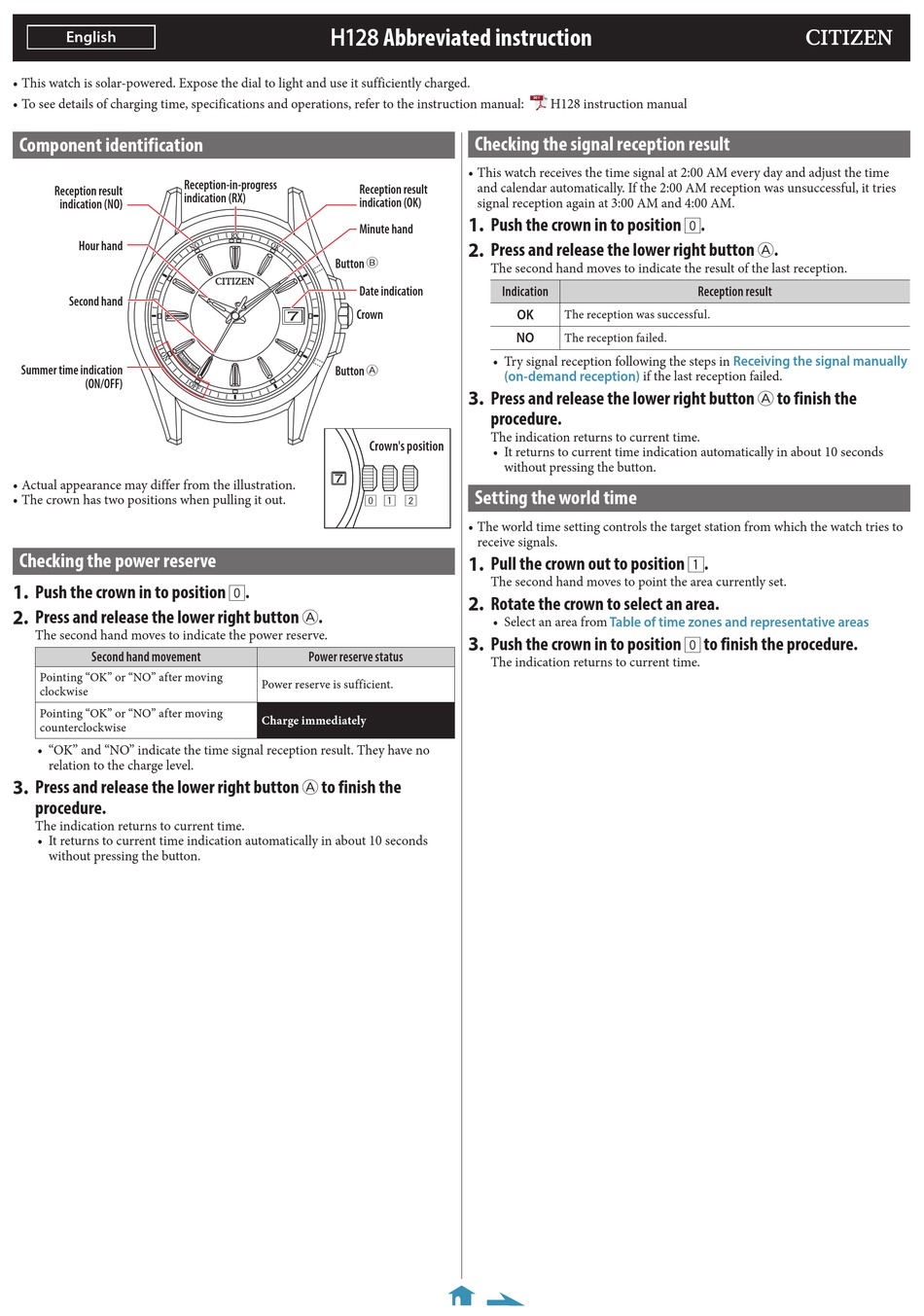

Citizen H128 Abbreviated Instruction

English
• This watch is solar-powered. Expose the dial to light and use it sufficiently charged.
• To see details of charging time, specifications and operations, refer to the instruction manual:
Component identification
Reception-in-progress
Reception result
indication (RX)
indication (NO)
Hour hand
Second hand
Summer time indication
(ON/OFF)
• Actual appearance may differ from the illustration.
• The crown has two positions when pulling it out.
Checking the power reserve
1.
Push the crown in to position
2.
Press and release the lower right button
The second hand moves to indicate the power reserve.
Second hand movement
Pointing "OK" or "NO" after moving
clockwise
Pointing "OK" or "NO" after moving
counterclockwise
• "OK" and "NO" indicate the time signal reception result. They have no
relation to the charge level.
3.
Press and release the lower right button
procedure.
The indication returns to current time.
• It returns to current time indication automatically in about 10 seconds
without pressing the button.
H128 Abbreviated instruction
Reception result
indication (OK)
Minute hand
Button
B
Date indication
Crown
Button
A
Crown's position
0 1 2
.
0
.
A
Power reserve status
Power reserve is sufficient.
Charge immediately
to finish the
A
H128 instruction manual
Checking the signal reception result
• This watch receives the time signal at 2:00 AM every day and adjust the time
and calendar automatically. If the 2:00 AM reception was unsuccessful, it tries
signal reception again at 3:00 AM and 4:00 AM.
1.
Push the crown in to position
2.
Press and release the lower right button
The second hand moves to indicate the result of the last reception.
Indication
OK
The reception was successful.
NO The reception failed.
• Try signal reception following the steps in
(on-demand reception)
3.
Press and release the lower right button
procedure.
The indication returns to current time.
• It returns to current time indication automatically in about 10 seconds
without pressing the button.
Setting the world time
• The world time setting controls the target station from which the watch tries to
receive signals.
1.
Pull the crown out to position
The second hand moves to point the area currently set.
2.
Rotate the crown to select an area.
• Select an area from Table of time zones and representative areas
3.
Push the crown in to position
The indication returns to current time.
1/3
.
0
.
A
Reception result
Receiving the signal manually
if the last reception failed.
to finish the
A
.
1
to finish the procedure.
0
