4.8

External soft start circuit control

As discussed in section 4.4 External softstart resistor on page 12 an external soft start
resistor is required for Unidrive SP size 4 and larger.
The soft start resistor only needs to be in circuit at certain times as shown in the flow
diagram below.

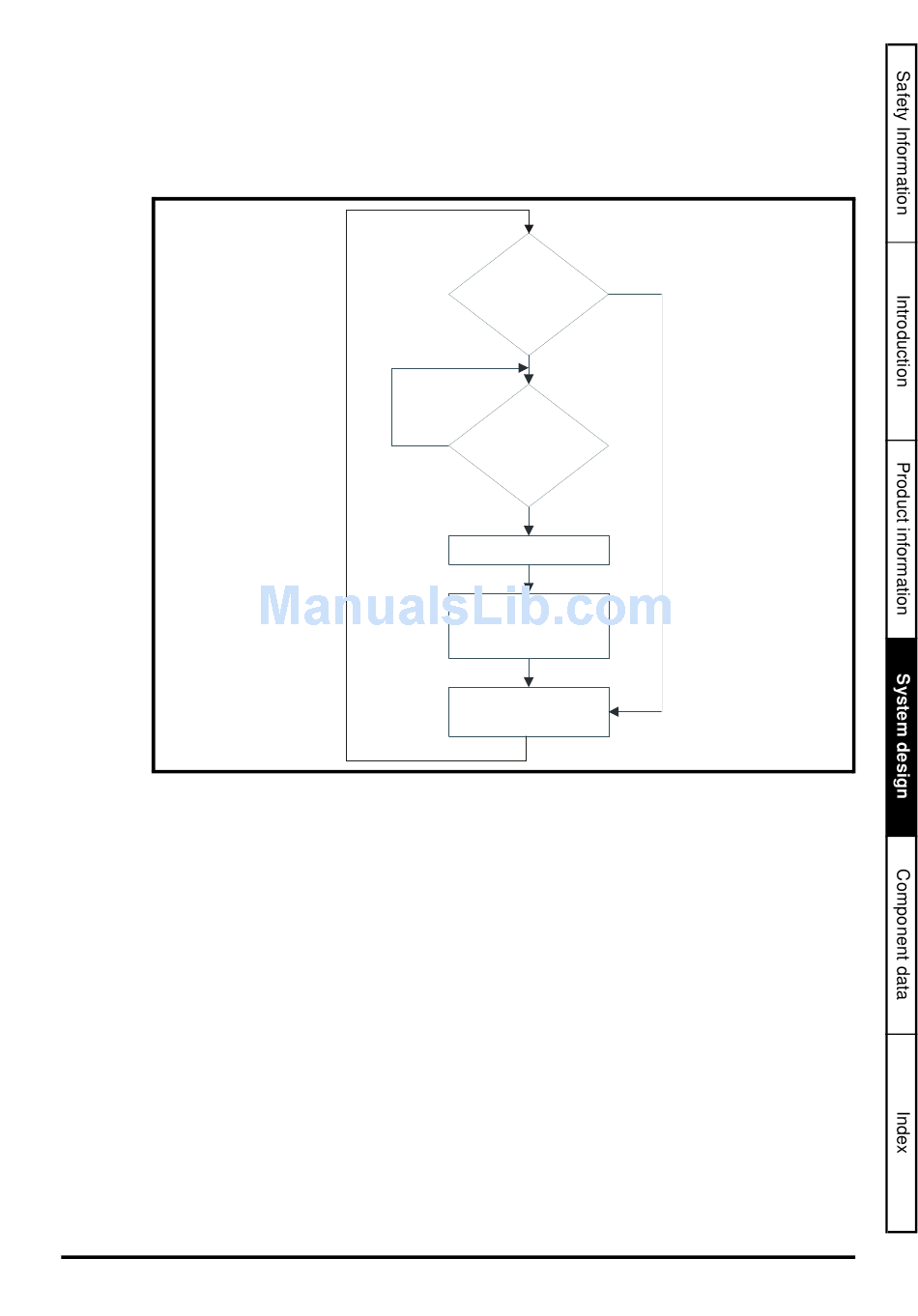

Figure 4-13 Soft start control circuit sequencing
The above sequencing can be achieved using the drive internal function blocks as
shown in Figure 4-14 on page 28.
Unidrive SP Low Voltage DC Installation Guide
Issue Number: 1
Is the drive powered
from LVDC ?
(Read Pr 6.44)
Is the drive in
Yes
UV state?
(Read Pr 10.16)
Wait 2.5 . s
Close the drive
relay
(soft start resitor
out of circuit)
Allow drive
enable
(write 1 to Pr 6.15)
www.controltechniques.com
No
Yes
No
27
