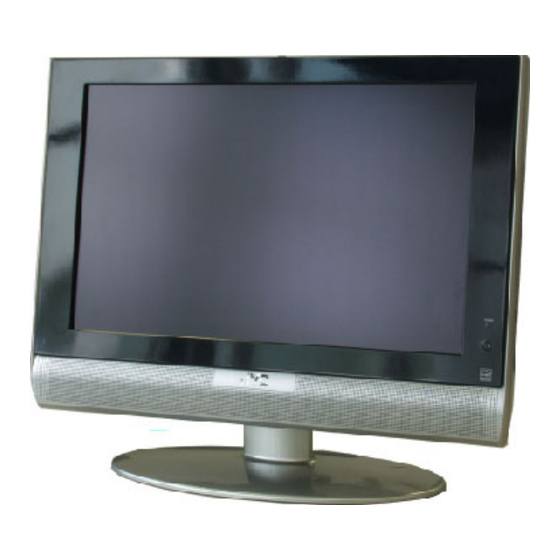

JVC LT-17X576 Instructions Manual

Jvc lcd flat television instructions.
Hide thumbs

Advertisement

ENGLISH
FRANÇAIS
LT-17X576
LT-23X576
3X576
LCD FLAT TELEVISION
INSTRUCTIONS
TELEVISEUR A ECRAN PLAT – LCD
MANUEL D'INSTRUCTIONS
5030057131
0305TNH-TU

Advertisement

   Also See for JVC LT-17X576

   Related Manuals for JVC LT-17X576

   Summary of Contents for JVC LT-17X576

  • Page 1

    ENGLISH FRANÇAIS LT-17X576 LT-23X576 3X576 LCD FLAT TELEVISION INSTRUCTIONS TELEVISEUR A ECRAN PLAT – LCD MANUEL D’INSTRUCTIONS 5030057131 0305TNH-TU...

  • Page 2

    5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover. Changes of modifications nor approved by JVC could void the warranty. * When you don't use the TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.

  • Page 3

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8.

  • Page 4

    Thank you for buying this JVC LCD flat television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. (“LCD” stands for Liquid Crystal Display.) WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 5: Cleaning The Screen

    Point defects LCDs use collections of fine pixels to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light or may light all the time. Distance recommendations Avoid improper installation and never position the unit where good ventilation is impossible.

  • Page 6: Table Of Contents

    ZOOM function...12 Sleep timer funtion ...12 VIDEO STATUS...12 C.C. (Closed Caption)...12 Using the PC PIP function ...13 Operating a JVC brand VCR or DVD player ...13 Using the TV’s menu ...14 Basic operation ...14 PICTURE SETTING...15 VIDEO STATUS ...15 Picture Adjustment...15 COLOR TEMPERATURE...15...

  • Page 7: Setting Up Your Tv

    TV up and down. • As a safety measure, the stand is constructed so that it requires a certain amount of force to tilt the TV. LT-17X576 Tilt slowly Hold down steadly in front of center on stand...

  • Page 8: Putting The Batteries Into The Remote Control

    Putting the batteries into the Remote control Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct. • Follow the warnings printed on the batteries. • Battery life is about six months to one year, depending on your frequency of use. •...

  • Page 9: Connecting The Aerial And Video Cassette Recorder (vcr)

    Settin g up your TV Connecting the aerial and video cassette recorder (VCR) • The connectin g cables are not pro • For further details, refer to the manuals provided with ices to be connected. If you are connecting a VCR, follow in the diagram below.

  • Page 10: Tv Buttons And Functions

    TV buttons and functions Power lamp 2 Remote control sensor MENU button INPUT OK button VOLUME button CHANNEL button Standby botton 8 Headphone jack (mini jack) Turn the TV on from standby mode Press the POWER button to turn the TV on from standby mode •...

  • Page 11: Remote Control Buttons And Functions

    Remote control buttons and functions MUTING 100+ VIDEO STATUS ASPECT C.C. DISPLAY CHANNEL PC PIP MOVE SIZE SOUND TOP MENU RM-C1880 1 Muting bu 2 Number buttons 3 ASPECT button VIDEO STATUS button POWER C.C. button DISPLAY button CHANNEL VCR/DVD/PIP control buttons POWER button VCR/TV/DVD switch INPUT...

  • Page 12: Adjust The Volume

    Adjust the volume buttons to adjust the volume. Press the VOLUME The volume indicator appears and the volume changes as you press the VOLUME buttons. Muting the sound Press the muting button to turn off the sound. Pressing the muting button again restores the previous volume level.

  • Page 13: Zoom Function

    Remote control buttons and functions ASPECT function You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ASPECT modes. REGULAR - The regular ratio is used when you want to watch a 4:3 broadcast or recorded program without modifying the original picture to fit the dimensions of your 16:9 screen.

  • Page 14: Using The Pc Pip Function

    Standby button. 2 Press the VCR/DVD Control Button to control your VCR or DVD player • If your device is not made by JVC, these buttons will not work. • Even if your device is made by JVC, some of these buttons may not work, depending on the device you are using.

  • Page 15: Using The Tv's Menu

    Using the TV’s menu This TV has a number of functions you can operate using menus. To use all your TV’s functions, you need to understand the basic menu operating techniques fully. MUTING POWER 100+ INPUT VIDEO SLEEP STATUS ASPECT TIMER C.C.

  • Page 16: Picture Setting

    PICTURE SETTING Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. PICTURE VIDEO STATUS STANDARD TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE COLOR TEMPERATURE HIGH RESET : OPERATE : SELECT VIDEO STATUS You can choose one of five VIDEO STATUS to adjust the picture settings automatically.

  • Page 17: Sound Setting

    SOUND SETTING Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. SOUND BASS TREBLE BALANCE HYPER SURROUND : OPERATE : SELECT Sound Adjustment You can adjust the sound to your liking. BASS: You can adjust the low tone of the sound. : weaker : strong TREBLE:...

  • Page 18: Features

    FEATURES Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. FEATURES NOISE MUTING FRONT PANEL LOCK AUTO SHUT OFF : SELECT : OPERATE NOISE MUTING You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

  • Page 19: Initial Setup

    INITIAL SETUP Refer to “Using the TV’s menu” (see page 14) for details of displaying the menu. INITIAL SETUP LANGUAGE ENG/FRAN/ESP/ AUTO TUNER SETUP CLOSED CAPTION CHANNEL SUMMARY V-CHIP SET LOCK CODE : SELECT OK : OPERATE LANGUAGE Select LANGUAGE and press the to choose the language.

  • Page 20: Closed Caption

    CLOSED CAPTION Select CAPTION or TEXT and press the to select a caption (CC1 to CC4) or text channel (T1 to T4). CLOSED CAPTION CAPTION TEXT : OPERATE : SELECT Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form.

  • Page 21: Set Lock Code

    INITIAL SETUP Note: If you want to change the setup, move the cursor to the top column and change the lock icon to " - " by pressing or again. You may then select indivual categories to block. Movies Ratings : •...

  • Page 22: Pc Menu

    PC MENU (In PC mode only) This TV also has a number of functions on PC mode, you can operate using pc menus. PC MENU PC PICTURE POSITION PC PICTURE SOUND : SELECT OK : OPERATE 1024 X 768X60 PC PICTURE POSITION You can adjust the picture settings as following functions.

  • Page 23: Pc Support Mode List

    PC MENU LT-17X576 / L T-23X576 Mode NO. The r esolution and the fr equencies w hich ar e displayed on the scr een may not exactly same as this list. Mode Name Resolution VGA 70 HZ 640x350 VGA 60 Hz...

  • Page 24: Additional Preparation

    Additional preparation Connecting external equipment Connect the equipment to the TV, making the correct rear panel and front panel connections. Before connecting anything: • Read the manuals that came with the equipment. Depending on the equipment, the connection method may be different from the diagram. Also, the equipment settings may need to change depending on the connection method.

  • Page 25: Connecting Headphones

    Additional preparation Connecting headphones Connect the headphones with a stereo mini-jack (3.5 mm diameter) to the headphone socket at the TV. Connecting the PC Connect the PC with the D-SUB cable to the D-SUB in at the TV, and connect the sound device of PC with a stereo mini-jack to PC AUDIO IN.

  • Page 26: Troubleshooting

    Troubleshooting If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

  • Page 27

    Troubleshooting Other concerns • When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV suddenly turns off, try to press the standby button to turn on the TV once again. If the TV goes back to normal, there is no problem.

  • Page 29

    BT-51011-8 (0504)

  • Page 30: Specifications

    (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this constitutes an infringement of copyright. LT-17X576 TV : 24V DC, Power source : AC 120V 60 Hz 120W, Standby : 1 W Viewable area 58.2cm(measured diagonally)
