CDP-50
Operation Manual
CD-Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDP-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tangent CDP-50

Summary of Contents for Tangent CDP-50

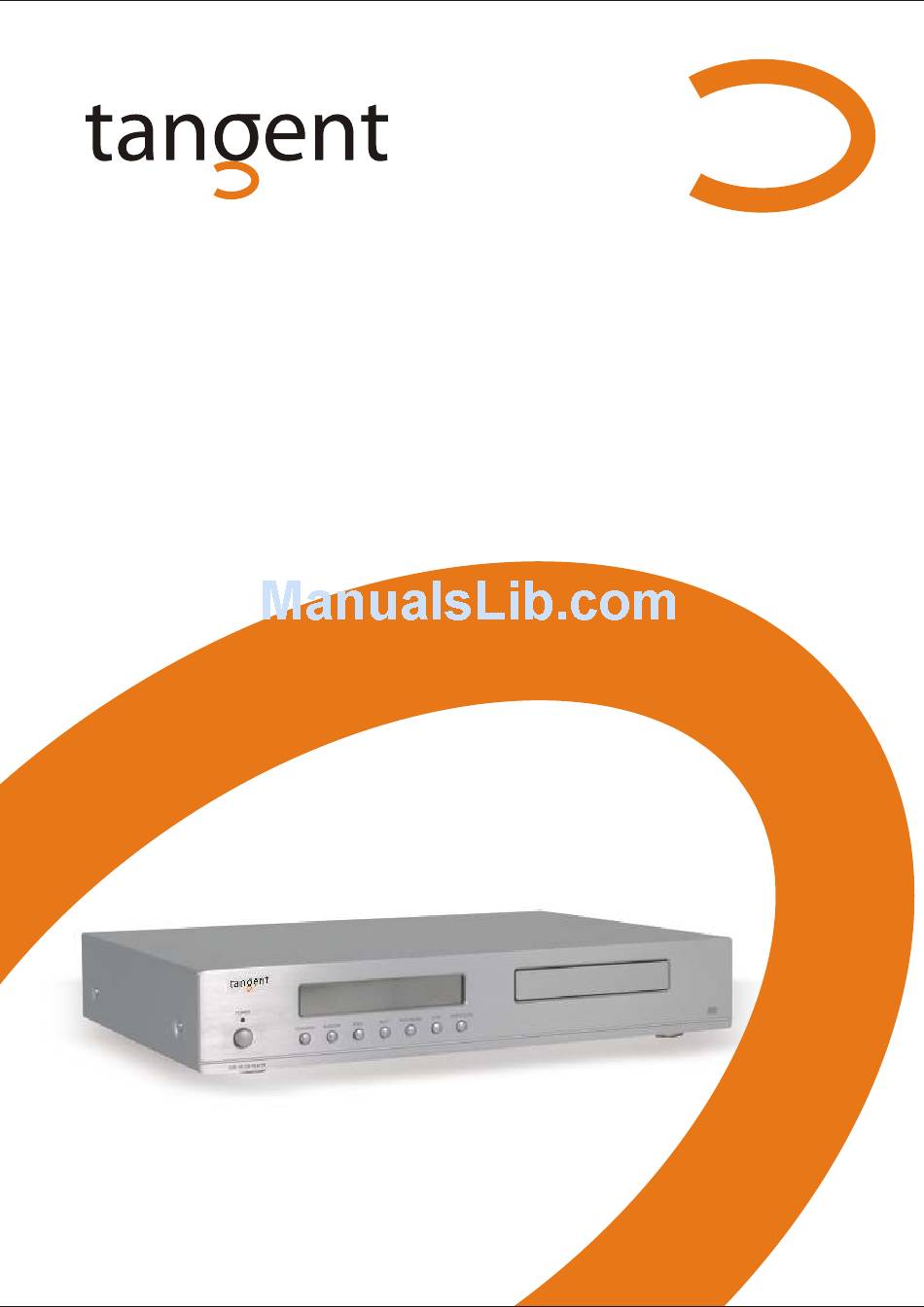

  • Page 1 CDP-50 Operation Manual CD-Player...

  • Page 2: Accessories

    2 x Batteries (Optional) 1 x Operation manual CDP-50 Operation Manual CD-Player This operation manual supplies all the information that you need to have about your Tangent CDP-50. Please read this operation manual carefully before you start using the unit!

  • Page 3: Table Of Contents

    CONTENTS ACCESSORIES OPERATION AND FUNCTIONS ON, OFF and standby Accessories Load a disc Play CONTENTS Pause Stop/Clear Contents Previous and next Forward and rewind SAFETY PRECAUTIONS Random Program Safety precautions Repeat IMPORTANT SAFETY INSTRUCTIONS TROUBLESHOOTING Troubleshooting Important safety instructions IMPORTANT INFORMATION TECHNICAL DATA Important information Technical data...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS A triangle with a lightning symbol draws the user's attention to "dangerous voltage" without insulation in the cabinet which may be high enough to entail a risk of electric shock. A triangle with an exclamation mark draws the user's attention to important instructions for use and maintenance in the accompanying manual, which should be studied.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: IT IS IMPORTANT THAT YOU READ AND OBSERVE BOTH THE INSTRUCTIONS IN THIS MANUAL AND THE INSTRUCTIONS ON THE UNIT. KEEP THIS MANUAL FOR FUTURE REFERENCE. This unit was designed and manufactured with a view to providing maximum safety for the user. Incorrect use of the unit may cause electrical shock or fire.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS Lightning Damage Unplug the unit for additional Unplug the unit and contact qualified technicians in protection during thunder or when the following cases: the unit is not used for prolonged A) If the power cord or the plug is damaged. periods.

  • Page 7: Important Information

    IMPORTANT INFORMATION Handling instructions Condensation Condensation may occur in the following cases: The top and back panel of the unit may become warm after prolonged use. This is not due to a When the unit is moved directly from a cold to a defect.

  • Page 8: Connection

    CONNECTION Connection to the mains Do not turn on the power before all connections have been made correctly. Check that all connections have been made correctly before turning on the power. Check that the mains voltage is 230-240V AC50Hz before turning on the power.

  • Page 9: Remote Control

    REMOTE CONTROL Installation of batteries Remove the cover as illustrated. Replace the cover. Position two batteries of the type AAA/R03/UM4 in the battery compartment. Make sure that the orientation of the batteries is correct (see drawing at bottom). Do not mix new and old batteries and do not use different types of batteries. If the remote control is not used for prolonged periods, remove the batteries from the remote control to avoid corrosion.

  • Page 10: Remote Control Functions

    Play/Pause: Starts and pauses playback. Repeat: Repeats a single track or all tracks of a CD. Power: Sets the CDP-50 in standby mode. Next: Selects the next track. Depress button for fast forward. Random: All tracks are played in random order.

  • Page 11: Front Panel And Connections

    FRONT PANEL AND CONNECTIONS Front panel disc Mains switch: Used to interrupt the mains voltage. LED indicator: Lights green when the unit is turned on. Lights red when the unit is in standby mode or in operation. Program: Makes it possible to play the tracks of a CD a certain order. Random: Makes it possible to play the tracks of a CD in random order.

  • Page 12: Connections

    FRONT PANEL AND CONNECTIONS Connections Stereo Output: Analogue stereo output. For connection to stereo amplifier or receiver with analogue input. Optical Output: Optical SPDIF output. For connection to stereo amplifier or receiver with digital input. AC input: For connection of mains voltage. Make sure that the plug has been correctly inserted, and that the voltage corresponds to the text printed on the back panel of the cabinet.

  • Page 13: Connection

    Analog amplifier/receiver VOLUME POWER HEADPHONE PHONO TUNER AUX 1 AUX 2 FUNCTION AMP-50 AMPLIFIER This page contains only suggestions for connection of your Eltax CDP-50. Note that the accessories in the pictures on this page are not included in the supply.

  • Page 14: Operation And Functions

    If you wish to turn off the unit to avoid any power consumption, you must press the mains switch. POWER PHONO CDP-50 CD-PLAYER Protect the environment and turn off the unit after use. Load a disc If you want to play a disc, you must load it.

  • Page 15: Pause

    OPERATION AND FUNCTIONS Pause Press the PLAY/PAUSE button once more to stop playback. The small play symbol will disappear, and a - 0:38 small pause symbol will be displayed instead. To continue playback, press the PLAY/PAUSE button again. Stop/Clear To stop playback completely, press the STOP button once.

  • Page 16: Forward And Rewind

    OPERATION AND FUNCTIONS Forward and rewind It is possible to perform a search in the track played. If you wish to search forward, depress the >> (next) button until you get to that part of the track that you wish to hear. You will see that the time counter in the display counts up very quickly.

  • Page 17: Program

    When you press << or >>, you will select the next track in the programmed order. Repeat The CDP-50 can be set to repeat one or all tracks of a CD. - 3:14 This is done by means of the REPEAT button on the remote control.

  • Page 18: Troubleshooting

    - The unit is positioned on an unstable surface. A buzzing can be heard. -The RCA cables between the CDP-50 and the amplifier/receiver have been damaged. -The RCA cables between the CDP-50 and the amplifier/receiver have been wound around the power...

  • Page 19: Technical Data

    TECHNICAL DATA Technical data Output voltage 0.7V+/-2dB Frequency characteristics (Reference: 1kHz 0dB) 20 Hz 0dB -0.5 dB +/- 1 dB 100 Hz 0dB 0 dB +/- 1 dB 10 kHz 0dB -0.5 dB +/- 2 dB 20 kHz 0dB -3.0 dB +/- 2 dB Channel balance <...
  • Page 20 .com...
