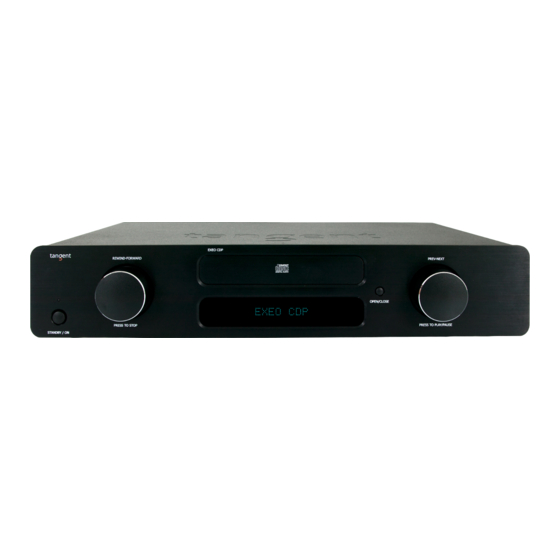

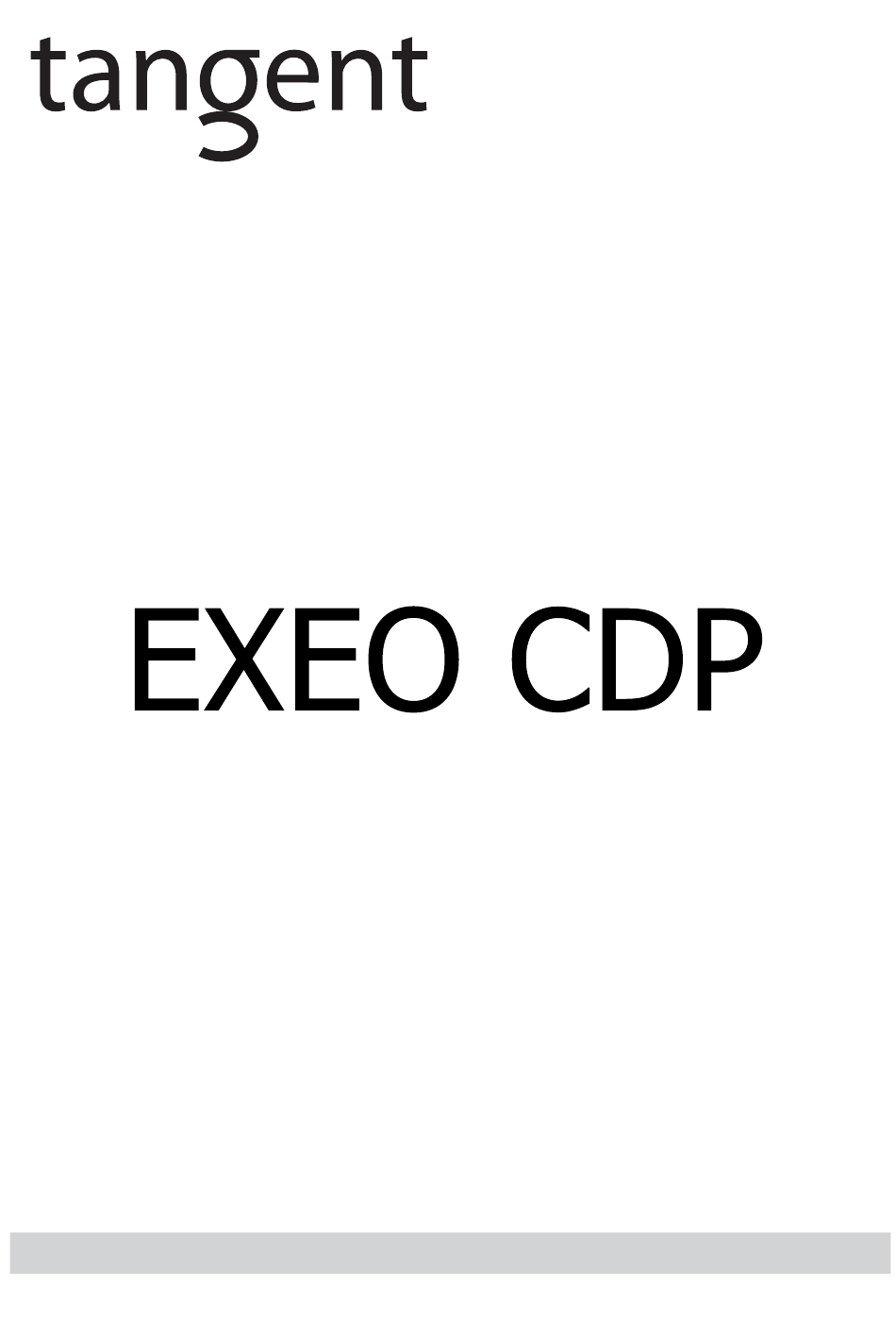

  • Page 1 Service manual Service manual...
  • Page 2 CONTENTS 8-11 12-16 17-18 19-221...

  • Page 3: Specifications

    SPECIFICATIONS Compatible disc types CD-DA/CD-R/CD-RW Output voltage 2V +/-0.2V Frequency response 20 Hz~20 KHz Channel balance <2.0 dB Separation channel >60 dB Harmonious ratio (THD +noise) <0.05% Signal/noise ratio >90 dB Voltage and power consumption 100-240V ~ 50/60Hz Dimensions (WxDxH) 430 x 240 x 80 mm *Design and specifications are subject to change without notice.

  • Page 4: Rear Panel Information

    REAR PANEL INFORMATION ANALOG For connection to an amplifier e.g. EXEO AMP COAX Coaxial (75Ω) SPDIF output. OPTICAL Optical (Toslink) SPDIF output AC MAINS INPUT For connection of mains voltage. Make sure that the plug is correctly inserted, and that the voltage corresponds to the text printed on the rear panel of the cabinet.

  • Page 5: Remote Control Information

    Press to select the next track or chapter (MP3). Press and hold to fast forward and return to normal playback after release. 20. CDP Press this button to activate the EXEO CDP from Standby or to select MENU or INFO. 21. NET Does not apply.

  • Page 6: Front Panel Information

    FRONT PANEL INFORMATION 1. Power On Press it to turn on the unit, press it again to turn off. 2. REWIND-FORWARD a. Rotate the knob clockwise or counterclockwise to scan the tracks forward or backwards. Press it once to stop the playback. (Note: when the unit is scanning fast forward, press the PREV-NEXT button once to resume normal playback.

  • Page 7: Wiring Diagram

    WIRING DIAGRAM...
  • Page 8 SEMICONDUCTOR INSTRUCTION GPIO12/IRC GPIOD0/12CM GPIO13/LWM1 GPIOC3/JRRX GPIO14/PWM2 GPIOC2/URTX GPIO15 GPIOC1/SFSCK GPIO16 GPIOC0/SFCSB GPIO17/12S-CLK GPIOB7-SFDI GPIOJ0/12CS-DAT GPIOB6-SFDO GPIOJ1 VDD-PAD GPIOJ2 GND-PAD GND-PAD GND-CORE VDD-PAD VDD-CORE GND-CORE ALIM5673 VDD-CORE AVDD-D33 SFGN BTN-ADIN1 SFGP BTN-ADIN2 VREF BTN-ADIN3 V15R VREF16 V08R V15L AVDD33 V08L MICBIAS AVSS33 LINEINL...
  • Page 9 POWER PCB...

  • Page 10: Display Pcb

    DISPLAY PCB...
  • Page 11 DECODER PCB 1/2...
  • Page 12 DECODER PCB 2/2...

  • Page 13: Power Schematic

    POWER SCHEMATIC...
  • Page 14 DISPLAY SCHEMATIC...
  • Page 15 DECODER SCHEMATIC 1/3...
  • Page 16 DECODER SCHEMATIC 2/3 P1.6 P1.7 P0.0 RESET P0.1 P3.0 P0.2 P0.3 P3.1 P0.4 P3.2 P0.5 P3.3 P0.6 P3.4 P0.7 P3.5 P3.6 P3.7 XTAL1 PSEN XTAL0 P2.7 P2.6...
  • Page 17 DECODER SCHEMATIC 3/3...

  • Page 18: Exploded View

    EXPLODED VIEW...
  • Page 19 CDP PART LIST PART NO. PART NAME MATERIAL QTY. REMARK 7500 0060 0000 DECK: TY3988 6545 1010 0021 Pull on Switch/Volume ALUMIMUM SCREW BTF3.0× 6 5011-3006-0030 STEEL 6053 501A 0000 AL PANEL 7453 1020 0000 SDANDBY LENS PMMA 7353 1010 0000 POWER KNOB 5020 9012 0201 nut M9...
  • Page 20 DECODER-BOM Used Part Type Designator part number ========== ========== ============ 1 74HCU04D--(SOP14) IC3 1049 1004 1200 1 AT24C02--(SOP8) 1006 2402 2000 1 ALIM5673--(QFP128-0.5-6500) 1005 6732 2034 1 AM5888--(DIP28-SSOPH) 1005 8880 9753 1 JST1165-001 1341 1651 0100 1 NJM5532M--DMP8(JRC) 1005 5320 3113 2 LD1117S3.3--(SOT-223) IC1 IC2 1000 1117 3300 1 SM5964--PLCC44...
  • Page 21 R46 R47 R48 R49 R50 R51 R52 R55 R57 R60 R61 R62 R96 R97 R99 R101 R102 R105 R106 R111 R112 R113 R115 R116 R117 R120 3 12K--R-0603 R14 R21 R107 2401 1221 2303 6 22K--R-0603 R23 R24 R29 R31 R100 R103 2401 1222 2303 1 27K--R-0603 2401 1222 7303...
  • Page 22 1 162-SD-16INK 1521 6216 0101 2 EC121101E2B-HA1 VR1 VR2 4401 1211 0121 1 JX1.0S-1S-16PWT--JACK 3109 0116 3103 1 KS-803LM 1304 0008 0300 2 TS-36Y-BLM-B-RS K1 K4 4502 1003 6100 2 10R--1/8W R1 R2 2401 0221 0011 1 47R--1/8W 2401 0224 7011 1 2.7K--1/8W 2401 0222 7211 1 10K--1/8W...
  • Page 23 3 10K--1/8W R16 R20 R22 2401 0221 0311 1 22K--1/8W 2401 0222 2311 1 NC 2 1R--1/4W R13 R14 2401 0321 0911 2 560R--1/4W R6 R7 2401 0325 6111 2 200K--1/4W R1 R2 2401 0322 0411 1 2.2R--1/2W 2401 0422 2215 1 100K/1W 2401 0521 0415 1 47K--2W...
