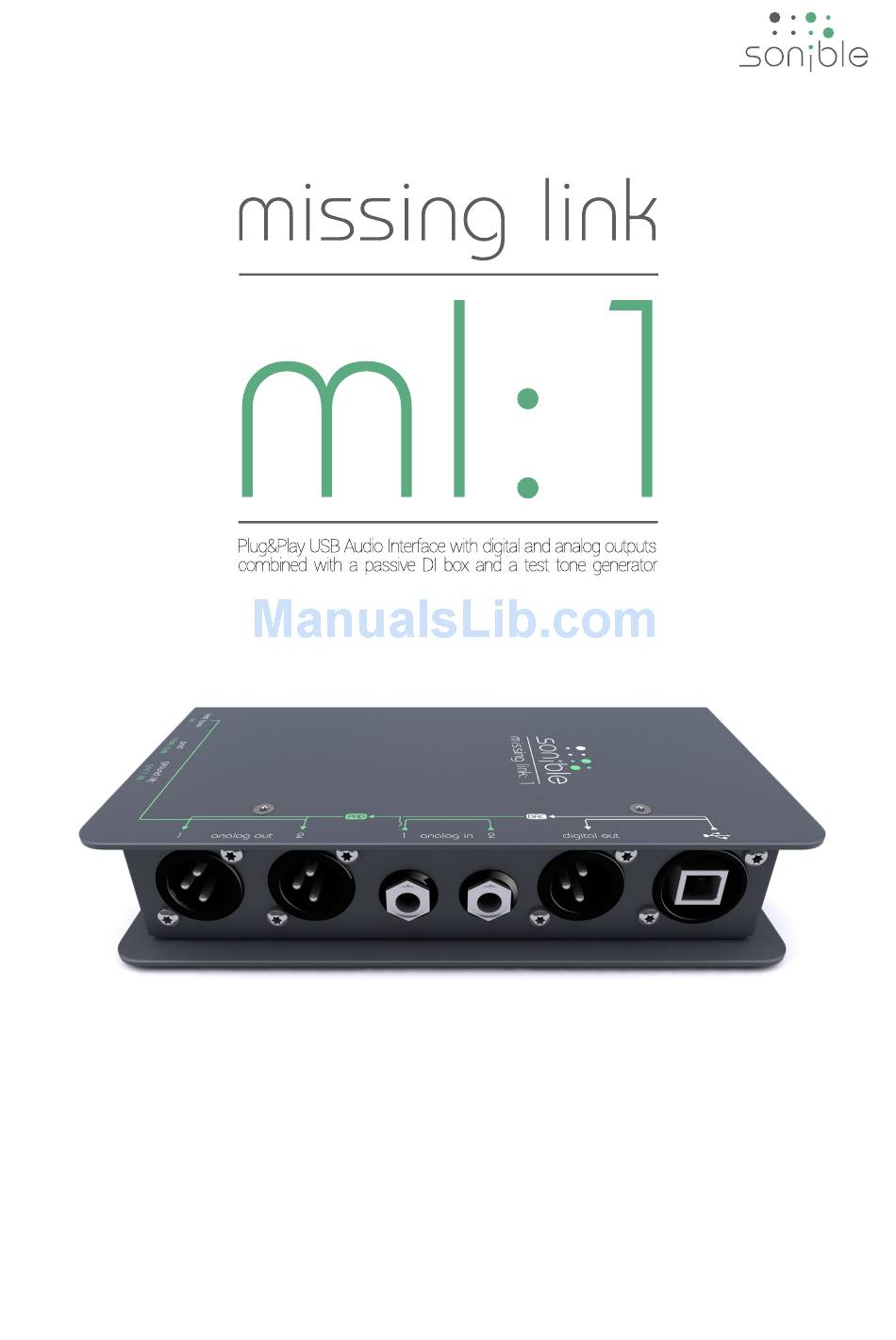

sonible missing link ml:1 User Manual

Plug & play usb audio interface with digital and analog outputs combined with a passive di box and a test tone generators
Hide thumbs Also See for missing link ml:1:
Table of Contents

Advertisement

Quick Links

user guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the missing link ml:1 and is the answer not in the manual?

Questions and answers

Related Manuals for sonible missing link ml:1

Summary of Contents for sonible missing link ml:1

  • Page 1 user guide...
  • Page 2 Introduction sonible would like to thank you for your purchase of this innovative and highly versatile audio device. We are confident you will enjoy the ml:1 as much as we do when using it in live sound applications. No matter how you are planning to use the ml:1, in a fixed installation setup or during flexible live setups, we built the interface for durability, reliability and compatibility.

  • Page 3: Digital Output

    (don't tell us you haven't been there before…). Although the ml:1 does not care whether phantom power (+48V) is applied to it or not, our recommendation is to switch it off to avoid possible chatter issues when connecting the outputs.

  • Page 4: Front Panel

    Lockable Neutrik® USB (B-type) receptacle, connection of every pin 1 of the analog outputs compatible with every B-type USB plug. to isolate the analog signal ground of the ml:1 outputs from any input ground. This safely Status LED. Lights up in white if the eliminates ground loops and reduces ground connection to the USB host is established.

  • Page 5: Quick Start Guide

    Quick Start Guide USB Audio Interface The ml:1 can be used as a plug & play USB audio interface for playback applications. As the interface is a bus powered device, all power needed in USB applications is provided through the USB connector. The maximum current draw of the ml:1 is less than 40mA offering a decent runtime even with battery powered solutions.
  • Page 6 Selecting the ml:1 as USB Playback Device On some devices, the ml:1 will be immediately selected as primary output device after initialization, in some operating systems you have to manually set the ml:1 as output device. The method of selecting the systems primary audio device will differ from operating system to operating system.
  • Page 7 Some Windows operating systems will not show the name “sonible ml:1” for the audio device and will only present a new Default Device. In this case, just select this device to select the ml:1 as output device.
  • Page 8 Passive Stereo DI Box The ml:1 can be also configured as a passive DI Box when the ¼” analog input jacks are used as inputs. Please note, that signals send through the analog jacks have priority over the audio signal sent through USB. No phantom power (+48V) is needed for this functionality.
  • Page 9 =130Hz±10Hz amplitude: -22dBu (at full battery charge) The following plot shows the approximate spectrum of the test tone signal. log frequency 130Hz 260Hz 520Hz 1040Hz 2080Hz 8320Hz ml:1 user guide...
  • Page 10 Common Caveats Although we kept the use of the ml:1 as simple and intuitive as possible, there are a few things we consider to be important enough to be mentioned in this manual. Clock signal In a digital transmission system, both sender and receiver have to agree on a common clock.
  • Page 11 1. Send in your ml:1 for battery replacement. sonible offers a easy and quick battery replacement service. This is the perfect option if you do not want to do it by yourself and spend your time on more interesting things.

  • Page 12: Signal Flow Chart

    2x analog in Neutrik® ¼" jacks 2x analog Neutrik® XLR outputs 1x digital Neutrik® AES/EBU output (110Ohms) output level 0dBFS equals -18dBu 0/-18dB ground lift bit depth 16 Bits sample rate 44.1/48 kHz (set by USB host) 96dB ml:1 user guide...

  • Page 13: Ce Declaration Of Conformity

    CE Declaration of Conformity The sonible ml:1 has been tested by an independent test laboratory and found to comply with the limits of the European Council Directive on the approximation of the laws of the member states relating to the following standards:...

  • Page 14: Legal Disclaimer

    Colors and specifications may vary slightly from product to product. Distributors and dealers are not agents of sonible and have absolutely no authority to bind sonible by any express or implied undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced or transmitted in...
