Kuppersbusch EEBD 6600.2 Operating Instructions Manual

Combisteam oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Küppersbusch Hausgeräte GmbH

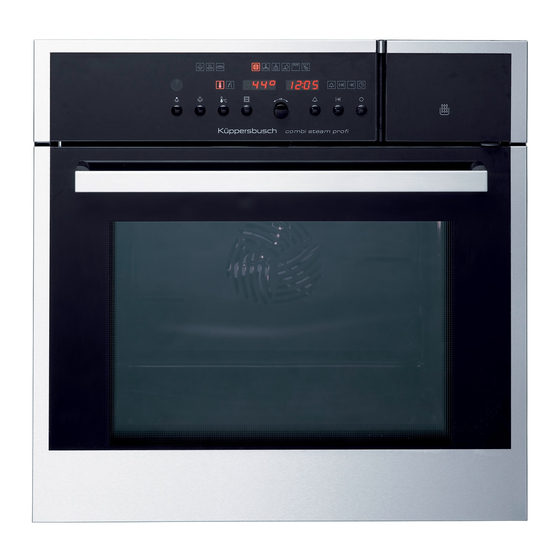

CombiSteam Oven
EEBD 6600.2
Operating instructions
