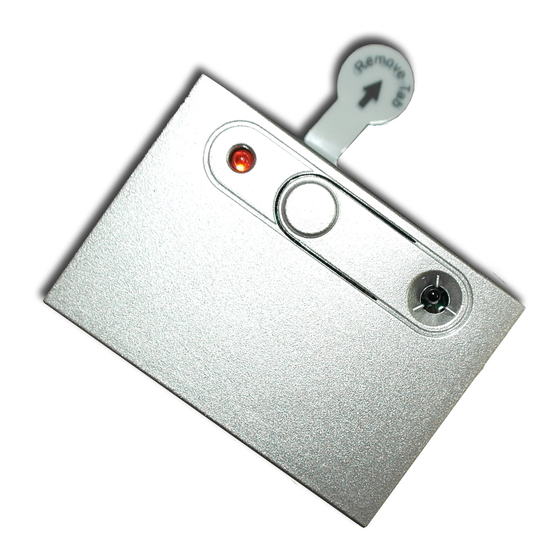

- Page 1 SA102RF Stove Alarm User Manual Innohome improves the Safety of your Home. inno home www.innohome.com...
- Page 2 SA102RF Stove Alarm User Manual...
- Page 3 SA102RF Stove Alarm User Manual Congratulations! You now own one of the most intelligent cooker safety products in the world inno home...
-
Page 4: Table Of Contents
inno home 1. Innohome Stove Alarm 1.1. Stove Alarm features 1.2. Additional features when used as a part of the Innohome Safety System 2. Quick guide to the Stove Alarm 2.1. Resetting the alarm 2.2. Push-button functions 2.3. Meaning of alarm signals 3. -
Page 5: Innohome Stove Alarm
inno home 1. Innohome Stove Alarm 1.1 Stove Alarm features The Stove Alarm detects the temperature and rate of temperature increase of the cooker surface (Hotplate Monitoring). The alarm is triggered when the cooker temperature exceeds safe levels or when a rise in temperature is faster than in normal cooking. -
Page 6: Quick Guide To The Stove Alarm
SA102RF Stove Alarm User Manual 2. Quick guide to the Stove Alarm 2.1 Resetting the alarm False alarm Correct alarm Turn off the cooker hobs After the Stove Alarm is installed, it needs to be ‘taught’ not to react in normal cooking situations. If the Alarm signals in a hazardous situation, reset it by pressing the Stove Alarm button TWICE (memory rule: ‘Thank you’). -
Page 7: Quick Guide To The Stove Alarm
inno home 2. Quick guide to the Stove Alarm (continued) 2.3 Meaning of alarm signals The Stove Alarm signal has a higher tone than the Stove Guard signal. Sound Meaning Course of Action A short “beep” every few seconds The Stove Alarm has detected a high Reset the warning signal by pushing temperature or a fast temperature the push button once (false alarm) or... -
Page 8: Weak Battery Alarm
SA102RF Stove Alarm User Manual 4. Weak battery alarm A weak battery in the Stove Alarm causes the Stove Alarm to emit a signal once a minute. The battery alarm can be reset by pushing the Stove Alarm button once. The battery alarm will restart after 12 hours if the battery has not been replaced. -
Page 9: Testing After Installation
inno home 6. Testing after Installation Turn the largest hotplate up to its maximum heat. The Stove Alarm will signal in 3-10 minutes. Reset the alarm by pushing the Stove Alarm button twice. If the Stove Alarm does not respond to the test adjust the sensitivity level manually, see sec- tion 7. -
Page 10: Wireless Alarm Receiver Tm13
SA102RF Stove Alarm User Manual 8. Wireless Alarm Receiver TM13 The Wireless Alarm Receiver TM13 is a radio controlled socket that receives an RF signal sent by the Stove Alarm. The RF signal is emitted simultaneously to the Hotplate Monitoring warning signal. The Wireless Alarm Receiver then activates any device that it is connected to, such as a flashing light or a vibrating alarm. -
Page 11: Technical Information
10. Technical Information Certification: CE, Casing IP20 (Patent FI 117526, PCT pending) Unit Connection Power Alarm Features time SA102RF Wireless 433MHz Battery > 5 years 3 – 25 min Intelligent heat sensor 10mW X10 or fixed Max sensing distance 1.2 m... - Page 12 PROTECT YOUR HOME inno home Innohome Ltd Tel: +358 9 4114 3359 Web: http:// www.innohome.com Email: info@innohome.com Metsänpojankuja 3 02130 Espoo Finland SA102RF Stove Alarm User Manual - 23.04.2012...
