IRL NO.012 Rev; 0 April 2011
USER INSTRUCTION
for

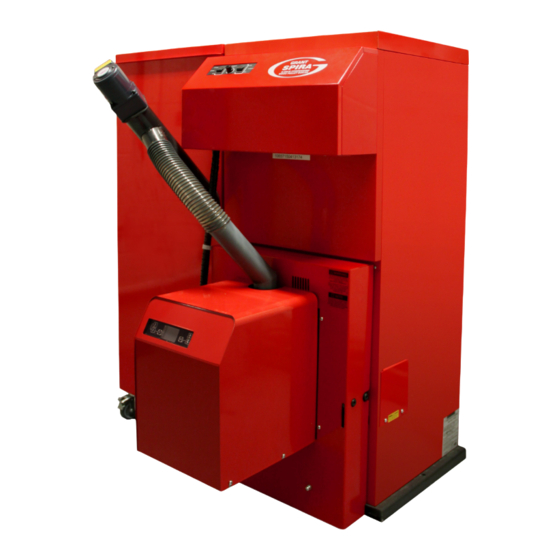

GRANT SPIRA 6-26 kW CONDENSING WOOD PELLET BOILER
GRANT SPIRA 9-36 kW CONDENSING WOOD PELLET BOILER
Leave the user manual with the householder.
This appliance is deemed a control service and specific regional statutory requirements
may be applicable.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grant Spira 6-26 kW
Summary of Contents for Grant Spira 6-26 kW
- Page 1 IRL NO.012 Rev; 0 April 2011 USER INSTRUCTION GRANT SPIRA 6-26 kW CONDENSING WOOD PELLET BOILER GRANT SPIRA 9-36 kW CONDENSING WOOD PELLET BOILER Leave the user manual with the householder. This appliance is deemed a control service and specific regional statutory requirements...
-
Page 2: Table Of Contents
Contents Section Page Introduction About your boiler About your Fuel Cleaning and servicing you boiler User controls Burner display Priming the auger Lighting the boiler Emptying the ash If you boiler fails to light Ventilation Frost protection Electricity supply Sealed Central heating system Visual guide to assess Wood pellet Quality Service log... -
Page 3: Introduction
Standards shall be complied with during the operation 2. About your boiler. of the appliance. Your Grant SPIRA wood pellet boiler should only be WARNING installed, commissioned and serviced by a FETAC registered Engineer. They are also required to have... -
Page 4: About Your Fuel
If the Commissioning Engineer has commissioned your boiler for use with an alternative fuel supplier (other than that listed above) check with Grant Engineering (Ireland) Limited as you may need to have the boiler recommissioned if you plan to change your fuel supplier. -
Page 5: Cleaning And Servicing You Boiler
Decreases the boiler temperature set point Ensure the boiler is serviced annually. Only allow a qualified Competent Service Engineer who has completed the Grant Engineering Training course RESET on Wood pellet boilers to service your boiler. Ensure the service details are recorded in the Service log at the back of this book. -
Page 6: Burner Display
Error messages are also displayed on this section of the screen. 6. Burner display 6.4 Operating functions: 6.1 Set point ‘WAIT PRELOAD BRAZIER’ Initial loading of pellets Temperature set point (User adjustable) into the brazier to enable combustion to start. increase temperature set point ‘WAIT LIGHTING’... -
Page 7: Priming The Auger
7. Priming the auger 8. Lighting the boiler. Disconnect the 7 pin plug and 6 pin socket Ensure that system controls are calling for from the left-hand side of the burner. heat. Switch the „Burner Standby/On‟ switch on the boiler control panel to the „On‟ position. The highlighted curser should now be displayed beside the thermostat symbol before the boiler can fire. -
Page 8: Emptying The Ash
Disconnect the pellet delivery hose from the carried out by a suitably qualified engineer who burner. has completed the Grant training course on wood Open the front access cleaning door. Slide pellet boilers. the ash pan forward. Remove any ash resting on the baffle above the ash pan as shown below. -
Page 9: If You Boiler Fails To Light
Check for clinker in the brazier. If present 10. If your boiler fails to light. check quality of pellets. If you boiler fails to light, make the following checks; 1. Check the „Burner Standby/On‟ switch is in the On 10.2 SAFETY BOILER THERMOSTAT; position. -
Page 10: Ventilation
If water or steam is emitted from the end of the safety valve discharge pipe, switch off the boiler and contact your installer Grant recommend that a combined inhibitor or Service Engineer. be used in the primary water system. -
Page 11: Visual Guide To Assess Wood Pellet Quality
Visual guide to assess Wood pellet Quality... -
Page 12: Service Log
Date ; ____________________ Service carried out by Qualified Engineer service as Service carried out by Qualified service Engineer per instruction and training by Grant Engineering as per instruction and training by Grant (Ireland) Limited. Engineering (Ireland) Limited. Service Engineer: ____________________ Service Engineer:___________________ Date ;... - Page 13 Grant Engineering (Ireland) Limited. 10. All claims under this guarantee must be made and agreed with by Grant Engineering (Ireland) Ltd. prior to any work being carried out. Proof of purchase and date of installation must be provided on request. Invoices for call out/repair work carried out by any third party will not be acceptable unless previously authorised by the company.
