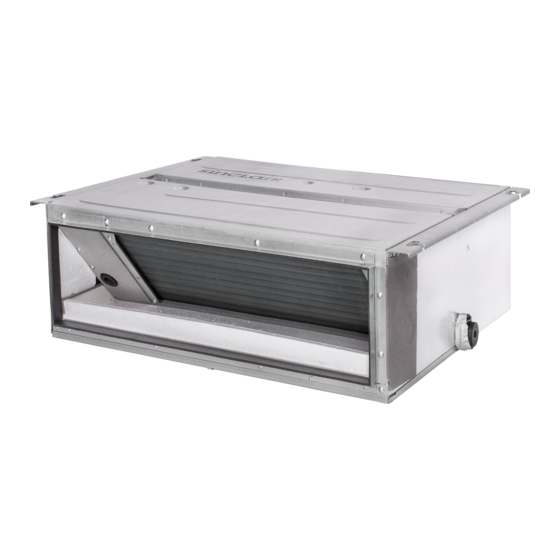

SERVICE MANUAL
MULTI COMBI
OUTDOOR AND INDOOR UNITS
CASSETTE, FLOOR&CEILING, DUCT UNITS
OUTDOOR UNITS (36k,42k)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-E36AI and is the answer not in the manual?

Questions and answers

Related Manuals for Sinclair MC-E36AI

Summary of Contents for Sinclair MC-E36AI

  • Page 1 SERVICE MANUAL MULTI COMBI OUTDOOR AND INDOOR UNITS CASSETTE, FLOOR&CEILING, DUCT UNITS OUTDOOR UNITS (36k,42k)
  • Page 2  ...
  • Page 3 When indoor rated total capacity exceeds the outdoor rated capacity, cannot ensure that each indoor unit actual running capacity could reach its value required by rated capacity. For MC-E28AI, MC-E36AI, MC-E42AI it is not allowed to install one indoor unit only.
  • Page 4 MC-C12AI MC-C18AI MC-C24AI unit High High High fan motor speed (RPM) air flow volume (m   850 1180 noise level  dB(A) MC‐E36AI MC‐E42AI Model of Outdoor Unit 10000 13600 9790 11600 Cooling capacity* 2100 2100 4300 4900 3030 3590 Total power input in cooling mode* (W) 1300 2000 3,23 3,23 EER* (nominal) 12000...

  • Page 5: Models List

    1�1 Outdoor Unit Capacity Units Power Model Product Code Ref. Appearance Cooling Heating Series Supply (kW) (kW) CN860W0011 MC-E36AI 9.789 R410A 220~ 240V-1Ph-50Hz Outdoor Unit MC-E42AI CN860W0020 11.6 1�2 Indoor Unit 1.2.1 Duct type Capacity Units Power Model Product Code Ref.
  • Page 6 1.2.3 Floor ceiling type Capacity Units Power Model Product Code Ref. Appearance Cooling Heating Series Supply (kW) (kW) MC-F09AI CN610N0010 2.80 Floor/ MC-F12AI CN610N0020 3.85 220~ 240V Ceiling R410A Type -1Ph-50Hz MC-F18AI CN610N0030 5.50 Indoor Unit MC-F18AI 8.00 CN610N0040 1.2.2 Cassette type Capacity Units Power...
  • Page 7 2 NOMENCLATURE Description Options Multi combi serie E-outdoor unit H- wall mounted unit Type of unit D- duct unit C- cassette unit F- floor ceiling unit 0.1 BTU Capacity Refrigerant R410A Inverter...
  • Page 8 3 FUNCTION Function Duct type Cassette type Floor ceiling type Fan operation Mode ● ● ● Auto Swing Controller ● ● Timer Selector ● ● ● Auto Mode Operation ● ● ● Cool Mode Operation ● ● ● For Comfortable Air Conditioning Heat Mode Operation ●...
  • Page 9 Model MC‐E36AI MC‐E42AI Cooling 9.789 11.6 Capacity Heating Power supply V/Ph/Hz 220‐240/1/50 220‐240/1/50 Cooling 3.030 3.590 Rated input2 Heating 3.010 3.545 Cooling 13.87 16.43 Rated current2 Heating 13.78 16.22 Type R410A R410A Refrigerant Charge volume － Brand MITSUBISHI MITSUBISHI － Model    TNB220FLHMC TNB306FPGM － Type Inverter Scroll Inverter Scroll...

  • Page 10: Product Data

    4 PRODUCT DATA 4�1 Product data of outdoor Heat pump MC-E36AI MC-E42AI Model Product Code CN860W0010/CN860W0011 CN860W0020 Cooling 9.789 11.6 Capacity Heating Capacity adjustment range 23% ~ 150% 19%~ 150% kW/kW 3.23 3.23 kW/kW 3.65 3.67 Power supply V-Ph-Hz 220~240-1-50...
  • Page 11 4�2 Product data of indoor 4.2.1 Duct Type Heat pump MC-D09AI MC-D12AI MC-D18AI Model Product Code CN210N0010 CN210N0020 CN210N0030 Cooling Capacity Heating 2.80 3.85 5.50 Power supply V-Ph-Hz 220 ~ 240-1- 50 220 ~ 240-1- 50 220 ~ 240-1- 50 Motor power input 0.075 0.065...
  • Page 12 Heat pump MC-D21AI MC-D24AI Model Product Code CN210N0040 CN210N0050 Cooling Capacity Heating 6.60 8.00 Power supply V-Ph-Hz 220~2400-1-50 220~2400-1-50 Motor power input 0.11 0.11 1000 1000 Air flow volume Sound pressure level(H/L) dB(A) 42/34 42/34 Output 0.061 0.061 Fan motor Running current 0.588 0.588...
  • Page 13 4.2.2 Cassette type Heat pump MC-C24AI MC-C18AI MC-C12AI Model Product Code CN510N0030 CN510N0040 CN510N0050 Cooling Capacity Heating Power supply V-Ph-Hz 220~240-1-50 220~240-1-50 220~240-1-50 Motor power input 0.05 0.05 1180 Air flow volume Sound pressure level(H/L) dB(A) 39/35 Output 0.055 0.011 0.011 Fan motor Running current...
  • Page 14 4.2.3 Floor ceiling type Heat pump MC-F09AI MC-F12AI Model Product Code CN610N0010 CN610N0020 Cooling Capacity Heating 3.85 Power supply V-Ph-Hz 220~240-1-50 220~240-1-50 Motor power input 0.055 0.055 650.0 650.0 Air flow volume 383.0 383.0 Sound pressure level(H/L) dB(A) 40/36 40/36 Output Fan motor Running current...
  • Page 15 MC-F18AI MC-F24AI Heat pump Model Product Code CN610N0030 CN610N0040 Cooling Capacity Heating Power supply V-Ph-Hz 220~240-1-50 220~240-1-50 Motor power input 0.11 0.11 1250 Sound pressure level(H/L) dB(A) 45/40 48/40 Output 0.061 0.061 Fan motor Running current 0.588 0.588 inch Connecting pipe Liquid inch Connection method...

  • Page 16: Piping Diagram

    5 PIPING DIAGRAM Schematic Diagram of MULTI COMBI The outdoor and indoor units start to work once the power is switched on. During the cooling operation, the low temperature, low pressure refrigerant gas from the heat exchanger of each indoor unit gets together and then is taken into the compressor to be compressed into high temperature, high pressure gas, which will soon go to the heat exchanger of the outdoor unit to exchange heat with the outdoor air and then is turned into refrigerant liquid.
  • Page 17 CONTROL...

  • Page 18: Operation Flowchart

    CONTROL 1 OPERATION FLOWCHART Conn ecting To Power Supply Initialization Of Bectronic Expansion Valve Volume:.Air Supply Direction Start Indicating Light Is ON Start Indicating Ligh t:OFF Stop Display The Last Setting s Of Start/Stop Start Start Display:Flickering Is The Protecting Abno rmality Code Display Is The Start Indicating Press The Start/ Stop Switch...
  • Page 19 1�1 Cooling/Dehumidfying Operation Cooling Operation There Is Not Guide Louver There Is Guide Louvers Swing Fan Motor: Operation In The Process Of Preventing Restart Operation? (3 Minutes) Temperature Adjustment? Fan Motor:Stop Electronic Expansion Valve : Close Electronic Expansion Valve: Capacity Control （Go To The Previous Page）...
  • Page 20 1�2 Heating Operation Heating Operation There Is Not Guide Louver There Is Guide Louvers Swing In The Operation Of Defrosting? In The Process Of Preventing Restart Operation ? (3 Minutes ) Temperature Adjustment ? In The Process Of Fan Motor : Stop Fan Motor : Stop Preventing Cold Air ? Electronic...

  • Page 21: Main Logic

    2 MAIN LOGIC 2�1 Control Function of Outdoor Unit 2.1.1 Cooling Mode a. Cooling conditions and process: If the compressor is in stop status and start the unit for cooling operation, when one of the indoor units reaches the cooling operation condition, the unit start cooling operation; in this case, the electronic expansion valve, the outdoor fan and the compressor start operation.
  • Page 22 The indoor unit displays “H1” c) Oil-returned finished condition in heating mode The duration reaches 5min 2.1.4 Fan Mode The compressor, the outdoor fan and the 4-way valve are closed; temperature setting range is 16 ～ 30℃ . 2�2 Protection Function 2.2.1 Mode Conflict Protection of indoor unit When the setting mode is different of different indoor unit, the unit runs in below status: a.
  • Page 23 b) On condition that a low pressure protection error occurs and the whole unit has stopped for more than three minutes and it is detected continuously for six seconds that the low pressure protection switch is closed, then this error can be eliminated.
  • Page 24 b) The defrosting symbol “H1” will be displayed when the defrosting signal is received from the outdoor unit. e. AUTO Mode a) When the ambient temperature is higher than 25℃ , the unit will run as the COOL mode. b) For the cooling and heating unit, if the ambient temperature is or lower than2 0℃ (72 ℉ ), the unit will run as the HEAT mode.
  • Page 25 Time/(Hour) Sleep Curve under the HEAT mode Time/(Hour) d) Sleep 3 (Self-Defined Sleep Mode) How to set the sleep 3 curve: 1)When the sleep 3 mode is selected, press the “Timer” button to go to the setting status with “1 Hour” displayed and the corresponding temperature of the sleep curve set last time displayed at the temperature area.
  • Page 26 e. Quiet Quite Function: It is divided into the “Quiet” mode and “Auto Quiet” mode. a) Under the “Quiet” mode, the low fan speed will be kept and is unchangeable. b) Under the “Auto Quiet” mode, the fan speed changes in accordance with the difference of the indoor ambient temperature and the set temperature.
  • Page 27 a)For the duct type indoor unit: Under the COOL, HEAT, DRY, or FAN mode, the return air temperature sensor is adopted; while under the HEAT mode, it is the receiver temperature sensor. For the cassette type, floor/ceiling type indoor unit: Under all modes, the return air temperature sensor is adopted. b) When the duct type, cassette type, or the floor/ceiling type indoor unit works with the wired controller, the ambient temperature sensor can be set in the following four ways: ①...

  • Page 28: Remote Controller

    3 REMOTE CONTROLLER 3�1 Wired Remote Controller 3.1.1 Wired Controller XK19 It is optional for the cassette type, wall-mounted, and floor ceiling indoor units. Outside View of the Wired Controller Outside View of the Wired Controller LCD of the Wired Controller LCD of the Wired Controller CONTROL...
  • Page 29 Symbols Description Swing function. Sleep function (3 types: sleep 1,sleep2 and sleep 3). Running modes of the indoor unit (Cooling, Dry, Fan and Heating). Defrosting function for the outdoor unit. Gate-control function (this function is yet unavailable for this unit). Lock function.
  • Page 30 Function of the Buttons Name Function ① Function selection and cancellation. Enter/cancel ② Press it for 5s to examine the outdoor ambient temperature. ① Running temperature setting of the indoor unit, range:16 ～ 30℃ . ▲ ② Timer setting, range:0.5-24 hr. ▼...
  • Page 31 ◆ Sleep Setting Sleep on: Press Function under on state of the unit till the unit enters the Sleep setting interface. Then press ▲or ▼ to switch among Sleep 1, Sleep 2 and Sleep 3. After that, press Enter/cancel to confirm the setting. Sleep off: When the Sleep function is activated, press Function to enter the Sleep setting interface.
  • Page 32 Save Setting for Heating: Under on state or in the Heating mode of the unit, press Function to enter the Save setting interface and then press ▲or ▼ to adjust upper limited value in the Heating mode. After that, press Enter/Cancel to activate the Save function for heating.
  • Page 33 Memory recovery: If this function has been set for the wired controller, the wired controller after power failure will resume its original running state upon power recovery. Memory contents: On/Off, Mode, set temperature, set fan speed, Save function and Lock function. 3) Enquiry of the Outdoor Ambient Temperature Under the “On”...
  • Page 34 3�2 Wireless Remote Controller Wireless Remote Controller YT1F Notes: a. Be sure that there are no obstructions between the receiver and the remote controller; b. Do not drop or throw the remote controller; c. Do not let any liquid into the remote controller and expose the remote controller to direct sunlight or any place where is very hot.
  • Page 35 is displayed, the current time is the Clock value; otherwise it is the Timer value. ◆ LIGHT Light On and Light Off can be set by pressing this button when the unit is at On or Off status. After powered on, the default is Light On.
  • Page 36 the main unit will close automatically). 2) Press MODE to select the desired running mode. 3) Press ＋ or － to set the desired temperature (it is unnecessary to set the temperature under the AUTO mode.) 4) Press FAN to set the fan speed, AUTO, LOW, MID, or HIGH. 5) Press to select the swing angle.
  • Page 37 INSTALLATION...

  • Page 38: Precautions For Installation

    INSTALLATION 1 PRECAUTIONS FOR INSTALLATION 1�1 Precautions for Installation Before installation, please ensure if the installing site, power ratings, possible operating range (pipe distance, height difference between indoor and outdoor unit, power voltage) and installing space are correct and suitable. The outdoor unit is general to all models according to its power.
  • Page 39 1�2 Key Points of Installation Installation Procedures Description and Acceptance Criteria The materials specified on the engineering drawing shall be purchased as specified (e.g. copper tube, thermal insulation tube, PVC pipe, power cables, air switch, etc). Material Selection and Equipment Inspection The materials not specified on the engineering drawing shall be purchased according to the actual quantity of works (e.g.

  • Page 40: Flow Chart Of Installation

    2 FLOW CHART OF INSTALLATION Design Kicking-off Material selection Inspection of site installation position Installation of outdoor unit Installation of indoor unit Installation of connection pipes Connection of Installation of Installation of Connection of power cables power cables and Purge and make leakage remote control drainage pipes communication wires...

  • Page 41: Outdoor Unit Installation

    ◆ The installation dimensions should meet the requirement covered in this manual and the outdoor unit must be fixed securely. ◆ The installation should be carried out by the professionally skilled personnel. 3�4 Dimension Data The following figure is applicable to the Outdoor units of : MC-E36AI...
  • Page 42 1022 The following figure is applicable to the Outdoor units of :MC-E42AI 1087 1015 3�5 Installation Clearance Data Installation Space Requirements of the Outdoor Unit ＞1000 ＞500 ＞2000 ＞500 ＞2000...

  • Page 43: Indoor Unit Installation

    4 INDOOR UNIT INSTALLATION 4�1 Installation of Duct Type 4.1.1 Before Installation Check if there is any damage to the indoor unit, and the wireless controller and other part and components are prepared completely. 4.1.2 Installation Site ● The selection of the installation place of the air conditioner unit The installation must accord with the national and local safe criterion.
  • Page 44 Table Outline Dimensions: Item Model MC-D09AI MC-D12AI MC-D18AI MC-D21AI 1142 1062 1020 1100 1182 MC-D24AI 4.1.5 Installation Clearance Data Nut with washer Spring pad ＞500 ＞250 a. Installation of the Indoor Unit Insert the M10 expansion bolt into the hole, and then knock the nail into the bolt. Refer to the Outline Dimension Drawings of the Indoor Unit for the distance between holes and see Fig.3 for the installation of the expansion bolt.
  • Page 45 Air conditioning unit Hanger bolt Anchor Install the indoor unit on the ceiling: CAUTION: a. Prior to the installation, please make a good preparation for all piping (refrigerant pipe, drain pipe) and wiring (wires of the wired controller, wires between the indoor and outdoor unit) of the indoor unit to make the further installation much easier.
  • Page 46 After the fitting of the transition duct, it is the turn of the round duct, which is better to be kept 10 meters far away from the corresponding diffuser. The standard accessories supplied by SINCLAIR is the transition duct 200mm long and round air outlet φ200, however, those of other specifications can be purchased.
  • Page 47 ◆ Please contact the local SINCLAIRspecial nominated repair department before installation. Any malfunction caused by the unit that is installed by the department that is not special nominated by SINCLAIR would not deal with on time by the inconvenience of the business contact.
  • Page 48 570 604 650 Install dimension of mode MC-C12AI, MC-C18AI ◆ The drilling of holes in the ceiling must be done by the professional personnel. Installation stands for main body of the unit Ceiling Above 20 Notes: The dimension for the ceiling openings with * marks can be as large as 910mm. But the overlapping sections of the ceiling and the decorated surface boards should be maintained at no less than 20mm.
  • Page 49 MC-C12AI, MC-C18AI Wall surface Wall Wall surface surface ≥1500 ≥1500 Model MC-C12AI unit:mm MC-C18AI Ground surface ★ Main body of hoisting air conditioner a. The primary step for install the indoor unit. ◆ When attach the hoisting stand on hoisting screw, do use nut and gasket individually at the upper and lower of the hoisting stand to fix it.
  • Page 50 ◆ When connect, smear both inside and outside of the flare nut with freeze motor oil, screw it by hand and then tighten it with spanner. ◆ Refer to form 1 to check if the wrench had been tightened (too tight would mangle the nut and lead leakage). ◆...
  • Page 51 Sponge(attachment) Clamp(attachment) Clamp Sponge (gray) Drain hose Below 4mm Drain stepup pipe note ◆ The install height of the drain raising pipe should less than 280mm. ◆ The drain raising pipe should form a right angle with the unit, and distance to unit should not beyond 300mm. Instruction ◆...
  • Page 52 4�3 Installation of Floor Ceiling Type 4.3.1 Before Installation Check if there is any damage to the indoor unit, and the wireless controller and other part and components are prepared completely. 4.3.2 Installation Site Selection of Installation Location for Air Conditioner Unit The installation of air conditioner unit must be in accordance with national and local safety codes.
  • Page 53 Please contact the local Sinclair special nominated repair department before installation. Any malfunction caused by the unit that is installed by the department that is not special nominated by Sinclair would not deal with on time by the inconvenience of the business contact.
  • Page 54 bracket when it is outside the arrowed position. (Refer to ⑤ ◆ Suspension bolt stays inside the cap of indoor unit. Never remove the cap. 5) Lift the unit and slide forward unit the dent. (Refer to ⑥ 6) Screw tightly both hanger bracket-setting bolts (M8). (Refer to ④...

  • Page 55: Table Of Contents

    5 REFRIGERATION PIPING WORK 5�1 Connection between Indoor and Outdoor Units a. Wiring of the Power Cord CAUTION ！ A breaker must be installed, capable of cutting off the power supply for the whole system� 1) Open the side plate. 2) Let the power cord go through the rubber ring.
  • Page 56 Flare Nut Pipe Pipe Torque Wrench Ordinary 4) The bending degree of the pipe can not be too small; otherwise it will crack. And please use a pipe bender to bend the pipe. 5) Wrap the exposed refrigerant pipe and the joints by sponge and then tighten them with the plastic tape. Moments of Torque for Tightening Screws Diameter Wall Thickness（mm）...

  • Page 57: Indoor Unit

    (do not do it from the gas valve) b. Calculation of the Additional Refrigerant Charge 1) Refrigerant Charge in the Outdoor Unit before Shipment Model MC-E36AI MC-E42AI Refrigerant Charge (kg) Notes： a. The refrigerant charge mentioned in the table above is not included those charged additionally in the indoor unit and the refrigerant pipe.

  • Page 58: Total Length(M)

    Serial No. Model Indoor Unit ⑤ Ducted Type MC-D09AI Indoor Unit ④ Ducted Type MC-D09AI Indoor Unit ③ Ducted Type MC-D09A Indoor Unit ② Ducted Type MC-D09AI Indoor Unit ① Ducted Type MC-D18AI Liquid Refrigerant Pipe Serial No. Diameter φ6.35 φ6.35 φ6.35 φ6.35...
  • Page 59 d. Trial Running 1) Check before the Trial Running ◆ Check if the appearance of the unit and the piping system are damaged during the transportation. ◆ Check if the wiring terminals of the electronic component are secure. ◆ Check if the rotation direction of the fan motor is right. ◆...

  • Page 60: Electric Wiring Work

    6 ELECTRIC WIRING WORK 6�1 Wiring Principle 6.1.1 Itemized Description of Cautions. The electrical installation must be done by professional electricians. The electrical installation must be done in accordance with applicable technical codes and other rules. WARNING! Please make sure to install earth leakage circuit breaker. Earth leakage circuit breaker must be installed to prevent electric shock or fire.
  • Page 61 Reassemble the electrical box cover. f. Recover the surface panel. g. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube. MC-E36AI POWER INDOOR UNIT A INDOOR UNIT C INDOOR UNIT D...
  • Page 62 Recommended Cord Models Power Supply Capacity of the Air Switch （pieces× sectional area） MC-E36AI 220-240V~ 50Hz ×3 MC-E42AI 220-240V~ 50Hz ×3...
  • Page 63 MAINTENANCE...
  • Page 64 Do not repair the air conditioning personally but instead contact the professionally skilled personnel at the SINCLAIR appointed service center, as the incorrect repair would cause electric shock or fire hazard etc.
  • Page 65 1�3 Error description If some error occurs when the unit is running, the error code will be displayed on the wired controller and the main board of the outdoor unit.See the table before for more details about the meaning of each error. Indicating Lamp Lamp Panel Wired...
  • Page 66 Quick Cooling IPLV test ? The drilling of holes in the ceiling must be done by the professional personnel. flash Min. cooling/heating (capability test code) Quick Cooling IPLV test Installation stands for main body of the unit flash Cooling level AA Quick performance test flash...
  • Page 67 Short/open circuit of the temperature sensor at the inlet of the condenser coil ( for the commercial unit) Short/open circuit of the temperature sensor at the outlet of the condenser coil ( for the commercial unit) Memory card error Frequency limitation/ degradation for module circuit protection (for phase circuit)
  • Page 68 Unit which is detecting or component error Outdoor Unit: MC-E36AI, MC-E42AI (Note: Refer to the real products for the exact position of each component.) Once errors are displayed on the controller, please shut off the air conditioning unit and contact the professionally...

  • Page 69: Flow Chart Of Troubleshooting

    2 FLOW CHART OF TROUBLESHOOTING Service personnel shall collect the malfunction information as much as possible and research them thoroughly, list these electrical parts which may cause malfunction, service personnel shall be able to determine the specific reason and solve the faulted parts. Observe the status of the complete device and do not observe the partial It is advised to start from the simple operation during analyzing ,judging and confirming malfunction reason, then conduct the complicated operations such removal of device, part replacement and refrigerant filling.
  • Page 70 Malfunction display: E3 Compressor Low Pressure Protection ◆ Compressor Low Pressure Protection Refer to the high pressure Check if the pressure is really low pressure protection with the measurement of a manometer Charge refrigerant according to the amount Check if refrigerant in the system is specified in the nameplate and calculated insufficient additional amount...
  • Page 71 Malfunction display: E4 Compressor Exhaust High Temperature Protection ◆ Discharge temperature protection Replace relevant Measure if compressor’s discharge Measure if temperature sensor’s discharge temperature temperature has reached 115 resistance value is correct sensor System pipeline leaks so complementation is Replace the outdoor needed.
  • Page 72 Malfunction display: E9 Full Water Protection ◆ Full Water Protection Check if the voltage of liquid level Replace the main board Check if water overflow switch end is ok of the indoor uint Check the liquid level switch Check if the water drainage pump Check if the voltage of water Replace the main board of...
  • Page 73 Malfunction display: F3 Failure of Outdoor Ambient Sensor ◆ Failure of outdoor Ambient sensor Check if the plug of the temperature sensor is Check the direction of correctly connected with socket on the mainboard the plug and socket Replace temperature sensor Remove the sensor to check if the resistance value is ok Replace mainboard of the...
  • Page 74 3 WIRING DIADRAM 3�1 Outdoor unit MC-E36AI MC-E42AI...
  • Page 75 3�2 Indoor unit 3.2.1Duct type 3.2.2 Cassette type MC-C24AI...
  • Page 76 MC-12AI, MC-C18AI 3.2.3 Floor ceiling type MC-F09AI, MC-F12AI, MC-F18AI, MC-F24AI...

  • Page 77: Disassembly And Assembly Procedure Of Main Parts

    4 DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS 4�1 Outdoor Unit Side Discharge Indoor Unit Assembly and Disassembly of the Compressor Remarks: Prior to the assembly of the compressor, make sure there is no refrigerant in the pipeline and the power supply is cut off. Steps Illustrations Operation Instructions...
  • Page 78 ●Burn the joint of the connecting 6.Connect the pipeline with pipe and then connect the the suction and discharge pipeline wit the compressor. Reconnect the pipeline ports of the compressor Note: never let the flame touch to the compressor as the any other component.

  • Page 79: Duct Type

    4�2 Indoor Unit 4.2.1Duct type Assembly and Disassembly of the Electric Fan Remarks: Prior to the assembly and disassembly, make sure the power supply is cut off. Steps Illustrations Operation Instructions ● Cut off the power supply of the 1.Pull out the electric indoor unit, open the cover plate of wire of the motor.
  • Page 80 4.2.2 Cassette type Removal and Assembly of Fan Motor Step Illustration Handling Instruction 1. Loosen the screws ●Use screwdriver to loosen the fixing the water tray screws fixing the water tray 2. Remove the water tray ●Remove the water tray ●Use spanner to loosen the 3.
  • Page 81 9. Mount the water tray and ●Use screwdriver to loosen the tighten the screws screws fixing the water tray emoval and Installation of Drainage Pump Step Illustration Handling Instruction Loosen these screws 1. Loosen the screws ●Use screwdriver to loosen the fixing the water tray screws fixing the water tray ●Remove the water...
  • Page 82 4.2.3 Floor ceiling type Remove panel grating module Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly. Do not put filter screen near the high temperature heat source. Step Illustration Handling Instruction ●Move down the clip of the sub-assy of fromt grill until...
  • Page 83 Remove panel parts Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly. Do not scratch the outer parts. Step Illustration Handling Instruction ●Remove the screws shown by the arrow in the graph with Remove screwdriver (two on both right panel parts...
  • Page 84 Remove water-containing plate modules Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly. Step Illustration Handling Instruction Remove water- ●Remove the water- containing plate containing plate modules. modules Remove evaporator components Remark: Make sure that the power supply is cut off and protect the copper tube and aluminum fin.
  • Page 85 Remove fan and motor components Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly, especially the fastening screws for fans. Step Illustration Handling Instruction ●Press the buckle at the joints of front and back scroll cases with hands and pull upward to remove the front scroll case.
  • Page 86  ...
  • Page 87 PARTS GUIDE MULTI COMBI OUTDOOR AND INDOOR UNITS CASSETTE, FLOOR&CEILING, DUCT UNITS OUTDOOR UNITS...
  • Page 88  ...
  • Page 89 Exploded view of model: MC-D09AI, MC-D12AI...
  • Page 90 Price Note Description Part Code Code MODEL: MC-D09AI, MC-D12AI Air outlet frame assy 01865216 Cover of Air Outlet 01265298 Water Tray Assy 01285332 Top Cover Assy 01265325 Evaporator Assy 01024266 Sealplate sub-assy (evaporator) 01495317 Left Side Plate Assy 01315334 Seal of Letout Pipe Assy 01495316 Front volute casing 26905205...
  • Page 91 Exploded view of model MC-D18AI, MC-D21AI...
  • Page 92 Price Note Description Part Code Code MODEL: MC-D18AI, MC-D21AI Air outlet frame assy 01865217 Cover of air outlet 01265331 Water Tray Assy 01285333 Evaporator Assy 01024268 Top Cover Board Assy 01265328 Left Side Plate Assy 01315334 Sealplate sub-assy (evaporator) 01495317 Seal of Letout Pipe Assy 01495316 Front volute casing...
  • Page 93 Exploded view of model:MC-D24AI...
  • Page 94 Price Note Description Part Code Code MODEL: MC-D24AI 1 Air outlet frame assy 01375224 2 Cover Of Air-Out 01265335 3 Water Tray Assy 01285334 4 Evaporator Assy 01024269 5 Top Cover Assy 01265339 6 Left Side Plate Assy 01315334 7 Sealplate sub-assy (evaporator) 01495317 8 Seal of Letout Pipe Assy 01495316...
  • Page 95 Exploded view of model: MC-C12AI, MC-C18AI Exploded view of panel for cassette MC-C12AI, MC-C18AI...
  • Page 96 Price Note Description Part Code Code MODEL:  MC‐C12AI, MC‐C18AI Seat Board Sub-Assy 01222712 Front Side Plate 01314211 Right baffle Assy 01362704 Water Pump PSB-7 43130320 Pump Drainpipe 05232722 Major Mounting Rack 01332705 Pump Support Assy 01332708 Water Level Switch 450127011 Water Tray Support 01332706 Temperature Sensor 390001982G...
  • Page 97 Exploded view of model: MC-C24AI...
  • Page 98 Price Note Description Part Code Code MODEL: MC‐C24AI 1 Tube Exit Plate Assy 01382715 2 Shell Assy 01432704 3 Major Mounting Plate 01332701 4 Front Side Plate 01302718 5 Left Side Plate Assy 01302715 6 Base Plate 01222705 7 Rear Side Plate 01302714 8 Bottom Foam Assy 52012722...
  • Page 99 Exploded view of model MC-F09AI...
  • Page 100 Note Description Part Code Qty Price Code MODEL: MC‐F09AI, MC‐F12AI 9/12 1 Fixed Mount 26909426R 2 Louver Clamp 26112127 3 Guide Louver 10619403 4 Rotating Shaft 26909430 5 Front Connection Board 01349414P 6 Base Frame 26909448 7 Induced air plate subassembly 02229418 8 Supporter 26909449 9 Mid‐clapboard sub‐assy 01249427 01249416 10 Front volute casing 26905205 11 Rear side plate assy 01319445 01319430...
  • Page 101 Exploded view of model: MC-F18AI...
  • Page 102 Note Description Part Code Price Code MODEL: MC-F18AI Fixed Mount 26909426R Louver Clamp 26112127 Guide Louver 10619403 Rotating Shaft 26909430 Front Connection Board 01349414P Air Louver 10619404 Base Frame 26909448 Induced air plate subassembly 02229418 Supporter 26909449 10 Mid-clapboard sub-assy 01249416 11 Front volute casing 26905205...
  • Page 103 Exploded view of model: MC-F24AI...
  • Page 104 Note Description Part Code Price Code MODEL: MC-F24AI 1 Cable-Cross Loop 76510021 2 Room Sensor 15KS-XH-2P 39000191 3 Louver Clamp 26112127 4 Guide Louver 10619403 5 Front Connection Board 01349414P 6 Rotating Shaft 26909430 7 Air Louver 10619404 8 Base Frame 26909448 9 Induced air plate subassembly 02229418...
  • Page 105 Exploded view of model: MC-E36AI...
  • Page 106 Price Note Description Part Code Code MODEL: MC-E36AI 1 Front Grill 22415005 2 Cabinet 01435007P 3 Front Side Plate Sub-Assy 01305508 4 Sensor Sub-assy 3900806601 5 Chassis Sub-assy 01194141P 6 Insulating Plate of Electric box Cover 20113003 7 Pressure Protect Switch...
  • Page 107 Price Note Description Part Code Code MODEL: MC-E36AI 47 Motor Support Sub-Assy 01805402 47 Motor Support Assy 01804240 48 Left Side Plate 01305064P 49 Condenser support plate 01895309 50 Clapboard 01244141 51 Fan Motor 1570522801 52 Axial Flow Fan 10335010...
  • Page 108 Exploded view of model: MC-E42AI...
  • Page 109 Price Description Part Code Note Code MODEL: MC-E42AI Front Grill 22415005 Cabinet 01435007P Front Side Plate Sub-Assy 01305508 Sensor sub-assy 39008066 Chassis Sub-assy 01194141P Insulating Plate of Electric box Cover 20113003 Pressure Protect Switch 4602001555 Compressor Mounting Plate Sub-Assy 01324238P Compressor and fittings 00205230 10 Connection Pipe...
  • Page 110 Price Description Part Code Note Code MODEL: MC-E42AI 47 Condenser support plate 01895309 48 Clapboard 01244141 49 Fan Motor 1570522801 50 Axial Flow Fan 10335010 Electric Expand Valve Fitting 4300876710 Electric Expand Valve Fitting 4300876709 Electric Expand Valve Fitting 4300876708 Electric Expand Valve Fitting 4300876707 Left Handle...
