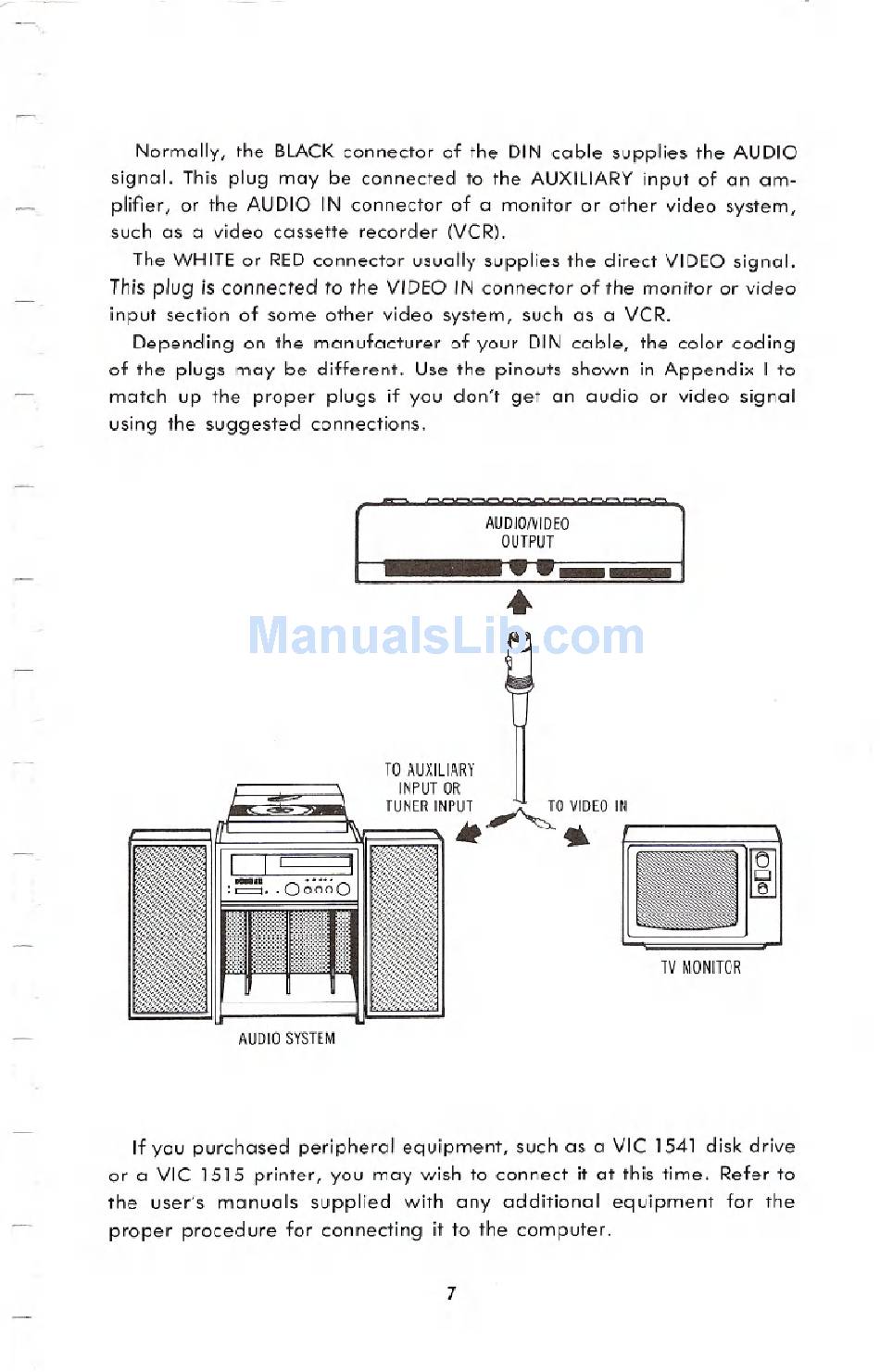

Normally,
the BLACK connector
of the DIN cable supplies the AUDIO
signal.
This plug may be connected
to the AUXILIARY input of an am-
plifier,
or the AUDIO IN connector
of a monitor or other video system,
such as a video cassette recorder
(VCR).
The WHITE or RED connector
usually supplies the direct VIDEO signal.
This plug is connected
to the VIDEO IN connector of the monitor or video
input section of some other video system, such as a VCR.
Depending
on the manufacturer
of your DIN cable,
the color coding
of the plugs may be different.
Use the pinouts shown in Appendix
I to
match
up the proper
plugs if you don't get an audio or video signal
using the suggested
connections.
AUDJONIDEO
OUTPUT
~--
..
TO AUXILIARY
INPUTOR
TUNER INPUT ~O
VIDEO IN
*
4
TV MONITOR
AUDIO
SYSTEM
If you purchased
peripheral
equipment,
such as a VIC 1541 disk drive
or a VIC 1515 printer,
you may wish to connect it at this time. Refer to
the user's manuals
supplied
with
any additional
equipment
for the
proper
procedure
for connecting
it to the computer.
7
