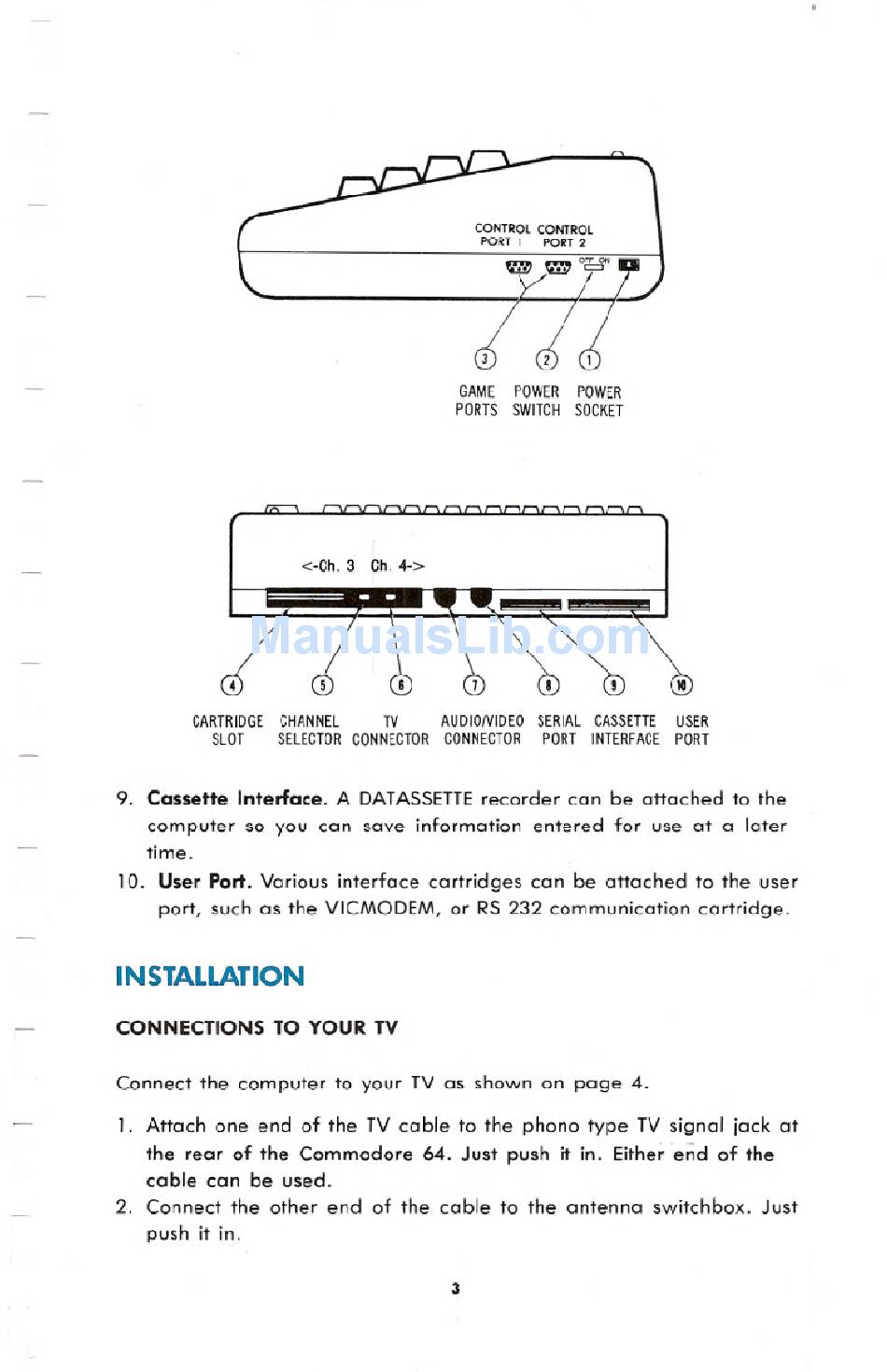

GAME POWER POWER
PORTS SWITCH SOCKET
<-Ch. 3 Ch. 4->
CARTRIDGE CHANNEL TV AUDIONIDEO SERIAL CASSETTE USER
SLOT SELECTOR CONNECTOR CONNECTOR PORT INTERFACE PORT
9. Cassette Interface. A DATASSETTE recorder can be attached to the
computer so you can save information entered for use at a later
time.
10. User Port. Various interface cartridges can be attached to the user
port, such as the VICMODEM, or RS 232 communication cartridge.
INSTALLATION
CONNECTIONS TO YOUR TV
Connect the computer to your TV as shown on page 4.
1. Attach one end of the TV cable to the phono type TV signal jack at
the rear of the Commodore 64. Just push it in. Either end of the
cable can be used.
2. Connect the other end of the cable to the antenna switchbox. Just
push it in.
3
