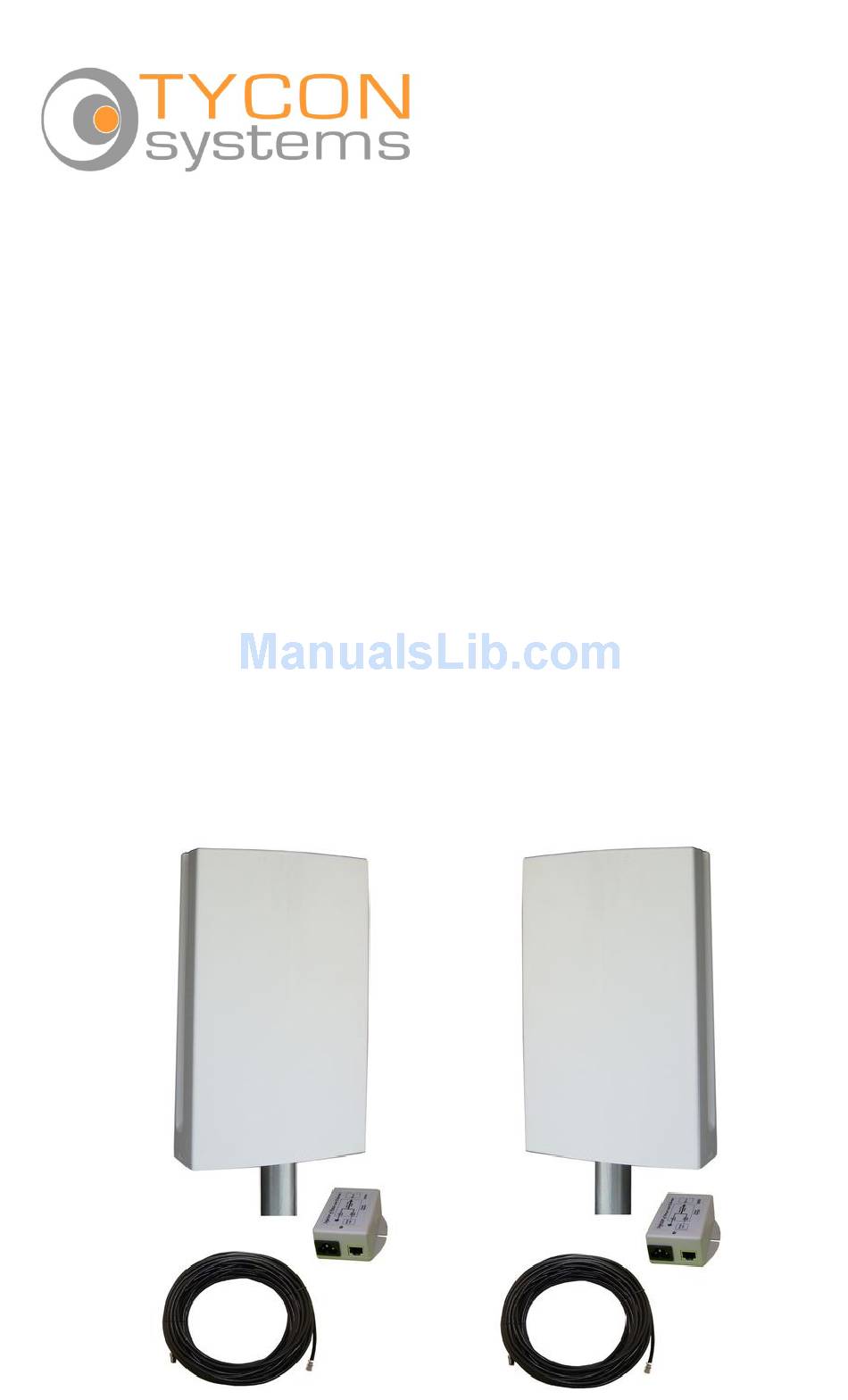

EZ-BridgeLT-HD
High Performance Point to Point Wireless Bridge System
Surge protected Ethernet and Power for ultimate
▫
reliability. Shielded CAT5 cables to protect
against EMI.
Achieve up to 15 Mbit/sec speed; 20Mbps for
▫
5GHz version
Link up to 3 miles with good line of sight
▫
Plug and Play Simple Installation
▫
Best security available (WPA)
▫
Field Proven Wireless Technology
▫
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tycon Power Systems EZ-BridgeLT-HD
Summary of Contents for Tycon Power Systems EZ-BridgeLT-HD
- Page 1 ™ EZ-BridgeLT-HD High Performance Point to Point Wireless Bridge System Surge protected Ethernet and Power for ultimate ▫ reliability. Shielded CAT5 cables to protect against EMI. Achieve up to 15 Mbit/sec speed; 20Mbps for ▫ 5GHz version Link up to 3 miles with good line of sight ▫...
-
Page 2: Getting Started
DANGER! Avoid Powerlines! You Can Be Killed! When following the instructions in this guide to install the antenna take extreme care to avoid contact with overhead power lines, lights and power circuits. Contact with power lines, lights or power circuits may be fatal. - Page 3 In the example above the numbers next to “Discovery Tool” (192.168.1.253) is the IP address for the computer that opened the Discovery Tool. To access the EZ-Bridge™, your computer IP ad- dress must be on the same subnet ie; 192.168.1.xxx. In the example above .253 replaces .xxx .
-
Page 4: Software Settings
STEP 3: Mount the antenna housing to the bracket. Put the hex head bolt thru the housing back fin. Put the star lock washer so it is be- tween plastic housing and metal bracket. Install wing nut with lock washer. Adjust desired tilt an- gle and tighten wing nut. - Page 5 that you create a working plug and play link before making ANY changes to the software settings 1. There is an HTML management system built into every EZ-Bridge™ unit which is accessed thru a standard web browser. The unit can com- municate thru the CAT5 ethernet cable connection or thru the wireless connection, so you can manage remote units from a single location.
- Page 6 4. CHANNELS: The default channel is set to 11 on the LT2 and 149 on the LT5. The only reason you might want to change the channel is if you experience interference from local wireless systems which are op- erating on the same channel. To change the channel go to WIRELESS and change the channel.
-
Page 7: Technical Specifications
Technical Specifications Note: Subject to Change Without Notice 2.4GHz 5GHz Standards 802.11b/g 802.11a Certifications FCC / CE Radio Specifications Operating Frequency 2400 to 2497MHz 4900 to 6000MHz Available Transmit Power 802.11b 100 to 250mW 10 to 398mW (software selectable) 802.11g 50 to 100mW -73 @ 54Mbps -74dBm @ 54 Mbps Receive Sensitivity... -
Page 8: Advanced Features
mins for reboot. 8. UPGRADE FIRMWARE: For the latest firmware point your browser to http://ez-bridge.com/support/support.htm Download the latest firmware to your PC. Select UPGRADE from the menu and then browse for the new file. 9. CHANGING TO CLIENT: The EZ-Bridge™ can be changed to a cli- ent device on the WIRELESS|BASIC SETTINGS page. - Page 9 TECH CORNER Additional Information you may find useful 1. TROUBLESHOOTING –Link Down– If a link goes down the first thing to do is run the discovery tool from both sides of the network. The discovery tool should be able to discover both units from each side of the link.
-
Page 10: Typical Applications
mounted in a non-protected environment then we would recommend the better line of sight mounting location. 5.LIGHTNING – Lightning is the single worst enemy of outdoor elec- tronics equipment. No electronics will survive a direct strike but there are close proximity strikes that can cause huge electrical fields to be generated which can damage electronic equipment. - Page 11 shared files and folders as well as print to the main office printers and use other shared network devices remotely c. Link networks in multiple buildings together – A company with multiple buildings will find the EZ-Bridge™ an inexpensive way to link their buildings together.
- Page 12 M. Rx Rate - This is the receive rate of this unit. Same analysis as Tx rate. If either rate is too low and signal level is OK, need to reset to factory defaults, power cycle and then change channels. Problems can also be associated with multipath where you have a reflection that cancels out received signals.
-
Page 13: Federal Communication Commission Interference Statement
NOTES Appendix: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 14: Important Note
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Limited Warranty All Tycon Systems products are supplied with a limited 12 month war- ranty which covers material and workmanship defects. This warranty does not cover the following: ▫... - Page 15 $75 USD for testing time. For products out of warranty, the standard NFF charge is $200. This charge will be at the discretion of Tycon Systems. The RMA number is valid for 14 days from date of issue. The product must be received by the repair depot within these 14-days or the shipment may be refused.
- Page 16 8000011 Rev 4 EZ-BridgeLT-HD Qwik Install Guide...
