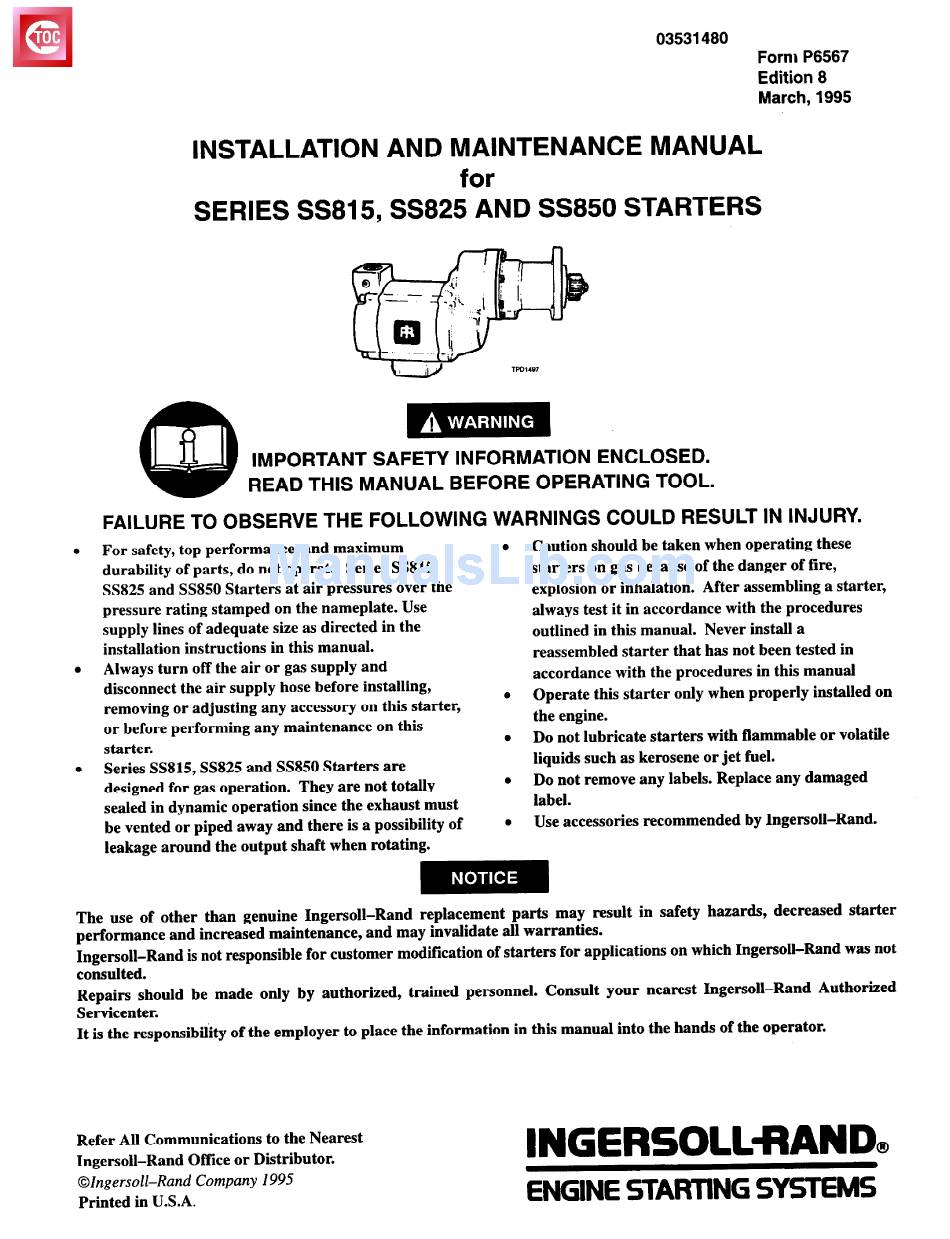

Ingersoll-Rand SS815 Series Installation And Maintenance Manual

03531480
Form P6567
Edition 8
March, 1995
INSTALLATION AND MAINTENANCE MANUAL
for
SERIES SS815, SS825 AND SS850 STARTERS
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ THIS MANUAL BEFORE OPERATING TOOL.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
For safety, top performance, and maximum
l
durability of parts, do not operate Series SS815,
SS825 and SS850 Starters at air pressures over the
pressure rating stamped on the nameplate. Use
supply lines of adequate size as directed in the
installation instructions in this manual.
Always turn off the air or gas supply and
disconnect the air supply hose before installing,
l
removing or adjusting any accessory on this starter,
or before performing any maintenance on this
•
starter.
Series SS815, SS825 and SS850 Starters are
designed for gas operation. They are not totally
sealed in dynamic operation since the exhaust must
be vented or piped away and there is a possibility of
leakage around the output shaft when rotating.
l
l
Caution should be taken when operating these
starters on gas because of the danger of fire,
explosion or inhalation. After assembling a starter,
always test it in accordance with the procedures
outlined in this manual. Never install a
reassembled starter that has not been tested in
accordance with the procedures in this manual
Operate this starter only when properly installed on
the engine.
Do not lubricate starters with flammable or volatile
liquids such as kerosene or jet fuel.
Do not remove any labels. Replace any damaged
label.
Use accessories recommended by Ingersoll-Rand.
The use of other than genuine Ingersoll-Rand replacement parts may result in safety hazards, decreased starter
performance and increased maintenance, and may invalidate all warranties.
Ingersoll-Rand is not responsible for customer modification of starters for applications on which Ingersoll-Rand was not
consulted.
Repairs should be made only by authorized, trained personnel.
Consult your nearest Ingersoll-Rand Authorized
Servicenter.
It is the responsibility of the employer to place the information in this manual into the hands of the operator.
Refer All Communications to the Nearest
Ingersoll-Rand Office or Distributor.
@Ingersoll-Rand Company 1995
Printed in U.S.A.
INGERSOLL-RAND®
ENGINE STARTING SYSTEMS
