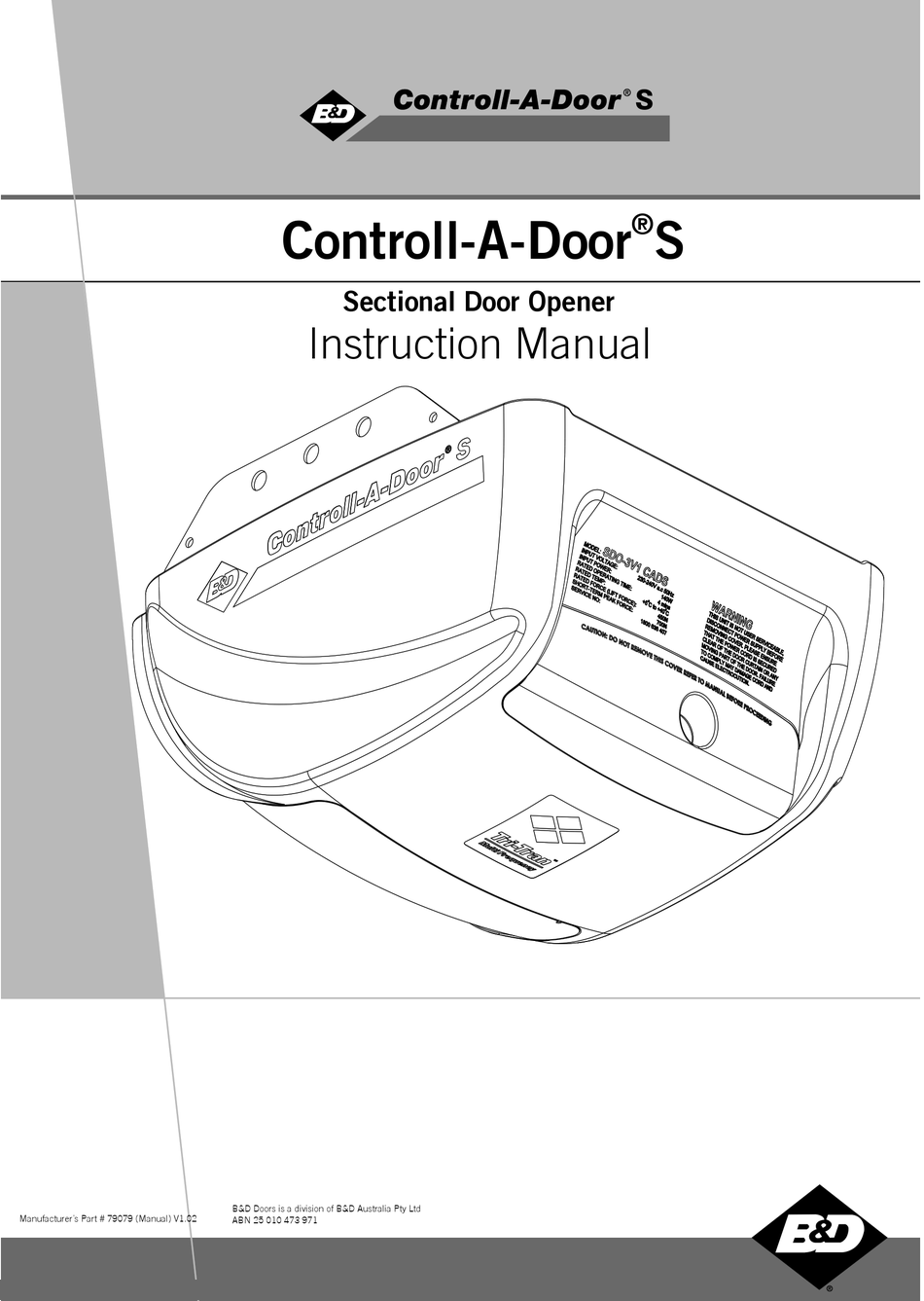

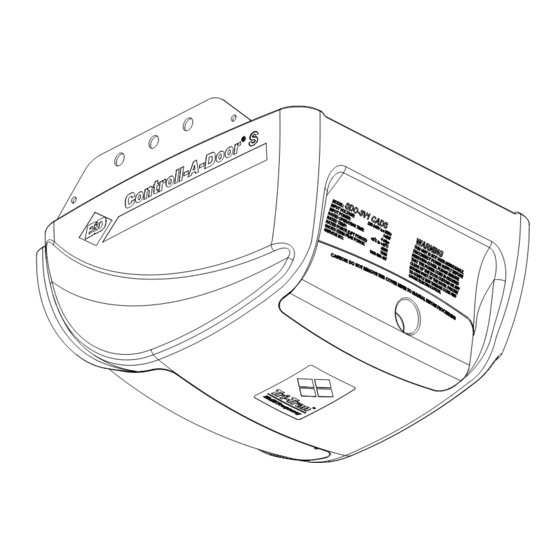

- Page 1 ® Controll-A-Door Sectional Door Opener Instruction Manual B&D Doors is a division of B&D Australia Pty Ltd Manufacturer’s Part # 79079 (Manual) V1.02 ABN 25 010 473 971 www.bnd.com.au...
-
Page 2: Table Of Contents
® Controll-A-Door S Instruction Manual ® Controll-A-Door Sectional Door Opener Safety Rules Default Settings & Specifi cations About Your Opener Operating Controls Kit Contents Installation C-Rail Attachment Safety Infra-red Beam Determine Door Type Battery Back Up Installation Mounting - Track Type Door... -
Page 3: Safety Rules
® Controll-A-Door S Instruction Manual Safety Rules Please read these important safety rules These safety alert symbols indicate a personal safety or property damage instruction exists. READ THESE INSTRUCTIONS CAREFULLY. This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety rules. -
Page 4: Default Settings & Specifi Cations
® Controll-A-Door S Instruction Manual Default Settings & Specifi cations Factory default settings Default Step Minimum Maximum Courtesy light time 3 minutes 3 minutes 3 minutes 10 Sec in battery 10 Sec in battery 10 Sec in battery backup mode... -
Page 5: About Your Opener
® Controll-A-Door S Instruction Manual About Your B&D Opener Thank you for choosing a Controll-A-Door® S automatic Battery Back Up garage door opener, designed and developed in Australia Optional Battery Back Up or solar power is available. by B&D Doors. -
Page 6: Operating Controls
® Controll-A-Door S Instruction Manual Operating Controls Terminal Block: 24V PWR is used to power devices such as Safety Infra-red Beams and external receiver (100 milliamp max). P.E(IR) input is used to connect to Safety Infra-red Beam. P.E(IR) 0V is a 0 volt connection for Safety Infra-red Beam. - Page 7 ® Controll-A-Door S Instruction Manual Fig. 01 Fig. 02 © Copyright 2009 B&D Doors D Power Drive : Instruction Manual...
-
Page 8: Kit Contents
® Controll-A-Door S Instruction Manual Kit Contents Powerhead Unit (Fig. 03) 1 x Controll-A-Door S powerhead ® 1 x Transmitter pack (Pack includes one TB-2 and one TB-4 keyring transmitters with batteries) 1 x Wall mount transmitter with battery Fig. 03... -
Page 9: Installation
® Controll-A-Door S Instruction Manual Installation C-Rail Attachment Shaf t Step 1 - Attach C-Rail to Powerhead Locate and insert the powerhead’s shaft into the C-Rail’s sprocket as shown in (Fig. 05). Fig. 05 Locate shaf t into sprocket Step 2 - Secure C-Rail to Powerhead Screw M4 X 8 Fix the two track brackets as shown in (Fig. -
Page 10: Determine The Door Type
® Controll-A-Door S Instruction Manual Determine the Door Type Step 3 - Determine the Door Type Proceed from Step 4 Determine which type of garage door you have as illustrated in (Fig. 7) to (Fig. 9). For a sectional (panel) door on tracks (Fig. 7) proceed with the installation from Step 4. -
Page 11: Mounting - Track Type Door
® Controll-A-Door S Instruction Manual Mounting - Track Type Door Step 4 - Determine Bracket Position Open the door and fi nd the highest point of travel of Level the top door panel. Level Using a level, transfer this height to the wall above the Track door (Fig. -
Page 12: Mounting - Non-Track Type Door
® Controll-A-Door S Instruction Manual Mounting - Non Track Type Door Centre of door WARNING: Make sure concrete, brick wall or timber lintels are solid and sound so as to form a secure mounting platform. Fig. 14 Step 8 - Determine the Door’s Centre Find the centre of the door and mark this location both above the door and on top of the door. -
Page 13: Mounting Door Bracket & Arms
® Controll-A-Door S Instruction Manual Mounting Door Bracket and Arms Step 11.1 - Alternative Mounting Option Drill hole at centre of The opener can be fastened to the roof by driving a bolt track (recommended bolt size M6 or M8) through the C-Rail into a structural timber support. -
Page 14: Programming The Opener
® Controll-A-Door S Instruction Manual Setting Travel Limits IMPORTANT NOTE: The OPERATE button will not function until the open and close limit positions are set. NOTE: The door and shuttle must be engaged Fig. 22 into the chain index. The door should be open approximately half way. -
Page 15: Testing Safety Obstruction Force
® Controll-A-Door S Instruction Manual Testing Safety Obstruction Force CAUTION: Take care when testing the safety obstruction force. Failure to follow this warning can result in serious personal injury and/or property damage. Step 15.1 Test the Close Cycle Press the OPERATE button to open the door (Fig. 25). -
Page 16: Coding Transmitters
® Controll-A-Door S Instruction Manual Coding Transmitters Step 16.1 - Storing the Transmitter Code The opener can only operate from transmitters that have been programmed into its receiver. The receiver needs to learn the codes of any transmitter that will be used with the operator. -
Page 17: For Vacation Mode
® Controll-A-Door S Instruction Manual Coding Transmitters Step 16.3 - Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except one preprogrammed unit. Press DOOR CODE button three times. The DOOR Fig. -
Page 18: For Pet (Pedestrian) Mode
® Controll-A-Door S Instruction Manual Coding Transmitters Step 16.5 - Setting the Transmitter to Operate Pet (Pedestrian) Mode The opener can be programmed into a “Pet Mode” where the door opens partially to allow pets to enter/exit the garage: Fig. 31 Press the DOOR CODE button fi... -
Page 19: Accessories
® Controll-A-Door S Instruction Manual Accessories Step 17.1 - Terminal Block A variety of wired accessory items can be connected to the terminal block such as Safety Infra-red Beams, electric key switch and more (Fig. 34). The terminal block also features auxiliary output for PE (IR) controlling other devices from your transmitter. -
Page 20: Safety Infra-Red Beam
® Controll-A-Door S Instruction Manual Accessories IMPORTANT NOTE - The Safety Infra-red Beam must be installed and connected before the travel limits are set - See Step 12. WARNING: Doors requiring over 400N of force to move must have Saftey Infra-red Beams fi tted for safety. -
Page 21: Battery Back Up Installation
® Controll-A-Door S Instruction Manual Battery Back Up Installation Fig. 39 Step 19 -Battery Back Up (optional) 7. Connect item 5 and 10 together (Fig 39). The opener has provision for a Battery Back Up kit that 8. Reconnect the power. - Page 22 ® Controll-A-Door S Instruction Manual Accessories SmartSolar™ Installation WARNING: Do not connect batteries until Step 20.3 Step 20.1 - Mount the Charger Board Disconnect power to the opener. Fig. 40 Swing open the light diffuser and controls cover. Remove screws marked “S” above in Fig. 40 and lift up the main cover.
-
Page 23: How To Use Your Opener
® Controll-A-Door S Instruction Manual How to use your opener For maximum effi ciency of your opener, your garage door must be in good operating condition. An annual service of your garage door by an Approved Dealer is recommended. CAUTION - Activate the opener only when the door is in full view, free of obstructions Fig. -
Page 24: How To Use Your Opener
® Controll-A-Door S Instruction Manual How To Use Your Opener Removing the Battery From the Transmitter (Battery Type: 3V Lithium Battery CR2032). Use a non-metallic object (e.g. pen) to remove the battery. (Fig. 45) Inbuilt Locking Facility DO NOT lock your door when your opener is engaged as it Fig. -
Page 25: Safety Infra-Red Beam
® Controll-A-Door S Instruction Manual How To Use Your Opener Safety Infra-red Beam open partially. A Safety Infra-red Beam Kit may be fi tted to this See Step 16.5 for more information. opener. • When this option is fi tted, the operation of this device is such that if an object (i.e. -
Page 26: Maintenance
® Controll-A-Door S Instruction Manual Maintenance Maintenance CAUTION: Frequently examine door, The SERVICE LED will indicate the requirement for a service particularly cables, springs and and/or adjustment. To reset the SERVICE LED when the mountings for signs of wear, damage door is serviced, reprogram the Door Travel Limits and the or imbalance. -
Page 27: Troubleshooting Guide
® Controll-A-Door S Instruction Manual Troubleshooting Guide Symptom Possible cause Remedy The opener does not work from the Garage door in poor condition e.g. Check the door’s operation - see transmitter springs may be broken monthly maintenance (Page 26) The opener does not have power Plug a device e.g. -
Page 28: Parameters
® Controll-A-Door S Instruction Manual Parameters Door status indicators Door opener state OPEN LED (green) CLOSE LED (red) Beeper Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Flashing Door obstructed when opening Flashing Door obstructed when closing Flashing... - Page 29 ® Controll-A-Door S Instruction Manual © Copyright 2009 B&D Doors D Power Drive : Instruction Manual...
-
Page 30: Spare Parts
® Controll-A-Door S Instruction Manual Spare Parts List... - Page 31 ® Controll-A-Door S Instruction Manual Fig. 46 © Copyright 2009 B&D Doors D Power Drive : Instruction Manual...
-
Page 32: Warranty
(b) in New Zealand - B&D Doors NZ Ltd of 70 Allens Road East Tamaki Auckland, which is a subsidiary of B&D Australia Pty Ltd. ‘Purchaser’ means the purchaser of the Opener. ‘Opener’ means the ‘Controll-A-Door ® Sectional Door Opener’... - Page 33 ® Controll-A-Door S Instruction Manual Warranty 9. Subject to paragraph 12 hereof; (i) the obligations of B&D under this warranty are limited to those contained herein and such warranties are expressly in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fi...
-
Page 34: Optional Accessories
® Controll-A-Door S Instruction Manual Optional Accessories There is a range of additional accessories for your added convenience and security. • Safety Infra-red Beams - Part No 062736. Gives additional protection if the door is closing onto your property or person. - Page 35 ® Controll-A-Door S Instruction Manual © Copyright 2009 B&D Doors D Power Drive : Instruction Manual...
- Page 36 QLD Offi ce: 17 Oasis Court, Clontarf 4019. Ph: (07) 3883 0200 NSW Offi ce: 34-36 Marigold St, Revesby 2212. Ph: (02) 9722 5555 VIC/TAS Offi ce: 147-153 Canterbury Road, Kilsyth 3137. Ph: (03) 9237 7766 SA Offi ce: 23 Frederick Road, Royal Park 5014. Ph: (08) 8440 4747 WA Offi...
