  • Page 1 DL-A Biometric Access Control System USER'S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 1. General Information ......................1 1.0 Notification ........................2 1.1 System Overview ......................2 1.2 Main Features ........................ 2 2. Basic Concepts ......................... 4 2.1 Basic Concepts ....................... 4 2.1.1 User Enrollment ....................4 2.1.2 User Verification ....................4 2.1.3 Match Threshold Levels ..................
  • Page 3 4.4.2 Access Control Function ..................17 4.4.3 Time Period Definition ..................17 4.4.4 Grouping Function .................... 18 4.4.5 User Access Control Setup ................20 4.4.6 Lock Delay ......................20 5. System Information ....................... 21 6. Specification ........................22 CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 4: General Information

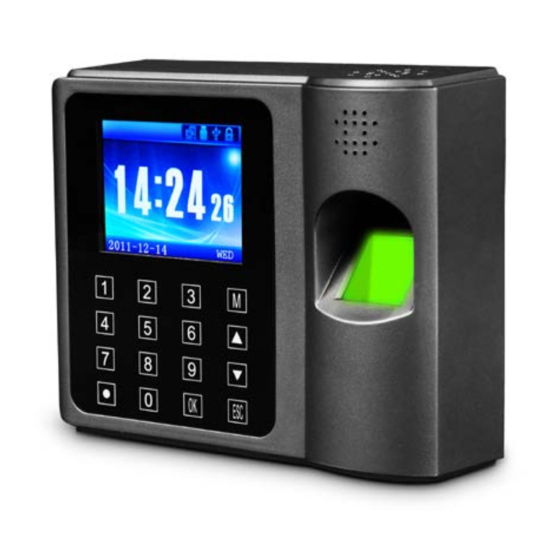

    1. General Information This chapter explains the outlook of David-Link Biometric/Fingerprint Door Access Control Terminal and its basic functions in details. External Overview LCD Display Fingerprint Sensor Proximity Sensor Keypad Keypad Function ▲ ▼ OK: Press to confirm your settings and/or present operation M: Press to enter the menu options.

  • Page 5: Notification

    : Press to turn on/off the power Number: Press number 0---9 to select or input David-Link Door Access Control Terminal is a simple, easy-to-use terminal. It can be installed at any area where access of the entries requires authority. This terminal combines the latest fingerprint recognition technology with multiple levels of security control to provide the safest environment.

  • Page 6: Basic Concepts

    Lock Output: NO/NC • Access Control Interface: Wiegand 26/34 • DC/Current: 12V/1A 2. Basic concepts 2.1 Basic concepts This section contains definitions and descriptions of David-Link Biometric Fingerprint Access Control concepts including: • User Enrollment • User Verification • Match Threshold Levels •...

  • Page 7: Match Threshold Levels

    An ID number is assigned sequentially based on availability; however, you may choose any ID number as desired. 2.1.5 Authority/Privilege Level David-Link DL-A Door Access Control System contains authority/privilege levels: • User: one whose identity must be verified in order to gain access into a facility or to have his/her attendance recorded.

  • Page 8: Start-Up

    Note: A Super Manager’s enrollment is required in order to assign other privilege levels such as Enroll Manager or General Manager. 2.1.6 Start-up Press the power button [0] to turn on the terminal. The Start-up window will appear as the following: 2.2 How to Place the Finger Tips: It is recommended that at least 2 fingerprints are enrolled in the terminal for each user in the event that if one of the fingerprints is injured or damaged, a user can always user the alternate...
  • Page 9 Inclined Lower Note: Please adopt the correct way to place your finger; David-Link is not responsible for the malfunctioning results arising from improper pressing manners. 2.2.1 More Tips for Fingerprint Reads...

  • Page 10: Enrollment And Verification Procedures

    3.0 Enrollment and Verification Procedures This chapter describes user enrollment and verification processes. The following topics are included: • Enrolling User • Testing an Enrollment • Enrolling a User with the Display Finger Option On • Verifying Your Identity • Hints for Successful Enrollments Note: A manager’s fingerprint authentication, if any is set up previously, is required before a new user can be enrolled.

  • Page 11: Types Of Enrollment

    Press [OK] to enter the Register menu, the following message is displayed: Press [OK] to start the User Enrollment. Then select from the following verification method options: Press [OK] to start the New Registration process. The following message is then displayed: 3.1.1 Types of Enrollment 1.
  • Page 12 2）Input the Enroll No. (Range: 1 to 999999999) or simply press [OK] to use the first available Enroll No. in the terminal, it will then prompt you to place your finger into the scanner 3）Press the same finger three times to complete the enrollment. Lift your finger each time when you hear a beep sound.
  • Page 13 3) Input the password (up to 8 digits) then press [OK], the following message appears: 4) Input the password again then press [OK] to save the enrolled data, you may repeat the same processes again for another enrollment. 3. ID Card 1) Select ID Card and press [OK] for new user enrollment, the following message will appear: 2) Input the Enroll No.

  • Page 14: Fingerprint & Password

    3) Place the ID card near the scanner and the card number will appear, the following message is then displayed: Press [OK] and you have successfully saved the ID Card into the system. Fingerprint & Password Select FP&Pass, then press [OK], for new user enrollment, the following message appears : 2) Input the Enroll No.
  • Page 15 4) Input your password, the following appears: 5) Input the password again then press [OK], once you successfully entered the password the message “Enroll OK!” will appear. Press [OK] to save. 5. Fingerprint & Card 1） Select FP&Card, then press [OK], for new user enrollment, the following message appears : 2) Input the Enroll No.

  • Page 16: Testing An Enrollment

    4) Place the ID card near the scanner and the card number will appear, the following message is then displayed Press [OK] and you have successfully saved the Fingerprint and ID Card into the system. 3.2 Testing the Enrollment To confirm if a user is enrolled in the system, simply place a finger on the fingerprint sensor for verification.

  • Page 17: Delete User

    3.4. Managers Three options will be displayed; Enr Man, Gerl Mgr, and SuperMgr. The system requires the SuperMgr to be enrolled first before you can add any type of Manager. After selecting the SuperMgr option, you will be prompted to register or create a backup. Instructions are shown in 3.1.1.
  • Page 18 Continue to press [OK] until all registered fingerprints, Passwords, or ID Cards are deleted. 3.6. USB Download 1) Press [M], select “Register”, then select “U-down”, the following appears: Description Glog & Del Allows you to transfer all users’ attendance records to USB thumb drive and delete all records saved in the terminal.

  • Page 19: Language

    4.0. Advanced Options 1) Press [MENU], select “Advanced”, and then press [OK]. 4.1. Device Select the “Device” option Setting Descriptions Default Delete All Rec Delete all records stored in the terminal. Del Enroll Info Delete all personnel information (fingerprint, password, or proximity card ID) stored in the terminal.
  • Page 20 To change the date, press . Then input the correct time on the keypad for time settings. Finally, press [OK] to complete. Record Setting 1) Press [M], select “Advanced”, and press [OK]. 2) Select “Logs”, the following appears: 3) Press [1] or [2] to set the warning when the terminal’s memory capacity can only save # more log records before the memory is full.

  • Page 21: Access Control

    4.4 Set Communication Select “Set Com” Option, the following message appears: • Machine ID: Terminal unique ID (range: 1 to 255). • Baud Rate: Choose from 9600, 38400, or 115200. • IP address: Enter the IP address according to your networking options. The default IP address is 192.168.1.204.

  • Page 22: Access Control Function

    1) Press [M], select “Advanced”, then select “LockCtrl” and press [OK], the following message appears: 1) Define Time Zone: Define the time and date allowed for access. 2) Define Group Time Zone: Define multiple time and date combinations allowed for access. 3) Access Options: Group selected users to different time zones.

  • Page 23: Grouping Function

    periods (one week). Each user can be applied to up to 3 Time Zones, meaning even the user is registered on the device, he/she can be granted access only within specified times zones. Note: System default time period setting allows a registered user to access the door for entire day. 1) Select “Define Time Zone”.

  • Page 24: Lock Delay

    4.4.6 Lock Delay Define the time range (in seconds) that the lock remained released after the user has passed the verification. Select “Lock Delay”. Then press [ OK] after you have set up the time in second. 5. System Information Press [M] and select “ViewInfo”...
  • Page 25 View number of user’s log records saved in the terminal. *David-Link is not responsible for any lost data and record. Please make sure you save all your data and records in a safe place. Log records cannot be recovered after you delete all log records saved in the terminal.

  • Page 26: Specification

    Fingerprint, ID Card, and Password Verification Methods • Alarm Output, Device Removal Alarm Output, ETC. Electronic Lock 12V DC/3A Relay Output Control Attendance Support David-Link Access Control Software Function(optional) Other Output Magnetic Lock, Electric Strike, Door Bell, Alarm Networking Ethernet, USB, RS485 Wiegand Output...
