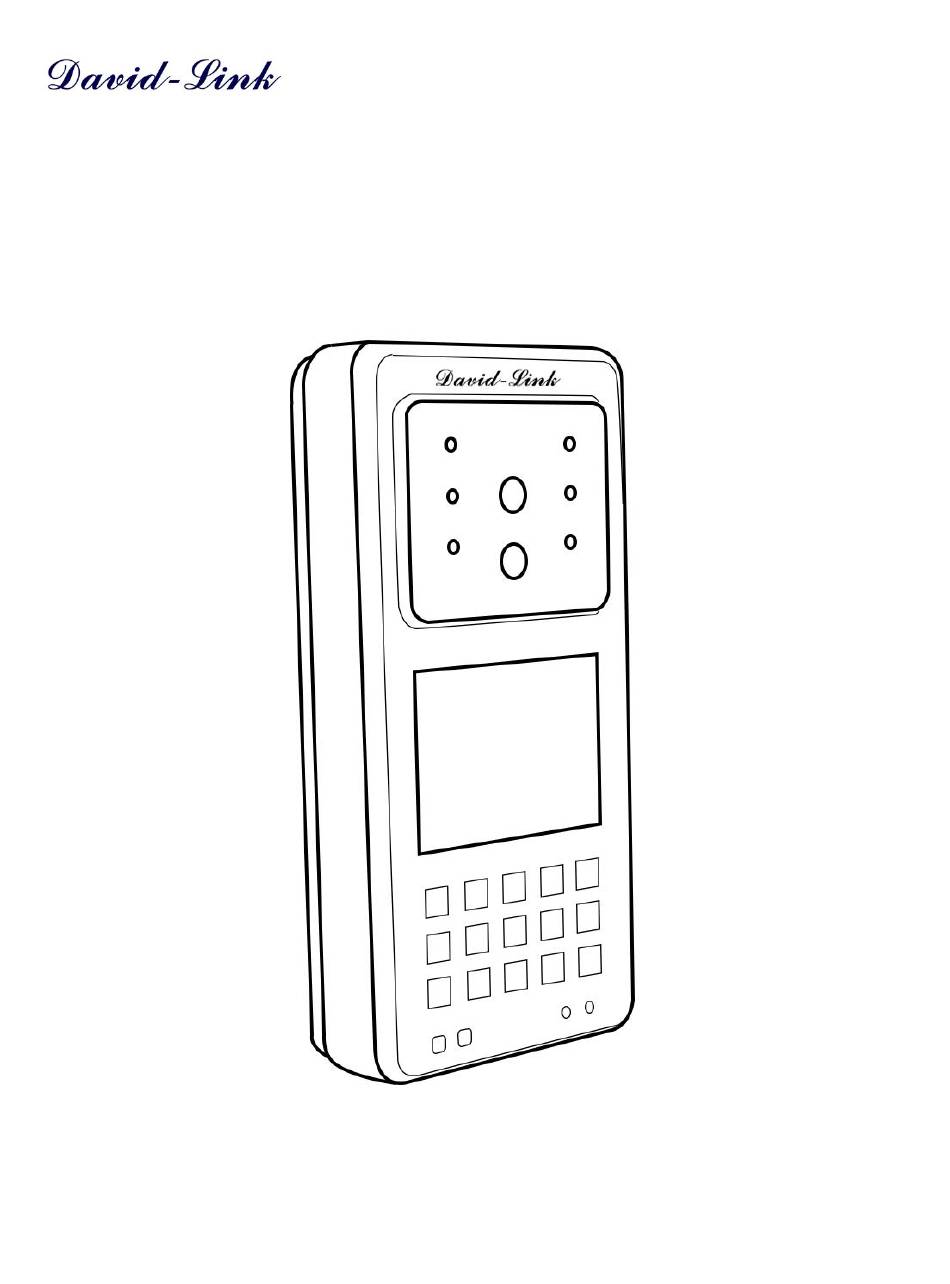

- Page 1 FD-777 FACIAL RECOGNITION USER'S MANUAL For Access Control or Time & Attendance...
-
Page 2: Table Of Contents
Table of Contents 1. General Information ...................... 3-4 1.0 Notification ........................4 1.1 System Overview ......................4 1.2 Main Features......................4-5 2. Basic Concepts ......................... 5 2.1 User Enrollment ......................5 2.2 User Verification ......................6 2.3 User ID Number ......................6 2.4 Start-up .......................... -
Page 3: General Information
1. General Information This chapter explains the outlook of David-Link FD-777 Facial Recognition Unit System and its basic functions in details. External Overview Face reader LCD Screen Keypad Keypad Function OK: Press to confirm your settings and/or present operation MENU: Press and hold the key for 3 seconds to enter the menu options of the device ESC: Press to exit the menu options and/or cancel present operation : Press to scroll up the menu (Check IN）... -
Page 4: Notification
Link is not responsible for any lost data and records from the device and software. 1.1 System Overview FD-777 is a Door Access Control and Time Management System designed for any size of office environment with up to 500 authorized users. FD-777 verifies user’s identity based on individual face matching. -
Page 5: Basic Concepts
Lock Group Function: YES Size: 141mm X 65mm X 26mm Operating Temperature: 22 to 130 F 2.0 Basic concepts This section contains definitions and descriptions of David-Link Biometric Door Access Control concepts including: User Enrollment User Verification ... -
Page 6: User Verification
Verification process starts when a user enters an ID number, positions face aligned with the camera, or inputs a password combination for comparison with the stored template. The proper distance for face detection is 16 to 28 inches from the FD-777 and make sure face is within the capture zone on the screen. -
Page 7: Enrollment And Verification Procedures
3.0 Enrollment and Verification Procedures This section provides step-by-step user enrollment and verification processes. The following topics are included: Enrolling User Testing an Enrollment Verifying Your Identity Hints for Successful Enrollments 3.1 Enrolling User If this is the first enrollment in the new system, everyone is allowed to enroll himself/herself in to the system There are three verification method options for a new user enrollment: Face read, Password, or the combination of the above two. -
Page 8: Types Of Enrollment
Press [OK] at the Enroll User option to start the user enrollment and the following three options will appear: 3.2 Types of Enrollment 3.2.1. Face Enrollment 1) Select Face, then press [OK], the following message is displayed: 2）Press [OK] for new user enrollment and allow the scanner to read the users face and process. -
Page 9: Password Enrollment
3.2.2 Password Enrollment 1) Select Passcode, then press [OK], the following message appears: 2) Input the Enroll No. (Range: 001 to 999) or simply press [OK] to use the first available Enroll No. in the device, the following message appears: 4) Input the password (up to 5 digits) then Input the password again then press [OK], the following message appears:... -
Page 10: Face & Password
Press [OK] to save the enrolled data then you may repeat the same processes again for another enrollment. 3.2.3 Face & Password 1）Select Face & Password, then press [OK], the following appears:... -
Page 11: Edit User
2）Input the Enroll No. (Range: 001 to 999) or simply press [OK] to use the first available Enroll No. in the device, the following message appears: 3） Input your password and repeat it to confirm and allow the scanner to read the users face and process Note: Allow your face to be within the box in the screen 3.3 Edit User... -
Page 12: Delete User
2) Input the Enroll No. (Range: 001 to 999) or simply press [OK] to use the first available Enroll No. in the device, the following message appears: 3) Two options will appear and the user must select one: Face or Password. First option selects Face and press OK and allow the scanner to scan the users face. -
Page 13: Network Setup
4.0 Network Setup 1) Press [MENU], select “Network Setup”, press [OK], the following appears: IP address: Enter the IP address according to your networking options. The default IP address is 192.168.1.204 Subnet Mask: Networking connection with the device setup. ... -
Page 14: Access Control
Access Control Select “Access Control”, the following will show the Server IP address of the unit and if the Real-Time is on or off. 1) Define Time Zone: Define the time and date allowed for access. 2) Define Group Time Zone: Define multiple time and date combinations allowed for access. 3) Access Options: Group selected users to different time zones. -
Page 15: System Option
System Option Select System Option, the following message appears: 1) Select “Date & Time” and the following will appear: Select Date and it will allow you to change the date that appears on the screen. To change the date, press . - Page 16 To change the time, press . Then input the correct time on the keypad for time settings. Finally, press [OK] to complete. 2) Select “Volume” and the following will appear: To change the volume, press then press [OK] to complete 3) Select “Device Passcode”...
-
Page 17: System Detail
System Detail Press [MENU], select “System Detail”, press [OK], the following appear View Users: Allows you to view how many users are enrolled into the system Storage Details: Allows you to view the available space in your system ...
