Page 1: User Manual

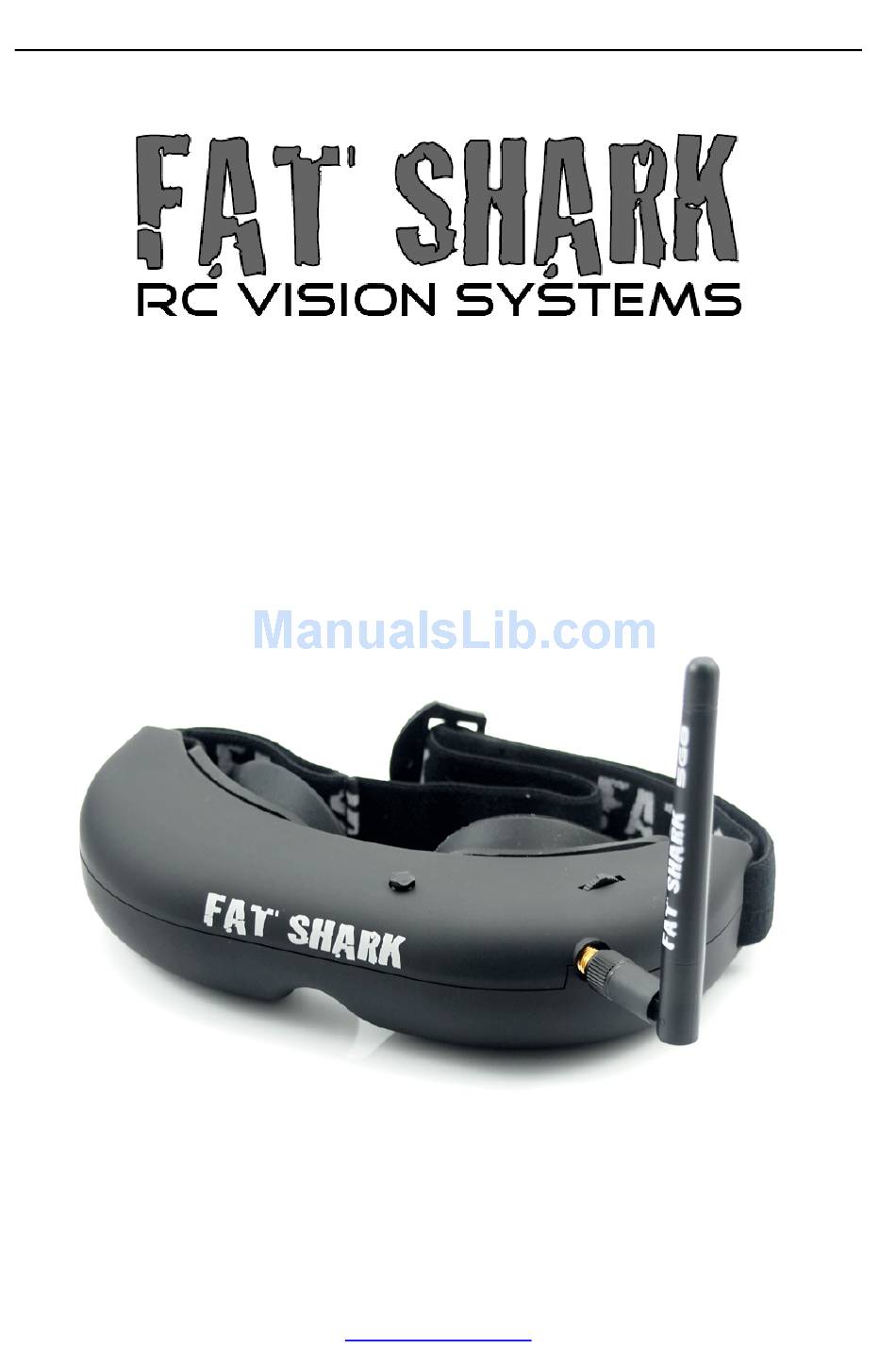

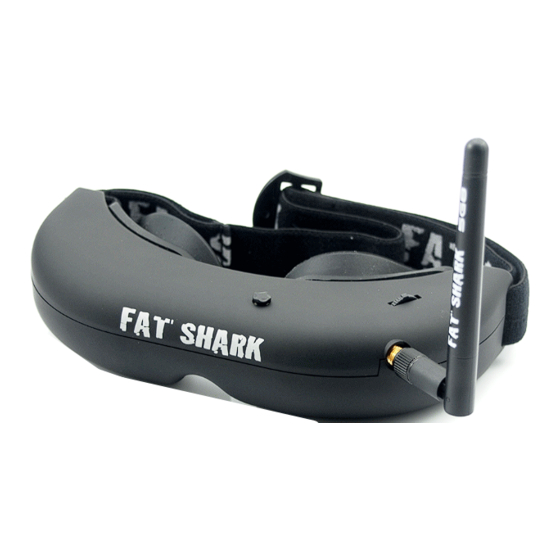

Fat Shark RC Vision Systems ATTITUDE V2 FPV GOGGLE WITH TRINITY HEAD TRACKING USER MANUAL Revision B 12/23/2013 For more product information, please visit: www.fatshark.com All Rights Reserved... -
Page 2: Table Of Contents
Trouble shooting ....................12 Introduction Congratulations on purchasing the Fat Shark AttitudeV2 FPV video goggles with integrated NexWaveRF 5G8 wireless receiver and Trinity (3-axis pan/tilt/roll) head tracking technology. To ensure your continued enjoyment, please take the time to thoroughly read through this operating manual before using. -
Page 3: Product Contents
Fat Shark RC Vision Systems Product contents Carry case AttitudeV2 Headset Data cables - 3.5mm JR - Futaba 6P - ezUHF MiniDIN AV cable Downlink kit - 250mW 5G8 TX - 600TVL camera - Filtered battery 2X 5G8 3dBi antenna... -
Page 4: Controls
Audio beep sounds on channel change. A long beep sounds on channel top and bottom limits. Note: Fat Shark only guarantees compatibility with Fat Shark or ImmersionRC transmitters. CH1: 5740 MHz CH2: 5760 MHz CH3: 5780 MHz CH4: 5800 Mhz... -
Page 5: Trinity Head Tracker
For a complete and up to date list of compatible RC radios and their setup, a head tracking sticky thread is maintained at www.FPVlab.com under SPONSORS GATE/FAT SHARK Operation notes: Head tracker initiates in pause mode. Head tracker reset button needs to be depressed and held to start camera motion. -
Page 6: Downlink Overview (Camera, Tx, Power)
Simply connect the balance lead of your 2S, 3S or 4S (7.4V - 16V) RC battery to provide power to your Fat Shark Downlink and you are ready to fly. The handy balance lead filters RC servo and motor noise from your RC pack for a crisp, clear image. -
Page 7: Power (Via Discharge Filter Supply)
PTR mechanism includes mount for 600TVL CMOS and Fat Shark CCD cameras. Pan axis servo is a true 180 degree metal gear servo for maximum travel motion durability. Super high tolerance tooling and servos ensures no slop or movement for steady camera action. -
Page 8: 1000Ma Battery Pack
Fat Shark RC Vision Systems 1000mA Battery Pack The Fat Shark dog bone shaped 1000mAh pack seats securely in the headset strap pocket. The battery cable extends out of the top of the pack to avoid contact with head strap. Barrel connector cable features high strand count wire for flexibility and long life. -
Page 9: Spironet Circular Polarized Antenna
Fat Shark RC Vision Systems SpiroNET Circular Polarized Antenna The best performance enhancement for your dollar. SpiroNET circular polarized antennae are manufactured to machine tolerances and final tested with top end RF equipment for the best performing CP antenna on the market. -
Page 10: Specifications
Fat Shark RC Vision Systems Specifications Headset Specifications Optics: FOV 35 degrees diagonal Mechanical Ergonomic molded shape. Interpupillary (IPD) distance: Rubber eye cups for ambient light 59 – 69 mm (adjustable) shielding Optional diopter lens inserts Weight: 150g available in -2, -4, -6 dp... -
Page 11: Operational Advice
Fat Shark RC Vision Systems Operational advice For best performance, select a channel that has the least amount of interference. While the transmitter is turned OFF, turn on the video headset and look at the screen as you check each channel. -
Page 12: Trouble Shooting
If your problem can’t be solved here, please visit our support forum at www.FPVLAB.com under SPONSORS GATE/ FAT SHARK RC VISION SYSTEMS. Any direct support enquires will be first directed to this forum for the benefit of all customers Observation... - Page 13 Same as above Lens: 3.6mm IR coated 90°diagonal FOV (ideal for pan/tilt camera) Operation: Same as above Packaging Dimensions: 101 x 68 x 44 mm Weight: 60g 5p Molex termination is plug/play with Fat Shark and ImmersionRC TX’s (not included) www.fatshark.com...
