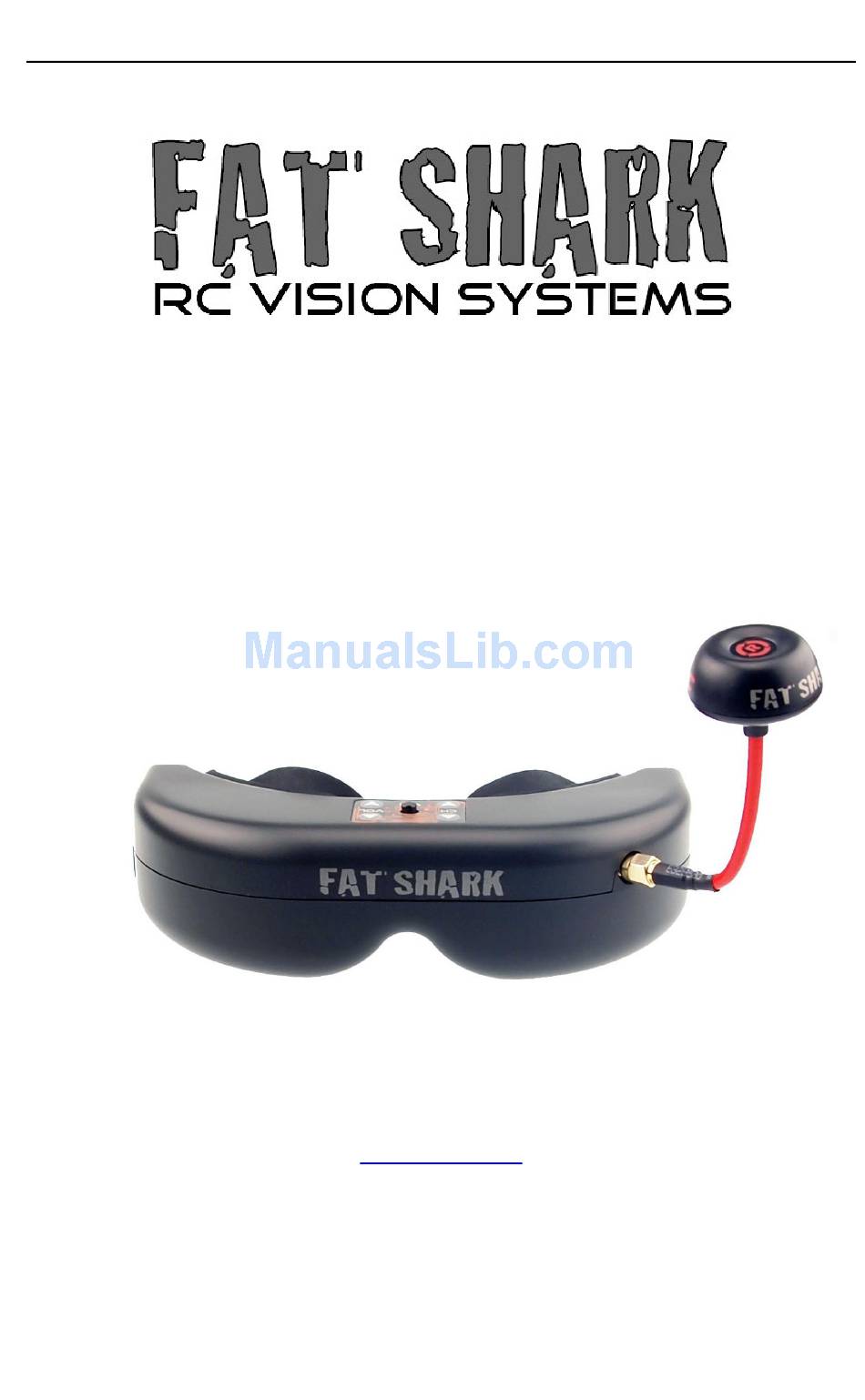

Page 1: User Manual
Fat Shark RC Vision Systems TELEPORTER V5 FPV HEADSET USER MANUAL Revision A 03/17/2016 For more product information, please visit: www.fatshark.com All Rights Reserved... -
Page 2: Table Of Contents
Warranty..........................11 Introduction Congratulations on purchasing the Fat Shark Teleporter V5 headset with amazing digital head tracking to simulate pan/tilt on a fixed camera (head tracker can alternatively control a pan/tilt camera through a supporting radio). To ensure your continued enjoyment, please take the time to thoroughly read through this operating manual before using. -
Page 3: Product Contents
Fat Shark RC Vision Systems Product contents Carry case Teleporter Headset 5G8 Antenna (TX, RX) Battery (and discharge lead) Lens cloth Manual... -
Page 4: Controls Diagram
Fat Shark RC Vision Systems Controls Diagram Antenna SMA Channel Control Power in Display Control/ AV in/out Head Tracker Control Volume Control Receiver on/off Head Tracker (Power to RX Module) Data Port (Analog) Earphone Jack Controls Display control: pressing left and right increases/decreases display contrast. Press... -
Page 5: Head Tracking Menu Navigation
Audio beep sounds on channel change. A long beep sounds on channel top and bottom limits. Note: Fat Shark only guarantees compatibility with Fat Shark or ImmersionRC transmitters. CH1: 5740 MHz CH2: 5760 MHz CH3: 5780 MHz CH4: 5800 Mhz CH5: 5820 MHz CH6: 5840 Mhz CH7: 5860 MHz Low battery warning: Audio warning if input voltage drops below 6.8V... -
Page 6: Av In/Out Port
Fat Shark RC Vision Systems AV in/out Port Ground Video AudR RCA Connector: Yellow: Video, White: Audio Left, Red: Audio Right Recording Video Connect AV cable to AV out port on right side of headset. Connect recording device to cables and set up as per manufacturer directions. -
Page 7: Accessories
2S, 3S or 4S (7.4V - 16V) RC battery to provide power to your Fat Shark Downlink and you are ready to fly. The handy balance lead filters RC servo and motor noise from your RC pack for a crisp, clear image. -
Page 8: 700Tvl Cmos On Pan / Tilt
Fat Shark RC Vision Systems WARNING: DO NOT POWER TRANSMITTER WITHOUT ANTENNA ATTACHED. NO ANTENNA LOAD WILL DESTROY RF AMPLIFIER – NOT COVERED BY WARRANTY Small white connector on back of transmitter is for ImmersionRC Tiny Telemetry. See accessories. 700TVL CMOS on pan / tilt 3.6mm lens for wide angle 97 degree FOV;... -
Page 9: Specifications
Fat Shark RC Vision Systems Specifications Headset Specifications Optics: FOV 25 degrees diagonal Interpupillary (IPD) distance: 63.5mm (fixed) Optional diopter lens inserts available in -2, -4, -6 dpt Audio: Stereo User Controls: Channel selection ... -
Page 10: Operational Advice
Fat Shark RC Vision Systems Operational advice For best performance, select a channel that has the least amount of interference. While the transmitter is turned OFF, turn on the video headset and look at the screen as you check each channel. Clear channels will have a consistent static background. -
Page 11: Trouble Shooting
We also run a support forum for all technical issues at: http://fpvlab.com/ SPONSORS GATE/ FAT SHARK Post your questions there and they will be answered by our technical staff or peers.
