Summary of Contents for Nakamichi NA788

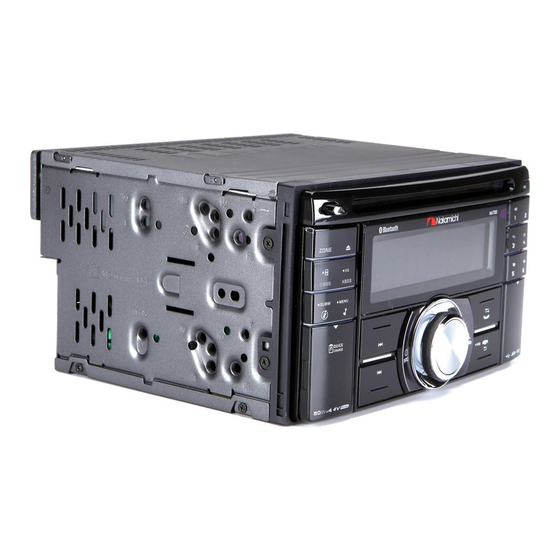

- Page 1 NA788 Car Audio System Player INSTRUCTION MANUAL CD MP3 WMA USB SD AUX-IN BT iPod/iPhone USB 1A Smart Phone Battery Charge...
-
Page 2: What's In The Box
Nakamichi dealer. When you purchase external components, check with your Check and identify the contents of your package: Nakamichi dealer to make sure that they work with your model and in your area. Maintenance Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. -
Page 3: Installation / Connection
If you experience problems during installation, consult your Nakamichi dealer. Be sure to ground this unit to the car’s chassis again after installation. -
Page 4: Installing The Unit
Installing the unit Installation with the half sleeve After inserting the half sleeve into the dashboard, select the appropriate tab according to the thickness of the dashboard material and bend them inwards to secure the holder in place. Bend the appropriate tabs to hold the sleeve firmly in place. -
Page 5: Basic Operation
Basic Operation Detaches the control panel Ejects the disc USB socket OK / Mute Open the cover Open the cover Encoder Volume Knob Aux-In jack 1A battery charge USB socket When you press or hold the following button(s)... Main unit General operation Switch music listening zone for the best speaker sound. -
Page 6: Remote Control Operation
Remote Control Operation AUDIO When you press or hold the following button(s)... Main unit General operation Turn mute or restore volume. Press turn the unit on or off. Press increase the volume. Press decrease the volume. Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek ■... -
Page 7: Audio Menu
Function Settings 1 Press to access into the [AUDIO MENU] mode, press and hold to enter into the [MENU] mode. 2 Press repeatedly to select the item to be adjusted. 3 Turn the encoder volume knob to select a value / option. [AUDIO MENU]... -
Page 8: Listening To The Radio
Listening to the Radio Hold for about 2 seconds to ■ memorize the current station. Press briefly to recall ■ memorized station. In receive tracffic, press to cancel receive the current traffic. 1 Press repeatedly to a band ( FM1, FM2, FM3, 3 Press repeatedly to view RDS received information. -
Page 9: Playing A Disc
Listening to a Disc/ USB/SD device Press to pause. Press again to resume playback. Press to repeat one track, press again to repeat all tracks. ■ Press and hold repeat a folder. ■ Press to start random play, press again to cancel random play. ■... -
Page 10: Listening To The Ipod/Iphone
Listening to the iPod / iPhone Press to pause. Press again to resume playback. Press to repeat one track, press again to repeat all tracks. ■ Press and hold repeat a folder. ■ Press to start random play, press again to cancel random play. ■... -
Page 11: Operation Of Bluetooth Hands-Free
2 Search for other bluetooth device with your device. 1 If there is incoming call, the phone number is displayed. if the 3 Select “NAKAMICHI” in the pairing list. incoming call has no phone number, [PHONE IN] is displayed. 4 Input the password “0000”... -
Page 12: Product Information
Product Information General Bluetooth Output power: Class 2 Power Supply: 12V DC (10.5-14.4V), negative ground Frequency band: 2.4000GHz-2.4835GHz ISM Band Fuse: 15A Suitable Speaker Impedance: 4 -8 Range: 3 meters (free space) Aux-In level: 800mV Standard: Bluetooth 2.0 specification Audio Section About Audio file Maximum Power Output: Mosfet 50W x 4 Channels USB or memory file system: FAT16, FAT32... - Page 13 www.nakamichicaraudio.com...
