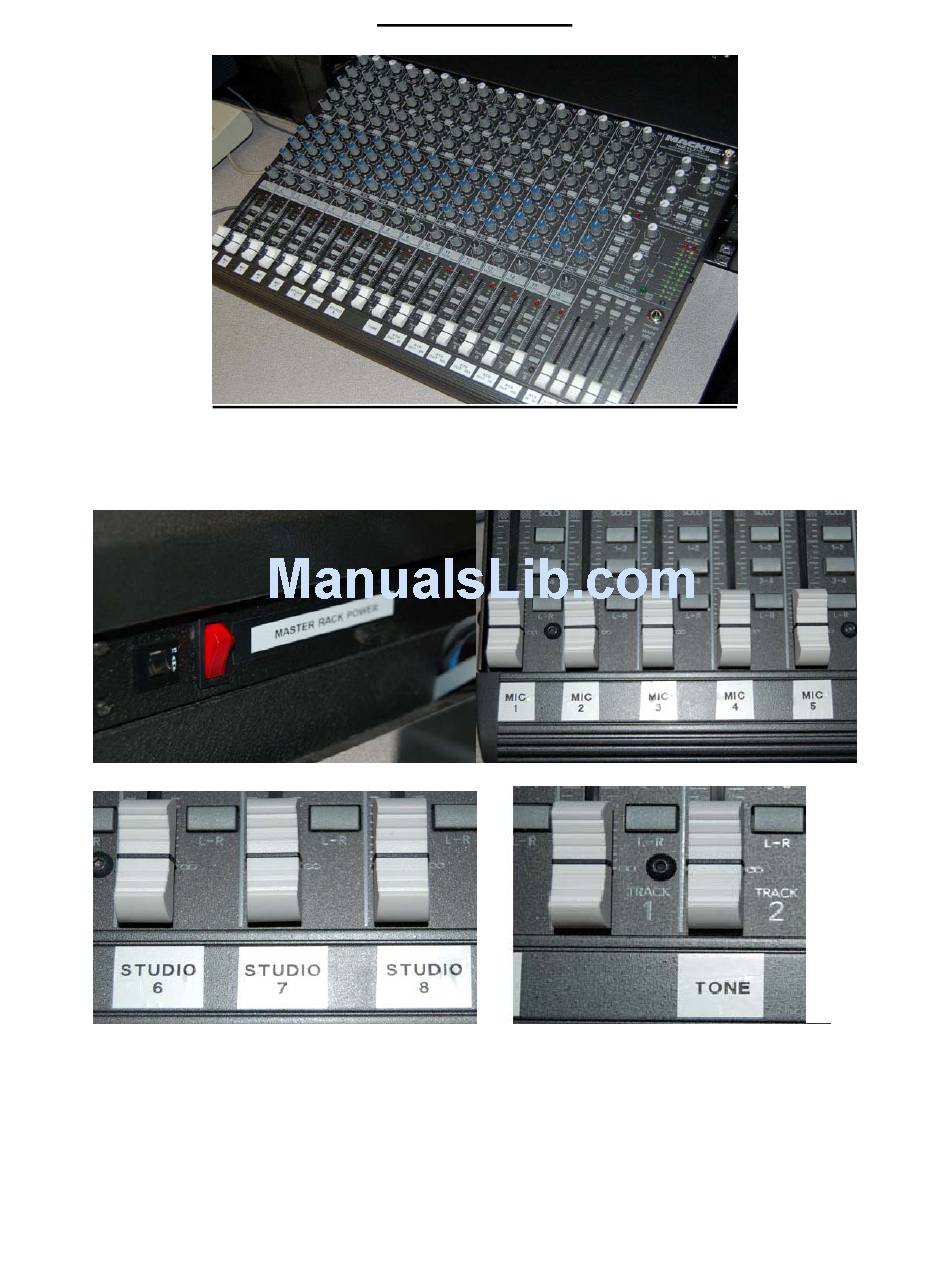

- Page 1 MACKIE MIXER Everything is “on” as labeled and this board is wired to the “MASTER RACK POWER” switch (behind the Ross Switcher), so it will turn on and off with everything else. Master Rack Power #1-5: Wireless Microphones #6-8: Open to studio plays...
- Page 2 #11-16: L/R Output Channels from the mixer (9) and router monitors (10 &11) MAIN MIX SUB STATION: Inputs Channels 1&2: Inputs for Router #9 (bottom right corner of board) Mixer (these will always be up to ‘0’ Channels 3 & 4: Inputs for Router #14 Main Mix Channel: Always up to ‘0’...
- Page 3 Control Room Source: always set to Main Mix: this button is located above sub- station channel 1*always pressed CTL Room/Phones Knob: Sets the Volume for the Studio (make sure this is not too loud) Channels (Sliders): There are 5 buttons from the top on each channel: MUTE, SOLO, (1-2), (3-4), (L-R) •...
- Page 4 DO NOT’S • Never press the “Left” and “Right” Buttons under “ASSIGN TO MAIN MIX” in the Main Mix sub-station. This increases the volume to an unnecessary level. • Do not alter anything under the TRIM for any of the channels. This also increases the volume to an unnecessary level •...
