General venting
Table 3D PVC/CPVC Vent Pipe, and Fittings
Approved PVC/CPVC Vent Pipe and Fittings
Item Material
PVC Schedule 40, 80 ANSI/ASTM D1785
Vent pipe PVC - DWV
CPVC Schedule 40, 80 ANSI/ASTM F441
PVC Schedule 40
Vent fi ttings PVC Schedule 80
CPVC Schedule 80
Pipe Cement / PVC
Primer
CPVC
NOTICE: DO NOT USE CELLULAR (FOAM) CORE PIPE
NOTE: In Canada, CPVC and PVC vent pipe, fi ttings and cement/
primer must be ULC-S636 certifi ed.
1. Work from the boiler to vent or air termination. Do not
exceed the lengths given in this manual for the air or vent
piping.
2. Cut pipe to the required lengths and deburr the inside
and outside of the pipe ends.
3. Chamfer outside of each pipe end to ensure even
cement distribution when joining.
4. Clean all pipe ends and fi ttings using a clean dry rag.
(Moisture will retard curing and dirt or grease will prevent
adhesion.)

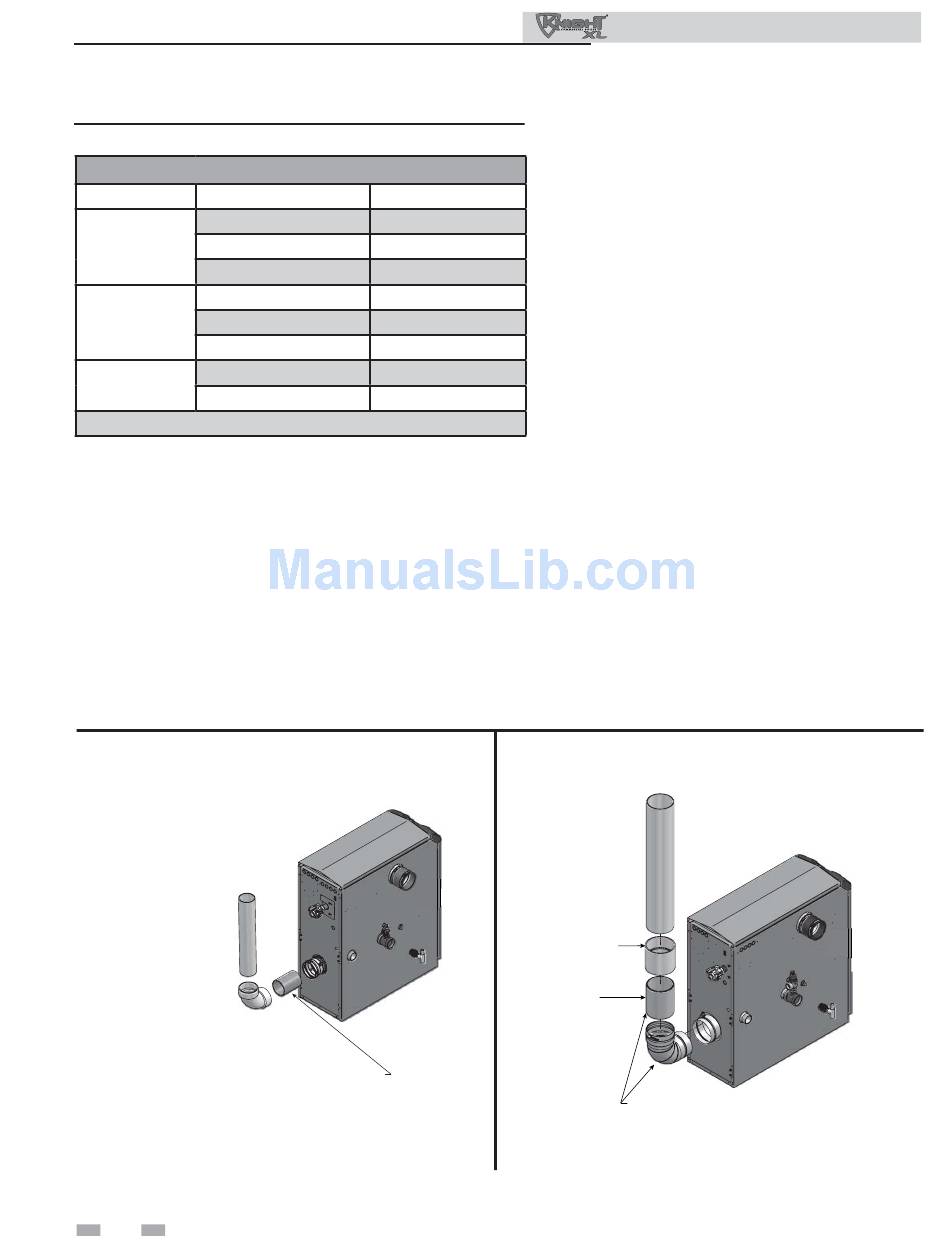

Figure 3-2 Near Boiler PVC/CPVC Venting - Models 400 - 601
VENT
*
* 4" CPVC STREET ELBOW
MAY BE SUBSTITUTED
4" CPVC PIPE SUPPLIED WITH
BOILER MUST BE USED FOR VENT CONNECTION
NOTE: CPVC VENT OR STAINLESS STEEL PIPE AND
VENT FITTINGS MUST BE USED IN CLOSET AND
ALCOVE INSTALLATIONS.
20
5.
Standard
6.
ANSI/ASTM D2665
ANSI/ASTM D2466
ANSI/ASTM D2467
ANSI/ASTM F439
ANSI/ASTM D2564
ANSI/ASTM F493
Figure 3-3 Near Boiler PVC/CPVC Venting - Models
701 - 801
6" COUPLING
(FIELD SUPPLIED)
6" CPVC
STARTER
PIECE
(FACTORY SUPPLIED)
Installation & Operation Manual
Dry fi t vent or air piping to ensure proper fi t up before
assembling any joint. The pipe should go a third to
two-thirds into the fi tting to ensure proper sealing after
cement is applied.
Priming and Cementing:
a. Handle fi ttings and pipes carefully to prevent
contamination of surfaces.
b. Apply a liberal even coat of primer to the fi tting
socket and to the pipe end to approximately 1/2"
beyond the socket depth.
c. Apply a second primer coat to the fi tting
socket.
d. While primer is still wet, apply an even coat of
approved cement to the pipe equal to the depth of
the fi tting socket along with an even coat of
approved cement to the fi tting socket.
e. Apply a second coat of cement to the pipe.
f. While the cement is still wet, insert the pipe into
the fi tting, if possible twist the pipe a 1/4 turn as
you insert it. NOTE: If voids are present,
suffi cient cement was not applied and joint could
be defective.
g. Wipe excess cement from the joint removing
ring or beads as it will needlessly soften the
pipe.
VENT
THE 6" STAINLESS STEEL ADAPTER SUPPLIED
WITH THE BOILER MUST BE USED FOR VENT
CONNECTION TO PVC/CPVC. THE 6" CPVC
STARTER PIECE MUST BE USED FOR PVC ONLY.
