Summary of Contents for Portsmith PS6U1UPE

  • Page 1: User Guide

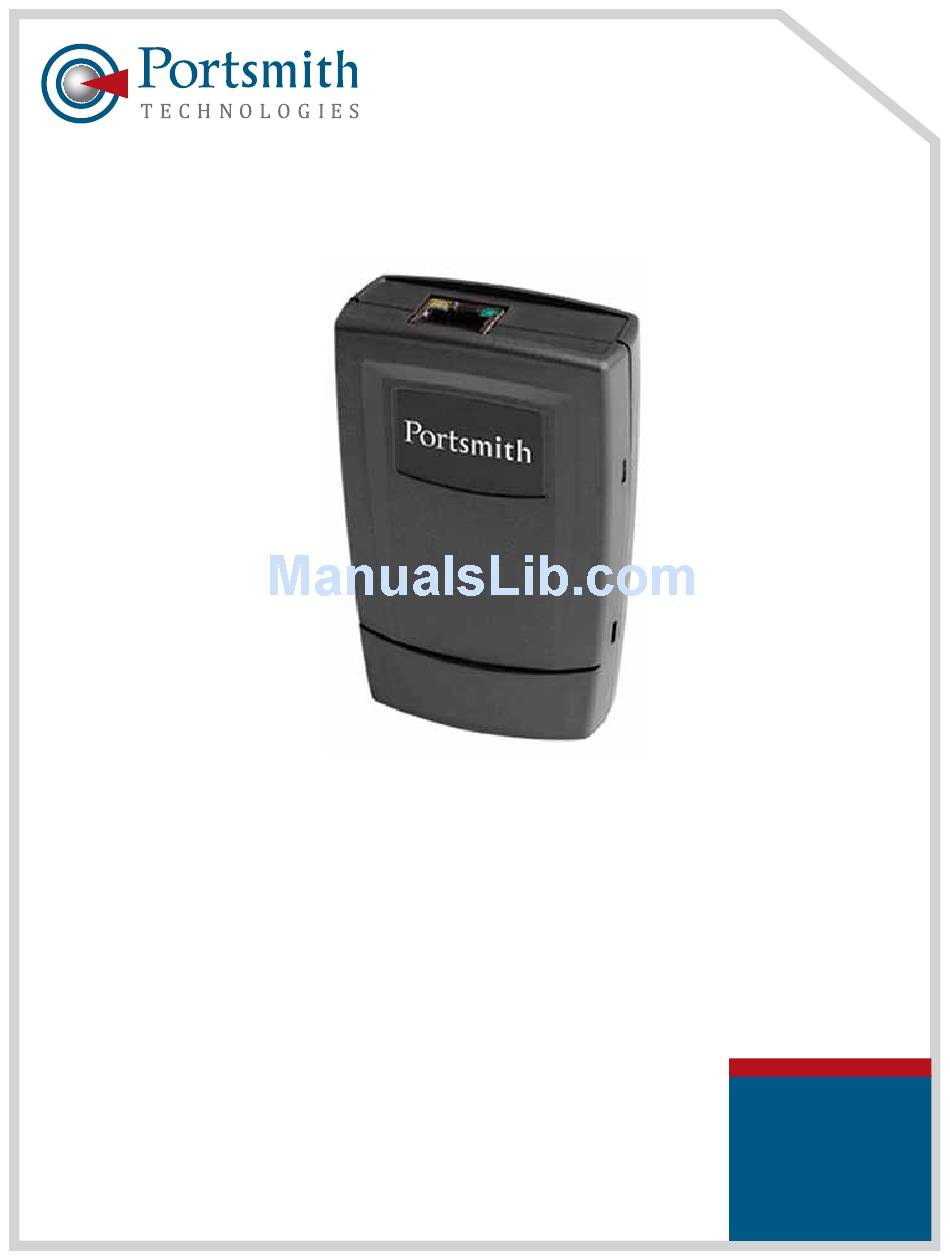

    PS6U1UPE USB peripheral-to-ethernet adapter user guide Get the latest compatibility information available at www.Portsmith.com...
  • Page 2 Portsmith, LLC assumes no responsibility for any damage or loss resulting from the use of this user guide. Portsmith, LLC assumes no responsibility for any loss or claims by third parties that may arise through the use of this product. Portsmith, LLC assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs.
  • Page 3: Table Of Contents

    Connecting to the PS6U1UPE ......................2 Setting up the MC50 ..........................2 Installing the MC50 Software Drivers ....................3 Connecting the MC50 to the PS6U1UPE ....................5 Setting up the MC3000 ......................... 6 Connecting the PS6U1UPE to your Network ..................7 Product/technical support ........................
  • Page 4: Introduction

    Introduction The Portsmith PS6U1UPE serves as an essential data communications device, enabling you to connect to a standard Ethernet network via the USB connection on your Handheld. Internet access and synchronizing files and settings of the handheld with your PC across the network are made available with the established connection.
  • Page 5: Getting Started

    USB host device. If you have not already done so, go to www.Portsmith.com and download the latest PS6U1UPE drivers. The drivers are provided in a self-extracting ZIP file. Simply download the file to your computer and follow these simple steps: Step 1: Unpack the software.
  • Page 6 USB function driver. This new driver is included in the MC50 Drivers folder. To correctly replace the file, browse to the MC50 /Windows folder with the ActiveSync File Explorer and rename the bvd_udc_ser.dll file to bvd_udc_ser_old.dll. Portsmith Peripheral-to-Ethernet Adapter Manual...
  • Page 7 • Tap OK in the upper right corner of the MC50 display screen Step 7: Finishing Up • Place the MC50 into its cradle and connect the MC50 USB cable to the PS6U1UPE device with the USB Adapter Cable as described in the next section.
  • Page 8: Connecting The Mc50 To The Ps6U1Upe

    (see the Section Connecting the PS6U1UPE to your Network for more information). WARNING: The PS6U1UPE requires a power supply when it is connected to the MC50. Although the solid green LED is lit whenever the USB cable is correctly connected, there is not enough power to operate the device.
  • Page 9: Setting Up The Mc3000

    Connecting the PS6U1UPE to your Network for more information). IMPORTANT: The PS6U1UPE is provided without a power supply or any USB adapter cables. Since the MC50 uses a different cable than the MC3000, and the MC3000 doesn’t require a power supply, each peripheral device is provided separately to ensure you don’t have to buy items you cannot use.
  • Page 10: Connecting The Ps6U1Upe To Your Network

    Completing the setup of the PS6U1UPE to your network is simple: • Connect one end of a standard RJ45 Ethernet cable to the PS6U1UPE, as shown below. • Connect the other end of the cable to an open port on your network’s hub, switch or router, as shown below.
  • Page 11: Product/Technical Support

    Product/Technical Support Portsmith is committed to providing its customers with first-class customer service and technical support. For your convenience, a few troubleshooting techniques are provided below that might help you fix your problem quickly and easily. If you have a different issue, or if you have tried these and they didn’t resolve your problem, please feel free to contact...
  • Page 12: Troubleshooting

    Troubleshooting Symptom: Nothing Works! Portsmith Peripheral-to-Ethernet Adapter Manual...
  • Page 13: Other Activesync Problems

    If you require more information on the ActiveSync process, please refer to the ActiveSync chapter in your Symbol Integrator Guide or visit www.Microsoft.com and search for ActiveSync. For help with other technical issues, contact Portmsith Technical Support using the contact information provided at the start of this chapter. Portsmith Peripheral-to-Ethernet Adapter Manual...
  • Page 14: Appendix A - Regulatory Information

    Changes or modifications not expressly approved by Mobility Electronics could void the user’s authority to operate the product. Radio Frequency Interference Requirement - Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Portsmith Peripheral-to-Ethernet Adapter Manual...
  • Page 15: Appendix B - Warranty

    If the purchaser wishes to upgrade or convert to another Portsmith, LLC, product within the thirty (30) day period, purchaser has the right to return the product and apply the full purchase price toward the purchase of the other product. Any other return will be subject to Portsmith, LLC’s existing restocking policy.
