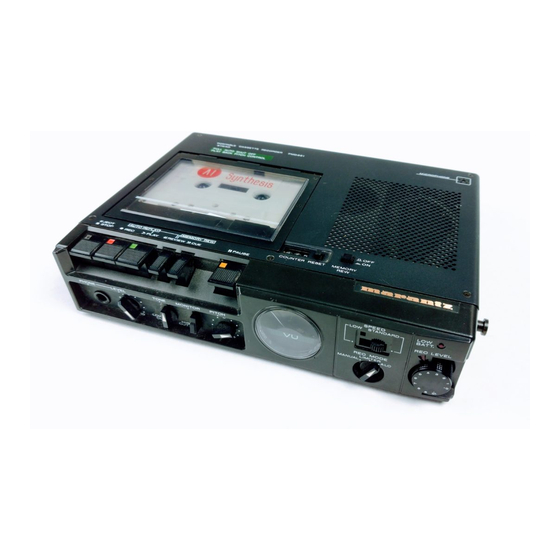

Marantz PMD221 Quick Start Manual

Audio Kit Quick Start Guide—Marantz

To Record:

1. Set all controls on the recorder
Set the INPUT SELECTER switch, right side of the recorder, to: MIC/TEL(middle setting).
2. Plug the microphone plug into the MIC jack.
3. To start recording, simultaneously press the REC and PLAY buttons.
(Please do not force these buttons down. If they won't move, either there is no audiocassette tape in the recorder, or the cassette's
record tab has been removed.)

Playback:

1. While rewinding the tape, reset only the following control on the front of the recorder:
• Set the MONITOR switch to the out, or TAPE position.
2. To listen to the recording, press the PLAY button. Adjust playback volume using the LEVEL knob.

Record a Telephone Interview:

Note: This recorder works only on analog phone lines. It WILL NOT WORK with a digital phone, as found in most UNC offices!
1. Set all controls on the recorder
Set the INPUT SELECTER switch, right side of the recorder, to: DIRECT TELEPHONE (upper setting).
2. Connect the recorder, telephone, and phone line:
a) Insert the phone jack splitter (from the carry case) into the recorder's phone jack (right side);
b) Unplug the phone line from the telephone and plug it into the phone jack splitter;
c) With the Audio Kit's phone cable, plug one end to the phone jack splitter; plug the other end into the phone itself.
d) Call your interviewee.
3. To start recording, simultaneously press the REC and PLAY buttons.
PMD221 (in hard
(See other side for illustrations and
(See other side for illustrations and
Contact AV Services at (919) 966-6536, or in Rosenau 233
Monday–Friday, 8:00
Trim this area
case)
settings.):
settings.):
–5:00
AM PM
