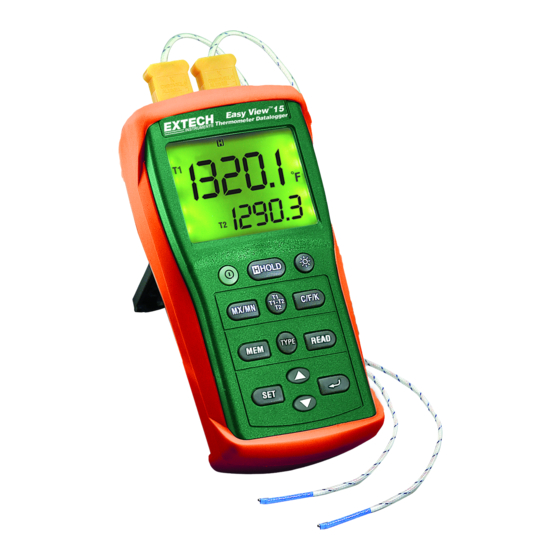

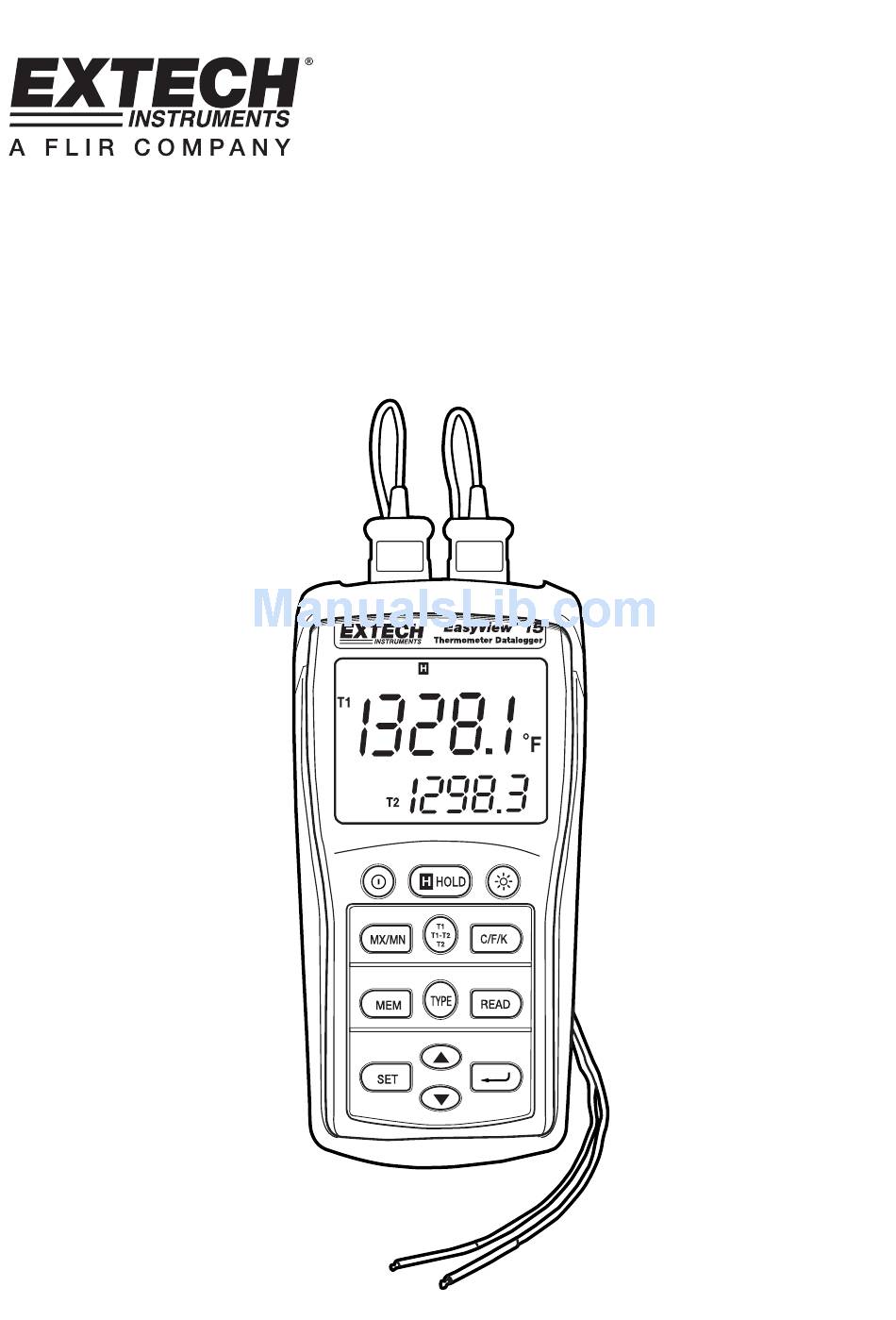

- Page 1 User's Guide Thermocouple Datalogging Thermometer Seven (7) Thermocouple input types K, J, T, E, R, S, N Dual thermocouple Input with PC Interface Model EA15...
- Page 2 Introduction Congratulations on your purchase of the Extech Datalogging Thermometer. The EA15 offers dual thermocouple inputs with manual and automatic datalogging capabilities. The EA15 includes a PC interface and Windows compatible software for real-time monitoring and storage of temperature data. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 Press and Hold the MX/MN button to exit the MX/MN function. Backlight Press the backlight button to switch on the LCD display backlight. The backlight will automatically switch off after one minute (press button again to turn the light off manually). EA15-EU-EN-V3.1 04/12...
-
Page 4: Manual Datalogging
1. Press the “ ” button to turn the meter off. 2. Press and hold the MEM button, then press the “ ” button to turn the meter on. When the LCD indicates "CLr", the entire memory has been erased. EA15-EU-EN-V3.1 04/12... - Page 5 The LIST icon is located third from left on the main software screen. When clicked, data is shown on the screen in list format (shown at right). To save or print the list, click the SAVE or PRINT icons in the Real Time List window. EA15-EU-EN-V3.1 04/12...
- Page 6 The AVG icon (3rd icon from right) allows the user to view maximum, minimum and average readings for T1 and T2 inputs in real time when the meter is connected to the COM PORT via the supplied cable. See screen capture below on left. EA15-EU-EN-V3.1 04/12...
-
Page 7: Maintenance
Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle Storing When the meter is to be stored, please remove the battery and affix the sensor’s protective cover. Avoid storing the meter in areas of extreme temperature and humidity. EA15-EU-EN-V3.1 04/12... -
Page 8: Specifications
150 x 72 x 35mm (5.91 x 2.8 x 1.4") Weight Approx. 235g(8.29 oz) with batteries Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com...
