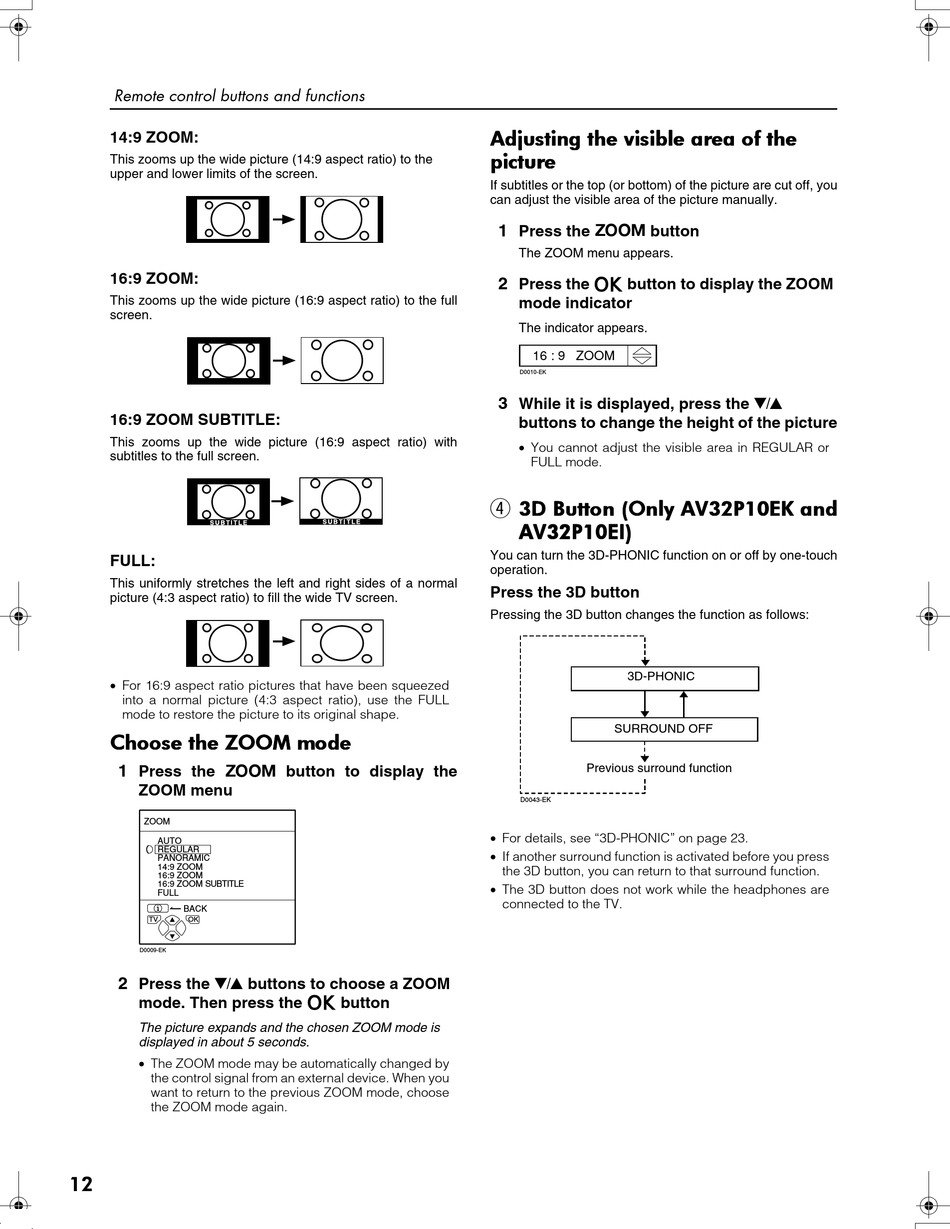

JVC AV32P10EK, AV32L5EK, AV32P10EI, AV32L5EI Instructions Manual page 12

Remote control buttons and functions
14:9 ZOOM:
This zooms up the wide picture (14:9 aspect ratio) to the
upper and lower limits of the screen.
16:9 ZOOM:
This zooms up the wide picture (16:9 aspect ratio) to the full
screen.
16:9 ZOOM SUBTITLE:
This zooms up the wide picture (16:9 aspect ratio) with
subtitles to the full screen.
FULL:
This uniformly stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fill the wide TV screen.
• For 16:9 aspect ratio pictures that have been squeezed
into a normal picture (4:3 aspect ratio), use the FULL
mode to restore the picture to its original shape.
Choose the ZOOM mode Choose the ZOOM mode Choose the ZOOM mode Choose the ZOOM mode
Press the c button to display the
1
ZOOM menu
ZOOM
AUTO
REGULAR
PANORAMIC
14:9 ZOOM
16:9 ZOOM
16:9 ZOOM SUBTITLE
FULL
BACK
TV OK
D0009-EK
Press the 6 buttons to choose a ZOOM
2
mode. Then press the
The picture expands and the chosen ZOOM mode is
displayed in about 5 seconds.
• The ZOOM mode may be automatically changed by
the control signal from an external device. When you
want to return to the previous ZOOM mode, choose
the ZOOM mode again.
12
a
button
Adjusting the visible area of the Adjusting the visible area of the
Adjusting the visible area of the Adjusting the visible area of the
picture picture
picture picture
If subtitles or the top (or bottom) of the picture are cut off, you
can adjust the visible area of the picture manually.
Press the c button
1
The ZOOM menu appears.
a
2
Press the button to display the ZOOM
mode indicator
The indicator appears.
16 : 9 ZOOM
D0010-EK
While it is displayed, press the 6
3
buttons to change the height of the picture
• You cannot adjust the visible area in REGULAR or
FULL mode.
4
3D Button (Only AV32P10EK and 3D Button (Only AV32P10EK and 3D Button (Only AV32P10EK and 3D Button (Only AV32P10EK and
AV32P10EI) AV32P10EI) AV32P10EI) AV32P10EI)
You can turn the 3D-PHONIC function on or off by one-touch
operation.
Press the 3D button
Pressing the 3D button changes the function as follows:
3D-PHONIC
SURROUND OFF
Previous surround function
D0043-EK
• For details, see "3D-PHONIC" on page 23.
• If another surround function is activated before you press
the 3D button, you can return to that surround function.
• The 3D button does not work while the headphones are
connected to the TV.
