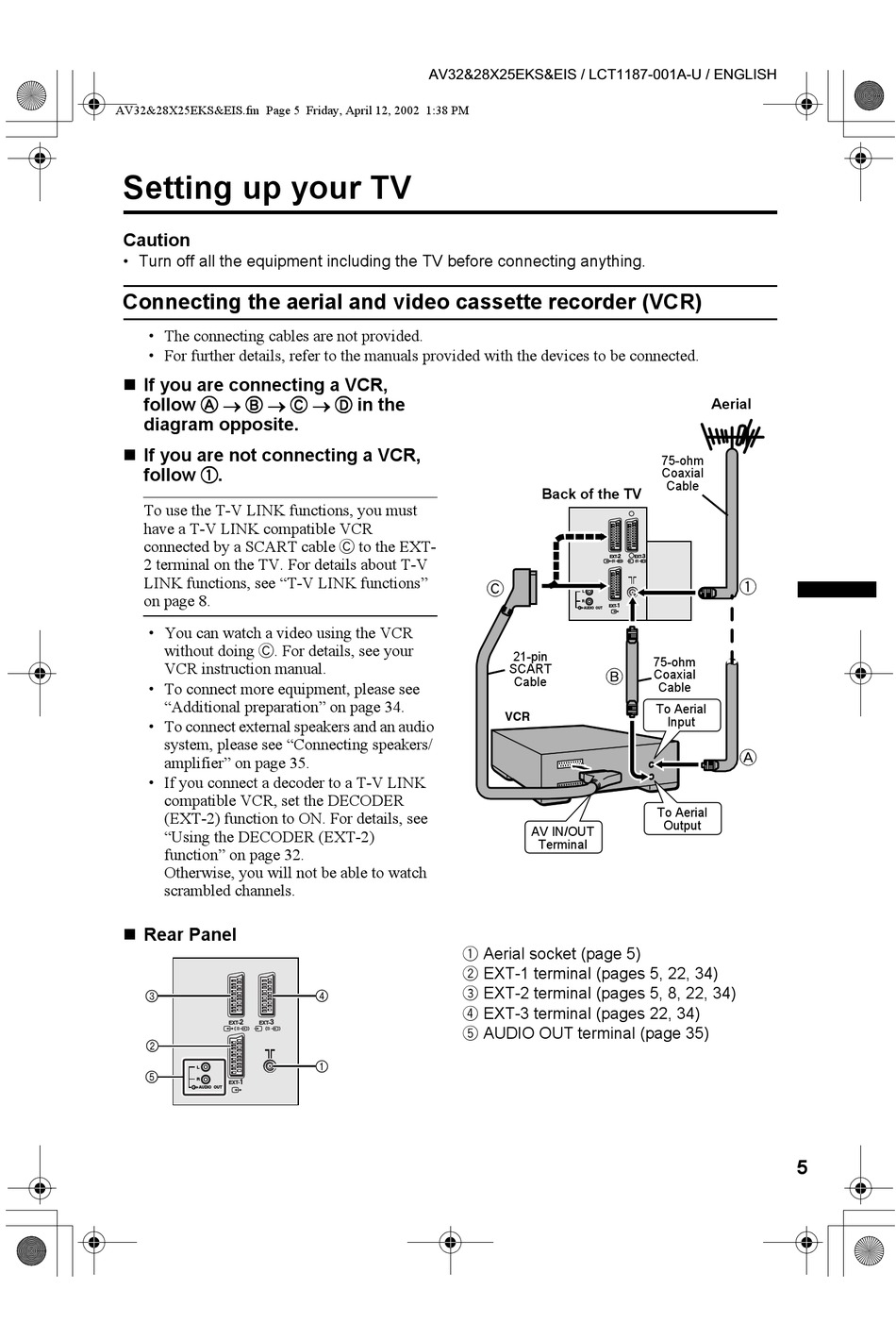

Setting up your TV

Caution
• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and video cassette recorder (VCR)

• The connecting cables are not provided.
• For further details, refer to the manuals provided with the devices to be connected.
If you are connecting a VCR,
follow A A A A → → → → B B B B → → → → C C C C → → → → D D D D in the
diagram opposite.
If you are not connecting a VCR,
follow 1 1 1 1 .
To use the T-V LINK functions, you must
have a T-V LINK compatible VCR
connected by a SCART cable C to the EXT-
2 terminal on the TV. For details about T-V
LINK functions, see "T-V LINK functions"
on page 8.
• You can watch a video using the VCR
without doing C. For details, see your
VCR instruction manual.
• To connect more equipment, please see
"Additional preparation" on page 34.
• To connect external speakers and an audio
system, please see "Connecting speakers/
amplifier" on page 35.
• If you connect a decoder to a T-V LINK
compatible VCR, set the DECODER
(EXT-2) function to ON. For details, see
"Using the DECODER (EXT-2)
function" on page 32.
Otherwise, you will not be able to watch
scrambled channels.
Rear Panel
2 3
EXT- EXT-
S S
L
R
1
EXT-
AUDIO OUT
$9 ;(.6 (,6  /&7$8  (1*/,6+
Back of the TV
L
R
AUDIO OUT
21-pin
SCART
Cable
VCR
AV IN/OUT
Terminal
1 Aerial socket (page 5)
2 EXT-1 terminal (pages 5, 22, 34)
3 EXT-2 terminal (pages 5, 8, 22, 34)
4 EXT-3 terminal (pages 22, 34)
5 AUDIO OUT terminal (page 35)
Aerial
75-ohm
Coaxial
Cable
2 3
EXT- EXT-
S S
1
EXT-
75-ohm
Coaxial
Cable
To Aerial
Input
To Aerial
Output
5
