Quick Setup

VCR Connection

Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user's manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.

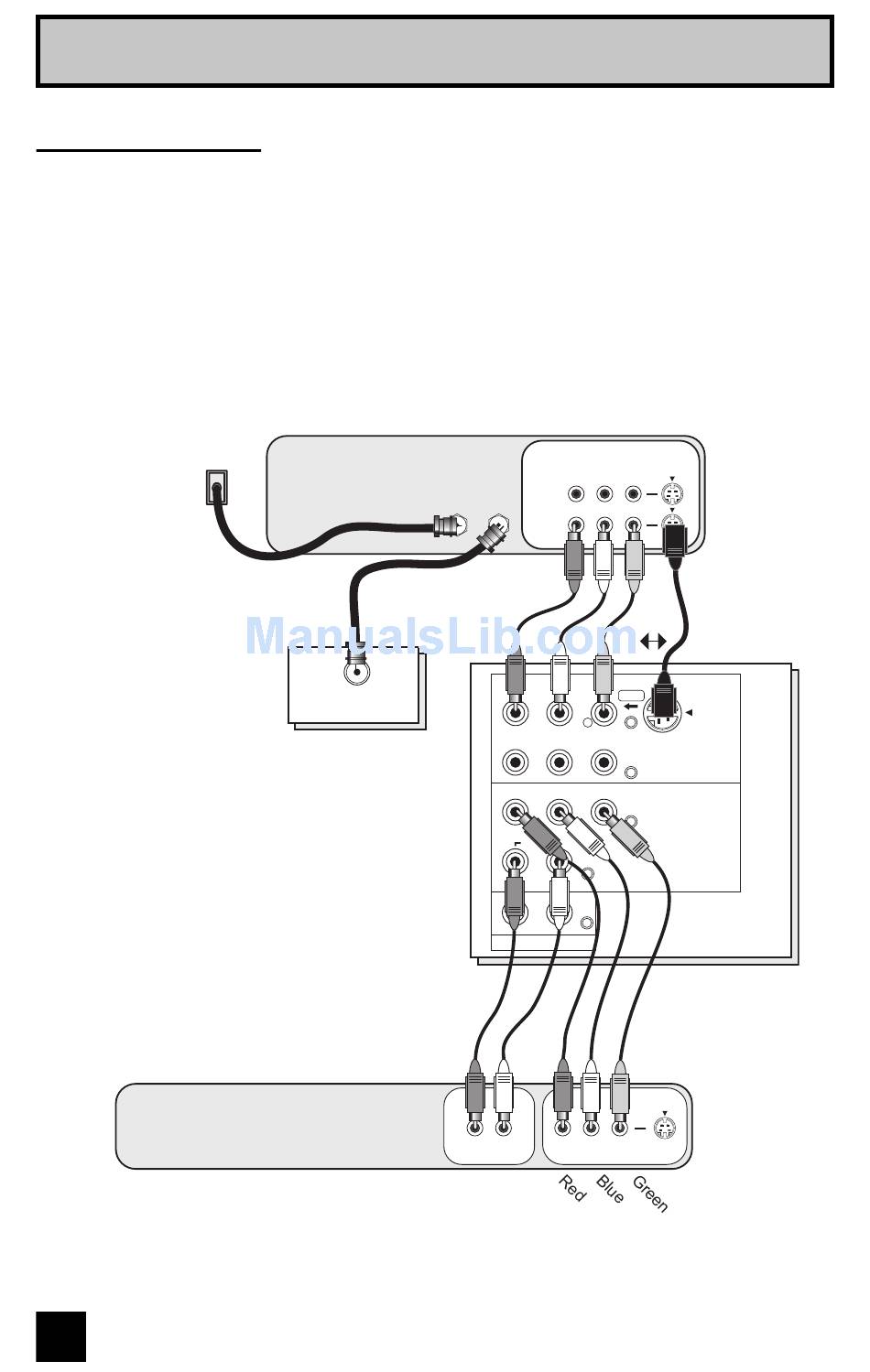

Diagram #1
Cable or Antenna
Output
DVD Player (Optional)
Note:
• If this connection setup does not work for you, try the connection setup on page 13.
