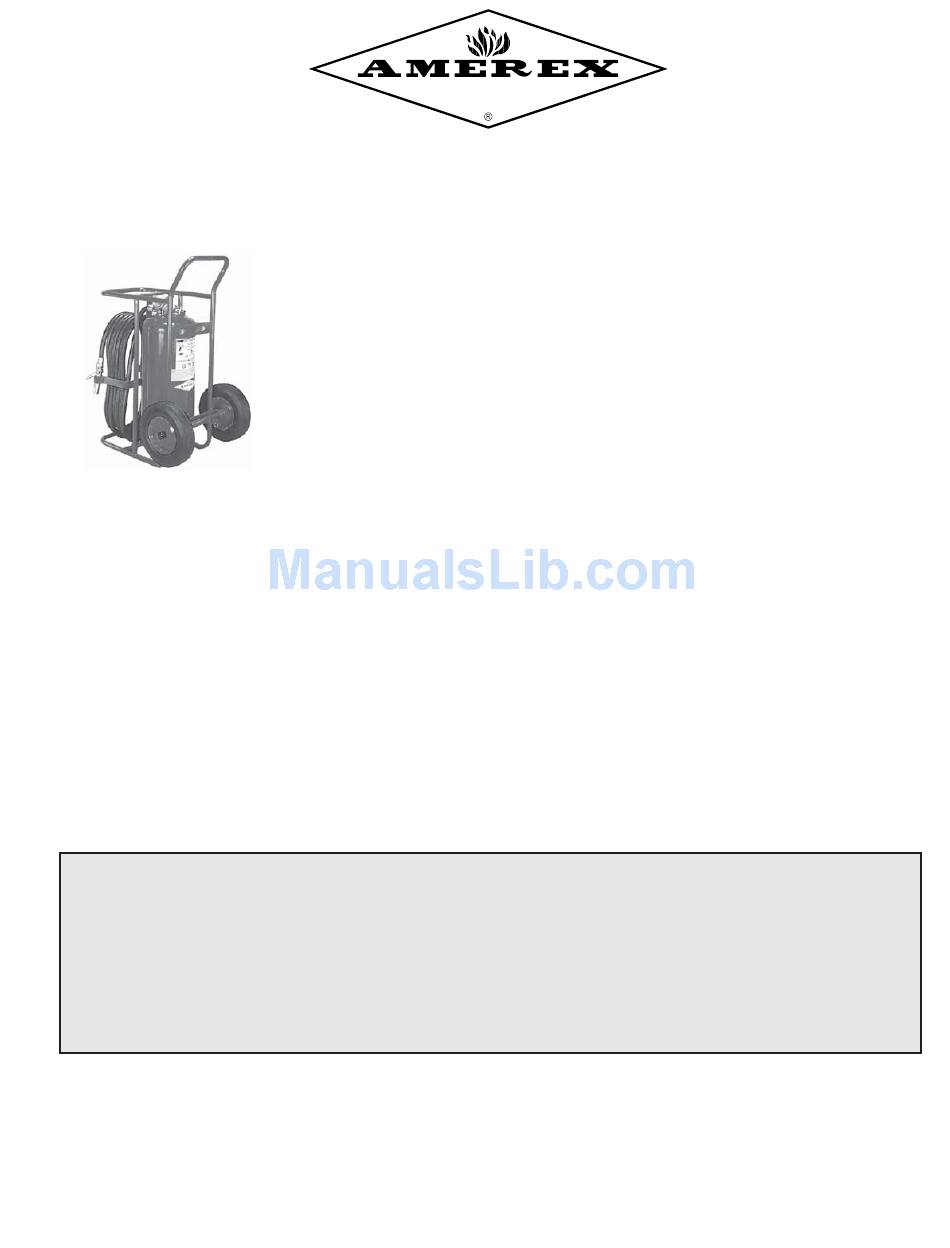

INSTALLATION, OPERATING AND SERVICING INSTRUCTIONS

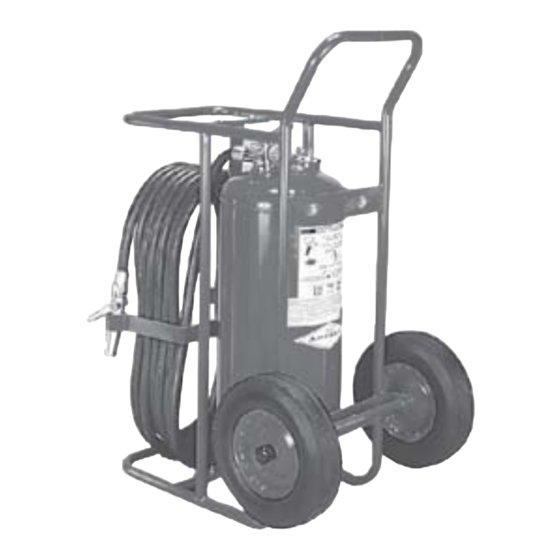

WHEELED
Model 488
Model 489
Model 490
✸✸✸ RECHARGE FIRE EXTINGUISHERS IMMEDIATELY AFTER ANY USE ✸✸✸
✸✸✸
✸✸✸
✸✸✸
✸✸✸
All fire extinguishers should be installed, inspected and maintained in accordance with the National Fire Protection Association standard titled
"Portable Fire Extinguishers", NFPA-10; and the requirements of local authorities having jurisdiction.
When maintenance is indicated, it should be performed by trained persons having proper equipment. Fire extinguishers are pressure vessels and
must be treated with respect and handled with care. They are mechanical devices and require periodic maintenance to be sure that they are ready to
operate properly and safely. Amerex strongly recommends that the maintenance of portable fire extinguishers be done by a trained professional - your
local authorized Amerex Distributor.
Amerex Corp. makes original factory parts available to insure proper maintenance - use of substitute parts releases Amerex of its warranty
obligations. Amerex parts have machined surfaces and threads which are manufactured to exacting tolerances. O-rings, hoses, nozzles, horns and all
metal parts meet precise specifications and are subjected to multiple in-house inspections and tests for acceptability. There are substitute parts available
which are incorrectly labeled as U/L component parts, some are advertised as Amerex type. None of these meet U/L requirements and all of them void
the Amerex extinguisher warranty and U/L listing. DO NOT SUBSTITUTE.
REFERENCES IN THIS MANUAL:
NFPA-10
"PORTABLE FIRE EXTINGUISHERS"
CGA C-1
"METHODS FOR HYDROSTATIC TESTING
OF COMPRESSED GAS CYLINDERS"
CGA C-6
"STANDARD FOR VISUAL INSPECTION
OF COMPRESSED GAS CYLINDERS"
AMEREX CORP.
AMEREX CORP.
AMEREX CORP.
AMEREX CORP. ❖ ❖ ❖ ❖ ❖ P. O. BOX 81
AMEREX CORP.
Printed in U.S.A.
OWNERS SERVICE MANUAL
NO. 05608
AMEREX
STORED PRESSURE
WHEELED & STATIONARY
125/150 POUND
DRY CHEMICAL FIRE EXTINGUISHERS
ABC (AMMONIUM PHOSPHATE BASE)
REGULAR (SODIUM BICARBONATE BASE)
PURPLE K (POTASSIUM BICARBONATE BASE)
P. O. BOX 81
P. O. BOX 81
P. O. BOX 81
P. O. BOX 81 ❖ ❖ ❖ ❖ ❖ TRUSSVILLE, ALABAMA 35173-0081
Phone: (205) 655-3271 ❖ ❖ ❖ ❖ ❖ Fax: (205) 655-5112
E-Mail: sales@amerex-fire.com
Internet Web Page: http://www.amerex-fire.com
for
AVAILABLE FROM:
National Fire Protection Assoc., Inc.
Batterymarch Park
Quincy, MA 02269
Compressed Gas Association, Inc.
1235 Jefferson Davis Highway
Suite 501
Arlington, VA 22202
TRUSSVILLE, ALABAMA 35173-0081
TRUSSVILLE, ALABAMA 35173-0081
TRUSSVILLE, ALABAMA 35173-0081
TRUSSVILLE, ALABAMA 35173-0081
STATIONARY
Model 476
Model 477
Model 478
✸✸✸
✸✸✸
✸✸✸
✸✸✸
OM05608Rev.F-7/98T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 488 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amerex 488

  • Page 1 There are substitute parts available which are incorrectly labeled as U/L component parts, some are advertised as Amerex type. None of these meet U/L requirements and all of them void the Amerex extinguisher warranty and U/L listing.
  • Page 2 The operating valve, handle, gauge guard, fill cap, hose couplings and ball type shut-off are brass, or brass, chrome plated for years of trouble free use. These Models carry an AMEREX warranty of SIX YEARS -see full wording of the warranty below.
  • Page 3: Installation

    INSTALLATION Do not place this extinguisher close to a potential fire hazard. Amerex recommends location no less than a 50 foot distance from the hazard while leaving an unobstructed access. Avoid placing it in an extremely hot or cold place. The operational temperature range for this extinguisher is -65°...
  • Page 4: Operation

    THE FUMES AND SMOKE FROM ANY FIRE MAY BE HAZARDOUS AND CAN BE DEADLY. DISCHARGE TIME (APPROXIMATE) 488 (476) - 49 SECONDS 489 (477) - 60 SECONDS 490 (478) - 52 SECONDS EFFECTIVE RANGE OF AGENT THROW - 25 TO 40 FEET HOSE LENGTH - 50 FEET ✸✸✸...
  • Page 5: Periodic Inspection Procedures

    When all pressure has been evacuated from the extinguisher, return the HOSE (DISCHARGE) NOZZLE LEVER and CYLINDER DISCHARGE VALVE LEVER to the CLOSED POSITION. Note: These steps will allow easy depressurization of the extinguisher and clear the hose assembly with a minimal loss of remaining chemical.
  • Page 6 Inspect the extinguisher for damaged, missing or substitute parts. Only factory replacement parts are approved for use on Amerex fire extinguishers. Weigh extinguisher and compare with weight printed in the “Maintenance” section on the nameplate (label). Recharge extinguisher if weight is not within indicated allowable tolerances.
  • Page 7 12 years (first time), every 7 years thereafter, to the test pressure indicated on the nameplate - 500 psi, [3448 kPa]. Visually inspect the pressure gauge - if bent, damaged or improper type or pressure - replace with Amerex P/N: 5225 240 psi Gauge.
  • Page 8: Recharging Procedure

    Inspect the wheels to insure they rotate freely. Lubricate as required. Check carriage assembly for loose nuts, bolts, frame distortion or damage. Check welds for damage or corrosion. Replace damaged parts or make repairs as necessary. Remove operating valve assembly. Inspect for corrosion or damage to hose thread connection. WARNING: VALVE REMOVAL AND/OR VALVE PART REPLACEMENT SHOULD BE MADE ONLY AFTER COMPLETING THE DEPRESSURIZING PROCEDURES LISTED IN STEP 1 OF THE...
  • Page 9 Install o-ring and lightly brush it and all threads with Visilox 711. Fill cylinder through chemical agent fill hole with the correct amount and type of dry chemical specified on the label (nameplate). Use AMEREX chemical which has been kept free of moisture and contamination. CAUTION: FILLING BY EYE ALONE COULD CAUSE POTENTIALLY DANGEROUS OVER-FILLING ALWAYS USE A SCALE.
  • Page 10: Troubleshooting Guide

    240 psi gauge using Teflon tape on the gauge threads. Leak in the cylinder. 7. Contact Amerex if under warranty, otherwise - mark “Rejected” and remove from service or return to owner. Pressure gauge threads are coated with a special epoxy at the factory. For easy removal, soak the valve assembly in hot water (180°F.) for two to four minutes.
  • Page 11 PROPER METHOD FOR COILING DISCHARGE HOSE ON 125/150 LB. WHEELED AND STATIONARY STORED PRESSURE DRY CHEMICAL EXTINGUISHERS (If instructions are followed, the hose will uncoil without kinks.) HOSE BEHIND LOOP Connect hose coupling to extinguisher valve. The second loop is a REVERSE loop. Notice Lay hose straight out on ground to its full 50 that the hose passes behind the loop on this ft.
  • Page 12: Parts List

    5067 Valve Stem Ass'y 3556 Spring 3501 Hose Ass'y, 50 ft. 3877 Gasket, Hose/Nozzle 6279 Ball Valve Ass'y 6470 Nozzle Tip - 488, 489, 476, 477 (.344) 6208 490, 478 (.328) Nozzle Ass'y (Ball Valve & Tip) 5191 488, 489, 476, 477...
