Audiovox Xpress XMCK-20KC Quick Manual

XpressR Quick Guide.qxp:Layout 1 5/3/07 9:14 AM Page 1
start here
W W a a r r n n i i n n g g s s
I
When using this product it is always important to keep your eyes on the road and hands on the
wheel. Not doing so could result in personal injury, death, and/or damage to your Xpress
accessories, and/or to your vehicle or other property.
I
Xpress R should be placed in your vehicle where it will not interfere with the function of safety fea-
tures, e.g., deployment of airbags. Failure to correctly place Xpress R may result in injury to you or
others if the unit becomes detached during an accident and/or obstructs the deployment of an
airbag.

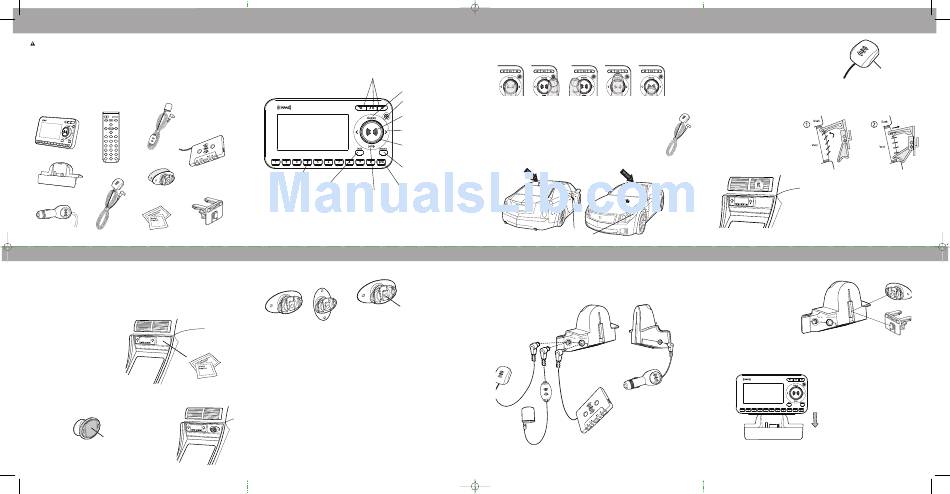

What's in the Box?
info display menu
mute +
1 2 3
R
Xpress 4 5 6
XM SureConnect
7 8 9
jump 0 p/d
Remote Control
Swivel Mount
Car Cradle
Car Power Adapter
XM Car Antenna Swivel Mount Preparation Kit
Installing the swivel mount
To install the swivel mount, first find a suitable location. The swivel mount's adhesive is very
strong and may be difficult to remove. Do not install this mount on leather surfaces and
make sure the air temperature is at least 60°F (15°C).
1. Clean the mounting surfaces with
the surface preparation kit.
2. Peel away the adhesive liner and firmly press the swivel mount to
the surface for 30 seconds. Allow 24 hours before using the
mount.
adhesive liner
1
Xpress R Functions
R Receiver,
3 3 0 0 - - M M i i n n u u t t e e R R e e p p l l a a y y B B u u t t t t o o n n s s
Pause and replay up to 30
minutes of live XM broadcast.
Cassette Adapter
N N u u m m b b e e r r K K e e y y s s I I n n f f o o J J u u m m p p
Enter a channel Displays either your Switches between
direuctly or select personal stock or info current channel and
your favourite preset. extras information. previous channel.
Vent Mount
5
You can orient your swivel different ways to accommodate the space available in your vehicle.
If you need to remove the mount, carefully lift the adhesive pad with your fingers
or a spoon. Warming with a hair dryer for several minutes will help soften the ad-
hesive. Your swivel mount comes with an extra adhesive pad.
Step 3: How to receive XM through your car stereo
There are several methods of receiving XM through your car stereo
Cassette Adapter: Use the cassette adapter if your vehicle's audio system has a built in cassette
player. The cassette adapter will provide the best audio quality.
XM SureConnect: You can listen to your Xpress R through your car stereo by using Xpress
FM modulator and the XM SureConnect. Simply find an unused FM frequency on the stereo and set
your Xpress R to transmit on that same frequency. For XM SureConnect install, please see your XM
SureConnect installation guide.
Professional Wired: The third option is the FM Direct Adapter (sold separately). We recommend
professional installation if you choose to use this method of install.
Audio input: Some vehicles come with an audio input jack. If your vehicle has this type of input
you can simply use a mini audio cable (sold separately).
[GREEN FOLD LINES DO NOT PRINT]
2
Using the 5-way Navigation Knob
The knob not only rotates, but it toggles. To toggle the knob, press on the edge and in the
direction you want to toggle.
D D i i s s p p l l a a y y
Changes the way content is
viewed on the display.
P P o o w w e e r r B B u u t t t t o o n n
Press center button Toggle right
(XM Button)
X X M M B B u u t t t t o o n n
Confirms selection for channel
and menu items also press and
Vehicle Installation
hold to TuneSelect.
L L e e f f t t a a n n d d R R i i g g h h t t A A r r r r o o w w s s Step 1: Mounting the XM Antenna
Search for channels by category.
Mount the XM antenna to the roof or trunk of the vehicle. During installation,
5 5 - - w w a a y y N N a a v v i i g g a a t t i i o o n n K K n n o o b b make sure you are outdoors and the antenna is not obstructed by tall buildings.
Previews channels; also se-
For best results mount the XM antenna to the outside of your vehicle. Below are
lects various menu options.
the recommended options.
M M e e n n u u
Access advanced features
and configuration options.
P P r r e e s s e e t t / / D D i i r r e e c c t t
Selects between direct channel
entry and up to 30 presets.
Keep excess cable
behind or under
the dashboard.
6
Plug the antenna, the power adapter, and either the cassette adapter or the XM SureConnect into the
car cradle as shown. The FM Direct Adapter is not pictured.
You can adjust the tension of the
Xpress R Car Cradle
mount with a screwdriver
or
R 's built-in
XM Antenna
XM SureConnect
3
The XM antenna contains a strong magnet, allowing it to
stick to any metal parts of your vehicle.
Step 2: Installing the Vent Mount or Swivel Mount
Toggle left Toggle up Toggle down
Installing the vent mount
To install the vent mount, find a horizon-
tal vent that is strong enough to hold
your Xpress R and car cradle. To remove
the vent mount, push it into the vent and
lift upwards slightly to release the
mount's hooks from the vent vane.
7
If you haven't already done so, hook the car
cradle to the mount.
DC IN
You can use either the cassette
adapter, or a mini audio cable (not
included) in the line out .
Power Adapter
Cassette Adapter
4
Magnet
Some parts of the vent mount can be adjusted to better suit
your vehicle's vent.
8
Next slide your Xpress R into the car
cradle.
