Audiovox XM XpressRCi XDRC2 User Manual

Audiovox satellite radio receiver user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Audiovox XM XpressRCi XDRC2

Summary of Contents for Audiovox XM XpressRCi XDRC2

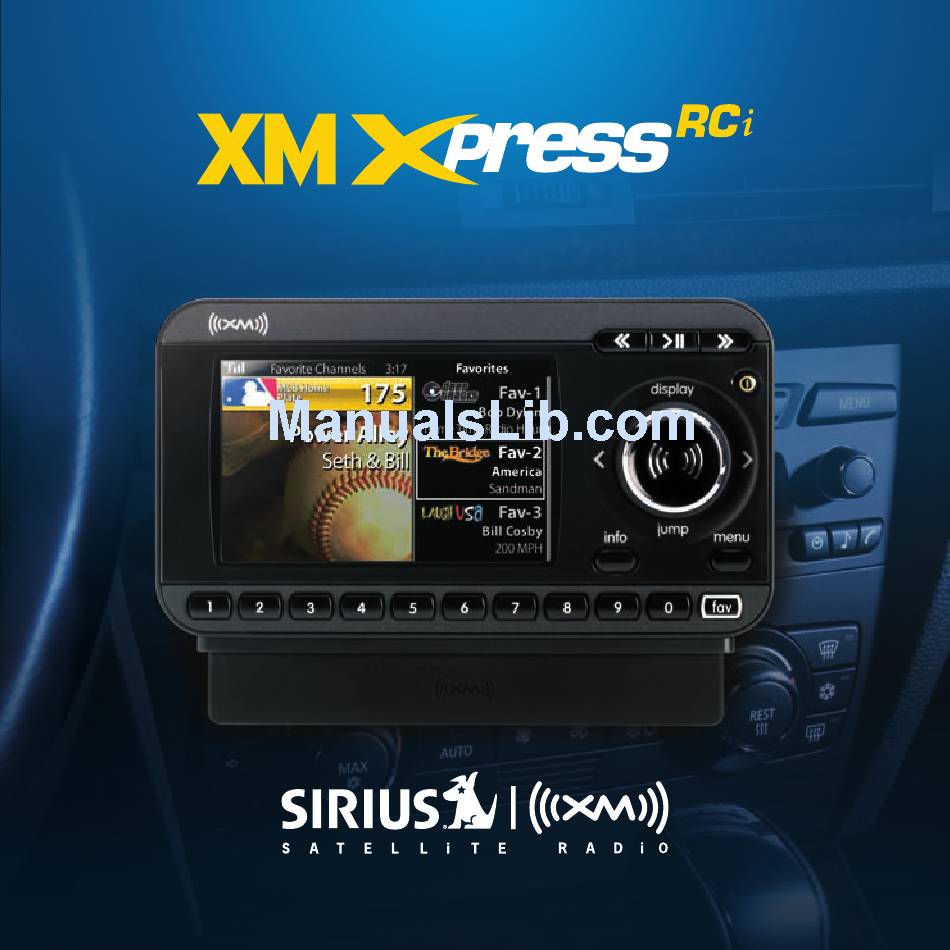

  • Page 1 User Guide...

  • Page 3: Table Of Contents

    Table of Contents Introduction . . . . . . . . . . . . . . . . . . . .5 Features .

  • Page 6: Introduction

    Introduction Features Congratulations on your purchase of the Xpress The Xpress has these exciting features to enhance your overall experience: • Large vibrant color display: View artist name, song title, and channel information on a display with stylish color backgrounds and graphics . • Split screen display mode: Split the screen to simultaneously view what’s playing on the current channel and up to 3 other channels, or view what’s playing on the current channel and the last channel you were listening to at...

  • Page 7: Safety And Care Information

    Safety and Care Information IMPORTANT! Always read and understand all the instructions to avoid injury to yourself and/or damage to your device . SIRIUS XM Radio Inc . disclaims all responsibility for damage from data loss due to breakdown, repair, or other causes . • Do not expose to extreme temperatures (above 140ûF or below -4ûF, or above 60ûC or below -20ûC) .
  • Page 8 Introduction Warning! • Opening the case may result in electric shock . • If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth and then wash the skin thoroughly with soap and running water . If the liquid crystal fluid comes into contact with your eyes, flush the eyes with clean water for at least 15 minutes and seek medical care .

  • Page 9: What's In The Box

    What’s in the Box? Xpress Radio PowerConnect Vehicle Dock PowerConnect Power Adapter info display menu direct mute jump Remote Control Dash Mount Magnetic Mount Antenna Aux In Cable Vent Mount and Extended Vent Clamps Antenna & Dash Mount Alcohol Preparation Pads...
  • Page 10 Introduction Xpress Functions Control Knob Scroll through lists and preview channels; also highlight menu options . Info Button Number Buttons View either Select your favorite sports or stock channels; also enter information . a channel number directly; also access songs saved in SongSaver .

  • Page 11: Remote Control Functions

    Remote Control Functions Power Button Turn radio on and off . Pause and Replay Buttons Pause, rewind, and replay up to 60 minutes of live radio . Select Button Press to confirm selection for channel and menu items; also press and hold to GameSelect, to TuneSelect, or to save a song .

  • Page 12: Control Knob And Select Button Basics

    Introduction Control Knob and Select Button Basics Turn the Control knob clockwise or counter-clockwise to scroll through a list and highlight an item in the list . Press the center of the button Press the edge to tilt the Tilt Right: Select to make a selection .

  • Page 13: Powerconnect Vehicle Dock

    PowerConnect Vehicle Dock Color-Coded Connections The color-coded PowerConnect Vehicle Dock makes it simple to connect . Just match the colors on the cable ends to the colors on the dock to see what goes where . AUDIO ANT (Silver) AUDIO (Green) Connection for Connection for Aux In the Magnetic...
  • Page 14 Introduction Wire Guide The PowerConnect Vehicle Dock has a wire guide at the top rear that can help you to organize the cables and wires connected to the dock . If you need to bring a cable or wire from one side of the dock to the other, utilize the wire guide by looping the cable though the wire guide as shown .

  • Page 16: Vehicle Installation

    Vehicle Installation Step 1: Choose a Location for Your Radio When installing the Xpress in your vehicle, choose a location where it will not block your vision, interfere with the controls, or obstruct the air bag . The location should be easily accessible and provide good visibility of the display, and should not be located where it will be in direct sunlight, which will affect the visibility of the display screen .
  • Page 17 Option 3 Option 4 Option 5...

  • Page 18: Radio

    Vehicle Installation Step 2: Install the Dash or Vent Mount Depending on your situation, you can either choose to use the Dash Mount or the Vent Mount . IMPORTANT! When you install the chosen mount, do not attach the dock to the mount yet .
  • Page 19 The dock mounting plate can be tilted in different directions . Adjust as necessary for your particular vehicle . When the orientation is correct, tighten the knob . Knob Adhesive Foot Clean the surface with the alcohol preparation pad and let it dry thoroughly .
  • Page 20 Vehicle Installation Installing the Vent Mount: Locate a vent with horizontal louvers sturdy enough to hold your PowerConnect Vehicle Dock and radio . If the vent louvers in your vehicle are recessed, you may need to use the longer vent clamps with the Vent Mount .
  • Page 21 Push the Vent Mount onto the vehicle vent as shown (1) until it hooks on the rear of the vent louver (2) . Rest the foot against the bottom of the vent (2), and adjust the tilt of the Vent Mount by repositioning the foot to a different adjustment hole (3) .

  • Page 22: Antenna

    Vehicle Installation Step 3: Mount the Magnetic Mount Antenna The Magnetic Mount Antenna contains a strong magnet which will stick to any metal part of your vehicle, but will not damage the vehicle . To install the Magnetic Mount Antenna: Choose the best location for your antenna considering your vehicle type .
  • Page 23 SUV: We recommend mounting the antenna at the rear of the roof as shown . Convertible: We recommend mounting the antenna at the leading edge of the trunk as shown . Pickup Truck: We recommend mounting the antenna just above the front windshield as shown .
  • Page 24 Vehicle Installation Place the antenna in the location you selected . Follow the Tips and Cautions shown on the next several pages . TIP! Mount the antenna on the roof (for most vehicles) or trunk (for convertibles) where it has a clear view of the sky in all directions .
  • Page 25 CAUTION! Don’t mount the antenna inside the vehicle, for example, on the dashboard . CAUTION! Don’t mount the antenna on any of the vehicle’s front, back or side pillars . CAUTION! Don’t mount the antenna close to a roof rack . Adjust the rack so it’s further away from the antenna or move the antenna closer to the center of the roof .
  • Page 26 Vehicle Installation CAUTION! Don’t mount the antenna close to another antenna . Mount it at least 3 inches away .

  • Page 27: Step 4: Route The Magnetic Mount

    Step 4: Route the Magnetic Mount Antenna Cable Before you begin routing the antenna cable, read these general instructions for how to route and hide the antenna cable . Then route your antenna cable according to the instructions which follow for your specific type of vehicle . Use a blunt plastic putty knife, a credit card, a plastic knife, or a similar blunt tool to lift the Feed cable under...
  • Page 28 Vehicle Installation Route cable out from under rear windshield moulding and tuck into weatherstripping around trunk opening Avoid sharp bends by running cable through weatherstripping for several inches Pull weatherstripping from trunk opening Tuck cable into weatherstripping. Route cable through weatherstripping several inches to avoid sharp bends Pull cable out of weatherstripping and route through trunk to cabin...
  • Page 29 Bring cable out of weatherstripping and into trunk Route cable along trunk wall and into cabin through gap or conduit, along existing wiring harness Route cable along trunk wall and into cabin...
  • Page 30 Vehicle Installation Use a blunt plastic putty knife or similar blunt tool to lift edge of interior trim and tuck cable under trim. Continue towards front of vehicle Route cable under trim or upholstery Continue routing cable under trim or carpet towards front of vehicle Route cable from trunk under interior trim, into...
  • Page 31 Continue routing cable under carpet or console to radio location Pull carpet or mat back Bring cable out from trim and route under carpet to dashboard or console TIP! Always be careful to include enough slack in your cable to accommodate open doors or trunk lids .
  • Page 32 Vehicle Installation • Sedan/Coupe With the Antenna Placed at the Rear of the Roof: 1 . Feed the antenna cable from the antenna underneath the rubber molding around the rear window . Use a blunt plastic putty knife or similar blunt tool to lift the rubber molding around the rear window and tuck the antenna cable underneath the molding .
  • Page 33 the front of the vehicle . Use a blunt plastic putty knife or similar blunt tool to lift the plastic trim just enough to tuck the cable under underneath . Avoid side airbag locations on back pillars and above the doors . Airbag locations are marked with “SRS” logos . Be careful not to crimp or cut the cable .
  • Page 34 Vehicle Installation • Sedan/Coupe With the Antenna Placed at the Front of the Roof: 1 . Feed the antenna cable from the antenna underneath the rubber molding around the windshield . Use a blunt plastic putty knife or similar blunt tool to lift the rubber molding around the windshield and tuck the antenna cable underneath the molding .
  • Page 35 • SUV: 1 . Feed the antenna cable underneath the rubber weather stripping of the rear tailgate window/door and route the cable along the rear hatch . Lift the weather stripping from the opening and tuck the cable inside it, then replace the weather stripping .
  • Page 36 Vehicle Installation or controls . Secure the excess cable with wire ties (purchased separately) . 4 . Bring the end of the cable out at the PowerConnect Vehicle Dock location . Leave yourself enough cable so you can easily connect it to the antenna connector of the dock .

  • Page 37: Antenna Cable

    airbag locations on back pillars and above the doors . Airbag locations are marked with “SRS” logos . Be careful not to crimp or cut the cable . 4 . Bring the cable out from the trim near the front of the cabin and route it under the carpet toward the dashboard or console .
  • Page 38 Vehicle Installation of the windshield molding and into the rubber weather stripping around the door opening . Lift the weather stripping from the opening and tuck the cable inside it, then replace the weather stripping . Run the cable inside of the weather stripping to the bottom of the door opening .

  • Page 39: Step 5: Connect The Magnetic Mount Antenna And Powerconnect Power

    Step 5: Connect the Magnetic Mount Antenna and PowerConnect Power Adapter Plug the Magnetic Mount Antenna into the silver ANT connector on the PowerConnect Vehicle Dock . Insert the PowerConnect Power Adapter into your vehicle’s cigarette lighter or power adapter socket . Plug the PowerConnect Power Adapter into the red PWR connector on the dock .

  • Page 40: Step 6: Connect The Audio

    Vehicle Installation Step 6: Connect the Audio To play audio through your vehicle’s stereo or FM radio, decide on one of the following audio connection options: • Option 1: Best: Use the Aux In Cable if your vehicle’s stereo system has an auxiliary input connection .
  • Page 41 Option 1: Aux In Cable Installation Instructions Plug one end of the Aux In Cable into the green AUDIO connector on the dock . Plug the other end into the auxiliary input jack connection of your vehicle’s stereo system . Insert the dock into the mount .
  • Page 42 Vehicle Installation Be sure the vehicle is outside and the antenna has a clear view of the sky . Verify that you are receiving the XM signal . There should at least be one bar on the upper right corner of the main display screen that denotes antenna signal strength .
  • Page 43 11 The audio level output of the Xpress decreased as necessary to match the audio levels of other sources in your vehicle . Refer to “Set Audio Level” on page 97 . If the signal reception is good, but there is no audio when tuned to channel 1, be sure the vehicle’s stereo system is set to the correct source, i .e ., auxiliary input source (step 9) .
  • Page 44 Vehicle Installation Option 2: Cassette Adapter Installation Instructions Plug the Cassette Adapter into the green AUDIO connector on the dock . Insert the Cassette Adapter into the vehicle’s cassette deck . You may need to turn on your vehicle’s stereo system in order to do so .
  • Page 45 the XM signal . There should at least be one bar on the upper right corner of the main display screen that denotes antenna signal strength . You can also press menu and scroll down to highlight Signal Indicator and press the Select button . The Satellite and Terrestrial bars show the strength of the signal being received .
  • Page 46 Vehicle Installation 11 The audio level output of the Xpress as necessary to match the audio levels of other sources in your vehicle . Refer to “Set Audio Level” on page 97 . If the signal reception is good, but there is no audio when tuned to channel 1, be sure the vehicle’s stereo system is set to the correct source, i .e ., cassette source (step 9) .
  • Page 47 Option 3: PowerConnect Installation Instructions Insert the dock into the mount . Insert your Xpress into the dock . By default, your Xpress turns on automatically when it is plugged in and receiving power . If it does not, power on your Xpress by pressing the Power button .
  • Page 48 Vehicle Installation The Satellite and Terrestrial bars show the strength of the signal being received . If the signal reception is good, press menu twice to return to the main display screen . You’ll first need to find an available FM channel . An available FM channel is one that’s not being used by an FM radio station in your area .
  • Page 49 Turn On the FM Transmitter in Xpress i . Press menu . ii . Press the Select button to select Vehicle Mode . iii . Press the Select button to select FM Transmitter which will turn yellow . iv . Turn the Control knob clockwise to display On and press the Select button .
  • Page 50 Vehicle Installation iv . Turn the Control knob to scroll to and highlight storage location FM-2 and press the Select button . v . From the list of FM channels displayed, turn the Control knob to highlight the available FM channel you found in step 4, and press the Select button .
  • Page 51 If the signal reception is good, but there is no audio when tuned to channel 1, verify that Xpress ’s FM Transmitter is On (step 6), and that both the FM Transmitter and your vehicle’s FM radio are tuned to the same FM channel (steps 5 &...

  • Page 54: Activation

    Activation Before you can enjoy Commercial-Free Music, plus Sports, News, Talk & Entertainment, you need to activate your Xpress Make sure your Xpress receiving the XM signal so that you can hear the audio on Channel 1 . Make a note of your XM Radio ID . You can find it: • On Channel 0 • On a label on the bottom of the gift box • On the label on the back of your Xpress...

  • Page 56: Using Your Xpress

    Using your Xpress The Main Display When listening to a channel, information about the channel is displayed . Antenna Signal Strength Channel Name & Logo Tuning Mode Time Channel Number Artist Name or Talk Show Host or Sports Teams/Score Song Title or Talk Show Schedule or Game Time/Game Details...
  • Page 57 Changing the Display Mode You can split the screen to simultaneously view what’s playing on the current channel and up to 3 other channels in any category, or view what’s playing on the current channel and the last channel you had tuned at the same time . Choose from: main display screen with current channel...

  • Page 58: Navigation Basics

    Using your Xpress Navigation Basics Power Button Pressing the Power button turns the Xpress Control Knob and Select Button Navigate the Xpress using the Control knob and Select button: • Control knob: Turning it clockwise or counter-clockwise scrolls through lists and highlights an item in the list . • Select button (press and release): Pressing it on the center selects a highlighted item and confirms settings .

  • Page 59: Menu Button

    Info Button Pressing info toggles the display to show the sports ticker or the stock ticker at the bottom of the screen . • Sports Ticker: Displays information about upcoming games and scores for games in progress that have been selected with GameSelect . Refer to “GameSelect”...
  • Page 60 Using your Xpress Fav Button Pressing fav toggles between the different tuning modes: Direct mode, Favorite Channels mode, and SongSaver mode . • Direct mode: The 0-9 buttons directly tune to a channel when the channel number is entered . • Favorite Channels mode: Pressing one of the 0-9 buttons tunes to a channel that has been saved as a favorite channel to that button location .

  • Page 61: Listening To Satellite Radio

    Listening to Satellite Radio Tune a channel: Turn the Control knob clockwise or counter-clockwise to scroll forward or backward through the list of channels . You’ll first see the channel logo and current artist . As you pause on a channel, after a few seconds the current song title appears . While you pause, it will toggle between song title and artist name .
  • Page 62 Using your Xpress View a category: Channels are organized into categories to make it easier for you to find the ones that suit your taste . To view a category, press Scroll through the category to find the channel you want . Press the Select button to select the channel, or press the previous or next category .

  • Page 63: Direct Tune

    Direct Tune A channel can be tuned directly by entering the channel number using the number buttons . Before entering a channel number, put the Xpress Ensure “Direct” appears at the top of the display screen . If not, press fav until it is displayed . Use the number buttons (0-9) to enter the channel number and wait a moment until the channel is tuned, or press the Select button to immediately tune to the channel .
  • Page 64 Using your Xpress Auto Tune The Auto Tune feature allows you to tune to a channel when scrolling through the channel list, without having to press the Select button . When a channel is highlighted in the channel list, after 3 seconds the radio automatically tunes to that channel .

  • Page 65: Favorite Channels

    Favorite Channels You can set up to 10 of your favorite channels so you can easily access them . Each favorite channel can be assigned to a number button . To assign a favorite channel to a number button: Tune to the desired channel . Be sure you are in Favorite Channels mode .
  • Page 66 Using your Xpress Scanning Channels in a Category You can scan a category and listen to each channel for 3 seconds before the next channel is automatically tuned . If you want to stay tuned to a channel and stop the scan, just press the Select button .

  • Page 67: Fm Presets

    FM Presets FM presets make it easy to quickly access stored FM channels and choose a new FM channel from them . Use FM presets when you use PowerConnect to listen to your Xpress through your vehicle’s FM radio . (Refer to “Option 3: PowerConnect Installation Instructions”...

  • Page 68: Skip A Channel

    Using your Xpress Skip a Channel Channels can be removed from the channel list . Once a channel is set to be skipped, it will not appear in any channel list but the channel can still be tuned by using Direct Tune . You can also add back a channel you had previously designated to be skipped .

  • Page 69: Block Xl (Explicit Language) Channels

    Block xL (Explicit Language) Channels Some channels may contain explicit language . When xL appears in the channel logo, explicit language may be heard on that channel . If you do not want explicit language channels, they can be removed from the channel list . To skip all explicit language channels: Press menu .
  • Page 70 Using your Xpress press the Select button . The explicit language channels will now appear on the channel list and on the channel skip/add list . IMPORTANT! To completely block access to explicit channels, contact Listener Care at 1-800-XM-RADIO (1-800-967-2346) or visit http://www .xmradio .com/parentalcontrols/index .jsp .

  • Page 72: Special Features

    Special Features Pause and Replay Pause and Replay gives you the opportunity to “hear that again” by temporarily storing and letting you access content played during the last 60 minutes . Pressing places the Xpress TIP! This feature applies to the current listening session only . Turning off your Xpress removes the temporarily stored content from the radio .
  • Page 73 Press and release press and hold TIP! Press and hold track . To listen to the next track: Press to fast-forward to the next track . Press and release or press and hold TIP! To return to live broadcast, press and hold TIP! If you press mode .

  • Page 74: Tuneselect

    Special Features TuneSelect TuneSelect finds your favorite artist and song whenever they’re being played on any channel . Xpress can track up to a combination of 20 of your favorite artists and songs . To save a favorite artist or song: When you hear a favorite artists or songs, press and hold the Select button for 2 seconds .
  • Page 75 To remove an artist or song from your TuneSelect list: Press menu . Scroll to highlight Edit Alerts, and press the Select button . Press the Select button to select Edit TuneSelect .
  • Page 76 Special Features Scroll to highlight the artist or song you want to remove from your TuneSelect list, and press the Select button . Scroll to highlight Do Not Alert to disable the alert for that artist or song . Press the Select button .

  • Page 77: Gameselect

    GameSelect GameSelect lets you select up to 50 of your favorite sports and/or teams to view their scores and stats at any time . In addition, you can choose to be notified when they play on any channel . To add sports teams to GameSelect: Press menu .
  • Page 78 Special Features When a sport/team on your GameSelect list plays on any channel, you’ll hear an alert tone and see a message that informs you about the sport/team and the channel it is playing on . To switch to that channel, press the Select button .
  • Page 79 To disable GameSelect alert: Press menu . Scroll to highlight Edit Alerts and press the Select button . Scroll to highlight Edit GameSelect and press the Select button . Scroll to highlight the sport or team you no longer want to be alerted about and press the Select button .

  • Page 80: Stock Quotes

    Special Features Stock Quotes You can track the price and daily movement for up to 20 of your favorite stocks . The stock ticker can be enabled at the bottom of the screen by repeatedly pressing info until Stocks is displayed at the bottom left of the display screen . NOTE! Information about most stocks and indices listed on the NYSE, AMEX, or NASDAQ is available .
  • Page 81 When the stock symbol has been correctly entered, you may be prompted to add stock by pressing Select button . Or you may need to turn the Control knob counter clockwise until Stock? appears on display screen . At this time, press the Select button . At the main display screen, press info to see your stock quotes .

  • Page 82: Songsaver

    Special Features SongSaver You can save up to 10 songs in the Xpress stays permanently stored on the radio until it is overwritten or deleted . When you hear a song you want to save, press and hold the Select button until Add to SongSaver is displayed .
  • Page 83 Your song is saved to the next available number button location . TIP! When all ten buttons are used up, the next song added to SongSaver overwrites the oldest song saved (i .e ., the 11th song is saved to button 1) . NOTE! Only songs from live broadcasts can be added to SongSaver .

  • Page 86: Where Else Can Your Use Yourr Xpress

    Where Else Can You Use Your Xpress SIRIUS | XM offers a variety of accessories that allow you to adapt your Xpress Radio to your lifestyle and enhance your listening experience . With these accessories, you can effortlessly take your Satellite Radio listening experience from your vehicle to your home or office or on the go —...

  • Page 88: Configuring Your Xpress

    Configuring your Xpress Radio ID Your Xpress has an alphanumeric ID which uniquely identifies the radio . This ID is used during the activation process . To display the Radio ID: Ensure “Direct” appears at the top of the display screen . If not, press fav until it is displayed .

  • Page 89: Find Available Fm Channels In

    Find Available FM Channels in Your Area Before attempting any of the procedures below, you should park your vehicle in a safe location . Do not attempt to set up your FM channels or any onyX function while driving . PowerConnect allows you to listen to XM audio through your vehicle’s FM radio .
  • Page 90 Configuring your Xpress FM Channel” on page 82 .) You should hear the XM channel through your vehicle’s radio . If you are satisfied with the sound quality, you’re done! If this FM channel doesn’t work well for you, work down the list until you find an FM channel that allows you to hear XM clearly .

  • Page 91: Your Area

    another FM channel or a different audio connection method . TIP! If you regularly drive from one location to another, such as your daily commute, you may need to use different FM channels along your route for best performance . If this is the case, we recommend saving the best FM channels as presets on your FM radio and Xpress .

  • Page 92: Turn Fm Transmitter On/Off

    Turn FM Transmitter On/Off The built-in FM Transmitter in the Xpress FMDA) . To turn the FM Transmitter On: Press menu . Press the Select button to select Vehicle Mode . Press the Select button to select FM Transmitter which will turn yellow . Turn the Control knob clockwise to display On and press the Select button .
  • Page 93 To turn the FM Transmitter Off: Press menu . Press the Select button to select Vehicle Mode . Press the Select button to select FM Transmitter which will turn yellow . Turn the Control knob counter-clockwise to display Off and press the Select button .

  • Page 94: Set And Select Fm Channels

    Configuring your Xpress Set and Select FM Channels Xpress allows you to easily store (i .e ., preset) up to 5 different FM channels . At any time, you can select any one of these 5 FM presets to transmit audio from the Xpress presets also makes it easy to switch to the appropriate FM channel as you travel...
  • Page 95 storage location contains the FM preset currently being used (denoted by “Current”), then a list of FM channels is displayed . ii . If the chosen storage location has an FM preset that is not currently being used, and you want to edit it, scroll to highlight Edit Channel and press the Select button to see the list of FM channels .
  • Page 96 Configuring your Xpress The chosen FM channel will be confirmed on the display screen and the Xpress channel . Set your vehicle’s FM radio to same FM channel . IMPORTANT! You’ll first need to find a suitable FM channel that is unused or available in your area .

  • Page 97: Set Audio Level

    Set Audio Level If you are using the Aux In Cable or a Cassette Adapter to play your in your vehicle, you can adjust the audio level to audio sources you may use, such as a CD player, other FM stations, or an MP3 player .

  • Page 98: Signal Indicator

    Configuring your Xpress Signal Indicator For best reception, your Magnetic Mount Antenna should have an unobstructed view of the XM satellites . In large cities, there are terrestrial transmitters (ground repeaters) to help increase the signal coverage . Xpress can display the strength of the received satellite and terrestrial signals .

  • Page 99: Display Settings

    Display Settings To change the display’s brightness, backlight timer, and auto dimmer: Press menu . Scroll to highlight Change Display and press the Select button . Press the Select button to select Display Setting . To change: • Brightness: Press the Select button to select Brightness which will turn yellow .
  • Page 100 Configuring your Xpress Scrolling or Paging Display Appearance Cold weather can negatively affect the visual quality of scrolling text . By default the stock ticker and sports ticker information is set to scroll across the screen . You can change this so the information is displayed as a page . To change whether the information is scrolling or paging: Press menu .

  • Page 101: Set Time

    Set Time The time is automatically set for you from the XM signal . To set your time zone: Press menu . Scroll to highlight Set Time and press the Select button . Press the Select button to select Set Clock . Press the Select button to select Select Time Zone .
  • Page 102 Configuring your Xpress • Turn counter-clockwise to select Off if your area does not participate in Daylight Savings Time . Press the Select button . To change the format of the time: Press menu . Scroll to highlight Set Time and press the Select button . Press the Select button to select Set Clock .

  • Page 103: Automatic Power

    Automatic Power By default, your Xpress receiving power . You can change this so you must manually turn the radio on each time . To change the Automatic Power setting: Press menu . Scroll to highlight Set Time and press the Select button . Scroll to highlight Automatic Power and press the Select button .
  • Page 104 Configuring your Xpress Delayed Power Use this feature if you are using the PowerConnect Vehicle Dock and the vehicle’s cigarette lighter or power adapter socket is always powered on . Delayed power will turn off the Xpress avoid draining the vehicle’s battery . By default, delayed power is set to Off but can be set for 60, 90, 120, or 180 minutes .

  • Page 105: Sleep Timer

    Sleep Timer The Sleep Timer option is available with the home dock and sound system (sold separately) . Your Xpress has a sleep timer that can automatically shut off the radio after a period of time . By default, the sleep timer is set to Off but can be set for 15, 30, 45 minutes or 1 hour .

  • Page 106: Factory Settings

    Configuring your Xpress Factory Settings You can clear all of your personal settings, such as Favorite Channels, SongSaver songs, TuneSelect artists/songs, GameSelect sports/teams, Stocks etc ., and return the radio to its original out-of-the-box settings . To reset the Xpress to the factory defaults: NOTE! Restoring defaults permanently removes all personal settings .

  • Page 107: Demo Mode

    Demo Mode Your Xpress has a demo mode that starts playing when the radio is not yet activated and it’s either not receiving a signal or not connected to the antenna . The demo mode disappears when the antenna is connected properly or when the radio starts receiving a signal .

  • Page 110: Troubleshooting

    Troubleshooting Xpress has been designed and built to be trouble-free, but if you experience a problem, try this: • Check that all connections are firm and secure . • Make sure the vehicle power socket is clean and free of corrosion . • Make sure you have connected the Xpress Guide .
  • Page 111 If you see this on the screen: Channel Off Air Loading Updating — If this happens: You do not receive all the channels to which you subscribed Audio sounds too soft Try this: • The channel you’ve selected is not currently broadcasting .
  • Page 112 Troubleshooting If this happens: No audio when using the Aux In Cable or Cassette Adapter Audio fades or has static when listening Try this: • Check all cables between your Xpress your vehicle’s stereo system for a firm and secure connection . • Ensure you have selected the proper input source on your vehicle’s stereo system .
  • Page 113 If this happens: No audio when using PowerConnect or FMDA No song title or artist name is displayed Traffic and Weather channels sound different from other channels Xpress RC i shuts off unexpectedly The demo is playing Try this: • Check that your Xpress RC i and your vehicle’s FM radio are tuned to the same FM channel .

  • Page 116: Product Specifications

    Product Specifications System Power Requirements: Operating Temperature: Audio Output: Xpress Radio Dimensions: Weight: Remote Control Dimensions: Weight: Battery: PowerConnect Vehicle Dock Dimensions: Weight: FM Connector: Audio Connector: Antenna Connector: Power Connector: PowerConnect Power Adapter Dimensions: Input / Output: Cable Length: 9-16 V DC, 500 mA (max) -20°C to +60°C (-4°F to +140°F) 1 .0 V rms (max)
  • Page 117 Vehicle Antenna Type: Connector: Cable Length: Aux In Cable Connectors: Cable Length: XM Magnetic Mount SMB female, right angle 7 .0 m (23 ft) 3 .5 mm stereo male to 3 .5 mm stereo male 1 .2 m (4 ft)

  • Page 118: Patent Information

    Patent and Environmental Information Patent Information It is prohibited to, and you agree that you will not, copy, decompile, disassemble, reverse engineer, hack, manipulate, or otherwise access and/or make available any technology incorporated in this product . Furthermore, the AMBE voice ª...
  • Page 119 FCC Statement The user is cautioned that changes or modifications not expressly approved by SIRIUS XM Radio Inc . can void the user’s authority to operate this device . This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: This device may not cause harmful interference .
  • Page 120 Copyrights and Trademarks ©2009 SIRIUS XM Radio Inc . “SIRIUS”, “XM” and all related marks and logos are trademarks of SIRIUS XM Radio Inc . and its subsidiaries . “BBC” and “Radio One” are trademarks of the British Broadcasting Corporation and are used under license . BBC logo © BBC 1996 . Radio 1 logo ©...

  • Page 121: Owners Record

    Owners Record Owner’s Record The radio model number is located below and the XM Radio ID is located on the label on the back of the Xpress Record the XM Radio ID in the space provided below . Refer to these numbers whenever you call your dealer regarding this product .
  • Page 124 xmradio .com SIRIUS XM Radio Inc . 1221 Avenue of the Americas New York, NY 10020 1 .800 . 9 67 .2346 © 2009 SIRIUS XM Radio Inc . XDRC2UG 092809a...
