Summary of Contents for Gastroback 42419
-

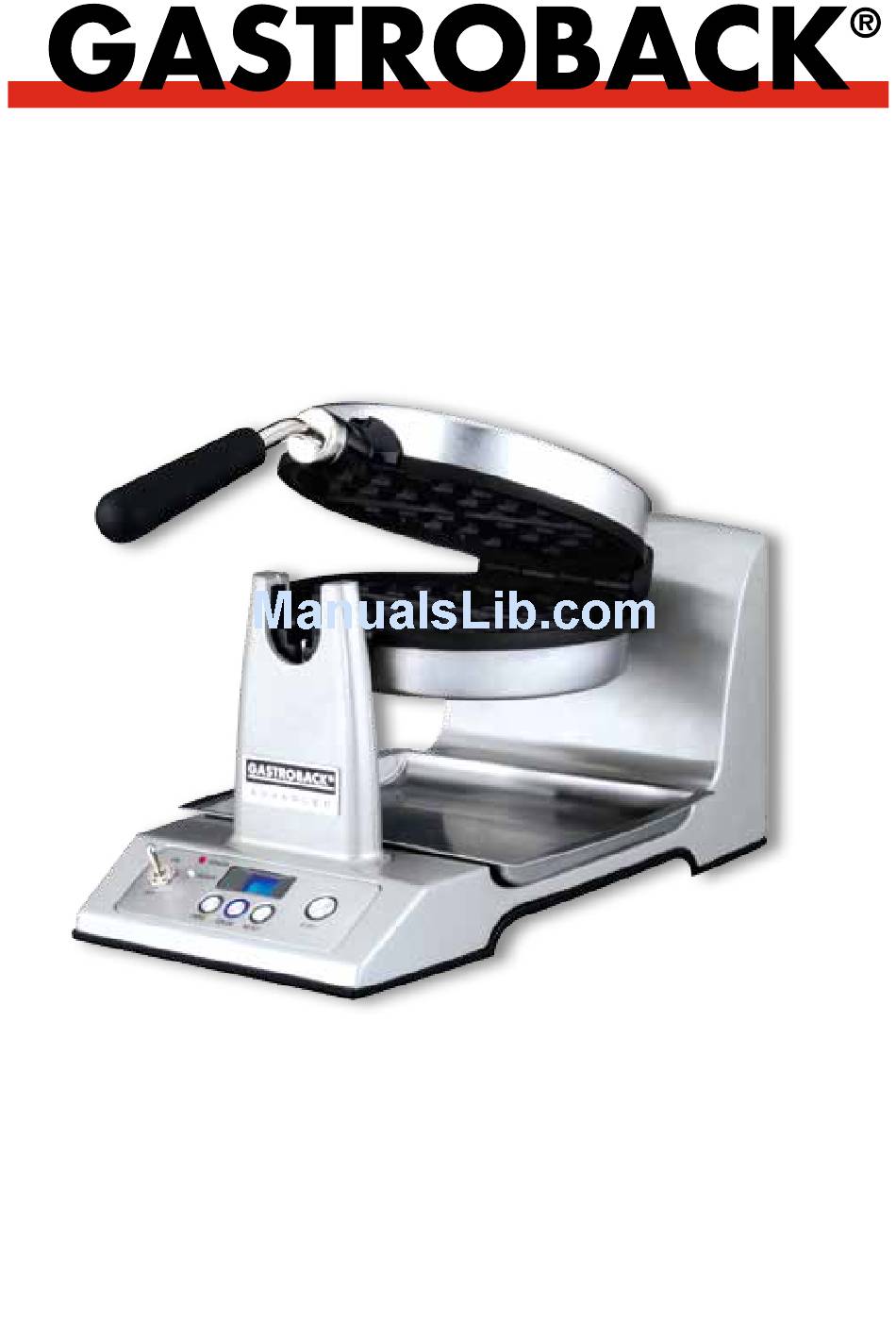

Page 1: Operating Instructions
Operating Instructions Design Wafflemaker aDvanceD el Art.-Nr. 42419 Design Wafflemaker Advanced EL Read all provided instructions before first use! Model and attachments are subject to change! For household use only! -
Page 2: Table Of Contents
Carefully read all provided instructions before you start running the appliance and pay attention to the warnings mentioned in these instructions. Table of contents Knowing your Design Waffelmaker Advanced EL ..........20 Important Instructions ..................21 Important safeguards ..................21 Safeguards for daily operation ..............21 Important safeguards for electrical appliances ...........23 Hot surfaces –... - Page 3 LED display for individual settings, removable drip tray and the acoustic sign. These instructions for use will inform you about the various functions and features, which make it easy to take pleasure in your new wafflemaker. We hope that you will enjoy your new wafflemaker. Your Gastroback GmbH...
-
Page 4: Knowing Your Design Waffelmaker Advanced El

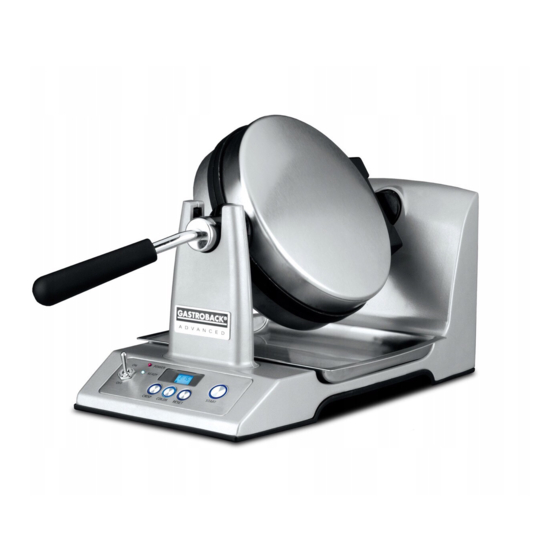

knoWing your Design Wafflmaker aDvanceD el Wafflemaker: especially deep heating plates (1,27 cm) Handle Wafflemaker attachment Wafflemaker pedestal removable drip tray LED-Display Start Reset button ON/OFF toggle switch Crisp button Colour button... -
Page 5: Important Instructions
imporTanT insTrucTions • Do not use any cooking cutlery made of metal or similar hard material on the heating surface to avoid damaging the non-stick coating. Only use cooking cutlery made of wood or heat insensitive plastic. never cut on or try to scrape off batter from the heating surface using hard, sharp-edged items. - Page 6 or if there are any cracks, excessively frayed parts or distortions. In this case, immediately unplug the appliance and return the entire appliance (including all parts and accessories) to an authorised service centre for examination and repair. • Close supervision is necessary when the appliance is used near young children. Do not let young children play with any parts of the appliance or the packing. The appliance is NOT intended for use by children or infirm persons without supervision. Take care that no one pulls the appliance by the power cord, especially when young children are near.
-
Page 7: Important Safeguards For Electrical Appliances
Important safeguards for all electrical appliances • The Design Wafflemaker is electrical heated. Ensure that the voltage rating of your mains power supply corresponds to the voltage requirements of the appliance (220/240 V, 50 - 60 Hz, AC). Always connect the appliance directly to a mains power supply wall socket with protective conductor (earth) connected properly. The installation of a residual current safety switch with a maximum rated residual operating current of 30 mA in the supplying electrical circuit is strongly recommended. -
Page 8: Important Advice For The Non-Stick Coating
Clean the Design Wafflemaker with a damped sponge or tissue and carefully dry the exterior of the appliance after cleaning. Do not handle the appliance or any part of it with violence. Never place the appliance in an automatic dishwasher. • Never use non-stick spray as this may damages the non-stick coating of the appliance. Technical specificaTions Model: Art.-Nr. 42419 Design Wafflemaker Advanced EL Power supply: 220-240 V AC, 50/60 Hz Maximum power consumption: 950 W Length of power cord: approx. 60 cm... -
Page 9: Operation
operaTion First use Before first use and after a long period of storage, clean the appliance with a damp soft cloth and warm soapy water (see ›Care and cleaning‹). Warning! Always unplug the appliance and wait for the appliance to cool down, before cleaning. -
Page 10: Tips For Making Perfect Waffles
3. Push the toggle switch to on to begin the preheating process (see: pic. A). The LED background displays blue and shows a default cooking time of 2:30. 4. When the blue ready light is on and 3 beeps sound, preheating is finished (see: pic. -
Page 11: Care And Cleaning
For best results: For loose batters, fill to the mark (for thicker bat- ters, fill to the top) or enough to fill the entire lower grid. Pour batter evenly into the centre of the waffle grids. Note: Do not cover the heating surface with too much batter. If the batter has baking agents (such as soda, bakingpowder or yeast) the batter will leak out of the sides of the wafflemaker. -
Page 12: Storage
Please check www.gastroback.de for further information. For technical support, please contact Gastroback Customer Care Center by phone: +49 (0)4165/22 25-0 or e-mail: info@gastroback.de. WarranTy We guarantee that all our products are free of defects at the time of purchase. -
Page 13: Recipes
RCIPES Basic Waffle recipe Makes 10 waffles: 355 ml water Makes 7-8 waffles: 2¼ tsp active dry yeast (one sachet) eggs 3 cups (ca. 360 g) sifted flour 500 ml milk ¼ tsp salt 500 g flour large eggs, separated 250 g margarine egg white... - Page 14 the batter stand for 1 hour, stirring every 15 Let stand 10 minutes. minutes. In a separate bowl, combine the flour, short- Preheat your wafflemaker on setting 4 or pre- bread biscuit crumbs, 1/4 cup sugar, salt, ferred setting* (green indicatorlight will be il- ginger, and lemon zest;...
- Page 15 2 tsp vanilla extract (ca. 75 g) pumpkin puree (can- ¼ tsp baking soda ned solid pack pumpkin) large eggs, separated The night before, or at least 8 hours before 236 ml whole milk baking, combine the warm water, granulated 59 ml real maple syrup (do not use sugar and yeast.
- Page 16 Gewerbestraße 20 . D-21279 Hollenstedt / Germany Telefon +49 (0)41 65/22 25-0 . Telefax +49 (0)41 65/22 25-29 info@gastroback.de . www.gastroback.de...
