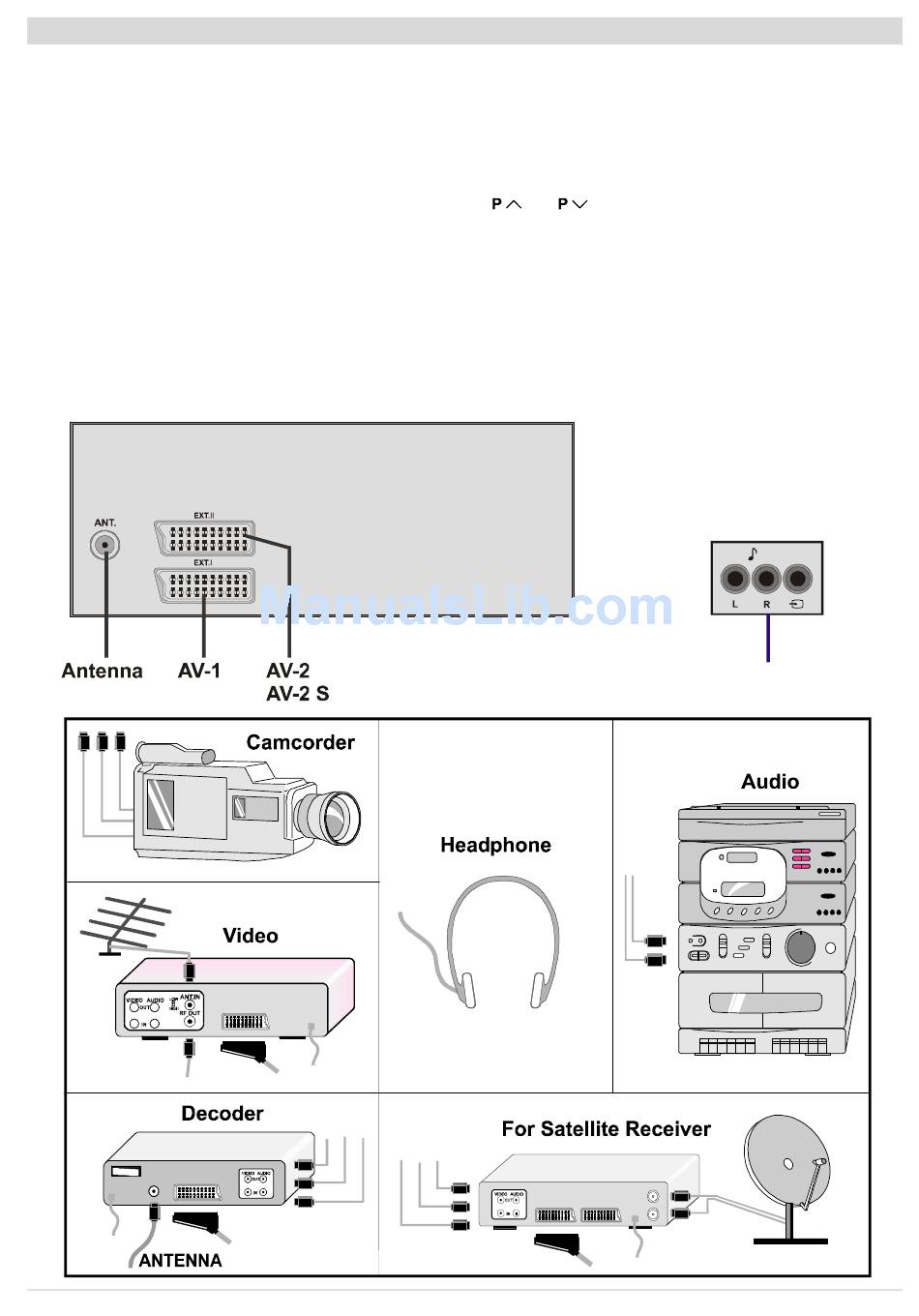

Connect the External Equipments
Before connecting anything
• Switch off all equipments including the TV.
• Read the manuals provided with the equipments.
To select an AV mode
Pressing "AV" button on the remote control selects one of four AV modes (AV- 1, AV-2, AV-2 S and F-AV).
• T o r e t u r n t o t h e
TV mode, repeatedly press "AV" button or press "
" or "
" button.
AV-1 (EXT.I) terminal: Euroconnector (21-pin, SCART)
• Video input, Audio L/R inputs and RGB inputs are available.
• TV broadcast outputs (Video and Audio L/R) are available.
AV-2 (EXT.II) terminal: Euroconnector (21-pin, SCART)
• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.
• Video and Audio L/R outputs are available.
F-AV (Front AV) terminal: RCA connectors x 3
• Video input and Audio L/R inputs are available.
FRONT AV
F-AV
ENGLISH - 11 -
