Heatilator HEIR36H Owner's Manual

Hide thumbs Also See for HEIR36H:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

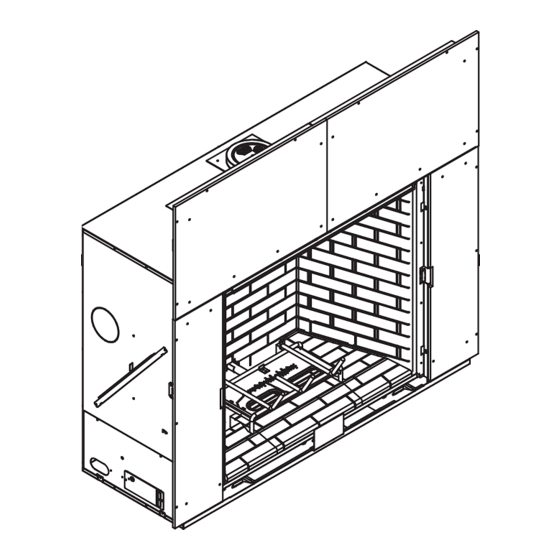

Models:
HEIR36H
HEIR36T
HEIR42H
HEIR42T
HEIR50H
HEIR50T
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12
Owner's Manual
Installation and Operation
• Leave this manual with
party responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory trained
professionals, or technicians supervised by an NFI
certifi ed professional.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEIR36H and is the answer not in the manual?

Questions and answers

Related Manuals for Heatilator HEIR36H

Summary of Contents for Heatilator HEIR36H

  • Page 1 Technologies suggests NFI certifi ed or factory trained This appliance is only for use with the type(s) of gas indicated professionals, or technicians supervised by an NFI on the rating plate. certifi ed professional. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 2: Congratulations

    As the owner of a new fi replace, you’ll want to read and Your new Heatilator gas fi replace will give you years of carefully follow all of the instructions contained in this durable use and trouble-free enjoyment. Welcome to the owner’s manual.

  • Page 3: Table Of Contents

    E. Doors ........52 A. Vent Termination Minimum Clearances ....24 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 4 D. Contact Information ......79  = Contains updated information. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 5: Limited Lifetime Warranty

    3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645C 12-29-10 Page 1 of 2 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 6 B. Limited Lifetime Warranty (continued) WARRANTY CONDITIONS: WARRANTY EXCLUSIONS: This warranty is void if: LIMITATIONS OF LIABILITY: 4021-645C 12-29-10 Page 2 of 2 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 7: Listing And Code Approvals

    HEIR42 (LP) CANADA 46,500 26,500 (2000-4500 FT) 65,000 36,000 (0-2000 FT) HEIR50 (NG) CANADA 58,500 32,500 (2000-4500 FT) 63,500 32,500 (0-2000 FT) HEIR50 (LP) CANADA 57,000 29,500 (2000-4500 FT) Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 8: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 9: User Guide

    DECORATIVE DOORS (NOT SHOWN) SECTION 2.D. MANTEL SECTION 5.D HEARTH SECTION 5.E FIXED GLASS ASSEMBLY (NOT SHOWN) SECTION 14.H. CLEAR SPACE SECTION 2.C. Figure 2.1 General Operating Parts Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 10: Clear Space

    For more information refer to the instructions supplied with your decorative door or front. GLASS CLIP TOOL GLASS CLIP TOOL RATING PLATE RATING PLATE Figure 2.3 Rating Plate/Glass Clip Tool Location Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 11: Control Module Operation

    WARNING! Risk of Explosion! DO NOT reset the mod- ule more than one time within a fi ve minute time period. Gas may accumulate in fi rebox. Call a qualifi ed service technician. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 12: Lighting Instructions (Ipi)

    For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final inspection by Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 13: After Fireplace Is Lit

    Is it normal to see the pilot fl ame burn turned off. Some optional control systems available with IPI models may allow pilot fl ame to continually? remain lit. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 14: Maintenance And Service

    - Light deposits: Use a soft cloth with soap and water - Heavy deposits: Use commercial fireplace glass cleaner (consult with your dealer) Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 15: Maintenance Tasks-Qualifi Ed Service Technician

    • Inspect fi xed glass assembly for scratches and nicks that can lead to breakage when exposed to heat. • Confi rm there is no damage to glass or glass frame. Replace as necessary. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 16 • Verify that there is not a short in fl ame sense circuit by checking continuity between pilot hood and fl ame sensing rod. Replace pilot as necessary. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 17: Installer Guide

    IN CEILING JOISTS (SECTION 5) (SECTION 8.C ) MANTEL AND MANTEL LEG (SECTION 13.C ) OPTIONAL WALL SWITCH SURROUND HEARTH EXTENSION (SECTION 5.E) GAS LINE SECTION 11.C Figure 4.1 Typical System Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 18: Design And Installation Considerations

    Safety glasses Level Reciprocating saw Flat blade screwdriver Non-corrosive leak check solution 1/2 - 3/4 in. length, #6 or #8 Self-drilling screws Caulking material (300ºF minimum continuous exposure rating) Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 19: Framing And Clearances

    2667 Inches 78-9/16 65-9/16 111-1/16 28-5/8 23-1/2 32-13/16 HEIR42 Millimeters 1995 1665 2821 Inches 84-1/4 73-9/16 119-1/8 31-1/2 23-1/2 36-13/16 HEIR50 Millimeters 2140 1868 3026 Figure 5.1 Appliance Locations Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 20: Constructing The Appliance Chase

    HEIR42 Section Millimeters 1549 1665 1321 5.E. Inches 73-9/16 HEIR50 Millimeters 1651 1868 1321 * Adjust framing dimensions for interior sheathing (such as sheetrock) Figure 5.2 Clearances to Combustibles Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 21: Mantel And Wall Projections

    6 IN. MAX. SEE SECTION 13.E FOR REQUIRED CLEARANCES FIREPLACE OPENING 14 IN. MIN. FACTORY-SUPPLIED NON-COMBUSTIBLE COMBUSTIBLE OR BOARD NON-COMBUSTIBLE WALL Figure 5.5 Non-Combustible Mantel Leg and Wall Projections Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 22 Note: Measurement is taken from top of the opening, NOT the top of the fi replace. NOT the top of the fi replace. Figure 5.7 Combustible Mantel Allowance - HEIR50 Figure 5.9 Non-Combustible Mantel Allowance - HEIR50 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 23: Hearth Extension

    BUILDING MATERIAL BOTTOM OF FIREPLACE WOOD OR OTHER COMBUSTIBLE FLOOR OR PLATFORM Figure 5.12 Appliance Raised a Minimum of 3 Inches Above Combustible Surface. Non-Combustible Hearth Extension NOT REQUIRED. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 24: Termination Locations

    (vinyl protector kit) is installed. Permanent damage to vinyl * 3 foot minimum in snow regions siding or vinyl soffi ts may occur. Figure 6.1 Minimum Height From Roof To Lowest Discharge Opening Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 25 2 sides beneath the fl oor. • Vinyl protection kits are required for use with vinyl siding. Figure 6.3 Minimum Clearances for Termination Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 26: Vent Information And Diagrams

    • This appliance requires a minimum of 24 inches of verti- cal pipe attached directly to the appliance starting collar before attaching a 90 degree or 45 degree elbow. 8-1/2 in. Horizontal Figure 7.1 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 27 40 ft 12.2 m After V = 6 ft then H = 2 x V ft Maximum = 60 ft Maximum *when used with approved termination caps Figure 7.3 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 28 16 ft 4.9 m 9 ft 2.7 m 18 ft 5.5 m 10 ft 3.0 m 20 ft 6.1 m = 60 ft Maximum = 20 ft Maximum Figure 7.4 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 29 Max = 2 X V must be adhered to. has no specifi c restrictions EXCEPT, = 2 x V and V cannot exceed 60 ft Maximum t max total total Figure 7.5 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 30 Note: Flue restrictor is permit- ted ONLY on 30 ft. minimum vertical runs with no elbows. NOTE: Flue Restrictor ships in manual bag assembly. FLUE RESTRICTOR Figure 7.7 Flue Restrictor Installation Figure 7.6 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 31 = 50 ft (15.2 m) Max. *No specifi c restrictions on this value EXCEPT cannot exceed 60 ft (18.3 m). After V = 6 ft, then H Max.= V Figure 7.8 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 32 6.1 m and H has no specifi c restrictions EXCEPT, after V = 6 ft, then H Max = 2 x V = 60 ft Max. INSTALLED HORIZONTALLY Figure 7.9 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 33: And Pvi-Slp Information

    Lever Setting Figure 7.12 Baffl e Adjustment - PVI-SLP HEIR36 FULL OPEN 3 Holes Visible HEIR42 FULL OPEN 3 Holes Visible HEIR50 FULL OPEN 3 Holes Visible Table 7.2 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 34: Vent Clearances And Framing

    fi restops must have a heat shield (refer to Section 16.B.) attached to them. • See Section 10.H. for information for regarding the in- stallation of a horizontal termination cap. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 35: Install The Ceiling Firestop

    INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM 3 FASTENERS PER SIDE CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 8.4 Installing the Attic Shield Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 36: Install Attic Insulation Shield

    These tabs must be used to prevent blown insulation from getting between the shield and vent pipe, and to maintain air space clearance. Figure 8.6 Heat Zone Cover Plate Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 37: Appliance Preparation

    SEAL CAP SEAL CAP FINISHING FINISHING TEMPLATES TEMPLATES SPLATTER GUARD SPLATTER GUARD (NOT SHOWN) (NOT SHOWN) LAVA ROCK LAVA ROCK HEAT SHIELDS HEAT SHIELDS Figure 9.1 Shipping Location of Components Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 38: Securing And Leveling The Appliance

    • Secure the appliance to the fl oor by inserting two screws through the pilot holes at the bottom of the appliance. Figure 9.5. Heat Shields and Nailing Tabs in Installation Position Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 39: Installing Non-Combustible Facing Material

    • Use a wet or dry towel or soft brush to remove dust or dirt from facing material. • See Section 13 for fi nishing materials guidelines. Figure 9.7 Installing Non-Combustible Facing Material Figure 9.6 Shipping Location of Non-Combustible Board Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 40: Installing Vent Pipe (Dvp Pipe)

    fl ue at the horizontal elbow joint to prevent the elbow from rotating. Use screws no longer than 1/2 in. (13 mm). If predrilling screw holes, DO NOT penetrate inner pipe. INCORRECT Figure 10.4 Seams Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 41: Secure The Vent Sections

    Figure 10.7 Rotate Seams for Disassembly 120º Figure 10.8 Align and Disassemble Vent Sections Figure 10.5 Securing Vertical Pipe Sections 120º Figure 10.6 Securing Horizontal Pipe Sections Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 42: Install Metal Roof Flashing

    • Caulk the overlap seam of any exposed pipe sections that are located above the roof line. Figure 10.12 Assembling the Storm Collar Around the Pipe Figure 10.12 Assembling the Storm Collar Around the Pipe Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 43: Install Vertical Termination Cap

    OUTSIDE SURFACE OF EXTERIOR WALL (SEE CHART BELOW) • Use an extended heat shield if the fi nished wall thickness is greater than 7-1/4 in. (184 mm). Figure 10.14 Venting Through the Wall Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 44: Gas Information

    fl exible gas connector are connected to the 1/2 in. (13 mm) control valve inlet. • If substituting for these components, please consult local codes for compliance. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 45: Electrical Information

    IntelliFire Plus ignition sys- tem. FLAME IGNITER SENSE RC200 TO JUNCTION BOX (110V) MODULE FLAME MODULATION BATTERY PACK 6V DC Figure 12.1 IPI Wiring Diagram Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 46: Electrical Service And Repair

    ACCESS THROUGH LEFT COLUMN ACCESS THROUGH FIREBOX (Prior to installation of non-combustible board) (After installation of non-combustible board) GASKET COVER Figure 12.2 Junction Box Access Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 47: Finishing

    fi nishing material and the fi replace opening. 1-1/4 IN. Figure 13.1 Top Finishing Template Bend Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 48: Splatter Guard

    1. Fold top fl ap along scored lines. 2. Slide side tabs into slots by sides of glass.  Figure 13.4 Finishing Template Bends - Inoperable (Fixed) Doors Figure 13.5. Splatter Guard Installation Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 49: Mantel And Wall Projections

    6 IN. MAX. SEE SECTION 13.E FOR REQUIRED CLEARANCES FIREPLACE OPENING 14 IN. MIN. FACTORY-SUPPLIED NON-COMBUSTIBLE COMBUSTIBLE OR BOARD NON-COMBUSTIBLE WALL Figure 13.7 Non-Combustible Mantel Leg and Wall Projections Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 50 Note: Measurement is taken from top of the opening, NOT the top of the fi replace. NOT the top of the fi replace. Figure 13.10 Combustible Mantel Allowance - HEIR50 Figure 13.12 Non-Combustible Mantel Allowance - HEIR50 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 51: Facing Material

    COMBUSTIBLE MATERIAL 0 IN. 0 IN. 0 in. NON-COMBUSTIBLE BOARD MODEL HEIR36 1549 57-5/8 1464 HEIR42 1702 62-5/8 1591 HEIR50 1905 66-5/8 1692 Figure 13.13 Non-combustible Facing Diagram Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 52: Doors

    Figure 13.15 Minimum Side Clearance for Operable Doors to any fi nishing material thicker than 1 inch MUST be maintained. NOTE: Finishing templates are included with this product. See Section 13.A. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 53: Appliance Setup

    APPLY GLOWING EMBERS ADJACENT TO PORTS Figure 14.1. Apply Mystic Embers Figure 14.2. Location of Glowing Embers Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 54: Install The Log Assembly

    Figure 5. LOG CONTACTS LOG CONTACTS GRATE TINE GRATE TINE LOG STOP RESTS AGAINST LOG STOP RESTS AGAINST BACK OF CENTER GRATE TINE BACK OF CENTER GRATE TINE Figure 5. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 55 Rest top of Log #4 in notch on top left corner of Log #1. See Figure 3 and Figure 9. BURNED BURNED PORTION PORTION LOG #4 LOG #4 CONTACTS CONTACTS BURNED EDGE BURNED EDGE BACK OF BACK OF LOG #2 LOG #2 Figure 8. Figure 9. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 56 TINE 1/2 INCH 1/2 INCH HEIR42 SHOWN HEIR42 SHOWN 1/2 INCH 1/2 INCH Figure 12. Log #5 Placement Figure 13. Log #6 Placement Figure 14. Log Set Installed. 2284-935C Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 57: Log Placement Instructions

    LOG CONTACTS LOG CONTACTS GRATE TINE GRATE TINE Figure 5. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 58 Log #1. BURNED EDGE BURNED EDGE NOTCH FOR LOG #6 NOTCH FOR LOG #6 LOG CONTACTS LOG CONTACTS REFRACTORY REFRACTORY 1-1/2 IN. 1-1/2 IN. (APPROXIMATELY) (APPROXIMATELY) Figure 10. Figure 11. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 59 Log #6 (2285-706): Place Log #6 into appliance as shown in Figure 12. Bottom corner of Log #6 should be about 1/2 inch from right hand grate tine. Log will contact right center grate tine. The top of Log #6 should rest in the notch on Log #2. 2285-935 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 60: Fixed Glass Assembly

    CAUTION! Risk of Injury! DO NOT put fi ngers under glass frame. Fingers may get pinched by glass frame during removal. Figure 14.3. Glass Clip Tool Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 61 Grasp the fi xed glass as- sembly on the sides. CAUTION! Risk of Injury! DO NOT put fi ngers under glass frame. Fingers may get pinched by glass frame during installation. Figure 14.10 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 62: Air Shutter Setting

    If sooting occurs, provide more air by opening the air shutter. Figure 14.11 Air Shutter Air Shutter Settings MODEL HEIR36 5/8 in. Full Open HEIR42 5/8 in. Full Open HEIR50 5/8 in. Full Open Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 63: Troubleshooting

    D. Pilot valve solenoid. Verify that 1.5 to 1.8 VDC is supplied to pilot solenoid from module. If below 1.5 volts, replace module. If 1.5 volts or greater, replace valve. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 64 fi ne steel wool to remove any contaminants that may have accumulated on fl ame sensing rod. Verify continuity with a multi-meter with ohms set at lowest range. Replace pilot if any damage is detected. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 65: Reference Materials

    Location Inches Millimeters 1549 35-7/8 23-1/2 39-7/8 1013 59-1/4 1505 31-1/16 57-5/8 1464 29-5/8 35-3/16 3-7/8 34-3/16 2-3/4 54-15/16 1395 10-7/8 41-3/8 1051 16-1/8 Figure 16.1 Appliance Dimensions (HEIR36) Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 66 23-1/2 53-7/8 1368 73-5/16 1862 40-1/16 1018 66-5/8 1692 36-11/16 44-3/16 1122 3-7/8 43-3/16 1097 2-3/4 63-15/16 1624 10-7/8 50-3/8 1280 16-1/8 Figure 16.2 Appliance Dimensions (HEIR42 & HEIR50) Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 67: Vent Components Diagrams

    (254 mm) 14 in. (356 mm) 5 in. 12 in. (127 mm) (305 mm) 6 in. (152 mm) DVP-HVS (Vent Support) DVP-WS (Wall Shield Firestop) Figure 16.3 DVP vent components Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 68 79 mm 117 mm Effective (305 mm) Length 5-3/8 in. 9-3/8 in. Trap2 DVP-TRAP 137 mm 238 mm Horizontal Termination Cap DVP-TRAP2 DVP-TRAP1 DVP-TRAPK2 DVP-TRAPK1 Figure 16.4 DVP vent components Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 69 Cap Shield 13-7/8 in. 9-1/2 in. 26 in. (352 mm) (241 mm) 660 mm 14 in. (356 mm) DVP-HSM-B Extended Heat Shield DRC-RADIUS Figure 16.5 DVP vent components Cap Shield Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 70 9-3/16 IN. (233 mm) 13-5/8 IN. 16-11/16 IN. 16-11/16 IN. (346 mm) 424 mm (424 mm) 12-1/2 IN. SLP-LPC (318 mm) SLP Low Profi le Cap Figure 16.6 Vent Components Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 71: Service Parts

    Grate Assembly 2283-015 Glass Assembly GLA-2283 Finishing Spacer 2281-113 Pilot Cover 2281-187 Burner Assembly 2283-007 Orifi ce Bracket Flex 2012-008 Access Plate 2281-117 Additional service parts on following page. 11/12 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 72 20.4 Refractory, Left Base SRV2283-721 20.5 Refractory, Front Base SRV2283-720 20.6 Refractory, Right Base SRV2283-722 20.7 Refractory, Right SRV2283-724 20.8 Refractory, Back SRV2283-725 Additional service parts on following page. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 73 Grate Assembly 2284-015 Glass Assembly GLA-2284 Finishing Spacer 2281-113 Pilot Cover 2281-187 Burner Assembly 2284-007 Orifi ce Bracket Flex 2012-008 Access Plate 2281-117 Additional service parts on following page. 11/12 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 74 20.4 Refractory, Left Base SRV2284-721 20.5 Refractory, Front Base SRV2284-720 20.6 Refractory, Right Base SRV2284-722 20.7 Refractory, Right SRV2284-724 20.8 Refractory, Back SRV2284-725 Additional service parts on following page. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 75 Finishing Spacer 2281-113 Pilot Cover 2281-187 Burner Assembly, NG 2285-007 Burner Assembly, LP 2285-008 Orifi ce Bracket Flex 2282-161 Access Plate 2281-117 Additional service parts on following page. 11/12 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 76 21.4 Refractory, Front Base SRV2285-720 21.5 Refractory, Right Base SRV2285-722 21.6 Refractory, Back Bottom SRV2285-725 21.7 Refractory, Right SRV2285-724 21.8 Refractory, Back SRV2285-727 Additional service parts on following page. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 77 582-847 Orifi ce NG (#26C) 582-826 Heir42 Orifi ce LP (#45C) 582-845 Orifi ce NG (#24C) 582-824 Heir50 Orifi ce LP (#43C) 582-843 Additional service parts on following page. Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
  • Page 78 Conversion Kit LP LPK-HEIR42 Conversion Kit NG NGK-HEIR50 Heir50 Conversion Kit LP LPK-HEIR50 Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Regulator NG NGK-DXV-50 Regulator LP LPK-DXV-50 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...

  • Page 79: Contact Information

    5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Printed in U.S.A. - Copyright 2012 Heatilator • HEIR36, HEIR42, HEIR50 • 2285-900 Rev. F • 11/12...
