Summary of Contents for San Jose Navigation CT-58

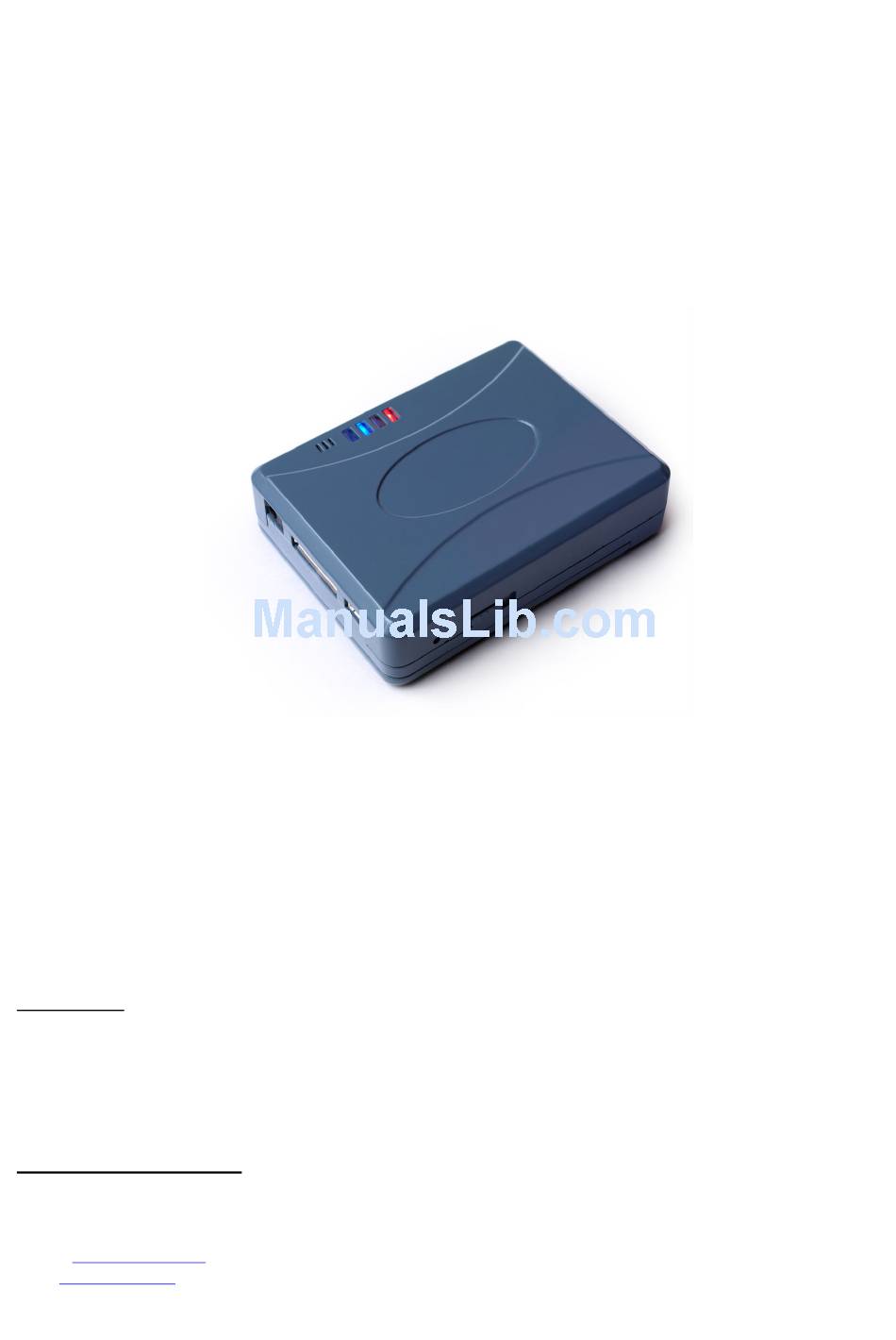

- Page 1 CT-58 GPS/GSM Micro Tracker May. 23 2008 Version: 1.20 San Jose Navigation, Inc. 9F, No.105, Xicheng Rd., Banqiao City, Taipei County 220, Taiwan (R.O.C.). Tel: +886-2-26879500 Fax: +886-2-26878893 E-Mail: sanan@sanav.com Web: www.sanav.com...
-
Page 2: Table Of Contents
Content 1. Hardware Description......................3 Front Face........................3 Side Face(1) ........................3 Side Face(2) ........................4 Rear Face(Battery Cap)...................4 Package Contents......................5 2. Specification..........................6 3. Features ............................7 4. Setup ............................8 4.1 Change Username......................9 4.2 Change Password ......................10 4.3 Set up the GPRS APN (Access Point Name)............11 4.4 Set up a Host Name (URL) to Transmit Data ...........12 4.5 Set up the Phone Number List ................13 4.6 Set up Auto Report .....................14... -
Page 3: Hardware Description
Orange: Data communication light Blue: GPS status light Green Yellow:: Power charging light Note: A. Yellow light will light on while data while communicating the data to computer B. Green light will light on while charging the CT-58 Side Face(1) Power switch... -
Page 4: Side Face(2)
Side Face(2) I/O input slot Data communication slot Power adapter hole Rear Face(Battery Cap) Use your thumb to press the battery cap and then slide downward to open it. SIM card insert slot Battery insert slot... -
Page 5: Package Contents
Package Contents DC Adapter Charger Cigar charger User Guide... -
Page 6: Specification
2. Specification SPECIFICATIONS Electrics Data Tri Band 850/1800/1900 or 900/1800/1900 Mhz Frequency 1575.42 Mhz Reacquisition < 2sec. Cold < 60sec. TTFF(Time To First Fix) GPS Receiver Acquisition time Warm < 35 sec. TTFF Hot < 10sec. TTFF Flash 32MB Power Battery Power 3.7V DC Li-Ion Battery,1500mA (future version Li-ion polymer battery ) External Power... -
Page 7: Features
3. Features A. Build-in vibration sensor The built-in vibration sensor will detect the movement of the CT-58. When movement is occurs, CT-58 will send out reports. B. Panic(option) External panic button (option) can be connected to CT-58. When panic button is pressed, CT-58 will send out SOS report. -
Page 8: Setup
SMS from a cellular phone. Key the specific SMS message in your cellular phone as the instruction and send it to the SIM number of CT-58. The setup messages are showed in the following sections. -
Page 9: Change Username
4.1 Change Username You can change the ID of CT-58 by below command format. No space is allowed between the characters. For example, if you send the SMS message shown in the example below to the CT-58, you will change the ID from “username” to “ason”... -
Page 10: Change Password
4.2 Change Password Use this SMS message example shown below to change the password of CT-58. For example, by following the example below, you will change the default password, “0000” to a new password, “1111”. Setup format ＃「username」,「Password」,「Function Code」,「new Password」,「new Password」＊... -
Page 11: Set Up The Gprs Apn (Access Point Name)
The table 4.3.2 shows each confirmation message reply after setup. Situation Message Reply Setup Succeeds [username] + GC101 GPRS APN is updated. Setup Fail [username] + CT-58 GPRS APN setup Fail! Incorrect password [username] + Password setup Fail! Incorrect username or command [username] + command error format CT-58 is in Emergency Mode [username] + in emergency, GPRS APN setup is not allowed. -
Page 12: Set Up A Host Name (Url) To Transmit Data
“http://www.sanav.com/eric-gga/gprs.aspx “ will be assigned to receive the data sent from the CT-58. Please note that the question mark “?” or any symbol is not allowed to be keyed in behind the URL. The CT-58 will add the necessary symbol(s) on automatically. -
Page 13: Set Up The Phone Number List
The table 4.5.2 shows each confirmation message reply after setup. Situation Message Reply Setup Succeeds [username] + CT-58 phone book is updated. Setup Fail [username] + CT-58 phone book setup Fail! Non-numeric data is input for [username] + Parameter error... -
Page 14: Set Up Auto Report
Use this command to set up the frequency of Auto Report. If you send the SMS according to the example shown below to CT-58, you will have an Auto Report Message every 300 seconds for 99 messages. Once the loop is done, you can send a SMS message to update/renew, or switching off it in order to renew it. - Page 15 The table 4.6.2 shows each confirmation message reply after setup Situation Message Reply Setup Succeeds [username] + Setup OK.CT-58 Auto Report setting is updated. Setup Fail [username] + Auto Report setting Setup Fail! Incorrect password [username] + Password setup Fail!
-
Page 16: All Parameters Reset To Default
4.7 All Parameters Reset to Default Use this SMS message to reset CT-58 to factory default. You can just send the SMS according to the example seen below. It will overwrite all the current parameters to default. Setup format ＃「username」,「Password」,「Function Code」＊... -
Page 17: Acquire Report Of Current Position
Note that the message reply shown in Table 5.8.2 will only be sent back to cell phone that sent the SMS to do configuration. The caller’s ID of cellular phone must be activated in order to let the CT-58 recognize the caller ID and response accordingly. -
Page 18: Set Up E-Mail Address To Receive Data
Message Reply Setup Succeeds [username] + mail address Setup OK. Setup Fail [username] + mail address setup fail. CT-58 is in Emergency Mode [username] + in emergency, Mail address setting is not allowed. Incorrect password [username] + Password setup Fail! -
Page 19: Set Up Smtp Server
4.10 Set up SMTP Server After setting up the E-mail address, you still have to setup a SMTP server so that the CT-58 can use the SMTP server send E-mails. Setup SMTP by following instruction: Setup format ＃「username」,「Password」,「Function Code」,「SMTP server」＊... -
Page 20: Set Up Router For Transmitting Data By Url/Ip Or E-Mail
The table 4.11.2 describes the meaning of each segment in the message above. Text Keyed In SMS Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. - Page 21 [username] + in emergency, switching to Mail/SMS mode is not allowed. [username] + in emergency, switching to HTTP mode is not CT-58 is in Emergency Mode allowed. [username] + in emergency, switching to Mail mode is not allowed.
-
Page 22: Request Imei Code
Imei stands for international mobile equipment identification. We offer you a command to acquire the Imei number from CT-58 via SMS. Actually, every CT-58 budget has a different default Imei code. You can send the SMS according to the example shown below to check its imei number so as to register to the web server for tracking. -
Page 23: Deactivate Panic Mode
0000 Default password. If you have changed the password, please use the updated one. offpanic Mode offpanic is to deactivate the panic status of CT-58 End sign. Table 4.13.1 The table 4.13.2 shows each confirmation message reply after setup. Situation... -
Page 24: Setup Geofence Coordinate
Therefore, the coordinates is the center and the radius is defined in meter. Command: #username,0000,gf,2458.9741,N,12125.6460,E,500,0~3* Text Keyed In Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. -
Page 25: Geofence Alarm Report
Command: #username,0000,17,60,12* Text Keyed In SMS Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. Mode 17 is the Geofence report interval setting... -
Page 26: Set Up Voice Monitoring Mode
Mode 8 defines the switch between one-way phone and hidden microphone 0,1 or 2 1: CT-58 will get in voice monitoring function. 2: Voice polling then CT-58 will send a GPS data via assigned router to terminal. End sign. Table 4.15.1 The table 4.15.2 shows each confirmation message reply after setup. -
Page 27: Vibration Setting
4.16 Vibration Setting Vibration sensor is embedded in CT-58 tracker. You can use following commands to define vibration report as well as the situation that triggers the vibration alarm. Setup Format: #username,0000,vs,on,x,y,z* Example: #username,0000,vs,on,20,20,10* Text Keyed In SMS Description Start sign. - Page 28 When a 10 seconds is defined in the “off” mode and vibration sensor detects the vibration exceeds 10 seconds constantly, CT-58 will report to the terminal to alert users that the vehicle is being moved and the interval is 60...
-
Page 29: Sos Phone Setting
4.17 SOS Phone Setting While Panic function is triggered, CT-58 will automatically call the SOS phone number if this number is defined. The command format will be like following: Setup format：#「username」,「Password」,「Sosphone」,「Phone Number」* Example：#username,0000,sosphone,+886933123456* The table 4.17.1 describes the meaning of each segment in the message above. -
Page 30: Activate/Deactivate Park Function
4.18 Activate/Deactivate Park Function This command is used for activate and deactivate the Park function. When CT-58 is in park mode, Setup format：#「username」,「Password」,「Function Code」* Command: username,0000,7* Text Keyed In SMS Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. - Page 31 Command: #username,0000,16,60,12* Text Keyed In SMS Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. Mode 16 is the Move report interval setting...
-
Page 32: Set Up Tcp/ Udp Address To Transmit Data
[username] + Device TCP/UDP is updated. Setup Fail [username] + IP/Domain setup Fail! Incorrect password [username] + Password setup Fail! Incorrect username or command [username] + command error format CT-58 is in Emergency Mode [username] + in emergency, IP/Domain setup is not allowed. Table 4.19.2... -
Page 33: Set Up Panic Report
Use this command to set up the frequency of Panic Report. If you send the SMS according to the example shown below to CT-58, you will have a Panic Report Message every 300 seconds for 99 messages. Once the loop is done, you can send a SMS message to update/ renew, or switching off it in order to renew it. -
Page 34: Operate Log Function
4.21 Operate Log Function User can use this command to define the log mode of CT-58. There are two log modes can be defined. For the detail, please refer to following explanation and also the diagram of log function logic at the page of 36 and 37. -
Page 35: Define Log Interval
The table 4.22.1 describes the meaning of each segment in the message above. Text Keyed In SMS Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. - Page 36 Operation logic of log mode is set “1”; #username,0000,21,1* CT-58F...
- Page 37 Operation logic of log mode is set “2”; #username,0000,21,2* Log data interval is set “X”; #username,0000,20,X* CT-58 has logged “X” number of position...
-
Page 38: Erase The Logged Data
The table 4.23.1 describes the meaning of each segment in the message above. Text Keyed In SMS Description Start sign. username Default ID of CT-58. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. -
Page 39: Respond Messages
5. Respond Messages This chapter shows you how to read and understand the different response messages sent from CT-58. Basically, there’re 7 different situations that trigger the CT-58 to response its position (Auto Report, SMS Polling, Park, Move, GFIN, GOUT, UNPA, vibration, SOS) and are shown in the following pages. -
Page 40: Output Format When The Router Is Set To Http, E-Mail, Tcp Or Udp
5.1 Output Format When The Router Is Set to HTTP, E-mail, TCP or UDP 5.3.1 Uploading Auto data when GPS is fixed When execute the Auto Report according to the settings with a GPS fixed, CT-58 will upload the data to e-mail, TCP or UDP. The data format will be like the following. -
Page 41: Output Format When The Router Is Set To Sms
5.2 Output Format when The Router Is Set to SMS 5.2.1 Uploading Auto data when GPS is fixed When execute the Auto Report according to the settings with a GPS fixed, CT-58 will upload the data to SMS . The data format will be like the following. -
Page 42: Nmea 0183 Gprmc Sentence
5.3 NMEA 0183 GPRMC Sentence... -
Page 43: Warranty
6. Warranty Warranty Time Period and Repair Coverage SAN JOSE NAVIGATION, INC. warrants CT-58 to be free from all defects and malfunctions in materials and workmanship for a period of 12 months from the original purchase date from SAN JOSE Navigation or authorized dealers. If the equipment functions improperly during the warranty period, SAN JOSE Navigation will either repair or replace the unit without charge.
